RC6. My Memory Having a RC Car. My No 4 and 5 RC. 1/10 - 2002, 2 units QD RC car.

That the end of my friend hobby after married. But for me I didn’t stop there, in 2002 when the EP RC in the name of QD 1/10 scale in the market (Made In China). China copycat Japan Tamiys QD RC. Many people buy and modified and play. I bought two 2002 EP QD RC Car a Peugeot and a Mitsubishi Evo (RTR), Picture. Price for 2 RM140. I modified but it didn’t give me satisfaction. For me the GP RC still the best.

Start bloog =10/7/2008
Last update bloog = 04/01/2023
2002 - 2024 = 22 Years
Made in China (🇨🇳)

Both 5 and 4 in this blog


The original QD RC from Tamiya. Some parts almost same with China QD. But material  quality Tamiya is better.

The Tamiya Brand

This from Tamiya QD original.


The original QD chassis almost same, the circuit board seal and steering servo inside.  Not like China QD very simple


Bottom view original Tamiya QD.


Rear gearbox ori Tamiya




PEUGEOT 206


China Brand

MY First EP from QD product. I respray the body according to rally colour but not 100%

Side View





Rear View

The Control Circuit.

The Rear Axle Case With 2 Speed Hight and Low

The Steering Linkage eazy broken, they is metal linkage sale.


Then make Changes,  using Servo,Receiver and ESC need to buy

Using a servo to turn the stearing

I am using A Sanwa 27AM Receiver


The Motor i using Original


Using HY ESC


Modification Using Body Post Front


Know Using Pin as Lock Body To Chassis

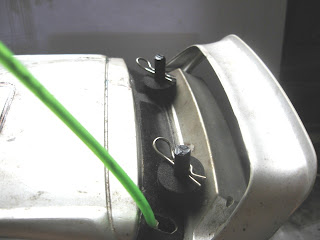

Rear oWith Body Post


Using Clip


This chassis is same as the Mitsubishi car. To use Mitsubishi  body just extend the front parts.

Just loosen the 4 screw and pull forward

The 4 screw trade just adjust the front parts.

24//2020.found the ion steering arm
Buy few cent only, buy in bunch parts in nilai 3

Modified a long screw



My QD Mitsubishi
Mitsubishi QD from Tamiya original.

MITSUBISHI  BODY

My second EP also from QD. Mitsubishi EVO Body.

Front View

Rear View

The Under Carrage


My first modification, using Car Relay,  No Reverse. I just follow the car that my friend have modified. But his relay is small.


The Small Motor and Wheel

2009 i modified this QD Mitsubishi, using Futaba Receiver and servo. The steering  using Futaba 3003 servo no more small motor. Did,t changing the  Motor, Run condition not fast. Just for fun to do modification when free time.

The old circuit and the steering Motor.

The Futaba Receive

Using HL ESC

Using Futaba 3003 servo to turn the steering.

The Over View.

I change the Motor in 2011, using car power window motor 12v. Look like it better then the original motor. To run faster i using a 7.2V 5100 mAh  NiMh Battery. To go more faster i use 9V Battery.
At side to prevent dust going in

Just simple cut two pcs aluminium plate and tighten to hold the motor


Long screw

Use Futaba receiver

Not using this car original switch

usig HL ESC

Using 7.2 v battery the car more heavier, more stable.

use a servo to turn the steering.

On 22/9/2020 for rc parts hunting at nilai found the steering arm. Metal material. Those days when play ruff on road surfaces the arm will break very thin plastic. If not mistaken a set Rm25. Not buying because this was a toys grade. Until i found it in this rc shop whare many QD parts left un sold. Some in loose. So found 2 and after so long i fitted in. Next 2 set
Found in loose parts ,only few sen because i buy many rc parts in a bunch.

The plastic arm eazy break,  my i modified using s long screw.

Fitted







Have fun enjoy RC






Comments

Emil said…
want to sell that mitsubishi?
Rallyboy said…
Sorry not for sale this moment. Thankd
kordi said…
Mengulit kenangan, kalau hantar kedai untuk modified, PCB board tu dia tutup dengan gam silikon. Haha
Rallyboy said…
Sekarang senang esc murah ada jual
kalau tsk silap lazada rm24. Ori circuit board susah nak repair. Time tu saya ikut kaki modified try guna relay, laju tak kemana selepas tu hy, hl esc dipasaran beli pasang lagi senang tak payah pening2. Paling boring hub depan yg 3 kaki tu mudah patah. Saya punya dah tukar besi baru2 ni. Jumpa brg murah terus beli pasang. Yap zaman tu memang top QD brand paling murah. Sekarang bila i jumpa yg body keras terus beli. Vintage 2002 product. Enjoy RC have fun.
Unknown said…
Mane nak dpat rc qd ni.. Puas cari
Rallyboy said…
Susah dah u cari apa? Saya jumpa pun nasib.
Rallyboy said…
Body tu memang susah, rear axle boleh lagi pernah tengok secondhand. Brg electrical tu memang tak ada, kalau ada takut rosak. modified to esc dan steering letak servo.
