Fishing 🎣 23. My Fishing Hobby. DAM Quick SE140, SHIMANO Sahara 1000F, TEBEN TF100, TICA Streamstar LS3500
This is the reel after repair and service i use it. Other reel some i sold for only RM10 after repair and service because i don't like to keep un branded reel. If found good reel i will keep it. Below is 4 pcs of recond reel i keep..
Start blogger = 8/10/2017
Start blogger = 8/10/2017
Update blog =
My no 29 reel, DAM QUICK SE 140.
My no 30 reel, SHIMANO SAHARA 1000F.
.
Have fun in 🎣 .

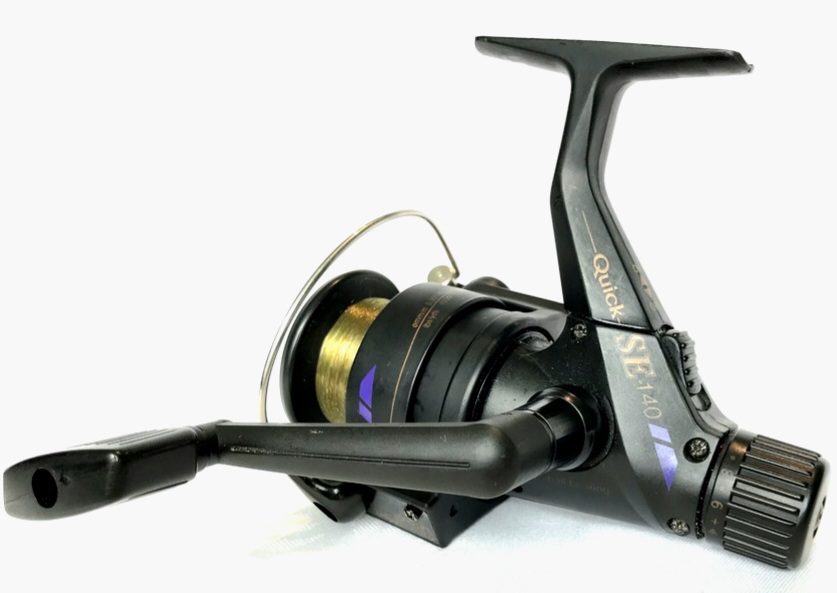

My no 29 reel, DAM QUICK SE 140.
Buy for rm15 in fleamarket seremban, Condition poor (look at my rework recond reel blog). Luckily I have some other damage DAM spare parts that can replace on this reel.
1. Graphite body and spool
2. Gear Ratio 1: 4.6
3. 3 ball bearing
4. Line Capacity : 0.30die/180m, 0.35/120, 0.40/100
5. Line test = 10ibs/200yds, 14/130, 18/110
6. L & R interchangeble handle.
7. Foldble handle
8. Rear drag
1. Graphite body and spool
2. Gear Ratio 1: 4.6
3. 3 ball bearing
4. Line Capacity : 0.30die/180m, 0.35/120, 0.40/100
5. Line test = 10ibs/200yds, 14/130, 18/110
6. L & R interchangeble handle.
7. Foldble handle
8. Rear drag
 |
| Not mine just to show the box |
 |
| This reel not my. Just to show the good condition reel. |
 |
| Right side view |
 |
| Front view |
 |
| Rear view |
 |
| Bottom view |
 |
| Small line roller |
 |
| with line clip |
 |
| One push button to release spool |
 |
| The foldble handle and changeble lhs to rhs. |
 |
| Rear drag knob |
 |
| Anty reverse button |
 |
| The gear system |
 |
| First try up, line out smooth and roll in smooth no problem. My friend want to buy from me this reel but i refuse due to i love DAM reels. |

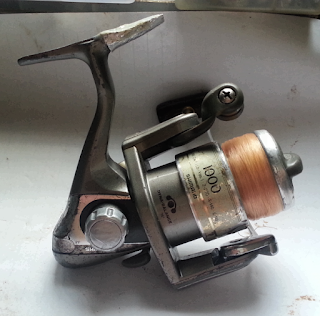

My no 30 reel, SHIMANO SAHARA 1000F.
Same problem damage reel. The oscillating gear teeth break, so i replace with almost same size but more teeth. After recondition and service the gear ratio change from 6.1:1 to 7.0:1. More faster line roll in. with broken arm but manage to modified. Buy for RM3 fleamarket seremban.
1. Shimano Sahara 1000F
2. Made in Malaysia
3. 4 Ballbearing
4. Weight : 259g
5. Drag : 2kg
6. Dyna Balance
7. Big line roller
8. Gear ratio : ori 6.1:1 up grade ratio 7.0 :1
9. Line Capacity : 2 Ibs/270m , 4 / 140, 6/ 110
10. Front drag
11. One touch foldble handle
1. Shimano Sahara 1000F
2. Made in Malaysia
3. 4 Ballbearing
4. Weight : 259g
5. Drag : 2kg
6. Dyna Balance
7. Big line roller
8. Gear ratio : ori 6.1:1 up grade ratio 7.0 :1
9. Line Capacity : 2 Ibs/270m , 4 / 140, 6/ 110
10. Front drag
11. One touch foldble handle
 |
| Not my, just to show the ori look with box |
 |
| Body color paint chip and broken arm. |
 |
| The box |
 |
| Parts view |
 |
| Parts list |
 |
| Right view |
 |
| Front view |
 |
| Back view |
 |
| Bottom view |
 |
| A big line roller |
 |
| Front Drag |
 |
| Anti reverse lever at bottom |
 |
| This is the original handle. The grip made by plastic. I change to wood handle |
 |
| ori handle using plastick grip, i change to a wood grip look more nicer. The foldble handle with wood grip. |
 |
| One touch foldble handle and changeble lhs or rhs |
 |
| The aluminium spool |
 |
| The drag knob and dent spool |
 |
| The line clip |
 |
| The gear system |
 |
| Special bearing for reverse stoper |
 |
| Inside the special clutch |
 |
| This my second try up. The first time i use to do casting in bentong river but no fish. |
My no 31 reel, TEBEN TF100.
Very nice reel not much paint fault, when i bought it only damage oscillating gear. Found the same size replace and do service Can be use light reel, not yet try to fish.Buy for RM3 fleamarket seremban.
1. Made in China
2. Gear ratio : 5.1:1
3. 3 ball bearing
4. Aluminium spool
5. Line Test : 4ibs/122, 5/170, 6/137
6. Line Die : 0.15/122m, 0.18/154, 0.20/125
2. Gear ratio : 5.1:1
3. 3 ball bearing
4. Aluminium spool
5. Line Test : 4ibs/122, 5/170, 6/137
6. Line Die : 0.15/122m, 0.18/154, 0.20/125
7. Corrosion Resistant
8. High Modulus
9. Machine cut brass pinion gear
10. Superior line by oscillating system
11. Quick set anti reverse
12. Extra drag system
13. Zero vibrative balance rotor system
8. High Modulus
9. Machine cut brass pinion gear
10. Superior line by oscillating system
11. Quick set anti reverse
12. Extra drag system
13. Zero vibrative balance rotor system
14. Light weight
My no 32 reel, TICA STREAMSTAR LS3500.
 |
| Not mine, just to show Sample of the box |
 |
| Not mine just to show the new look |
 |
| Lhs view |
 |
| Front view |
 |
| Rhs view |
 |
| Back view |
 |
| Bottom view |
 |
| Line roller |
 |
| Anti reverse lever |
 |
| Front drag system |
 |
| The drag knob and aluminium spool |
 |
| Foldble and changeble handle |
 |
| The gear system |
My no 32 reel, TICA STREAMSTAR LS3500.
Buy Rm3 fleamarket seremban. No spool, handle damage and main shaft bend. Re streight back the shaft, change the handle and buy a spool Rm15 different model EY3500, total service another second hand reel that can keep and use.
1. Made in China
2. 5 ball bearing
3. Anty twist line roller
4. Uniform line lay for fluent line out
5. L/R interchangeble handle
6. Forgef anti corrosion aluminium spool
7. Multi stop anti reverse
8. Computer balance rotor
9. Crank oscillating system
10. Click drag knob
11. Weight : 315g
12. Gear ratio : 4.9 :1
13 Line Test : 10Ibs/275m, 12/250, 14/222
14 Line die : 0.29/250, 0.30/200, 0.32/202
15. Drag : 4kg
1. Made in China
2. 5 ball bearing
3. Anty twist line roller
4. Uniform line lay for fluent line out
5. L/R interchangeble handle
6. Forgef anti corrosion aluminium spool
7. Multi stop anti reverse
8. Computer balance rotor
9. Crank oscillating system
10. Click drag knob
11. Weight : 315g
12. Gear ratio : 4.9 :1
13 Line Test : 10Ibs/275m, 12/250, 14/222
14 Line die : 0.29/250, 0.30/200, 0.32/202
15. Drag : 4kg
 |
| Not mine just to show the box |
 |
| Not mine, The ori image |
 |
| Lhs view |
 |
| Front view |
 |
| Rhs view |
 |
| Back view |
 |
| Bottom view |
 |
| Line roler |
 |
| Front drag |
 |
| Aluminium spool |
 |
| The handle not ori |
 |
| Foldble and changeble lhs or rhs handle |
 |
| The gear system |
Have fun in 🎣 .
