RC95. My Memory Having RC CAR. My No54 RC. Kyosho V One R 1/10 Nitro Year 2000.

-
Buy secondhand the third units with same person from Bandar Baru Bangi Selangor on 29/3/2024. RM100. This is Kyosho V One R year 2000. Problem no radio tray, only in ebay the graphic sale for Rm500 ++. Normal VZ062 around Rm250++. So I will DIY this radio tray using hard plastic. Firstly Will do using card board cut out the shape.
This RC is my waiting list to own. When first out to market new is around Rm1600 ++ very famoust. Some Parts can use V One S.  Today 2024 new kyosho V one R4s II. V one R not much review in Internet.

Start blogger = 4/4/2024
Update blog = 30/4/2024
Made in JAPAN 🇯🇵


Image from saller, the radio try for Smartech rc

My first look

The box complete CKD parts. Need to assembly ownself. Not my

The original image V one R not my.

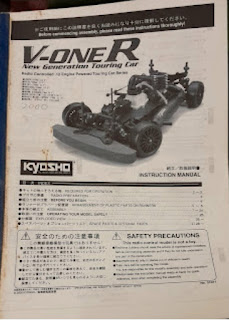

The assembly manual down load pdf

Fault Found
1. No radio tray
2. No fuel tank
3. 2 pcs rear damper missing
4. No body
5. No remort control
6. No receiver
7. No servo
8. Rear body post missing one pcs
9. Front rhs shock not tighten loose
10. No roll bar
11. No acc and steering rod
12. No side belting
13. Side belt missing front and rear drive pulley.
14. Rear shock tower broken reglue
15. Missing screw center front bottom bracket.
16. Front chassis lhs chip off.
17. Rear 2 pcs aluminium drive gear worn off still can use.
18. Front rhs E clip missing to hold the cross bar.
19. Center housing screw not tighten
20. Rear rhs wheel hub add a copper bushing spacer.
21.  Missing bracket for holding receiver FM314
22. No on/off switch.
23. Steering ball end wrongly fitted.
24. Small spring on front shockabsober rubber cup.

Need to DIY this radio tray

Missing side front drive pulley

Missing side rear drive pulley

Missing radio tray


No rear shock





2 speed gear ok

Front belt damage

Steering linkage

Brake lever

Rear belt ok

Rear Stabilizer bar


Belt Tensional Post

Big Brake disc

original wheel hex from kyosho front lhs/rhs

Simple steering arm from kyosho

wrong fitted ball end

All wheels hub using ballbearing in and out

Front uj

Front sway bar

Front bottom bumper missing nut

Rhs Side edge classis chip off

Dirty with dry oil

Center aluminium drive pulley worn off still can use

Aluminium center holder bracket

Front rhs e clip missing


Front hard to turn, internal oil using hight velocity for gear so don't want change. Rear axle same.

Loose screw


The thick chassis

Dry oil

Rear suspension remove

Rear wheel hex lhs/rhs using other aluminium type

Rear shock tower lhs broken reglue


Rear rhs add a copper bushing



Doubles disc brake

The aluminium drive pulley worn off due to stone stuck on it.

Done all parts remove






Done cleaning dry up.




Done all dry and clean will assembly shortly

All the screw, ball bearing. when fix back will clean using WD40.

Fix this parts, know DIY the radio tray first using card board.

I ordering this clear rigid sheet 1mm thick to make the radio tray. Take time didn't have the original size so from image I just adjust the measurement.


Fuel tank

For servo

Roughly the template from a card board. Measurement later do the second board. Next the size of servo and Fuel tank.

FM314 only this parts I found in Shoopee. Is for battery and receiver mounting Rm29.

Second template almost done only left the receiver bracket, battery holder, roll bar and screw hole.

The fuel tank from kyosho new center,  servo location stering.


Found another kyosho parts for radio tray VZ060 Rm45

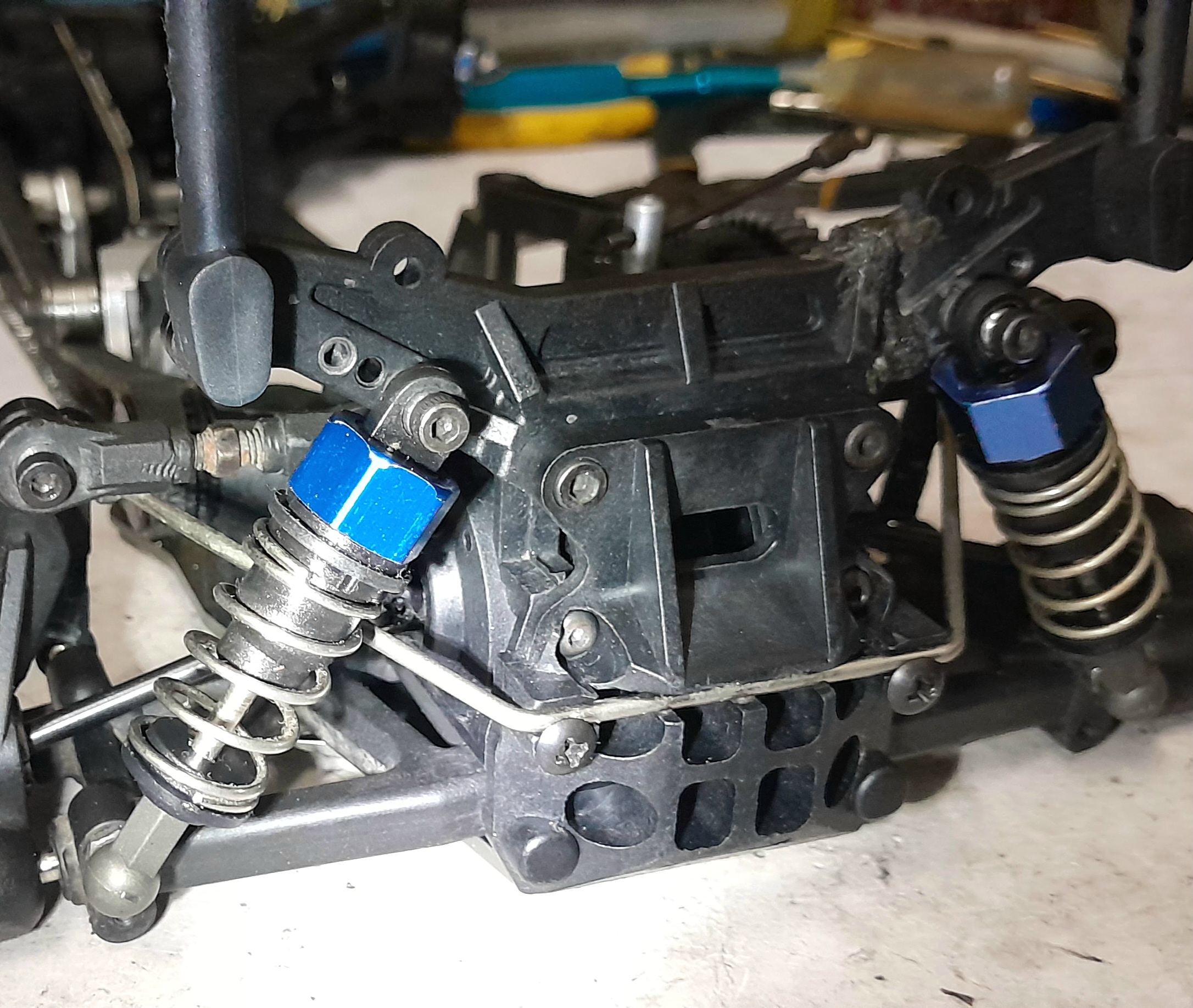

Front suspension set done


Rear suspension set

Same nylon pulley T18

Front pulley T27

The inner center pulley T18 I change nylon type

Belt I use v one SII





Kyosho body post

Damper rear not the adjustment type







Small spring on top shock absorber rubber cup. Front both side.

Oil ok


Using a 1mm PVC model board for radio tray. Few more parts before I spray black



The roll bar

All screw in



Done next spray black. All parts fix









Spray black














Add fuel filter, air cooler, hoses and antenna pipe.

Add a switch

Found a fuel tank from Victory Hawk made in china almost same to V One R, buy for Rm25. Smaller then the fuel tank FW06 I fix. Come without exhaust return valve. Need do some modification

Missing exhaust return valve





Add one I have spare

Done


I change side nylon 19T pulley to aluminium 18T pulley.

For the rear shock stay I reglue with 2 tan glue make thinker
Inner

Outer













Enjoy RC
