RC94. My Memory Having RC CAR. My no 53 car. CEN CT4S 1/10 Nitro 2003

-
29/3/2024, buy a secondhand RC from same guy in Bandar Bangi Baru Selangor. Meet up KIPMall bangi. My no 53 Rc own. Condition very dirty, no wheels, no body, no Remote control and missing parts. This CEN CT4S same as my CT5 2005. The diffrent in 2003 CEN CT4S, in radio tray aluminium alloy radio tray (CT5 Graphic), roll bar stright no bending and center belt tensional post screw hole didn't have. Pdf assembly manual CT4S can't get in Internet.
I am using CT4R manual. This units almost complete. Only un complete engine missing piston, piston rod, liner, pull start. Given some extra parts. Came with 2 speed gear. But overall after total cleaning still have few thing to readjusted and DIY. Photo will be show. Is a running Rc.

Fault Found
1. No wheels
2. No body
3. No Remote control
4. Damage engine - no piston, no piston rod, no liner, no crank rod, no crank cover and no Pullstart, dust cover caburetor become solid harden.
5. Full of dust and oil
6. Damage air filter sponge
7. The fuel tank primary pump rubber missing
8. Missing wheel hex rear rhs
9. Using smartech am receiver
10. Scratch under surface
11. Missing socket steering servo
12. No ON/OFF switch
13. No antenna wire pipe
14. The bumper form unevent cut
15. Front and rear axle gear dry greese
16. No receiver battery holder
17. Torn belting on center and side bealting because of small stone on gear teeth.
18. No fuel line
19. Greese dry up on both axle case

Start blogger = 1/4/2024
Update blog = 23/4/2023
Made In USA 🇺🇸 .


Image from saller

Some extra parts given

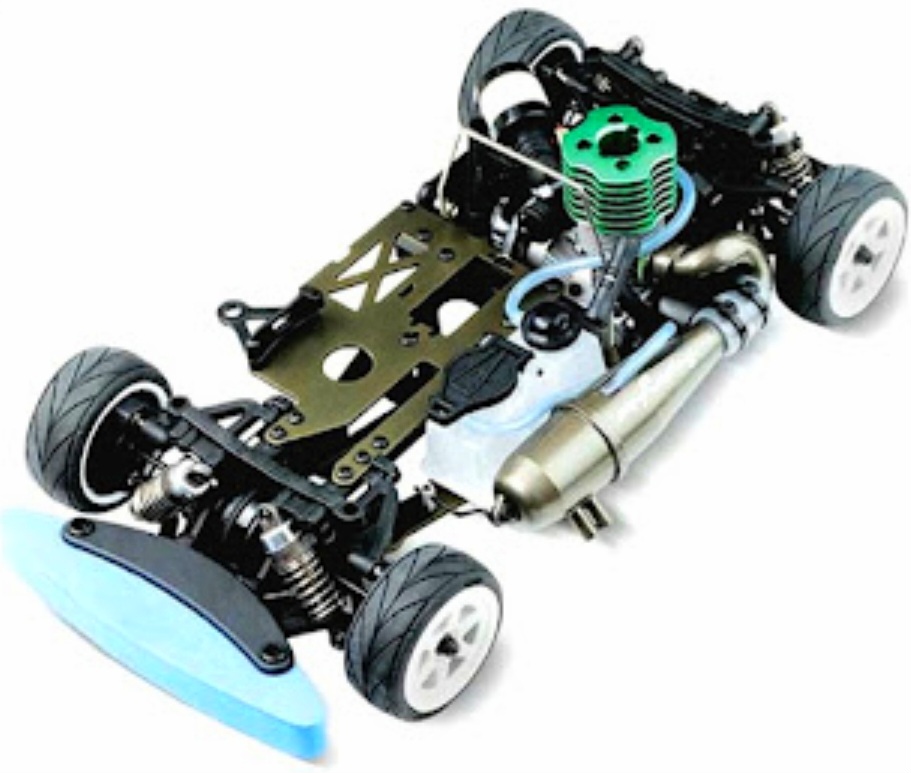

The original Complete CT4S not mine

No assembly manual for download I can use CT4R.

The box not my

Before total cleaning







primery pump rubber missing

Uncomplete Engine


Double speed, gear ok

Aluminium alloy radio tray


Missing wheel hub rear lhs

Dirty thick dust

Steering set can't change ballbearing type

Using smartech receiver

Damage air filter sponge

Chassis scratch

No receiver wire tube, no on/off switch

One servo connector missing, another one wire came out.

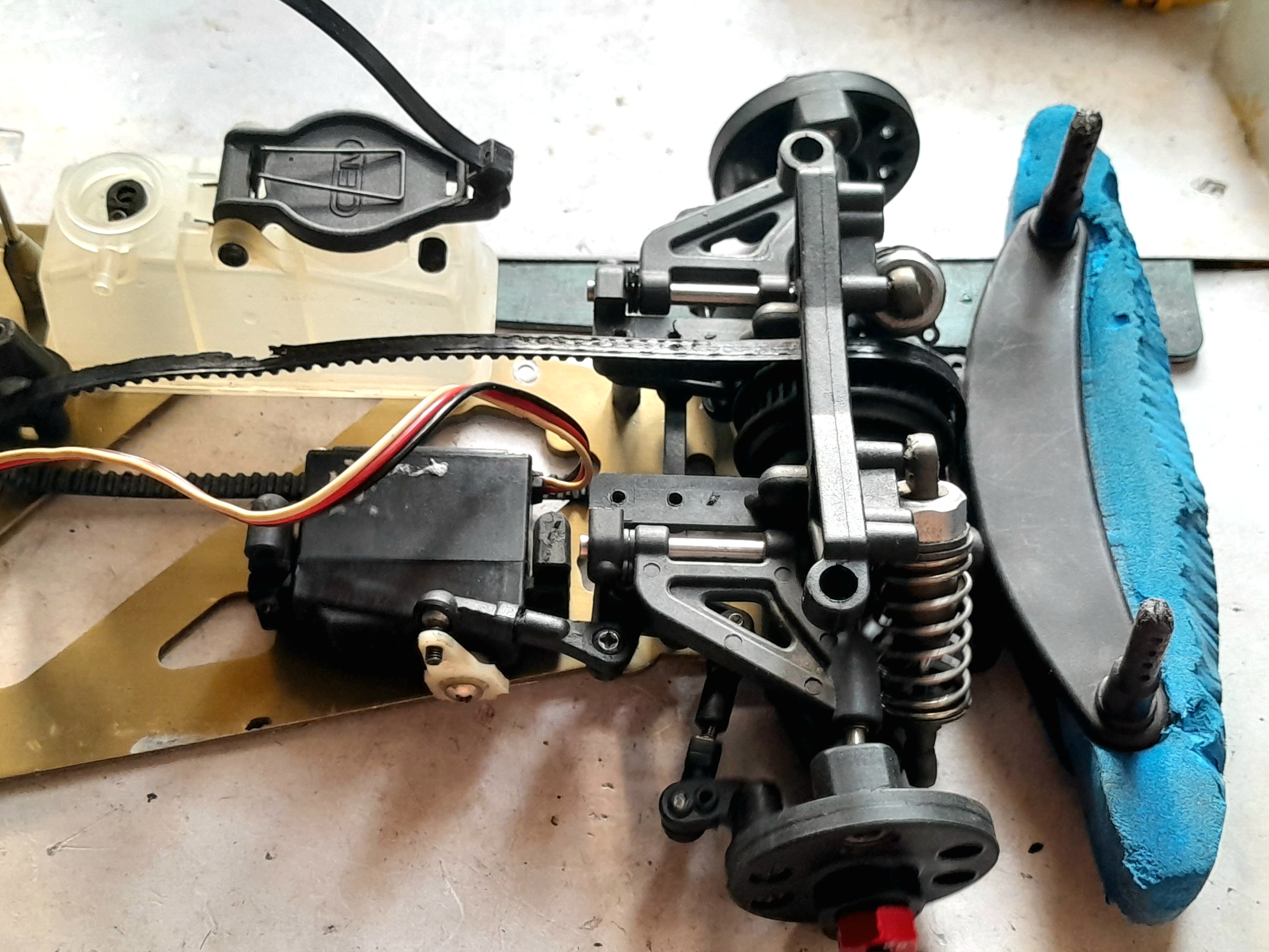

Unevent cut bumper form

Oil shock

Given extra parts

Engine compartment full of dry oil and dust. The engine plate tighten with wrong screw and nut.

The dismental CEN Engine
The CEN NX 15 engine,




This cylinder head not for this engine







The crankshaft with dry hard slug

Sponge damage, can DIY

The fuel intake valve wrongly fitted.

The flywheel speed gear using ballbearing not needle bearing

The engine parts all dismental

CEN 82108 servo

The aluminium alloy radio tray
Top

Bottom

Side belt tensioner post


The 2 speed gear ok

Rear belt ok

All turning Parts using ballbearing

Sidebelt harden and torn

Both CEN servo function


All wheel using ballbearing

The steering linkage

Front suspension arm



Center belt torn

Rear suspension arm






Into ditergen soften the dust

Dry up


Axle gear dry greese

Caburetor dust cover become harden.

Done cleaning the parts




Damper oil ok just top up

Done service

Engine just assembly back for dummy purposes,








Add new greese and oil








Change 6m aluminium wheel hex






Almost done rear






Add a fuel filter


Cut a same size sponge

Just for show new wheels

The other parts need to look into
1. New engine
2. Tune pipe
3. Rework on fuel tank
4. Need a on/off switch

Done Total rework and clean. The rest problem will rework slowly.


Add fuel filter, air cooler, hoses, antena pipe and seal the fuel primary pump.


Add in a switch

Put in a tune pipe for show

All in
















Enjoy RC
