The fourth RC buy from same person on 29/3/2024 in Bandar Baru Bangi Selangor. My no 55 RC own. Rm100 Smartech Winner Pro Year 2002 (101450). This units look like a spare parts units. Rear suspension set open in loose parts and center speed transmission missing. Given some parts for rear suspension. Will fix every parts given see what parts still missing.
Spare parts in Malaysia difficult to get, not sale in Shoopee only international ebay. Some parts I will try DIY from HSP parts. This RC same will total clean up. Last will modified.
No assembly manual in pdf and not much review on this pro units.
Start blogger = 5/4/2024
Update blog = 30/12/2024
Total Spending parts = Rm57.20
2002 to 2025 = (23 Years)
Made In Taiwan 🇹🇼 .
.jpg) |

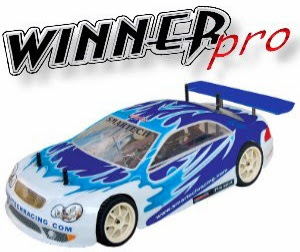

| The new car image with bigger cyclinder head. not my |
 |

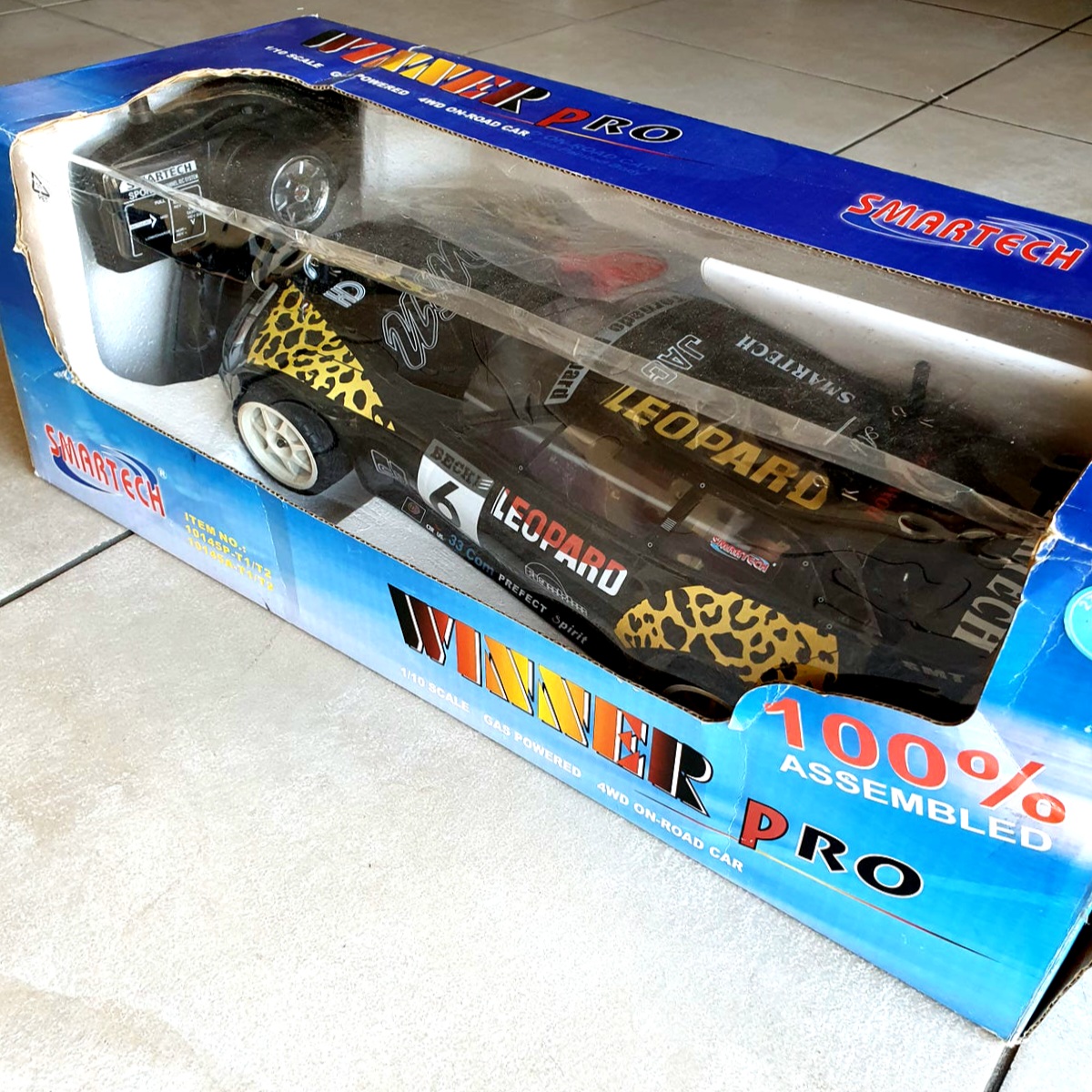

| The ori box RTR, not my |
 |
| The body not my |
.jpg) |
| Image from saller |
.jpg) |
| some of parts for rear suspension but not complete. The fuel tank I fix to Smartech Winner 1. |
.jpg) |
| The loose parts given |
Fault Found.
1. Chassis dirty with oil and dirt
2. Front suspension arm top pin missing.
3. Front body post screw dent.
4. Front lhs dogbone missing
5. Front lhs wheel hub outer ballbearing missing
6. Front lhs missing drive shaft
7. Front lhs drive hub missing screw and wheel hex.
8. Front lhs damper not tighten bottom ball end.
9. Missing one servo
10. Missing wheel nut front
11. No body
12. No wheels 4 pcs
13. No Remote control
14. No on/off switch
15. No center propeller shaft
16. No steering set
17. No engine
18. No engine mounting
19. No fuel tank
20. No center transfer gear
21. No push rod acc/brake
22. No exhaust
23. Rear axle case no ballbearing 2 pcs
24. Rear lhs suspention lower pin missing.
25. Rear lhs wheel hub missing 1 outer ballbearing
26. Rear lhs suspension no dogbone
27. Rear lhs missing a damper
28. Rear lhs no wheel hex/nut
29. Rear suspension pin dent.
30. Rear rhs using Longer wheel hex.
31. Lhs hub no screw and wheel hex.
32. Some plastic parts loose trade use super glue
 |
| From top after all the loose parts fix back |
 |
| Rear rhs, Only one long wheel hex, no dogbone |
 |
| Rear lhs no dogbone, damper |
 |
| No front proppeler shaft, fuel tank and steering set |
 |
| Rear proppeler shaft |
 |
| No dogbone front lhs, wheel hub, dogbone, wheel hex, nut |
 |
| Missing bearing and wheel shaft |
 |
| Front lhs shock not tighten |
 |
| Front top suspension arm missing pin |
 |
| Under scratch normal |
Dismental all parts, Total service
 |
| No greese |
 |
| Not much greese |
Assembly back and add few missing parts
 |
| Dogbone I have the length. Front |
 |
| Rear |
 |
| Screw dent. |
Rear suspension arm pin dent
 |
| Both new pin from HSP. |
 |
| Front done |
 |
| Complete parts |
 |
| Rear suspension |
 |
| Rear Dogbone using 61mm |
 |
| Rear inside |
 |
| Rear done with non adjustable shockabsober |
 |
| Temporary wheels |
.jpg) |
| After assembly front and rear parts. Missing all center parts. |
Next modified a single speed gear from HSP on this RC. Need to cut out few parts. Can use. Little taller.
 |
| Only tighten 3 screw bottom. |
 |
| Only 3 screw. |
 |
| The front and rear dogbone need to adjust can't get the same length 55mm size. Need to adjust the cup. |
 |
| When put in the radio tray the speed housing touching so i cut it out. |
Try use my Smartech Winner 1 engine on this chassis but the spur gear small 44T. Then I use kyosho 48T ok gear touching.
 |
| The black ori spur gear 44T small the engine clutch Bell not touching. So I use Kyosho 48T ok, next will order 52T. |
 |
| Gear teeth touching next buy 52T |
Done only left steering set and linkage, fuel tank i use HSP need some modification on seat,
 |

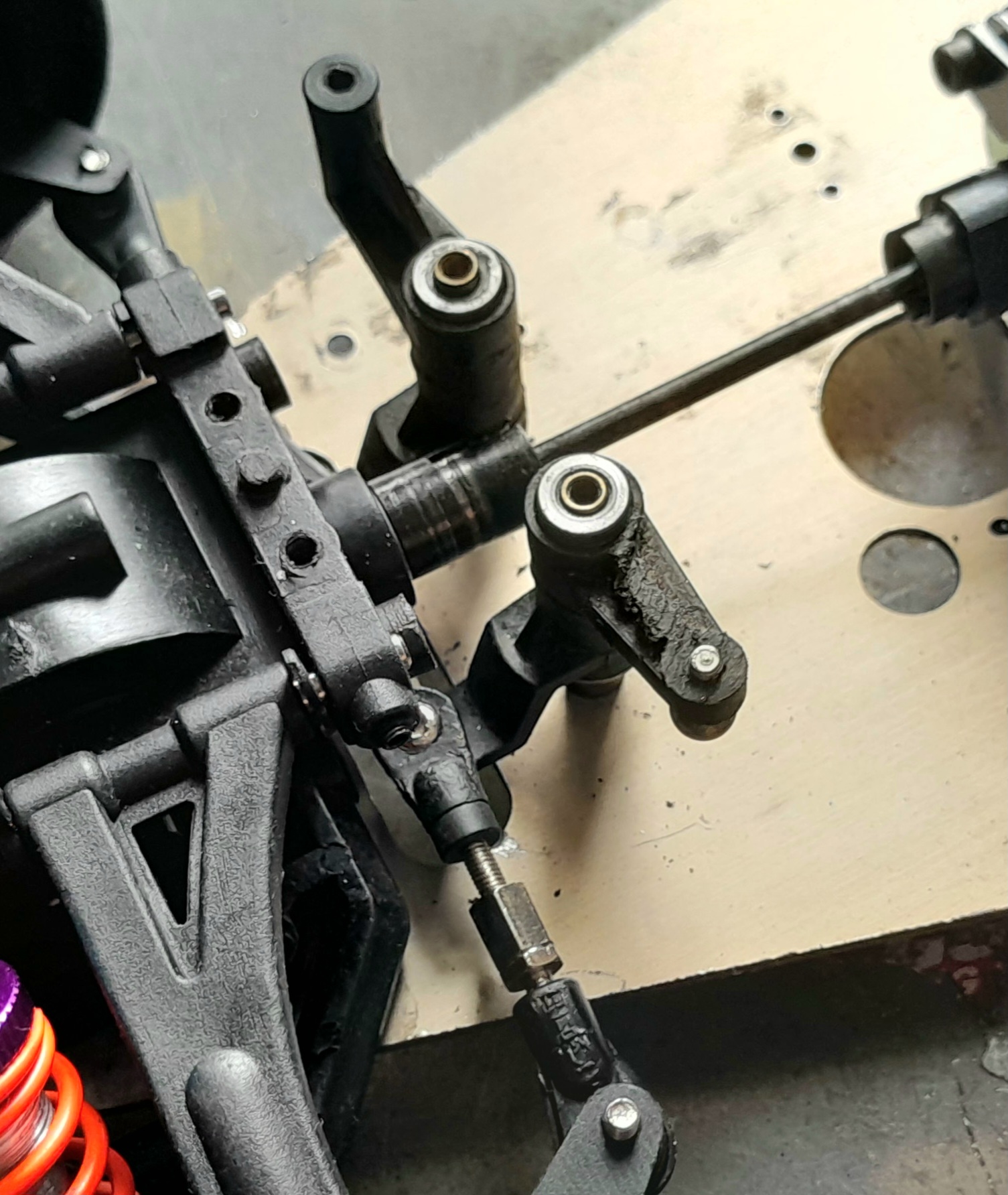

| Modified steering arm set |
 |
| Fuel tank modified 2 stand |
 |
| The engine /brake linkage |
In one year 2002 Smartech RC came out two RC.
 |
| Lhs Winner-1. Rhs Winner Pro. |
Add fuel line, fuel filter, air cooler, air return hose and antenna pipe
.I use the damage Protoform body DNA.
Enjoy RC
