Another Clone RC from china i buy for RM200. Brand HuanQi HQ703 #9895# year 2005. A clone of Kyosho FW05. Just buy to compare with ori Kyosho FW05 see what the diffrent. Not much review on this RC event in you tube. But spare parts, suspension arm rear/front, axle housing, i have some that i buy cheap in nilai 3..
Start blogger = 16/12/2022
Up Date = 25/10/2023
2005 - 2024 = 19 Years
Spending on spareparts = Rm100.55
Made in China (🇨🇳)
Fault found
1. Engine no pull start using rotor start.
2. Brake shaft missing
3. Brake linkages missing
4. 2 speed gear damage.
5. No body
6. No tyre
7. No remote
8. With rusty screw
9. Some rusty turn buckle.
10. Air filter no sponge
11. Shock spring rusty
12. Missing screw on servo
13. Rear knuckle not adjustable linkages.
14. Steering linkage not adjustable.
15. Missing two speed back housing.
16. Proppeler shaft rear metal front plastic
17. Brake pads damage
18. Wrongly fitted and no tighten the Proppeler holder.
19. Glow plug missing coper seal
20. Exhaust holder pin missing
21. Rotor start mounting missing 2 screw.
22. Missing screw and wrong screw on engine mounting.
23. Flywheel broken a pin
24. Clutch disc damage
25. Bottom fuel tank wrong screw loose.
26. On/off switch not tighten.
27. Caburetor lock nut missing
28. Axle case greese dry front/rear
29. Steering linkages no ball bearing hard to turn.
30. Rear lhs wheel knuckle wrong parts
31. Rear lhs wheel using coper bushing
32. Diffrent size rear lhs wheel shaft.
33. Engine can't start after service ko
34. Using plastick wheels hex.
From saller image
 |
| Red dot i put to show some missing parts. Other damage parts can't see. |
 |
| Not mine just to show the new Rc |
 |
| Some of the parts for this RC that i buy cheap in Nilai 3. |
Got the RC with my runner, not with me yet, will review soon when i get this RC.
 |
| From ori Pullstart this owner change Using rotor starter, i didn't have so may be i am using drill |
 |
| On/off switch not tighten |
 |
| Acc linkage not tighten and rusty |
 |
| No sponge |
 |

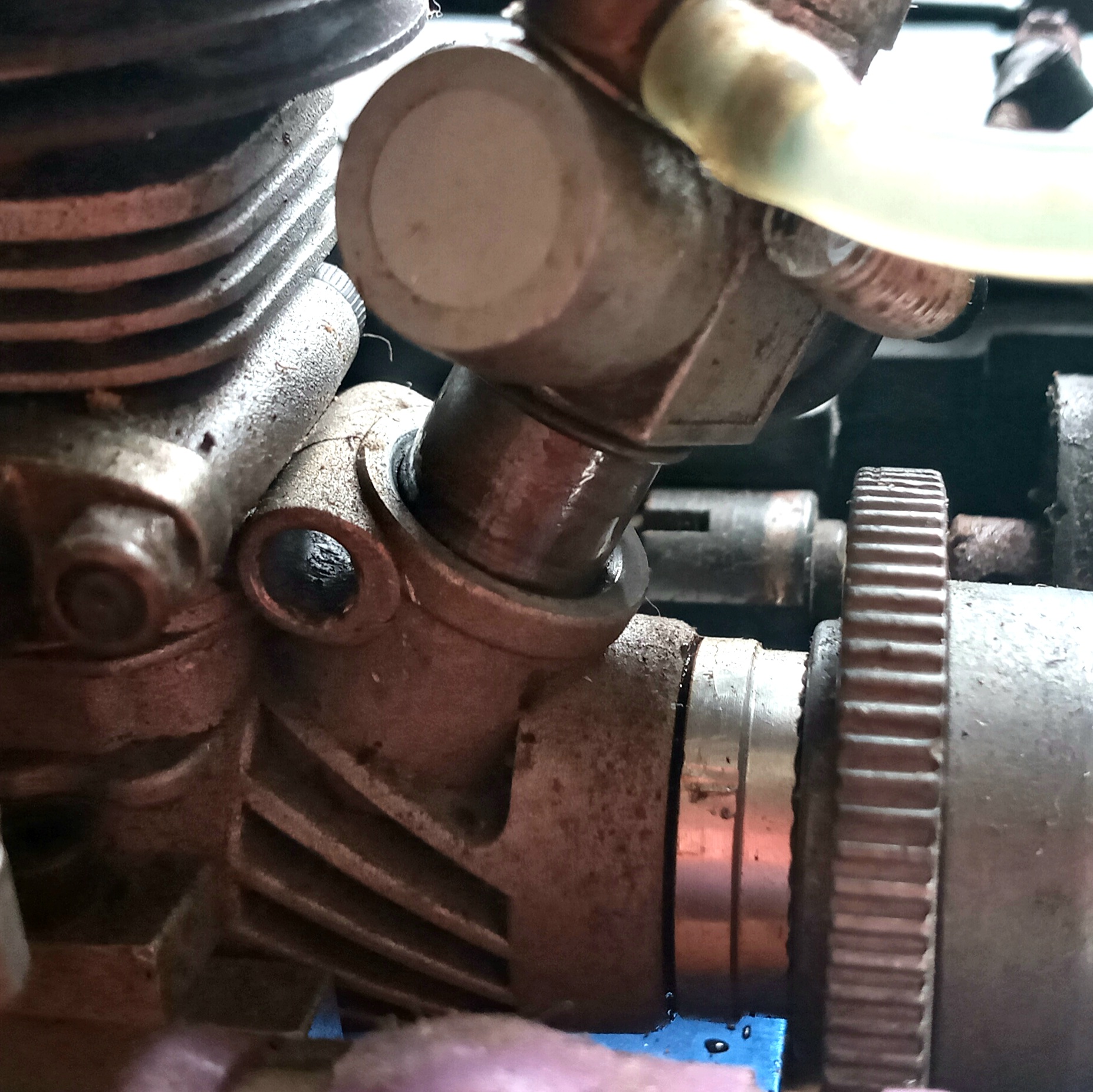

| Caburetor lock nut missing |
 |
| Small damage on bumper form |
 |
| Both 2 speed gear damage. But first gear total damage |
 |
| Linkage brake missing |
 |
| No screw 3 pcs bracket missing |
 |
| No tyre |
 |
| Steering arm not adjustable and tighten with screw supposed ball end |
 |
| Glow plug function |
 |
| N3 no copper o ring |
 |
| Flywheel broken pin |
 |
| The clutch damage |
 |
| Red seal |
 |
| Missing 2 screw on rotor start |
 |
| Gear no greese, should be add little |
 |
| Loose on shaft holder no allen screw, and rusty . |
 |
| Fuel tank wrong screw loose |
 |
| 75cc nitro tank |
 |
| Wrong Proppeler shaft front plastic rear metal. Ori FW05 both metal |
 |
| Missing exhaust holder pin |
 |
| Not the ori Proppeler shaft holder |
 |
| Damage brake shoes |
 |
| Missing bracket for two speed gear |
 |
| Wrong Proppeler holder for front, diffrent brake disc FW05 using hoder with 2 pin |
 |
| All engine parts remove |
 |
| 2 speed gear total remove |
 |
| Steering linkage no ballbearing hard to turn |
 |
| Radio box |
 |
| Rear lhs rhs wheel knuckle diffrent parts |
 |
| 3 wheels with ball bearing rear lhs using coper bushing. |
 |
| Rear lhs wrong knuckle and diffrent daimeter outer drive shaft. |
 |
| Rear lhs different wheel knuckle |
 |
| Rear lhs different parts |
 |
| Rear axle dry greese |
 |
| Inner case also dry greese |
 |
| Total dismental rear axle |
 |
| Front axle same dry up greese |
 |
| All parts remove |
Assembly back after total clean
 |
| Put in new greese into axle case |
 |
| Don front/rear |
 |
| Change plastic bushing to ball bearing steering linkages |
 |
| Front section done |
 |
| Rear Lhs different wheel hub size. I use same size rhs from kyosho |
 |
| Rear done |
 |
| Change Using turn buckle |
 |
| Done front and rear |
 |
| No leak, rusty spring and shaft will be clean. |
 |
| Damper oil still ok, Just top up |
 |
| First gear change new |
 |
| Both Servo SS001from HuanQi still function |
 |
| Steering rod changed to turn buckle |
 |
| Radio tray clean |
 |
| Put a exhaust holder |
 |
| Change the brake disc whare the proppeler holder have 2 pin ori for FW05 |
 |
| The 2 speed |
 |
| Only rear 2 speed mounting need to buy |
 |
| Nitro tank inside wash. |
 |
| All 4 damper service |
 |
| Buy Rm19.50 VS102, plastic Proppeler shaft shorten then the FW06 |
 |
| New for first speed gear, second gear still can use |
 |
| Partly done left tyre, brake rod, 2 speed housing, acc and brake long rod. All this item will buy. |
 |
| Engine done, test to turn, fill like low of compression, need starter box to test. |
 |
| DIY brake level |
 |
| Top original from kyosho below DIY |
 |
| Fix in can function |
 |
| New rubber tyre |
 |
| The brake linkages |
 |
| Add a fuel filter |
Wheels Alaiment
Camber front/rear = 0
Front toe in = - 1
Rear toe in = -2
Done only need a body and 2 speed housing
Two FW05 lhs ori kyosho FW05S, rhs Clone FW05 from HuanQui.
I use this Nissan GTR secondhand body. Do some modifications on rear body post.
Due to didn't have the rotor start, I buy a pull start recoil. After fixing same engine can't start. Only Rm6
 |
| Buy rm6 |

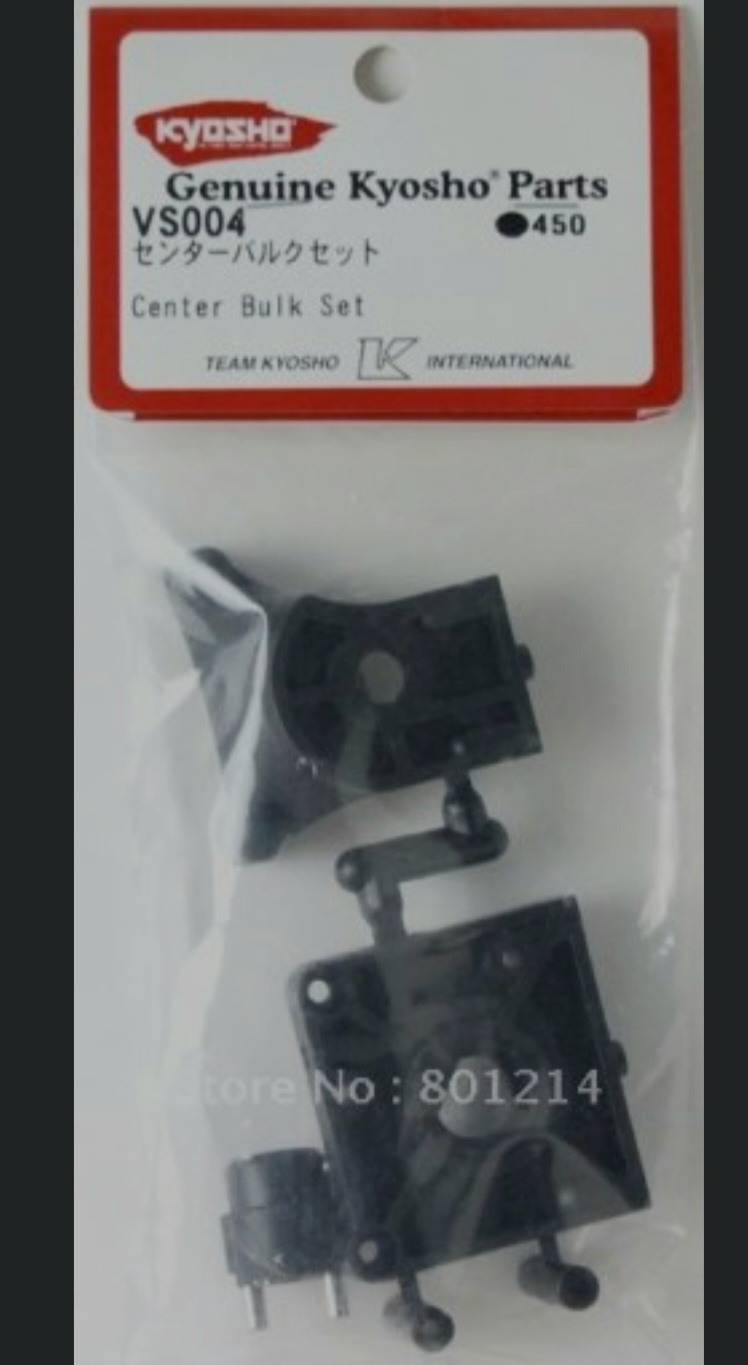

VS004 center buck set Rm52.90, using kyosho parts.
Got it on 11/9/2023 fix nicely but other problem come, the flywheel touching the new rear housing and engine mounting out from tightening hole. Change to smaller flywheel engine mounting still not aline with the hole. That why the housing is remove, need to use smaller engine like 15 kyosho. But anyway not going to run this rc.
 |
| Fix nicely |
 |
| Even on chassis |
 |
| Engine mounting not aline with tighten hole |
 |
| Flywheel touching housing even change small. |
 |
| The gear not touching 2 speed gear. |
10/10/2023 I DIY a lock nut for engine caburetor.
 |
| Before i just use a big screw, DIY almost same, cab no more moving |
25/10/2023 buy a starter shaft for Rm12.15
Use E drill to turn.
