Saw this units with dirty body in Facebook sale. Saller from sentul KL, Price Rm200, a Clone Tamiya TL01 from HBX. Serching internat many people buy it event from europe country, they say no much diffrent from original Tamiya TL01, Year 2006. But after i check only front bumper clone with foam. Parts is a problem in Malaysia.
I asking for Rm100 without electronic, he agreed no motor and ESC. Is an vintage RC clone from China. Then he say with shock tower broken front and rear so i ask for reduce Rm90 and without body. Sole to me.
Start blogger = 11/12/2022
Update = 25/01/2023
2006 - 2024 = 18 years
Sum for Spareparts = Rm18.50
Made in China (🇨🇳)
 |
| The RC i buy |
 |
| The HBX Post 5 2006 (Clone Tamiya TL01) |
 |
| Original Tamiya TL01, this the famoust Chassis. Can be on road, buggy or Truck using same chassis. |
From saller image
 |
| With broken front shock tower |
 |
| With broken rear tower |
Fault found1. Front lhs shock tower broken
2. Rear lhs shock tower broken
3. No motor
4. No ESC
5. No body
6. Front lhs suspension arm broken
7. Steering servo no tighten using card board to hold it. Missing servo bracket.
8. Rusty spring
9. Rusty some screw
10. Missing one pcs battery stoper
11. One side wing missing
12. All wheels loose not fully tighten
13. All wheels no ballbearing
14. The rear drive gear greese mix with dirt.
15. Broken screw seat on rear housing
16. Few suspension arm screw rusty
17. No ball bearing use in front/rear axle.
18. Using plastic hex. Overtighten, wheel will not turn
19. Not oil damper
20. Tyre become harden.
21. Steering push rod using wrong screw and loose.
22. Servo arm wrong parts.
23. All tyre no glue on rim
24. No sponge in tyre
Got it on 10/12/2022. Car with my runner
In my hand on 29/12/2022. In bad Condition, look like the plastic eazy broken too long. Found few parts missing the battery holder one pcs, motor bottom wing missing, rusty screw, spring, not oil damper, all wheels not tighten, no ball bearing on wheel, the tyre become hard rubber, steering servo no tighten only stuck with paper hard bord. Front suspension arm holder bracket broken he didn't mention.
 |
| Using ori Tamiya TL01 assembly manual for this clone, almost same |
 |
| Broken suspension arm bracket |
 |
| Rally tyre harden |
 |
| Missing one pcs battery holder |
 |
| Battery location missing one battery side bracket |
 |
| Loose wheel nut |
 |
| Broken shock tower front |
 |
| The broken pcs missing |
 |
| Broken rear shock tower |
 |
| Not oil shock |
 |
| Motor tighten screw bracket |
 |
| No ball bearing, plastic almost melted |
 |
| Front good condition bumper foam |
 |
| Rusty screw/spring |
 |
| Ori Tamiya didn't have this front bumper bracket |
 |
| Motor mount location |
Removing part check for damage
 |
| Rusty screw and loose trade. |
 |
| Turn buckle rusty |
 |
| Plastic hex no ball bearing |
 |
| Drive shaft full of dust and sand |
 |
| All plastic bushing will change to ball bearing. |
 |
| Non oil shock |
 |
| Non Adjustable linkages |
 |
| Rear suspension arm |
 |
| Rear bumper |
 |
| The broken shock stay rear missing pcs |
 |
| The Proppeler shaft didn't use ballbearing |
 |
| Loose top screw |
 |
| Rusty screw |
 |
| Broken mounting |
 |
| Rusty suspension arm screw |
 |
| Rusty screw surface |
 |
| Servo arm wrong part, Diy two hole at side |
 |
| Wrong screw loose |
 |
| The long shaft |
 |
| Another broken shock stay front |
 |
| Extra bracket, assembly manual didn't have |
 |
| Front axle gear in good condition dry greese |
 |
| The white greese ori. |
 |
| No gear damage |
 |
| Rear |
 |
| Greese mix with dirt or water |
 |
| No ball bearing use |
 |
| Greese mix with dust and water |
 |
| No greese in axle case |
 |
| dry bevel gear |
 |
| Tyre not glue and no sponge in tyre |
 |
| Some rusty screw |
 |
| All parts remove |
 |
| Soak in detergent |
 |
| Total clean up axle case. |
 |
| All parts clean from oil and dust |
The broken parts i super glue back and i use steel glue to wrap it. For the broken shock stay a build back the shape with steel glue and after dry i will drill a hold and tap it.
 |
| Will file to smooth surface |
 |
| Done, repaint black |
 |
| Rear |
 |
| Front |
 |
| Put in new greese |
Waiting for ball bearing order from china, then will assembly back all parts. Reach 17/1/2023 set for tamiya Rm14.50.
 |
| Proppeler shaft with 2 ball bearing |
 |
| All gear front/rear ball bearing |
 |
| Done rear sections |
 |
| Rear section done |
 |
| The steering servo hold by two bracket |
 |
| All wheels change to ball bearing and aluminium 5mm Hex |
 |
| Rear |
 |

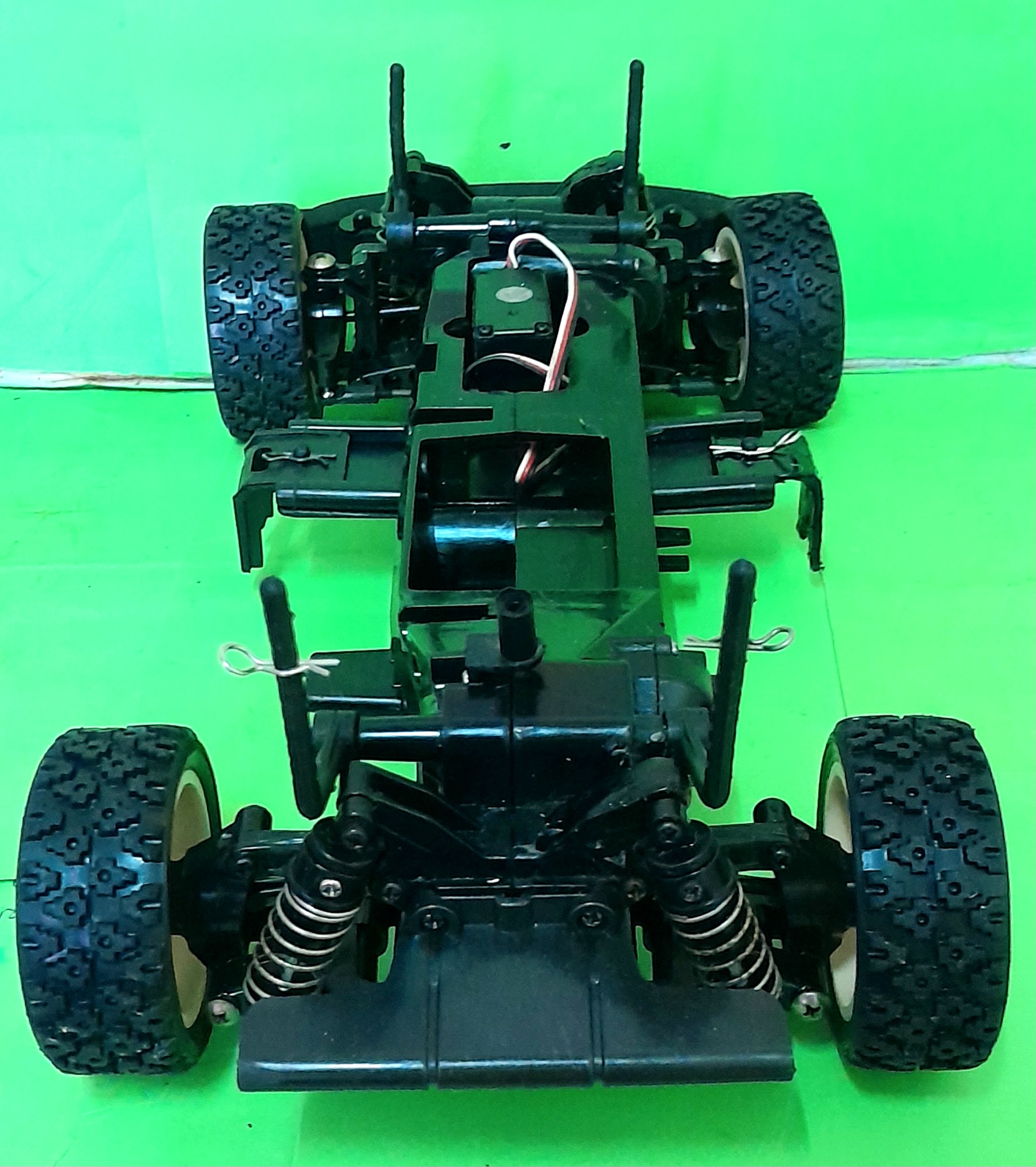

| Rear top |
 |
| Front |
 |
| Front top |
 |

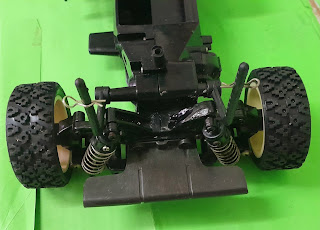

| Front bumper and wheels in |
 |
| Rear |
 |
| DIY a battery stoper |
I use a hard body from QD Mitsubishi Evo.
Enjoy RC
