19/6/2025 buy another secondhand 1/10 EP truck for Rm150. Saller from kajang cod in KIP mall bangi. This a 2007 RTR 101703 HPI using brushless motor, Am 27Mhz receiver, Monster Truck body.
From my investigation found out this rc with broken lhs front steering hub, missing dogbone, adjustable linkage not tighten. So previous owner repair and left it unattended until parts rusty. Found the dogbone open, use on rear center proppeler shaft. So front run without dogbone. Not a heavy drive, bottom chassis no scratch. This units top review in you tube from europe.
 |
| Assembly manual download pdf 101703 |
 |
| My units |
 |
| Not my. The original Box |
Start blogger =.19/6/2025
Update blog = 2/7/2025
Fault found
1. All tyre wall crack long storage
2. All damper bottom cap loose
3. Chargerble Battery for receiver didn't remove leaking.
4. Dusty, with spider Web
5. Front lhs suspension arm bend
6. Lhs front camber adjustable linkage not tighten.
7. Lhs steering c hub crack reglue
8. Lhs steering c hub can't remove rusty pin.
9. Lhs C hub top copper bushing missing
10. Lhs/rhs front suspension arm bend.
11. Missing lhs front wheel dogbone.
12. No ballbearing on steering set
13. No remort control
14. Rusty all adjustable linkage.
15. Rusty all shock absorber shaft
16. Rear lhs damper top screw dented
17. Rhs rear wheel hub pin heavy rusty
18. Rhs rear hub ballbearing rusty
19. Rhs rear wheel hub crack
20. Rusty pin rhs suspention arm for axle
21. Screw and e clip rusty
22. The rear propeller shaft is lhs front dogbone. Mean ori missing rear Center proppeler shaft.
Before cleaning dusty
 |
| No crack on body cover |
 |
| Dusty cover |
 |
| No scratch |
 |
| Tyre trade good |
 |
| Tyre wall crack |
 |
| Tyre rotation |
 |
| Camber adjustable linkage not tighten, missing dogbone and steering hub reglue |
 |
| Reglue the broken parts |
 |
| Rusty parts |
 |
| All shock absorber shaft rusty |
 |
| Battery box |
 |

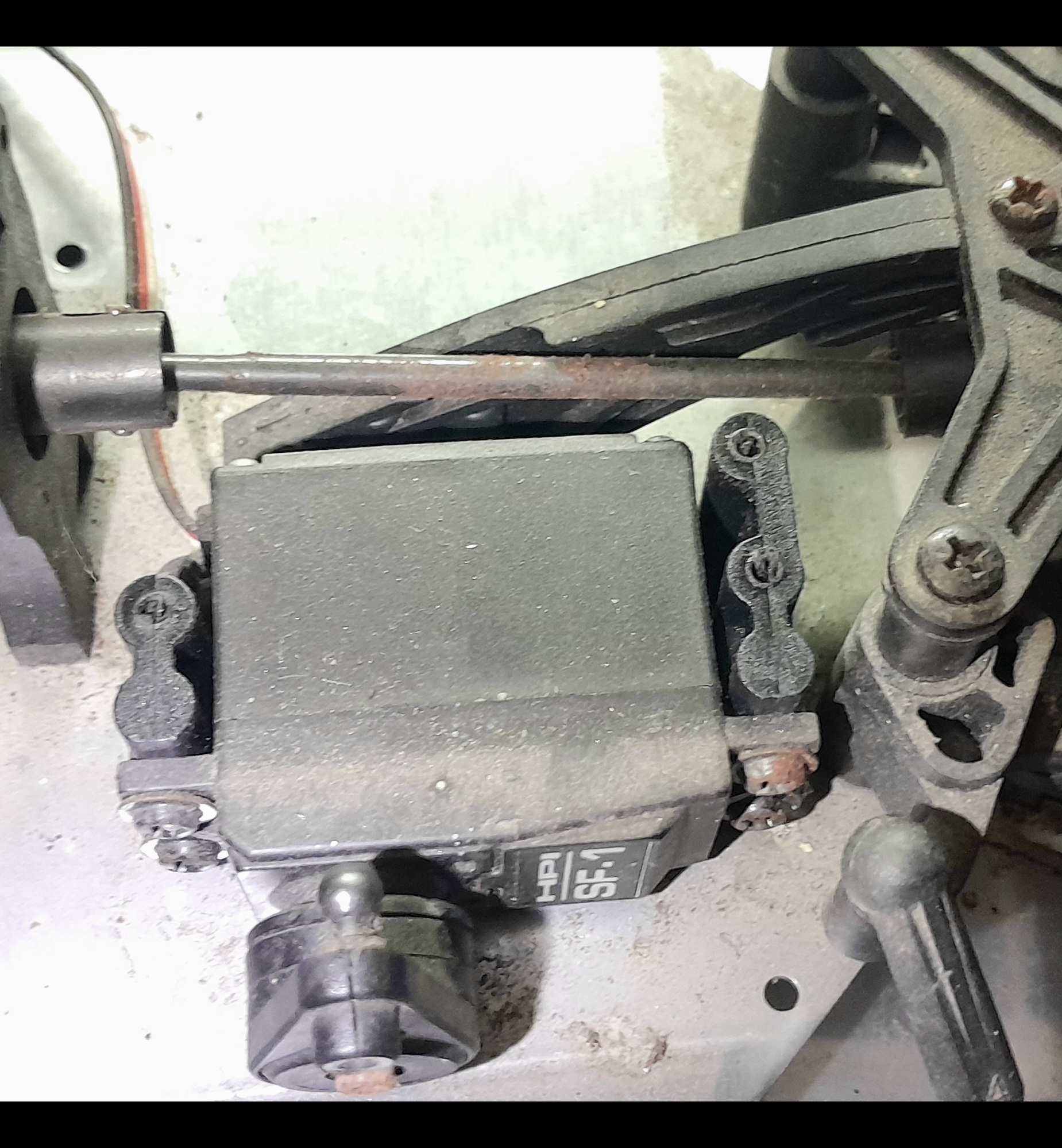

| Ori HPI SF-1 steering servo |
 |
| HPI Brushless motor 4000kv |
 |
| Drive gear ok |
 |

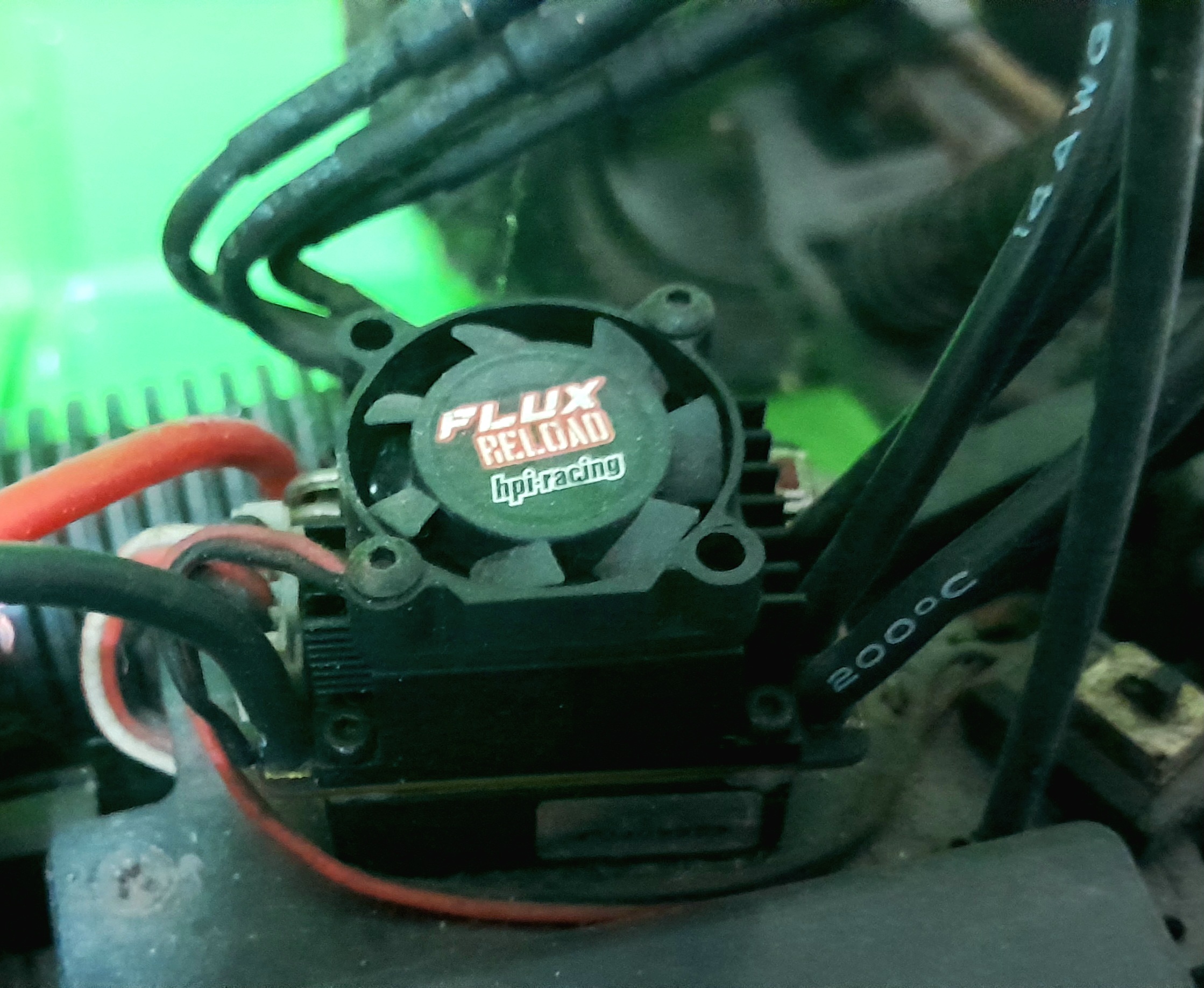

| HPI Brushless ESC with cooling fan can use 3s lipo batteries |
 |
| Spider Web in battery box |
 |
| The receiver compartment |
 |
| Using HPI RF6 AM 27 2 channel forward/reverse |
 |
| With 8 pcs oil shock absorber |
 |
| Rear dogbone rusty |
 |
| With a carry bar |
 |
| Center using proppeler shaft front |
 |
| Front bumper with 2 foglight |
 |
| Rear bumper |
 |
| Rear body post |
 |
| Front body post |
 |
| Rusty |
Dismental parts
Removing front suspension and axle
 |
| Rusty parts |
 |
| Rear suspention |
Front suspension
.jpg) |
| Rear center proppeler shaft is front lhs wheels dogbone. |
 |
| Steering arm no ballbearing |
 |
| Steering arm no ballbearing use, all 4 pcs plastic bushing. |
 |
| All parts dismental. |
 |
| Front and rear suspension will dismental section by section |
 |
| The electric parts |
Removing front suspension and axle
 |
| Top black is for Center proppeler shaft missing rear but use drive shaft white. bottom two is drive shaft front. |
 |
| The reglue steering hub can't move pin rustt |
 |
| Rusty pin hard to remove arm |
 |
| Front lhs suspension arm bend |
 |
| Need to apply greese |
 |
| All turning parts using ballbearing. |
 |
| Axle case greese not dry just add some lubricant |
 |
| All wheels with ball bearing in and out |
 |
| Center with a metal bushing |
 |
| Really heavy rusty |
 |
| The steering hub missing copper bushing and bottom heavy rusty can'tremove. |
 |
| The broken hub use heat to melt the joint but not good. |
 |
| The stuck pin, need to touch it, WD40, hammer. Pin is really rusty |
 |
| Remove parts |
 |
| All bottom cap loose |
 |
| Shaft rusty |
 |
| Absorber oil need top up |
Removing rear suspension set
 |
| Screw shock absorber dent |
 |
| Pin rusty rhs real wheel hub stuck |
 |
| Dent suspension arm |
 |
| Less greese |
 |
| Ballbearing rusty |
 |
| Spray with WD40 |
 |
| Shaft rusty |
 |
| All the rear suspension set |
 |
| Low oil |
 |
| Rhc wheel hub crack |
 |
| heavy rusty pin |
 |
| Rusty ballbearing |
 |
| Rear axle with greese |
The clean parts
The front suspension after washing parts
 |
| The shaft been clean the rust and oil top up |
 |
| Done fully service front absorber |
 |
| Fully new greese |
 |
| Reglue with super glue first then 2 tan gum. |
 |
| Finish lhs suspension |
 |
| All the rust remove |
 |
| Steering arm bushing change ballbearing |
 |
| Replace rear center proppeler shaft |
 |
| Rear suspention set clean |
 |
| Rear shock service |
 |
| Hard 2 tan gum |
 |
| No rusty linkage |
 |
| Front lhs/rhs done |
 |
| Add some oil |
 |
| New greese rear axle gear |
 |
| Rear rhs. |
 |
| Rear c hub reglue 2 tan gum |
 |
| Done total service and repairs |
The finish product
Enjoy RC
