Found another RC started sale in market year 2002. Not that famous when it sale, people on that few year always looking for HL518, HL vantex or Mantex for driff.
Is a RTR set come with body, remort, charger, tools and manual. With HL SPEED 540 motor, only using Nimh battery.
Another sunken rc collection. Buy for Rm150, saller from kajang, cod Bangi kip mall.
This units use a basic ESC, AM receiver, motor and given a lipo 3S 11.1v battery can't use, power to strong for this basic 7.2v esc. Front camber hub change to aluminium alloy. Chassis colour heavy coroded due to battery acid. Lhs wheel crack, steering can't turn. Happy own this China made, i looking almost 2 year in Facebook sale but expensive.
 |
| Total service |
 |
| The original box not mine |
 |
| Not mine the new RC image. |
 |
| Image from saller |
Star Blogger = 19/6/2025
Update blog = 16/7/2025
Fault found
1. Steering arm jemup coroded.
2. Lhs front wheels crack
3. Dusty
4. Given a lipo 3000 Mah 3S 11.1v battery not suitable for this 7.2v esc.
5. Damage Bottom bumper form.
6. Chassis coroded with white powder smell like battery acid.
7. Bottom chassis scratch
8. Battery holder bracket pin come out broken mounting
9. Front body post dented
10. All 4 absober low oil
11. Front and rear axle gear dry greese.
Before total cleaning
 |
| Bumper form bottom torn |
 |
| Original electrical system |
 |
| Am27. 225 hze |
 |
| 7.2v ESC |
 |
| The on/off switch |
 |
| Heat shell |
 |
| HL Speed 540 motor |
 |
| Drive gear still ok |
 |
| Bottom chassis corroded |
 |
| Scratch until back |
 |
| Tyre trade ok |
 |
| Steering servo ok |
 |
| HL original servo |
 |
| Steering linkages |
 |
| All using oil shock front |
 |
| Look like lipo battery, 3000mah 11.1v battery given |
 |
| Use oil shock rear |
 |
| adjustable linkage and using dogbone |
 |
| Wheel hub carrier aluminium alloy |
 |
| Main drive gear ok |
 |
| Battery holder pin come out bracket damage |
 |
| Center proppeler shaft |
 |
| Front body post dented |
 |
| Rear body post |
Next dismental
 |
| Ballbearing on steering hub in and out |
 |
| Plastic wheel hex need to change. |
 |
| Lhs front rim crack |
 |
| Removing center bracket |
 |
| Steering arm jemup |
 |
| Green stuff jemup |
 |
| Rusty steering shaft really hard to remove |
 |
| The HL electric parts |
 |
| Center shaft aluminium and chassis with white powder |
 |
| Steering set no ballbearing |
 |
| Rear wheel hub with ballbearing In and out |
 |
| Motor mount bracket |
 |

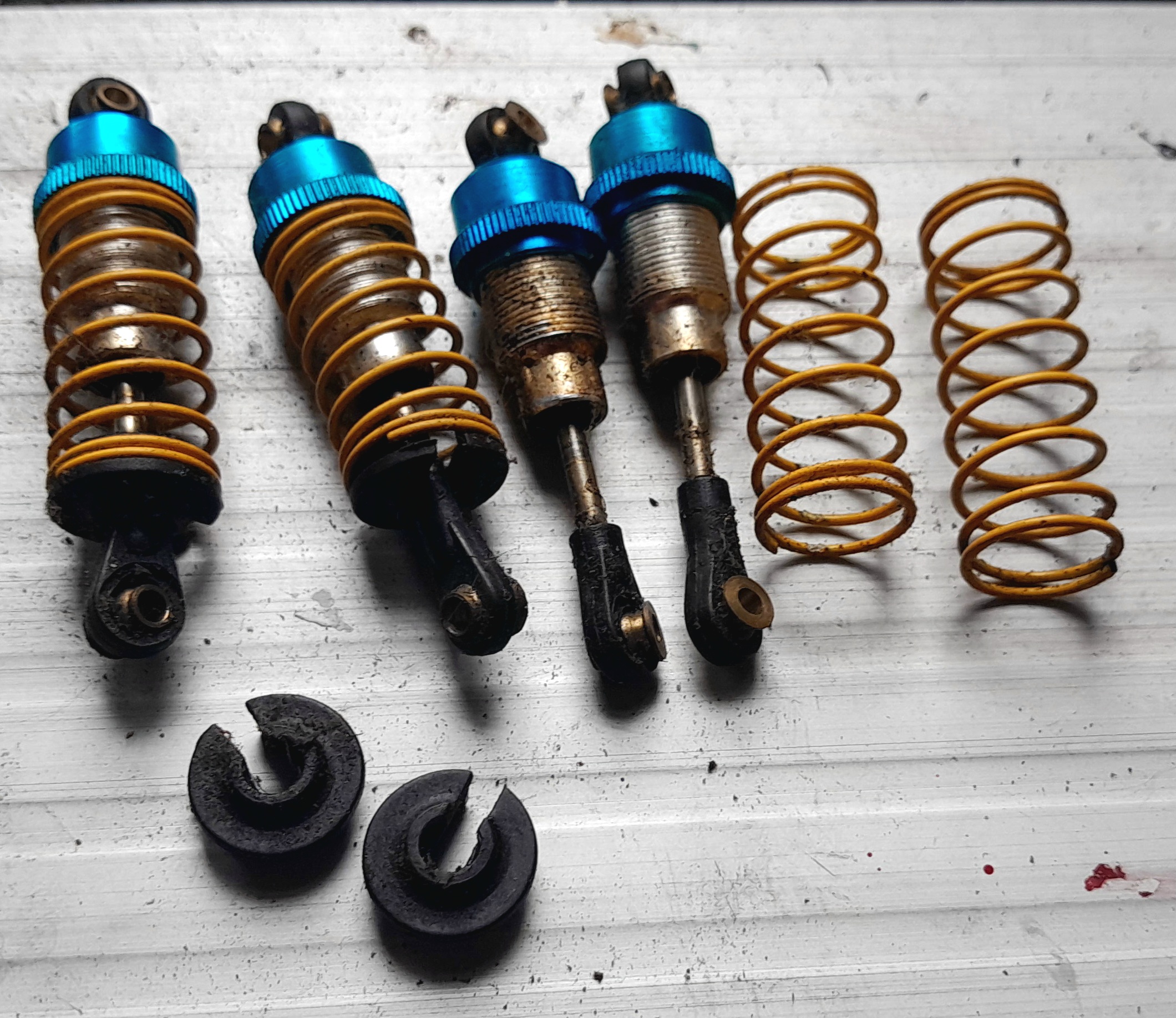

| Shock absorber low oil |
 |
| All low oil |
 |
| Dirty oil |
 |
| Using dogbone |
 |
| Front |
 |
| Rear |
 |
| All wheel hub using ballbearing |
 |
| Rear back |
 |

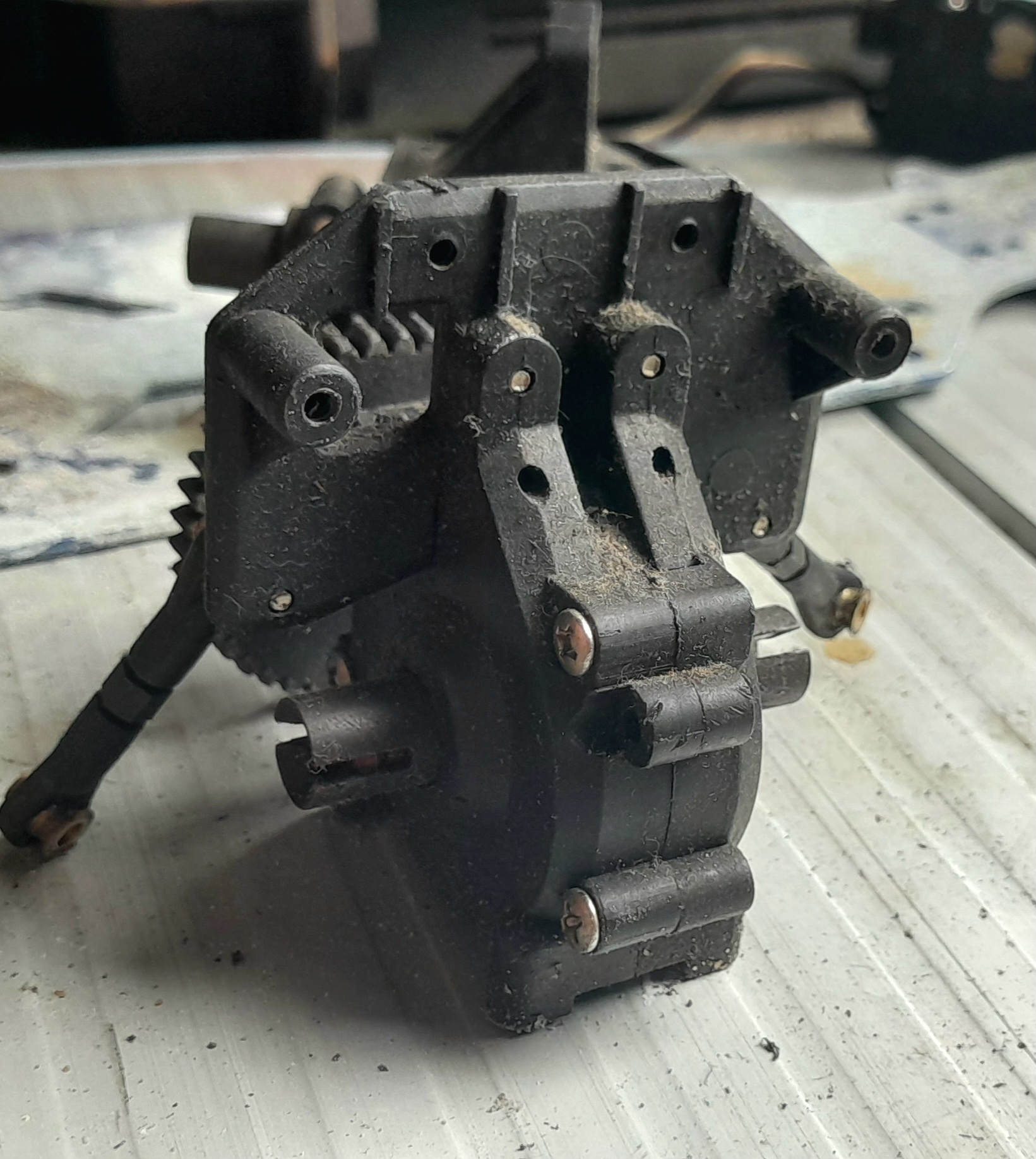

| Front and rear axle housing |
 |
| Front Gear with dry greese |
 |
| Axle case using ballbearing |
 |
| Dry grease |
 |
| Rear axle dry greese |
 |
| In detergent. |
Fixing back
 |
| New greese |
 |
| Done service front / rear axle case |
 |

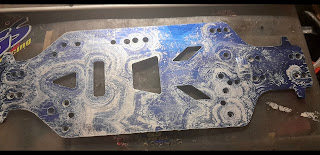

| This top chassis colour faded due to battery acid |
 |
| Bottom I use sand paper to smooth the surface. |
 |
| Front |
 |
| Rear |
 |
| Rear suspension/drive shaft |
 |
| Front suspension and drive shaft |
 |
| Add in 4 pcs ballbearing |
 |
| All wheel hubs change blue aluminium alloy 7mm. |
 |
| 2 tan gum |
 |

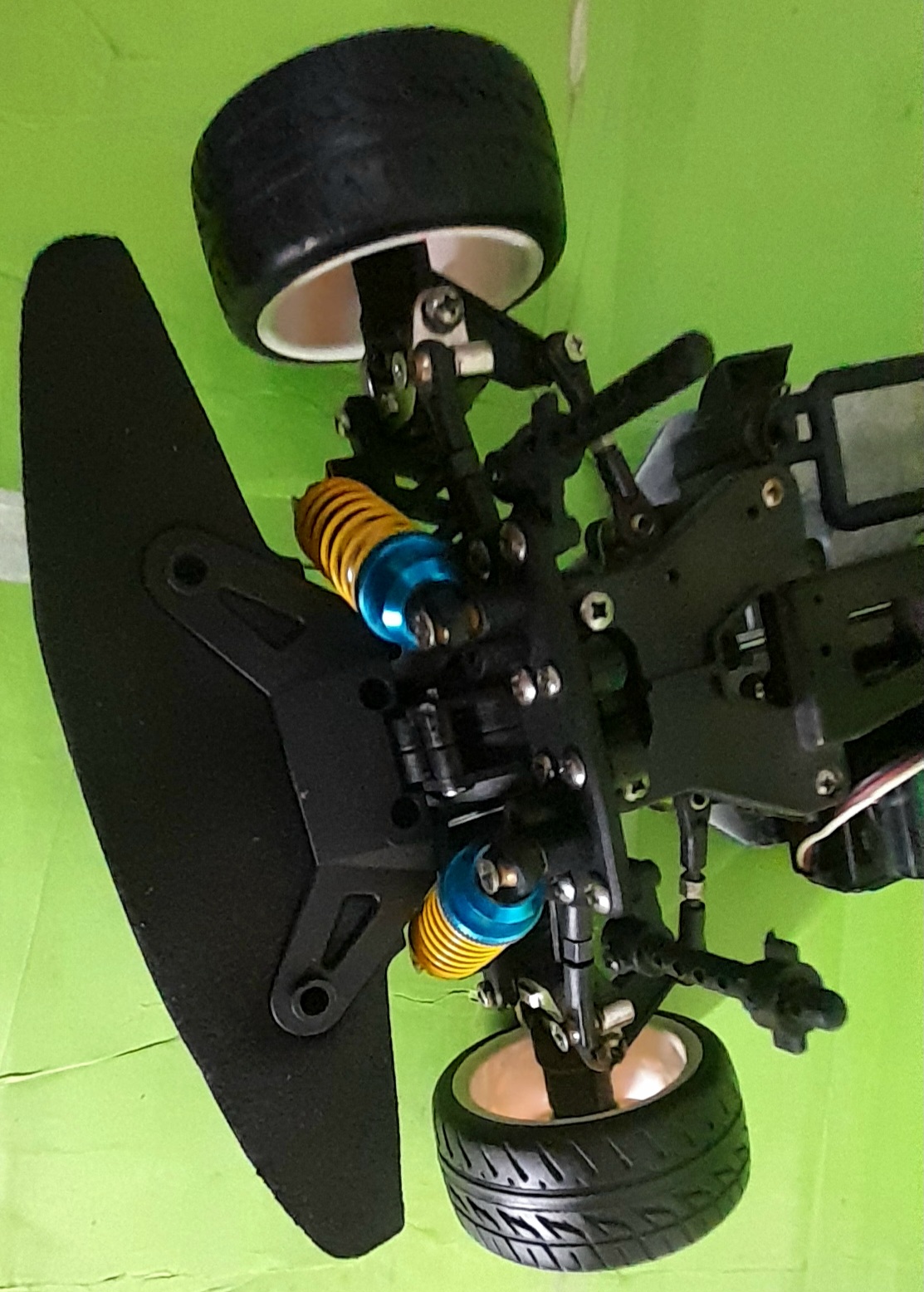

| Done |
Done fully service
 |
| After checking receiver, ESC and Motor function. |
Enjoy RC
