RC 85. My Memory Having RC Car. My no 57 RC. Smartech Swordfish Nitro Buggy 103450 2005.

30/9/2024. My first nitro buggy. Buy another secondhand 1/10 RC, SMARTECH SWORDFISH Nitro Buggy no 103450 a 2005 product. No body and Remort for only Rm170 in Kajang Perdana. Meet up in Kip Mall Bangi. History of this buggy belong to nephew study on board. Left unattend. Not heavy scratch under chassis. Engine using 15 CXP size. Just play few time then keep a side because under chassis still a QC pass sticker still have no torn or scratch. Battery found in receiver box year 2009. This units no upgaraded parts. Another Jackport RC to own.

Start blogger = 30/9/2024

Update blog = 30/12/2024

2005 - 2025 = 20 Years

Made In Taiwan 🇹🇼

Spending on parts = Rm65.80

Done full service know just body cover.

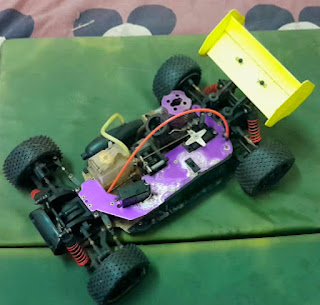

My Before total service

Not mine just to show the ori box

Not mine The new look

Assembly manual download pdf.

Image from saller.

Fault Found

1. Air Filter no sponge

2. All 4 tyre not glue on wheels.

3. Antenna wire break missing.

4. All tyre no inserted.

5. Adjustment ride hight using screw not allen screw.

6. Axle from rear greese no add.

7. All dogbone rusty.

8. All suspention pin rusty hard to move.

9. Battery receiver all leak not remove Duracel from 2009

10. Brake acc linkage rusty.

11. Cable ties missing on exhaust joint.

12. Caburetor stuck

13. Dusty and oily on chassis

14. Damper 4pcs low oil

15. Damper shaft rusty.

16. Engine stuck

17. Engine bottom plate screw too tight.

18. Exhaust Center corn cover missing.

19. Few turn buckle rusty.

20. Fuel tank with dry nitro inside.

21. Missing exhaust holder.

22. No body cover

23. No remort control

24. No fuel filter

25. No ballbearing on all wheels hub using copper bushing.

26. No assembly manual

27. Radio plate paint fault due to battery acid.

28. Receiver circute / terminals damaged due to battery acid.

29. Rusty wheel shaft.

30. Some screw rusty

31. Screw missing 2 pcs both servo

32. Steering/acc servo body crack.

33. Stuck Rear wheel hard to remove

34. Switch, power supply damage

35. Wheel Hex plastic when wheels tied hard. Wheel can't turn.

Before total service

Radio tray coroded

Front tyre un glue

Rear tyre un glue

Air filter sponge missing

15 pull start engine, stuck can't turn.

Steering servo crack.

Missing 2 screw

The radio tray

On/Off switch

Single speed

Front top suspention

Rear wing

Rear top suspension

Front oil damper.

Rear damper

The exhaust outlet face in side

Dry nitro inside tank and top screw rusty

Single speed gear no damage

Adjustable linkage and dogbone rusty

Front using dogbone

Rear dogbone rusty

Under chassis less scratch

Few tyre flattened long storage. Trade still ok.

rear wheel

Front wheel

The hard plastick exhaust

Rear wing holder

Front axle case

Steering set lhs.

Rhs steering arm

Missing cable ties

Glow plug rusty

Missing exhaust holder.

Long antenas must be AM

Missing screw

Brake pad

Fuel tank

Front bumper

Rear bottom Suspension

Front bottom Suspension

Start removing parts

Plastick wheel hub

Rusty wheel hub

Receiver compartment

All terminals coroded

wire break

Directly battery from 2009 didn't remove 15 years.

The terminal all with battery acid hard to remove.

Smartech Am receiver all coroded

using 26.975 crystal

the 3 pin terminal come off

All coroded, the copper circle damage at 3 pin. The course 9 years didn't remove battery.

Antenas wire break and missing.

Tyre no insert

Copper bushing and using e clip

Caburetor stuck

Both side with protection cover

Single speed

Center propeller shaft rusty

There receiver compartment

Radio tray

Only using 2 screw

Switch corroded bottom

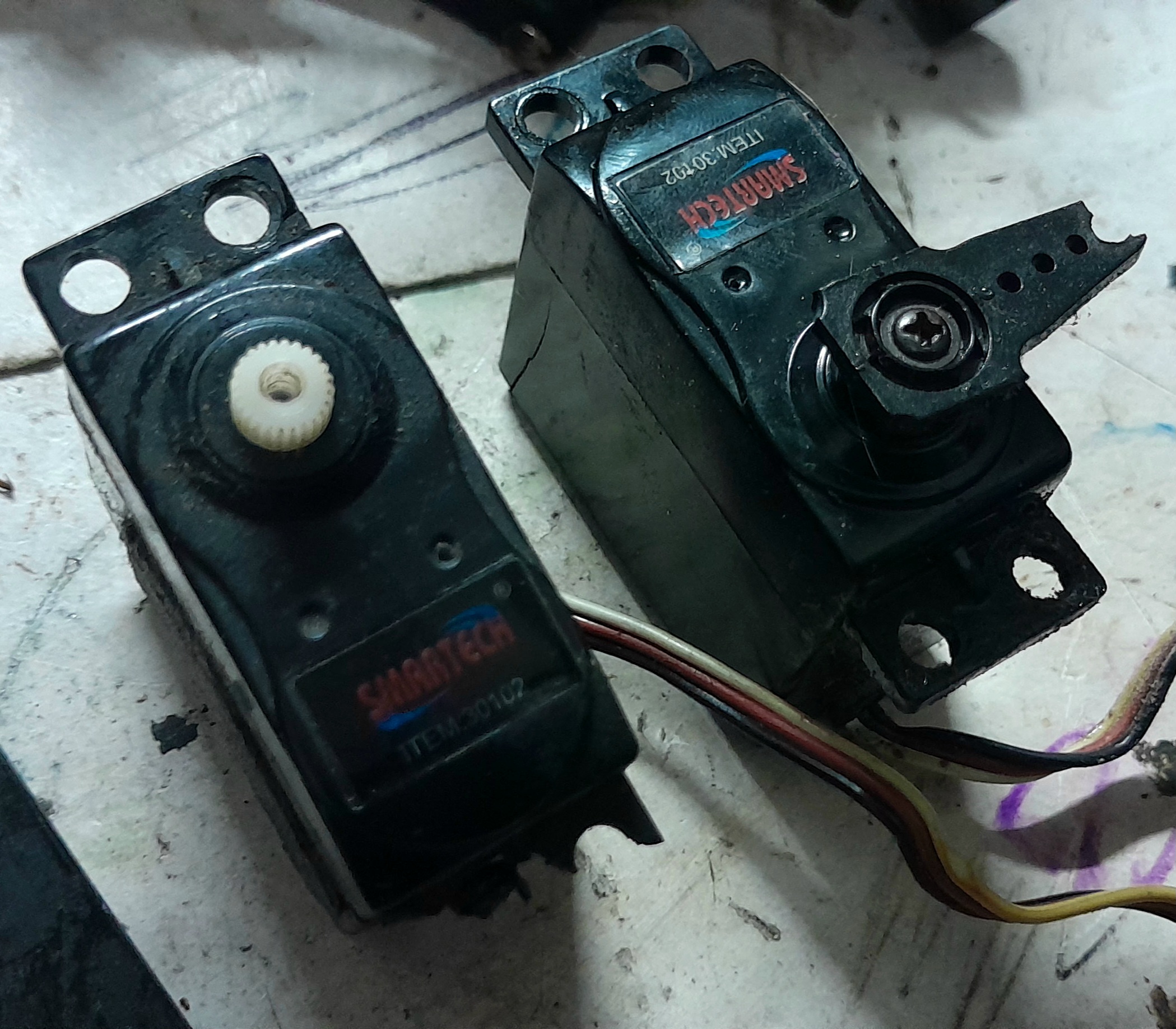

Smartech servo

The 15 size engine stuck know spray WD40

Glow plug filament new.

The lower plate screw hard to remove

15 CPX SIZE

Steering set

Front

Rear

Chassis full of dry oil

Engine remove

Piston/liner still good, liner hard to remove , stuck due to dry oil on ballbearing

The QC sticker. it mean this buggy just play in a good manner.

Funny all the suspention hight adjustment using long screw not allen screw.

Rear suspension

Rear axle

Servo plastic become crispy.

Front.

Greese not much

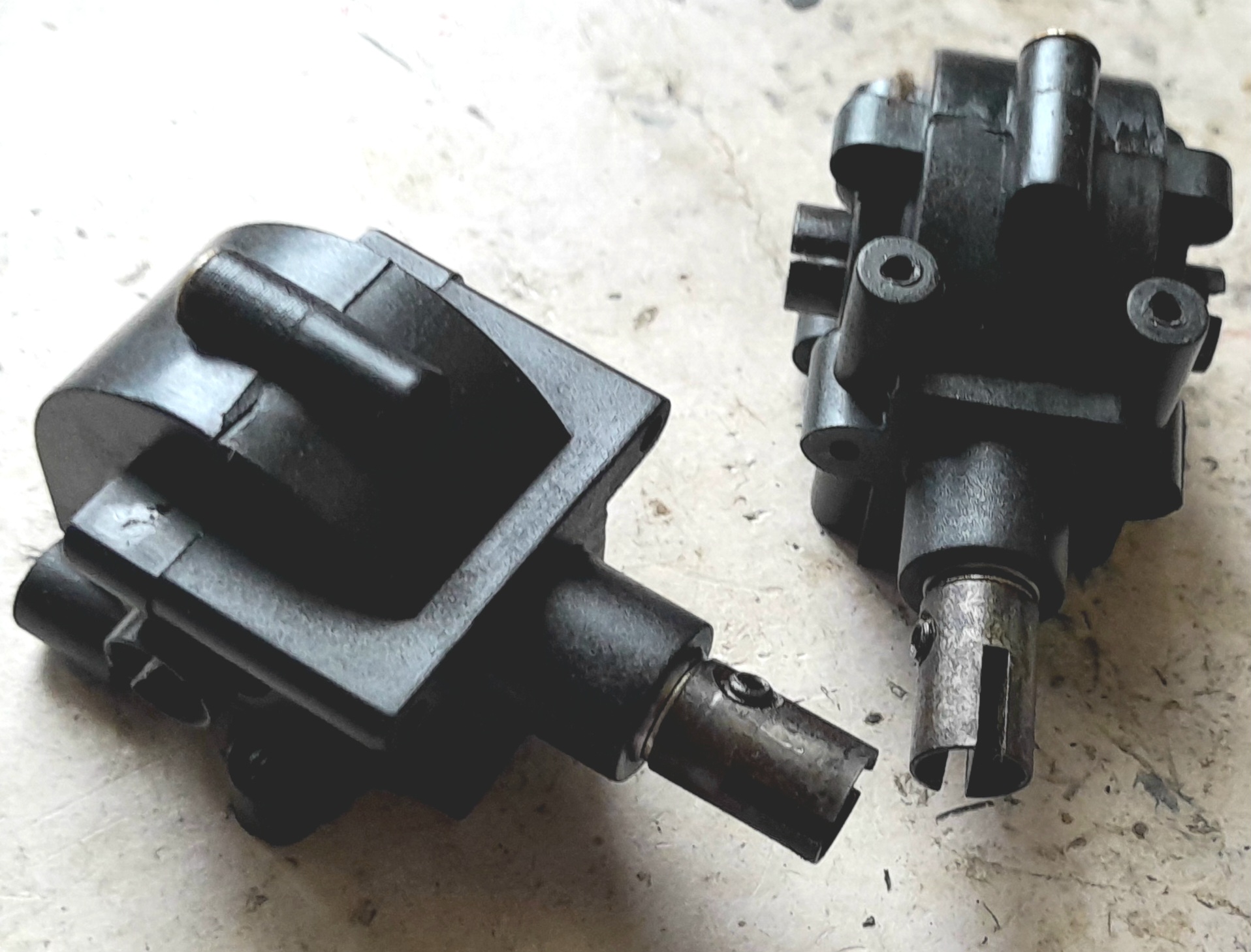

axle housing parts

Single speed housing

Exhaust Center sound corn missing

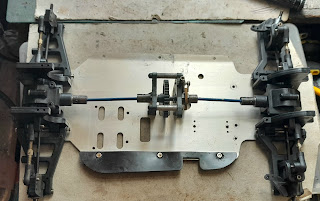

All parts dismental

Inside detergent

spray with WD40

Rusty parts in WD40

Few more plastick parts in detergents water

Clean parts

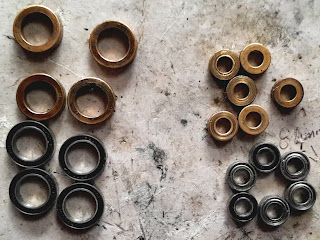

Wheels and axle copper bushing change to ballbearing.

Total clean

All parts washed, screw will be clean during assembly

Assembly engine parts done.

The rusty wheel dogbone and center shaft sanding and respray.

Shock oil clean and half, using thick oil.

Just top up

Done

Full service axle

Suspention ride hight I use allen screw

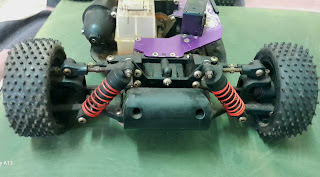

Front suspension

Rear suspension

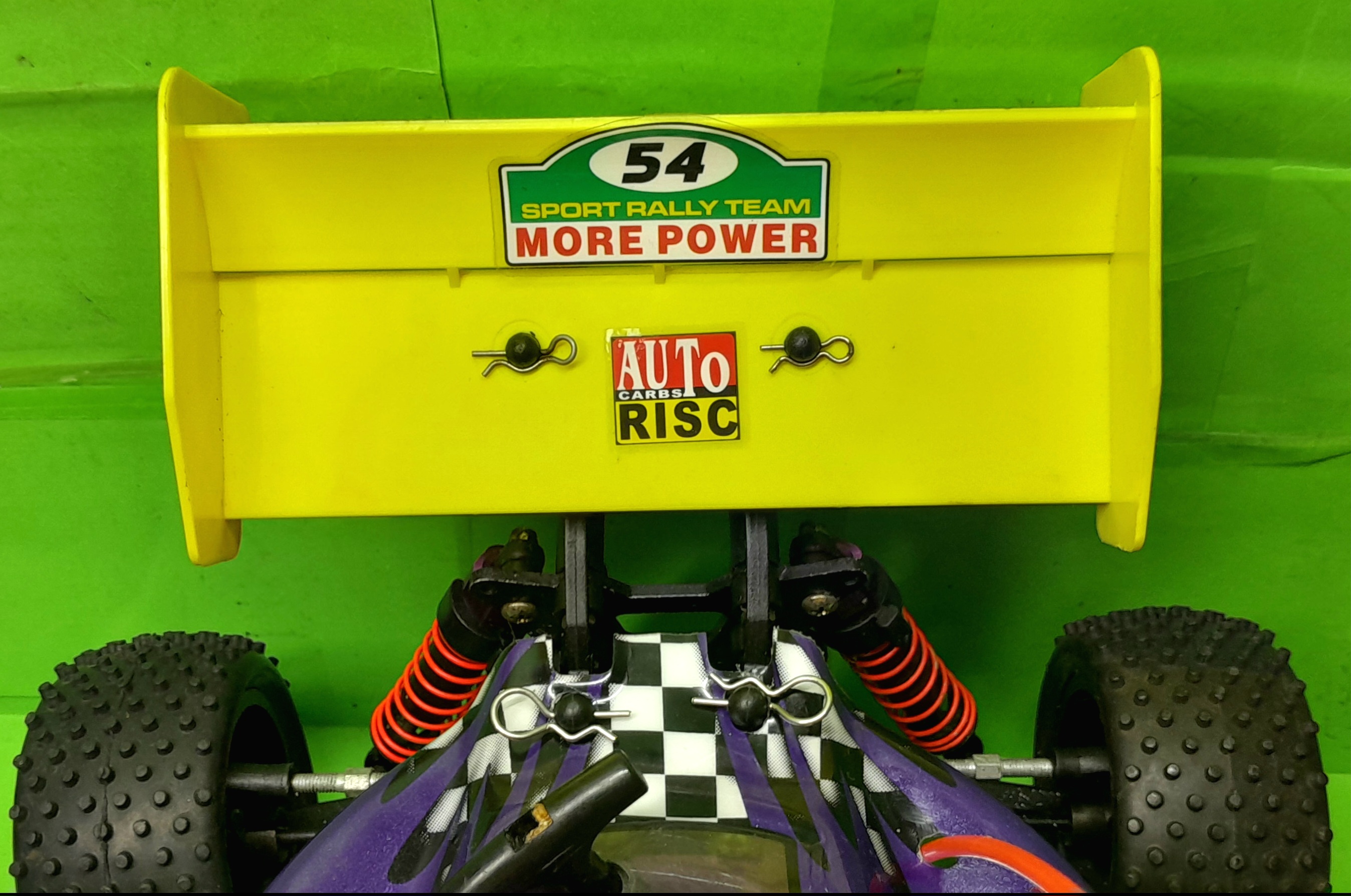

Rear wing mounting

Front

Rear

The radio tray I use another Smartech AM receiver

Change both new servo

The antenna

New switch

With cover, the radio tray paint I can't do, no this colour paint

For engine mounting screw I use heavy duty allen screw

New sponge

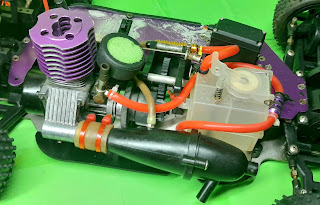

Engine on

Left few more parts

Add a exhaust holder

Ballbearing for all wheel.

6mm aluminium hex.

Add a Fuel filter and new
Fuels hose

Add a air cooler

Add sponge inside tyre

Tyre tread new

No 8

OS plug

I am using a 6v for receiver supply

Terminal servo with green stuf clean it

Test it servo function , another servo need change terminal wire break

Both servo function only body break, will use it in others way

Use a bigger wheel nut

Special loop for fuel tank lid

Rusty turn buckle touchup with silver paint

Ori damper rear too short the rear will fall down so i change to HSP Brontosaurus damper use back ori spring

Done only body cover and engine testing.

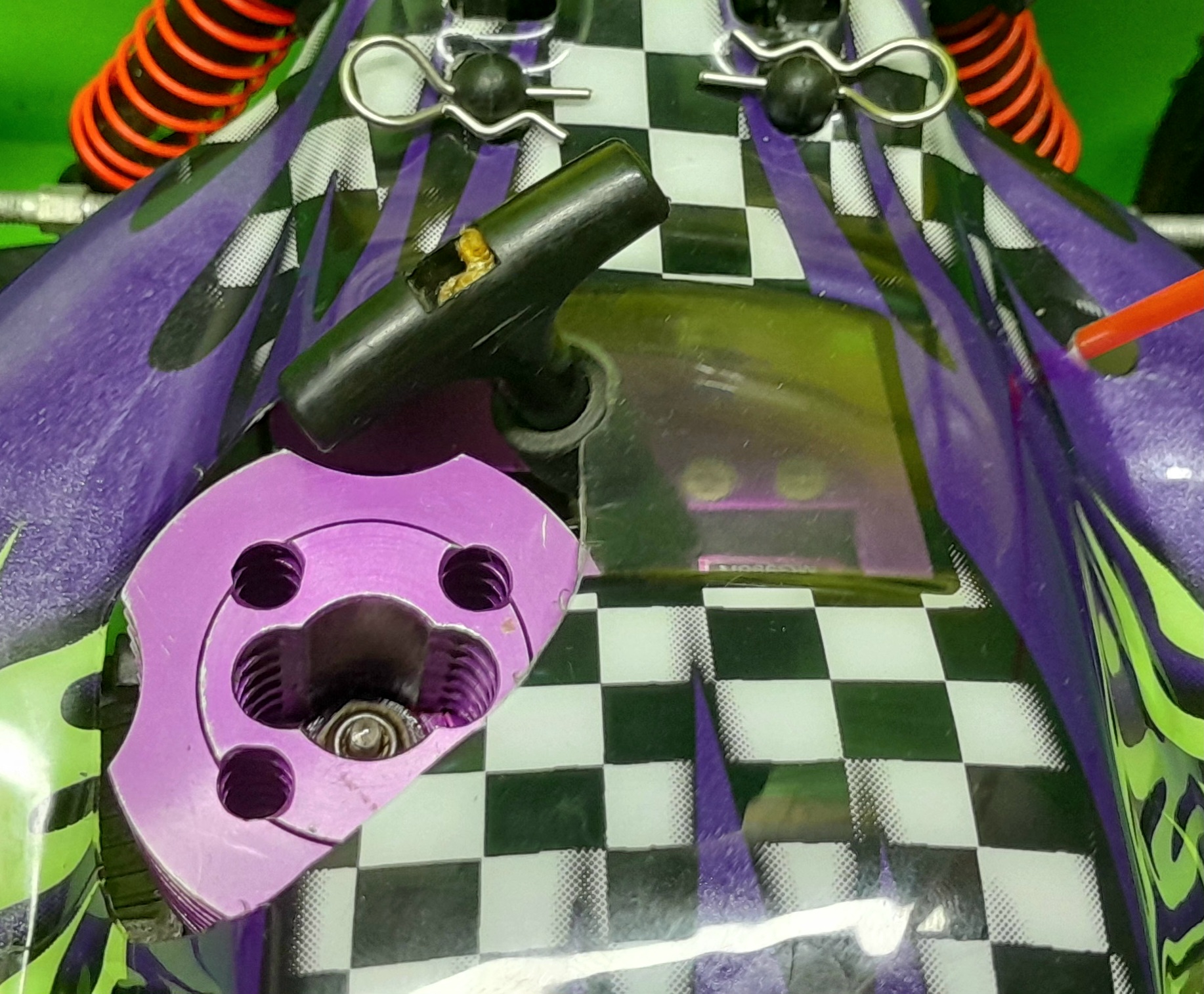

9/10/2024 I buy a HSP 1/10 buggy body shell for Rm65.80. This body for Ep/GP buggy but I Modified the front pin hole and steering side. Hole for engine and fuel tank i cut according ro HSP nitro buggy.
