RC34. My Memory Having RC Car. My No 16 RC. 1/10 - 1996 Kyosho Spider TF2

Again this is my second hand and no 4 Electric RC,  KYOSHO TF2 1996. I buy in  Mudah.com, saler from senawang Seremban cod for RM100, with missing lhs suspension parts in 2014.

Problem found
1. Missing lhs front knuckle arm,
2. Missing front shaft,
3. Missing wheel adapter,
4. Broken rhs axle body mount,
5. Front carbon chassis crack .
6. No servo
7. No ESC
8. Broken battery lock plastic
9. No motor
10. Front and rear gear no greese
11. No body cover
12. Dusty
13. No Wheels
14. Bottom chassis scratch ( Normal for secondhand RC)
15. With oil shock absober (Option)
16. With front and rear stabelizer bar (Option)
17. With turn buckle (Option)
18. With ball bearing on all wheels.(Option)

Look like this RC have accident, the owner couldn't get the spare part. This units same parts with Kyosho Spider, i still have some spare parts.

The option parts is, both front and rear using stabilizer bar, all wheel full bearing, the main gear using aluminium.The shock absorber also change, most linkage using turn buckle to adjust the toe in/out and camber.

Start bloog = 5/10/2014

Last update bloog = 4/1/2023

Sum for spareparts = Rm 457.00

1996 - 2024 = 28 Years

Made in Japan (🇯🇵)

Kyosho spider TF2 chassis kit.

Kyosho TF2 supra body.

The parts name

This is the sample of assembly manual. Can't find it in PDF file. Kyosho TF2, TF3,TF4 there no assembly manual for download until today. To who have this assembly manual please kind to make a PDF file for every body download.

Kyosho TF2 Type R chassis kit.

So hard to find, long time ago only Kyosho TF3 and TF4 exploded View

TF3

TF4R

Finally 3/10/2021 found 2 Japanese guy have it TF2 type R, TF3 and TF4. In pdf file and image. Just down load all and photocopy and bind it two model TF2 Type R and TF3. i thing from 1996 and 1997 TF3. TF4 is from 1999. The ori TF2 still searching for it. Type R the diffrent is front axle use one way diff and rear ball diffrential.

My Kyosho TF-2 Before Cleaning and Repair

Front side

Closer image with big bumper sponge, Stabiliser Bar, with adjustment lingkage for toe in and camber, oil shock absober.

The ESC location

Aluminium shock tower

Lhs wheel Knuckle Arm Missing

Steering Servo Location

The Motor Location

For rear same using adjustment rod for camber adjustment, using dogbone.

The ESC or Receiver Location

The Main Gear

Top view rear axle

With Rear Stabilizer Bar

Front Stabilizer Bar

Top Plate / center long belt

The Center Belting

The Rear Knuckle Arm

Very dirty

Rear body post

Rear Body Post

The Roll Bar

The plastick steering knuckle

The Front Bumper

Front Steering

Front Using UJ

Rear Using Drive Shaft

The Modified Belt Tensional Post

Carbon Graphite Chassis

Rear

Mounting Parts

Suspension Parts

Shock Parts

Using a Aluminium Gear

The One Way Bearing

The Main Gear 86T

Front and Rear Final Drive Gear

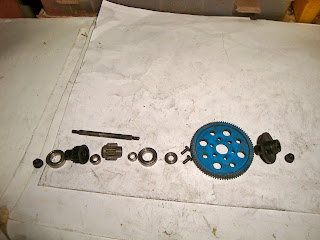

After Dissemble

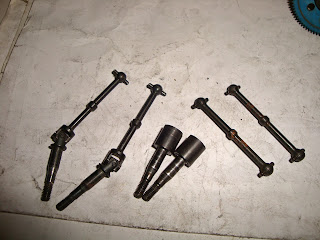

Using UJ and Drive Shaft

The Top Aluminium Plate

Only Using Two Belt the Short TM17 and Long have 179 teeth.

The Lhs Axle Body Mount Broken

Using Carbon Graphite Chassis

After Total Clean Up

From Front Top View

From Rhs Top View

From Lhs Top View

closer view

Using Sponge for Bumper

The battery and receiver location

Steering Servo Location with turn buckle

Rear View with damage belt

All Toe Adjustment Using Turn Buckle

Rear view

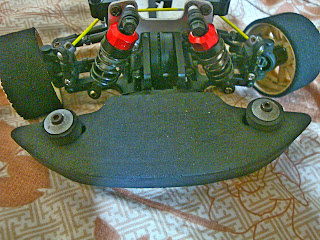

The big bumper sponge

Steering knuckle , C hub , UJ

Back view the motor

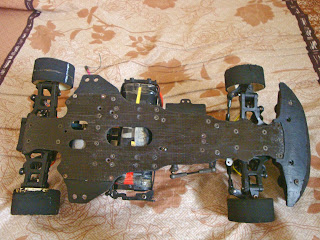

under with scratch mark can't do much on the scratch.

Front under suspension arm

Rear under suspension arm

 Modification Date 25/10/2014

Using My Old ESC

Using A Thunder Tiger AM Receiver

closer view

Am i still using

I Using ESC  taken out from my Buggy and using Lipo Battery

Add In New Servo From Sanwa

Not yet change the servo horn

Just for testing Using a Old Motor

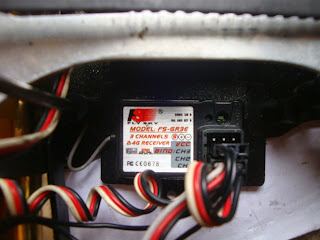

Change Using FlySky 2.4 Receiver

This Spur Gear from Lee Speed 87T Can fit on this kyosho Shaft.

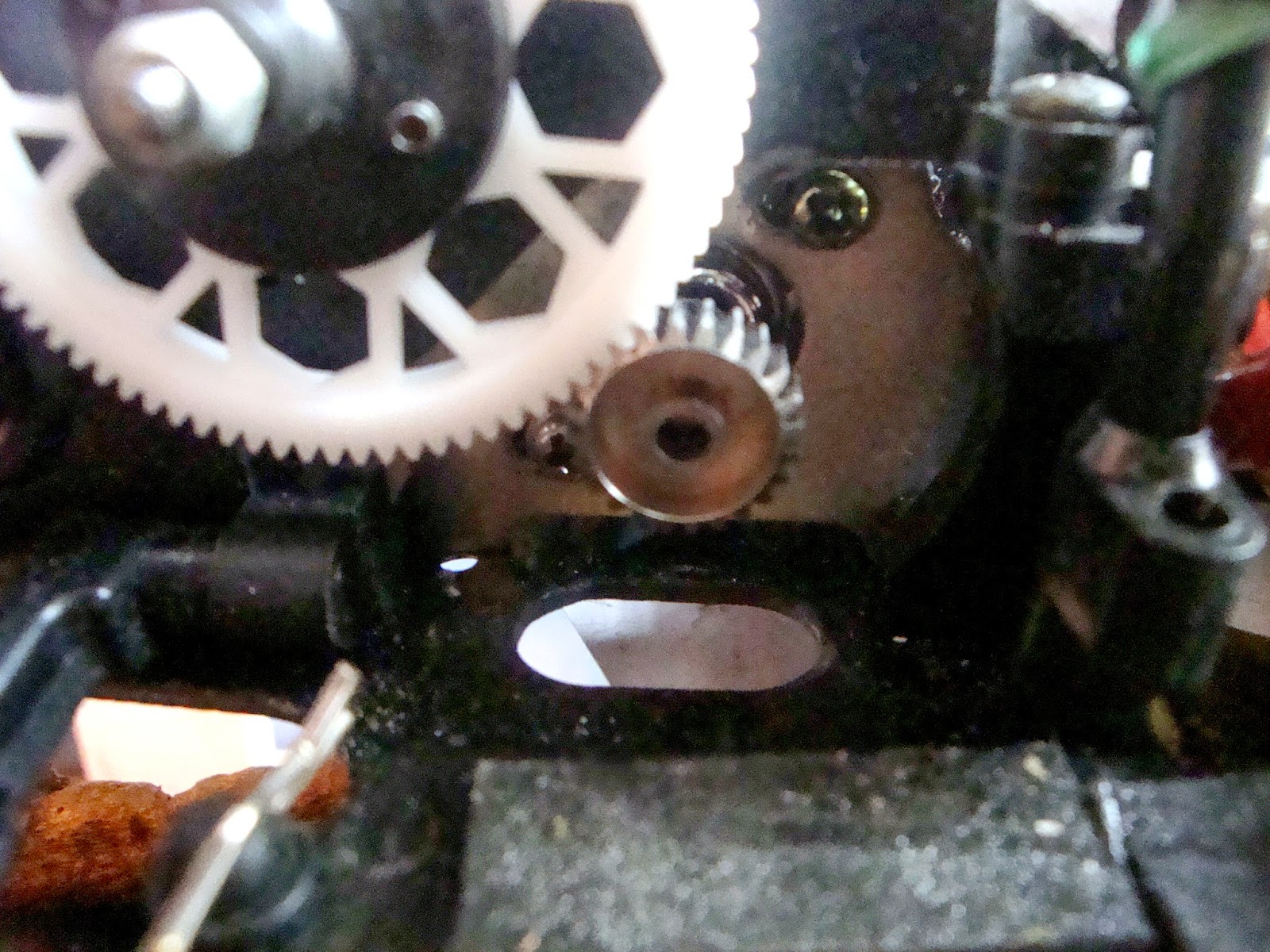

Change The Pinion Gear 32T

No worried gear can get.

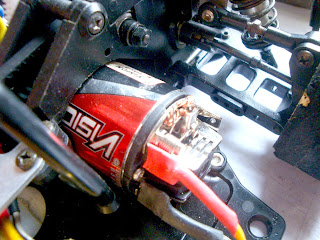

On 24/12/2014 Bought A new Brush 20T Motor From NOSRAM Rm90

Vision 10x2 turn.

Using a hard body from QD

On the track

Using 2.4 and Lipo battery to try.

Every component working well.

January 2018

Change the handle bar .Parts from Thunder Tiger

New servo , servo horn and  all turn buckle

Another try up on 6/4/2018. I use the LRP ESC that i bought cheap only Rm50.  8.1v over 6 turn motor and using a Kyosho am reciver that i heve . The motor using 540 from my HSP truck. Battery 1800 nimh run fast but if i change to a bigger am battery more faster.

Try using ESC from LRP V8.1 OVER 6 TURN . Buy for RM50 ori prices RM599.

LRP ESC very powerfull

Extra kyosho Perfex KR15 Am reciver.

Change to 540 motor from my HSP Bronto. The Vision 10x2 motor use in my new  HSP Brontosaurus. .For this RC i am not going to play just restore with parts and just bashing . Next may be open again and put to other RC Car that i buy secondhand.

So that it, time to time some parts will be add in. Another memorable RC from Kyosho.
