Fishing 🎣 31. My Fishing Hobby. Fishing reels collection. Shimano.

-
 On this new block will show my new or secondhand reels I buy. With photo of new reels or secondhand reels before and after servise.

Start blogger = 25/9/2024
Update bloog = 4/10/2024

Brand own 22, Total 56 reels
1. Abu Garcia (Sweden/China) = 3 units
2. Ajiking (Itali/China) = 1 units
3. Balzer (Jerman/Korea) = 1 units
4. Banex (Korea/China)  = 1 units
5. Big Cat (USA) = 1 Units
6. BLR (China) = 1 units
7. DAM (Jerman/China) = 8 units
8. Daiwa (Japan/China/Thailand) = 4 units
9. Kastking (USA/China) = 2 units
10. Leasure (Taiwan) = 1 units
11. Match (Japan) = 2 units
12. Ryobi (Japan/China) = 7 units.
13. Shimano (Japan/Malaysia/Singapore) = 12 units.
14. Santec (Malaysia) = 1 units.
15. Shakespeare (USA) = 1 units
16. Tica (Taiwan) = 3 units.
17. Teben (China) = 1 units.
18. TKY (Japan) = 1 units.
19. Tokarz (Czech Republic) = 1 units
20. Zebco (USA) = 2 units
21. DIY (China) = 1 units
22. Diomond Micon (Korea) = 1 units

1. Baitcasting = 2 units
2. Flyfishing = 2 units
3. Multyplier = 2 units
4. Spinning Reels = 43 units
5. Spincasting = 7 units.

No 52 reels. 25/9/2024. Shimano Aernos XT 5000 2005, Made in Malaysia
Buy Rm95 secondhand units. Look at conditions been use in deep sea,
1. Too many coroded parts green stains.
2. Bail arm hard to return,
3. line Roller corroded,
4. line Roller screw hard to open,
5. The anti reverse bearing rust few units.
6. Gear greese dry up.
7. Main gear 1 ballbearing stuck rusty.
8. Handle lock can't lock tight.

Specifications
1. Made in Malaysia
2. 3 + 1 ball bearing
3. Folderble Handle
4. Gear Ratio 5.1:1
5. Line 4/200, 5/150, 6/130
6. Ideal drag 6kg


Not mine I thing this the box.

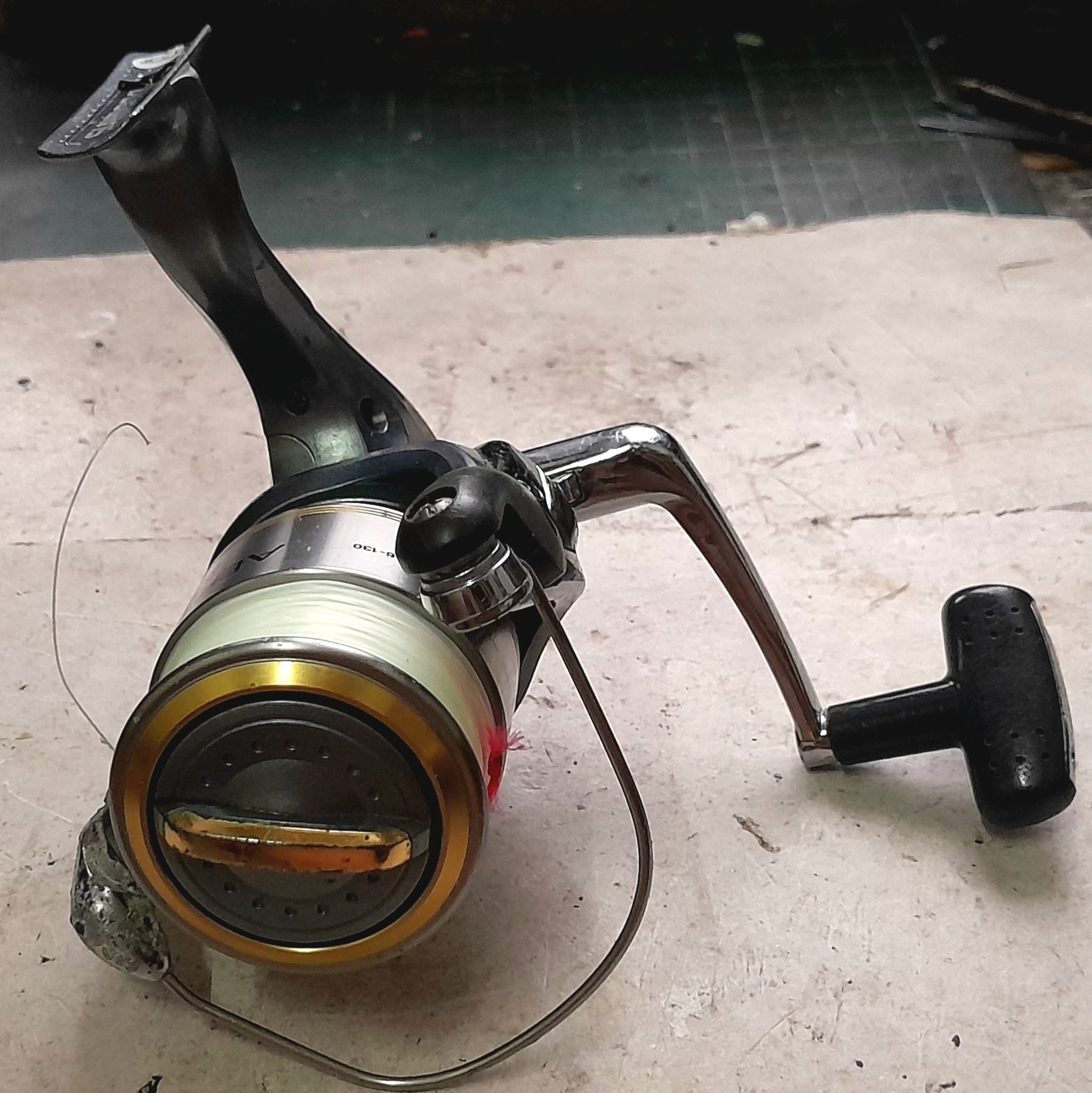

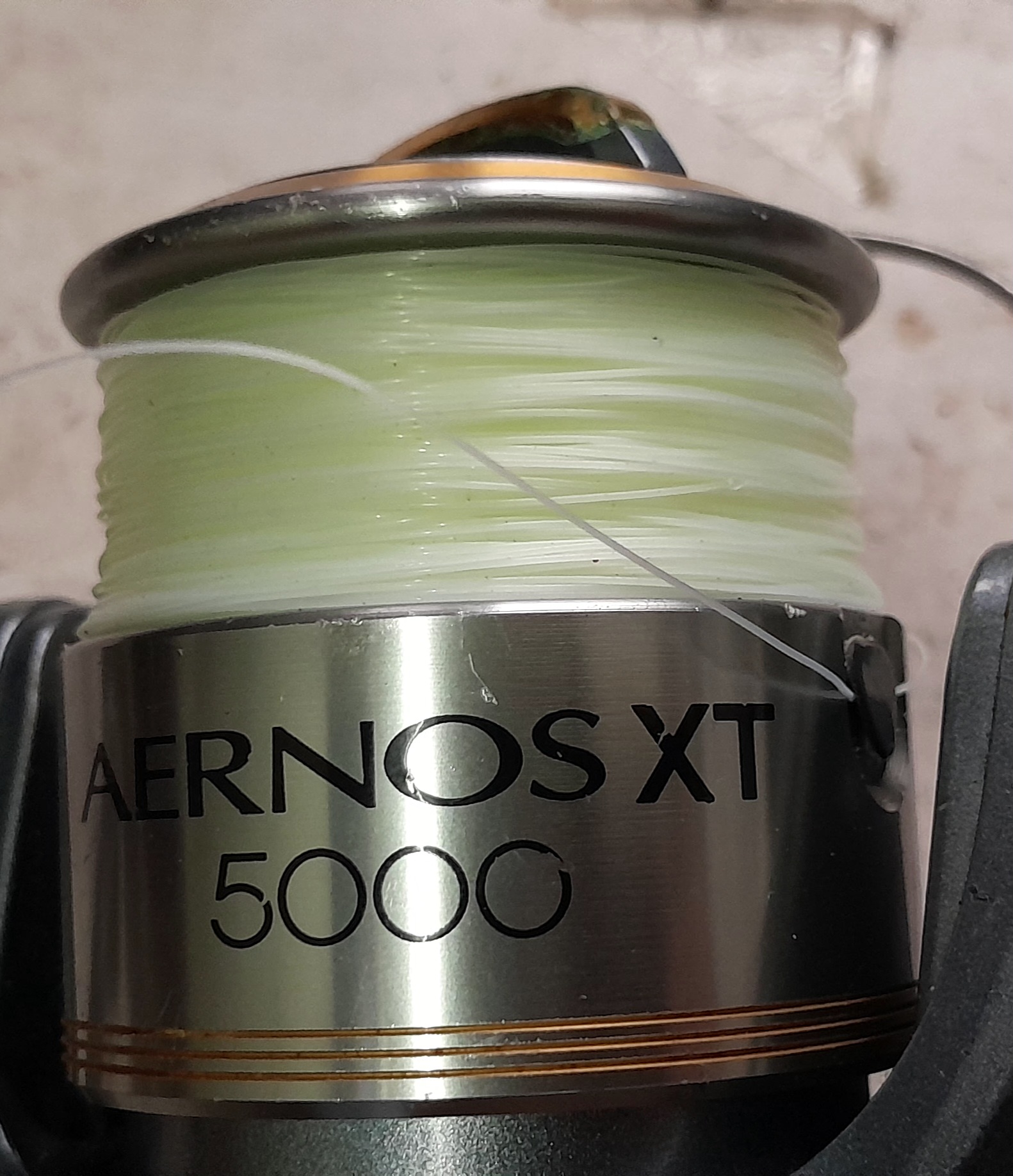

Before service

Parts corroded


The handle can't fully lock but still ok.

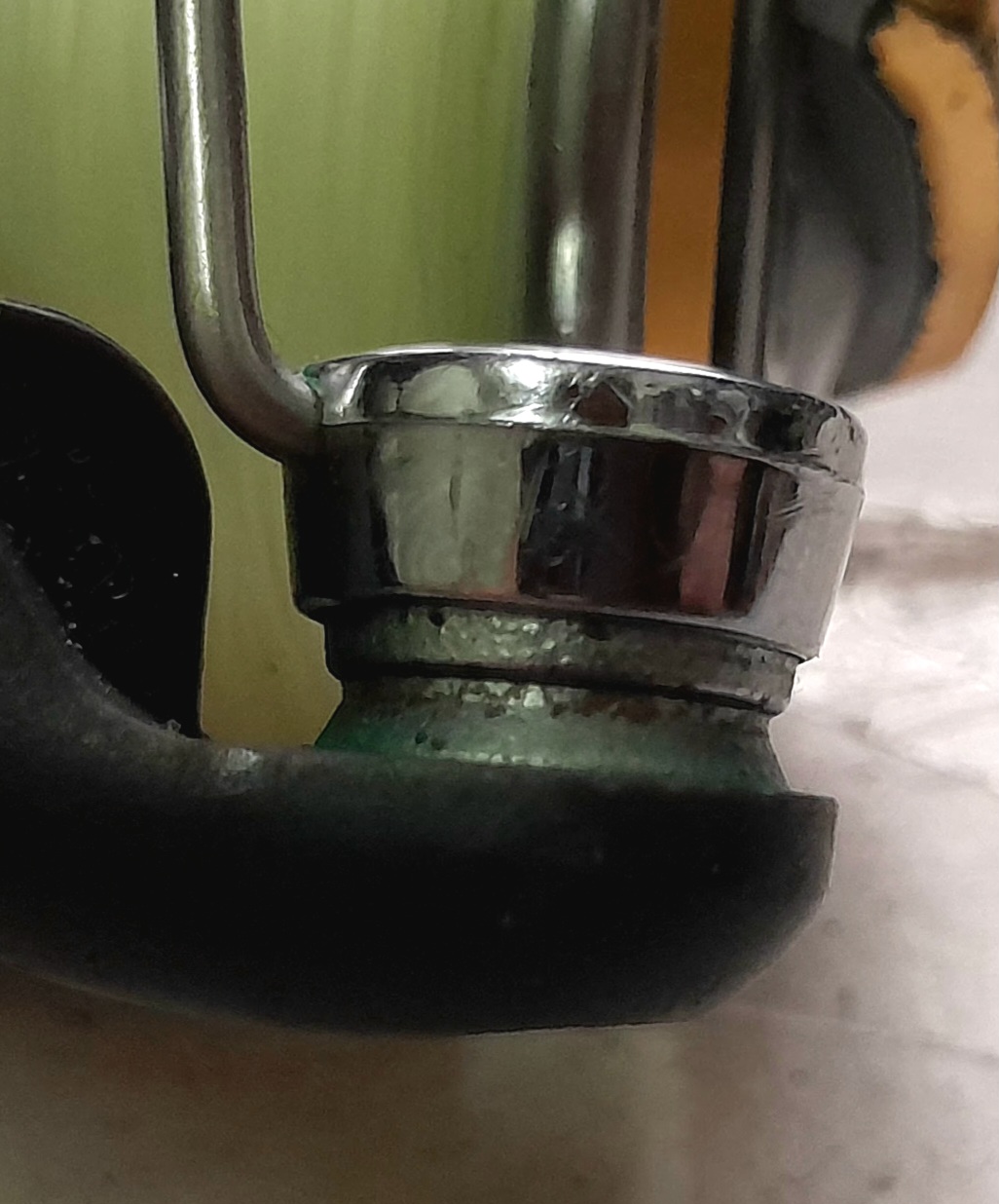

Line Roller corroded and screw hard to open



the plastic parts green stuff.





Line Roller surface corroded


Remove and Service.

No bend shaft




Needle Bearing.

Green, greese mix with salt water




Greese dry parts corroded


With ballbearing.

Greese dry




The top drive gear bearing stuck can't turn.

Spray with WD40 all rust come out will lubricat with oil

Rust on Needle Bearing

New greese added


Bail arm return spring same greese dry.

Done service and clean






Put in a pouch

No 53. Shimano Ultegra 1000 1997. Made in Japan.
Buy another secondhand units for Rm95. Faulty only the anty reverse lever stuck.

Specifications
1. Made in Japan
2. 2 ballbearing add 1 more.
3. Folderble Handle
4. Line capacity 1.5/130, 2/100, 3/65


Not my the box

Before service











The shaft cover with dark greese

Dry

This anty reverse rod stuck

Screw no scratch

Dry


With dark greese

Special center shaft magazine


Using plastic bushing

Manage to remove the anty reverse lever. Stuck coroded, repolish.

Change to balls


Fully regress
Done






Put in 10 ibs 0.26d mono line



No 54. 27/9/2024. Secondhand, Zebco The Rock II 1995.
Buy for Rm95, made in USA Spincasting reels from zebco look at conditions not much use. The inside greese look clean, gear ok, Original came with plastic packing not box.
Specifications
1. 2 ballbearing
2. High speed
3. Gear Ratio 4.1:1
4. Brass pinion gear
5. 10ib 85 yrd


Not mine the wrapping not box

The assembly manual and parts list

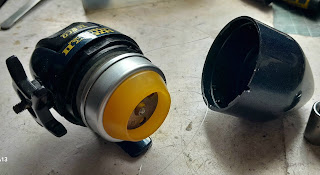

Before service








Service









Done






55. My no 55, SHIMANO Navi 3000 SBL
Buy secondhand Rm76. Made in Malaysia for Japan market. Is year 1998 ++. Not much information on this model. Only paint damage and parts corroded will fully service

Not mine the sample box

Before service



Made in Malaysia for Japan market









Service

Sand on spool



no greese



No greese

manufactured didn't put more greese

Bottom just small amount greese on surface

The maint rotor bottom with greese


Simple gear system but sale for few hundred when new.

Line Roller

Rusty ballbearing

Spool corroded









56. No 56 reels Ryobi EX-40. 1990++
3/10/2024. Buy secondhand for rm19. Small and funny. Casting reels.

Before service








No greese

The line tangle together

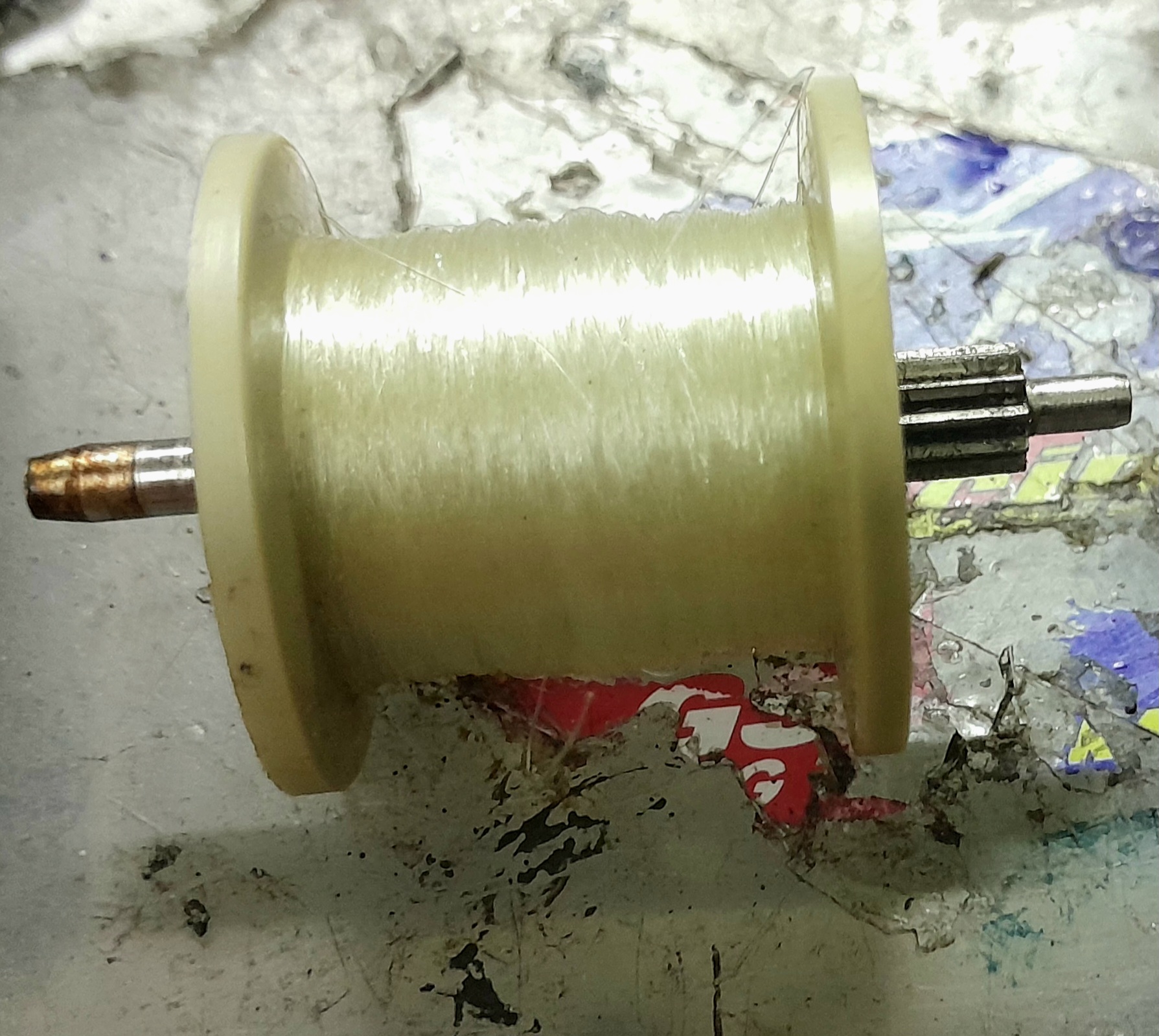

The spool


Add new greese







No. 57 comming .



Enjoy Fishing 🎣 🎣 🎣 🎣 .
