11/10/2023. Come a cross a dirty RC in Facebook sale just put in for sale few minutes. Just chassis, body cover, with electric parts but very dusty. Look like HPI E10, from the motor and receiver return HPI. Sale for Rm150, meet up in Lotus ockland seremban 2 is a ori E10. History this rc buy new for him, but look on condition problem after playing put a side until dusty. He use 2 pcs 7.2v battery joint pareller give more powerful amp but it will damage the ESC. He using Vantex ESC. He say problem in electrical. Given HPI ori remote. Back home check and dismental parts look for damage parts.
After gone through Internet this is HPI E10 Touring car RTR 10725 Nissan Skyline R32 GTR 2011. The best on this brand, we can change position motor and mounting location rear to front. To suiet driving position driff or touring.
Start blogger = 11/10/2023
Update bloog = 6/11/2023
Total Spending parts = Rm48.20.
Made in USA (🇺🇸)
2011 to 2024 (13 Years)
 |
| Image From saller |
 |
| Very dusty |
The original image
 |
| The driff box not my |
 |
| The ori electric set |
 |
| Ori HPI ESC |
 |
| Motor can shift from rear to front Touring or driff. The diffrential also need tu change position. |
 |

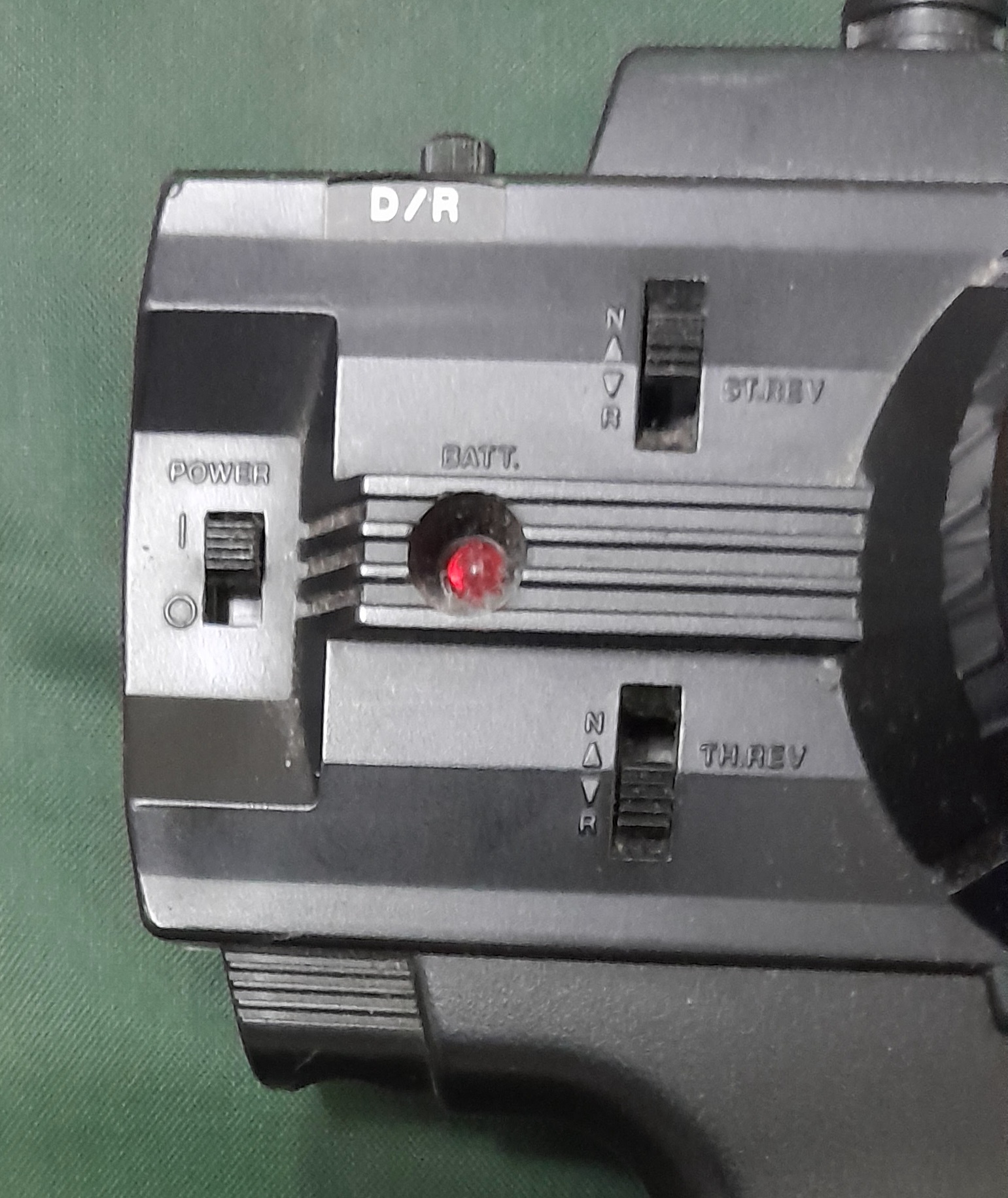

| This is 2007 instruction manual can be use. 2010 manual same, can't find assembly manual only over view. |
The car condition after checking
1. Full of dust and paint drop.
2. Using 2 pcs 7.2v battery joint pareller.
3. Extra negative wire from battery to receiver connector.
4. Both battery cable tide to chassis
5. Missing 1 pcs front dogbone
6. All screw rusty
7. Rear shock absorber top mounting been remodified.
8. The steering servo bracket too tight hard to remove screw.
9. Body cover and paint damage.
10. Battery tamiya connectors joint missing.
11. Front lhs/rhs dummy disc brake out of position
12. Wheels been spray white chip.
13. Front and rear diff gear no greese
14. Front and rear axle gear greese dry.
15. Missing antenna on remote
16. Receiver wire break
17. No battery holder
18. No battery holder post
19. Bottom chassis heavy scratch normal
20. Steering no adjustable linkage
21. Proppeler shaft both end faulty use super glue or been modified using aluminium pipe.
22. All wheel no ball bearing.
23. Battery joint not solder
24. Front/rear axle box dry greese
25. Motor negative wire joint only twist both wire togather no solder.
26. Vantex ESC faulty
27. Drive small shaft super glue on spur gear.
28. Shaft and step screw with dirty surface, suspention movement hard.
29. Missing 1 pcs differential cup 88001 front rhs.
30. Broken push rod servo to steering superglue.
 |
| Ori red but add white outside damage, will remove it. |
 |
| Bumper crack stapler. Head lamp cut out |
 |
| Rear bumper crack |
Condition before dismental
 |
| Missing 1 pcs front rhs dogbone and Diffrential cup. Not oil type damper |
 |
| With a CPV fan function |
 |
| Double battery |
 |
| Using Screw tighten wheels |
 |
| Wheel painted white damage. |
 |
| With paint drop |
 |
| Full of dust |
 |
| Use cable strip to tight the battery |
 |
| All screw rusty |
 |
| Scratch heavily |
 |
| Proppeler shaft been super glue ori is plastic |
 |
| Tamiya connector from battery missing |
 |
| Add on cooling fan |
 |
| Using Vantex ESC not ori HPI |
 |
| Steering no adjustable linkage |
 |
| Rear body post |
 |
| Front bumper form and body post |
 |
| No connector |
 |
| double 7.2v battery cable strip |
 |
| Both battery tape |
 |
| Bottom battery with zip lock |
 |
| Missing battery holder and post |
 |
| Battery joint not solder |
 |
| Missing battery holder post |
 |
| DIY Proppeler |
 |
| The small shaft superglue on spur gear |
 |

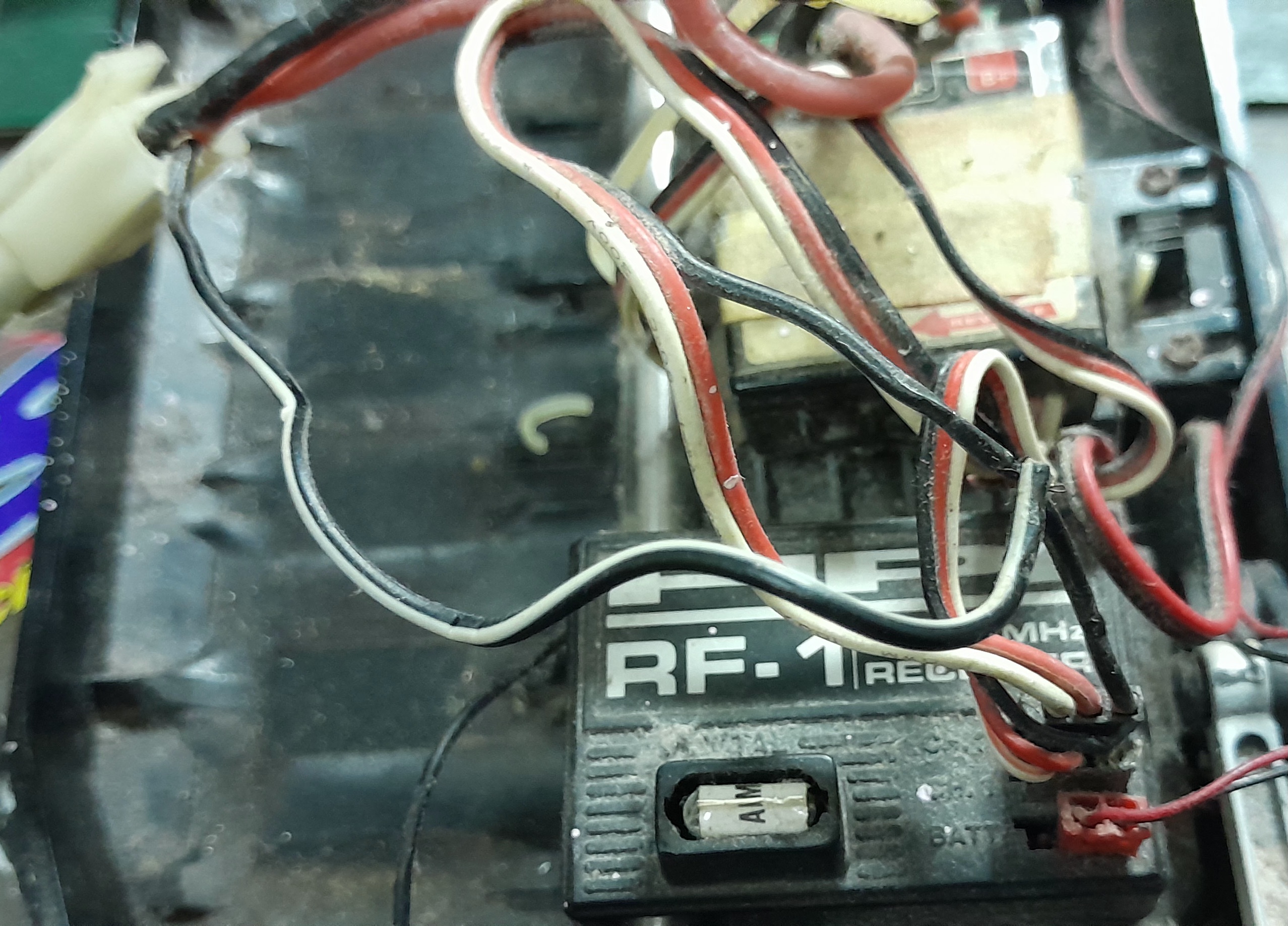

| Received wire break |
 |
| Additional negative wire to receiver |
 |
| Fan function |
 |
| Not proper fitted front lhs/rhs |
 |
| All wheel no ballbearing |
 |
| The bumper form in good condition |
 |
| Vantex ESC damage |
 |
| Steering |
 |
| Steering servo cover hard to remove |
 |
| Steering set |
 |
| Gear cover |
 |
| Pinion and spur gear ok |
 |
| HPI Saturn 27T. Build in brush motor still function. |
 |
| Only this two screw hard to openholding the servo |
 |
| Surfaces step and shaft screw dirty, movement suspention not smoooth. |
 |

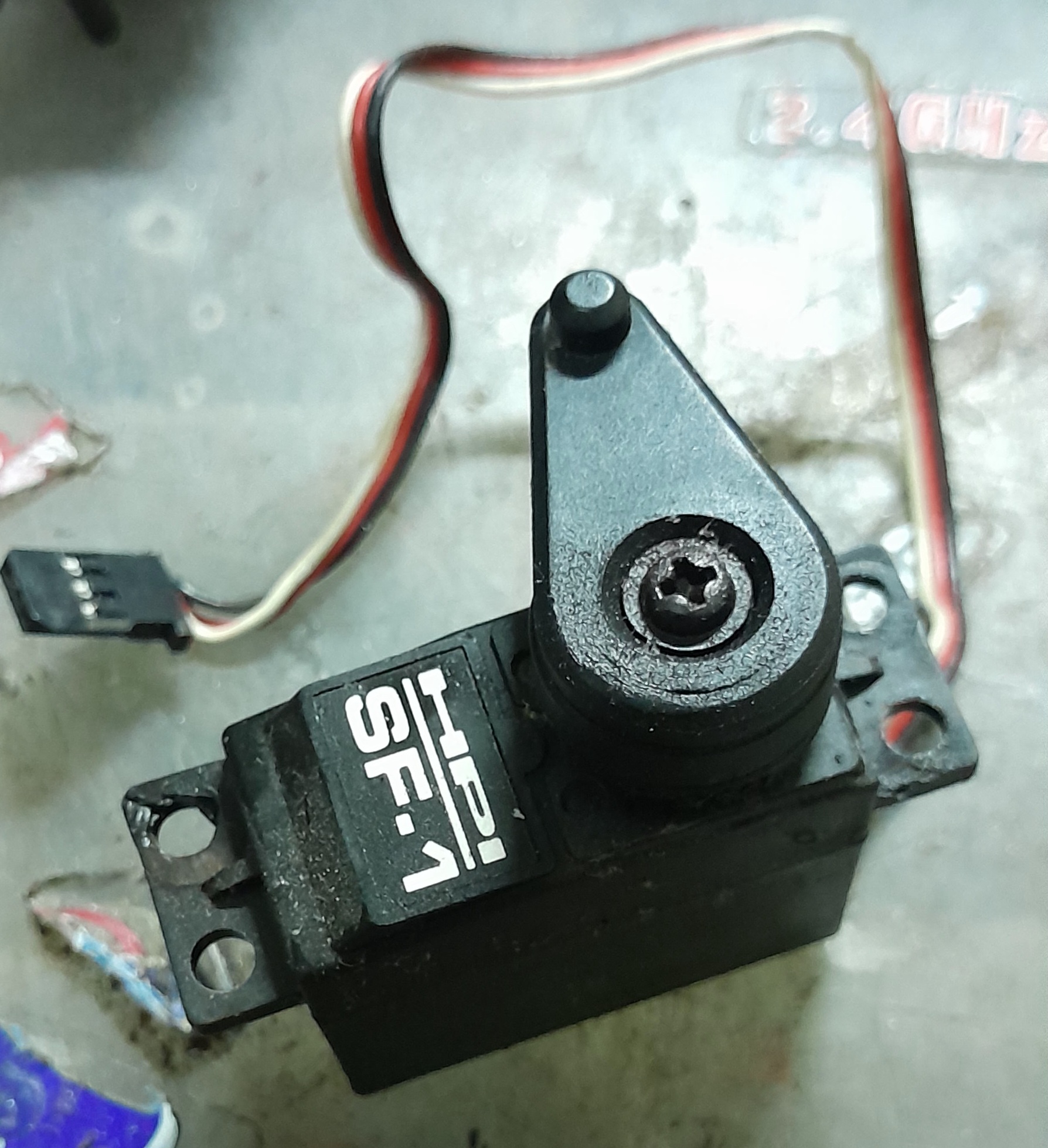

| HPI servo |
 |
| Front suspension set |
 |
| Front diff gear no greese |
 |

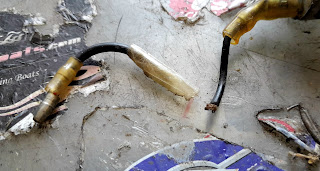

| Proppeler shaft end superglue, ori using plastick |
 |
| I thing this Proppeler shaft been modified |
 |
| Spur Gear ok using ballbearing both side |
 |
| Rear suspension arm |
 |
| Some modification on both rear shock absorber |
 |
| Top screw loose. Modification to make rear more highyer |
 |
| Modified parts remove |
 |
| Rear diff no greese |
 |
| No ballbearing use |
 |
| All use plastick bushing Order 12*18*4 size bearing |
 |
| Axle gear dry greese |
 |
| Full of dust |
 |
| At last can be remove, still turn smooth function |
 |
| Inside circute clean |
 |
| The motor negative wire joint by twisting no solder |
 |
| Damper remove |
 |
| All parts dismental |
 |
| Socks in ditergen loosen the dust |
Total cleaning done, waiting for the ball bearing 12*18*4 so every parts will fix back
 |
| Both battery recharge |
 |
| EP power Battery full charge, add a dien plug |
 |
| No name NIMH Battery full charge add dien plug |
 |
| Regrease the axle gear. |
 |
| Clean shock |
 |
| Extra 3pcs 12x18x4 ballbearing. Fix On rear diff gear |
 |
| 2 more bearing on diff housing add greese |
 |
| Rear axle partly done |
 |
| Missing 1 diff cup, i DIY |
 |
| Ori lhs, DIY rhs |
 |
| Until today parts fitted 19/10/2023. |
20/10/2023 got the ballbearing, assembly started
 |
| All wheels fitted ballbearing |
 |
| Rear axle done |
 |
| Front axle done |
 |
| The DIY dogbone and diff cup |
 |
| Rear damper fitted nicely on the original position. |
 |
| The battery holder from HSP |
 |
| Battery holder post from HSP |
 |
| Test run all move freely |
 |
| Original post position for receiver wire |
 |
| Broken steering push rod is beèn superglue before |
 |

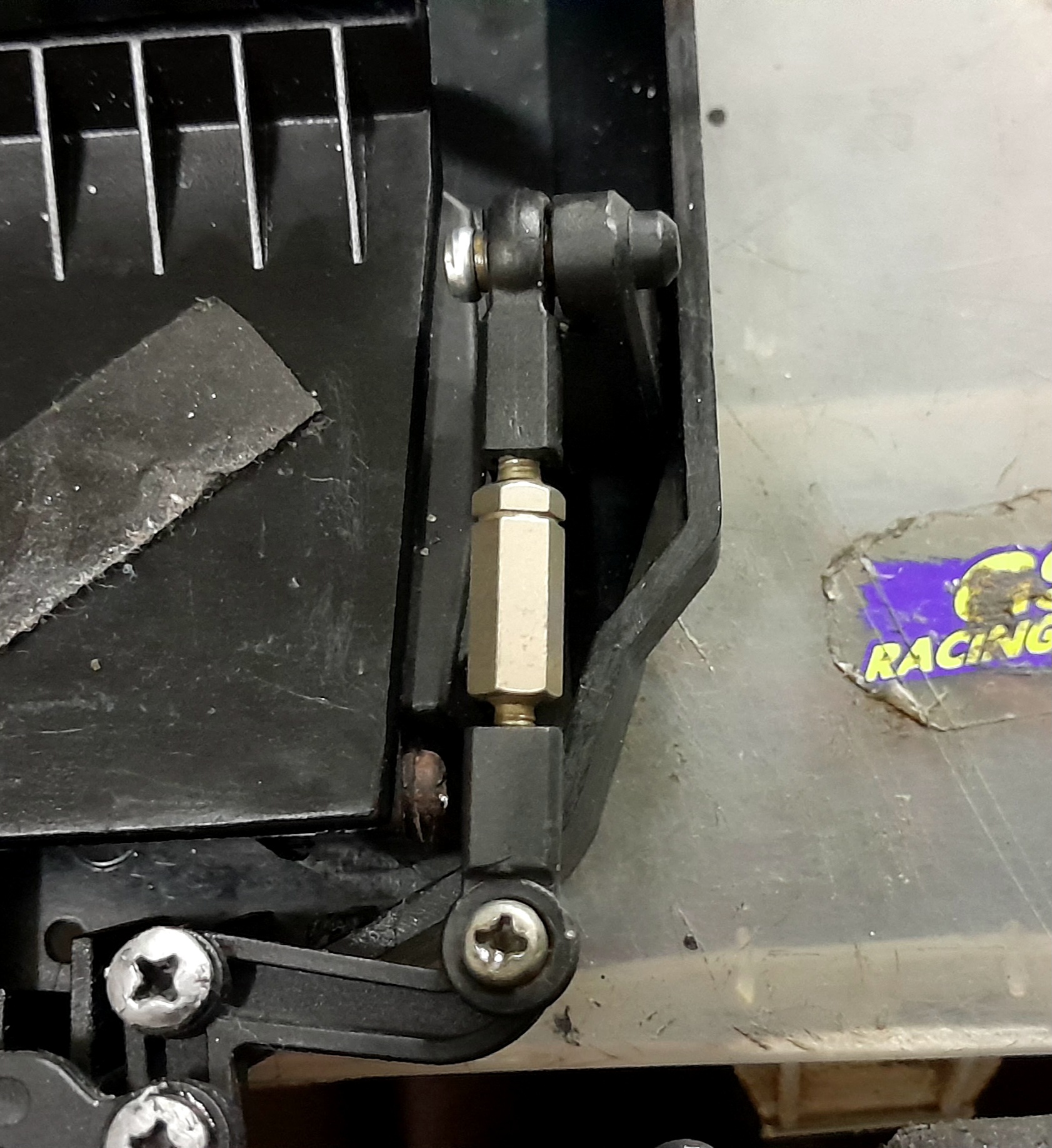

| I change to adjustable linkage |
 |
| Put back the same electric parts not going to run this rc. |
Two same RC ori and Clone HPI E10
 |
| Lhs ori, Rhs clone |

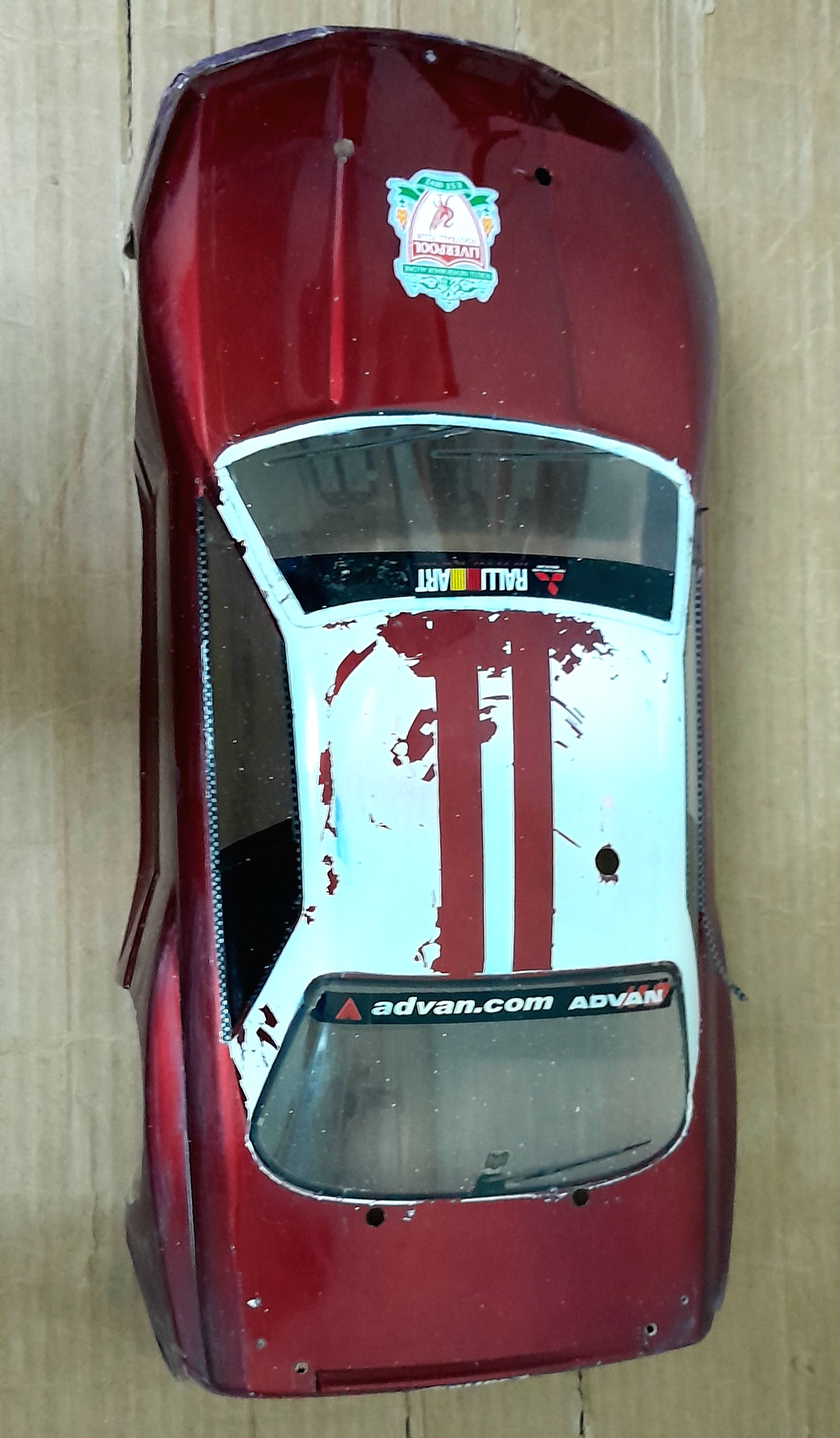

The white paint remove. Top i will respray white. Body need repolish and crack body reglue.
 |
| Top will respray white. |
 |
| Front bumper inside reglue few layer |
 |
| Top done respray white |
Body Done rework
5/11/2023 got the same size antenna rm2.30
Soon image
