10/8/2023 go hunting for model car in Bangi Selangor come across a use buggy Rm40 1/18, hold it very heavy open check found is Trinity Brand TR19007 ITSY BITSY SPIDER PRO MINI MONSTER 2005. Bought for Rm38 after 5% discount. 1/18 is not my collection, but this time because it brand Trinity I bought it. Found inside a mini monster truck look new no dust or dirt even under no scratch, no rim scratch, no parts damage all new. Only need to buy ESC and Transmitter. From USA made in China. Found price in 2009 Yen16500 around Rm400+- (2023 price is Rm523+-)
The two battery can't fit into battery try. Come with 4 pcs new aluminium diffrent size pinion gear, I thing the motor already change to brush Trinity Monster. The 4 pcs damper not oil type. The body cover has been rework. Overall this is a new RC happy to buy another Cheap RC.
Start blogger = 10/8/2023
Update = 11/9/2023
Total Spending = Rm34.19 10.21
2005 - 2024 = 19 Years
Made in CHINA (🇨🇳)
Faulty
1. No ESC
2. No Transmitter
3. Body cover has been respray and add diffrent sticker with crack paint.
4. Given a wall charger but output is 12V can't charge the 7.2 V nimh
5. No greese in front and rear axle.
6. All the axle gear plastic
7. Missing pin front lhs wheels
8. Steering servo arm clip and screw missing.
9. No ball bearings in all wheels hub.
10. Shock absober not oil type
In the box
1. With 2 battery - Intellect 1400 7.2v NIMH and ENRoute lipo 7.4v 1800mAh 2S 20C.
2. With 4 new aluminium pinion gear.
3. New ball bearing for wheel hub
4. New tyre
5. A Trinity monster motor
6. New plastic spur gear.
7. All adjustable linkages toe in/out and camber.
8. Aluminium propeller shaft
9. With assembly and instruction manual Eng /Jpn
10. Given antenna wire post
11. Wheel nut remover
 |
| 15000 Yen 2005 around Rm300++ |
 |
| Two type of battery given Intellect NIMH 1400mAh this battery only for Jpn Market and ENROUTE lipo 7.4V 1800mAh 20C |
 |
| New aluminium pinion gear |
 |
| Given wheels nut remover and safety pin |
 |
| New 8x4x3 ball bearing |
 |
| Wall charger for Nimh battery 12v output can't charge 7.2V. |
 |
| A am antenna tube |
 |
| Instructions and assembly manual English and Japan |
 |
| Very new and clean |
 |
| Steering servo basic type |
 |
| Plastick Spur Gear no damage new |
 |
| All round with adjustable linkages |
 |
| suspension arm |
 |
| Battery compartment |
 |
| Aluminium propeller shaft. |
 |
| Plastick pinion and spur gear new ori |
 |
| Trinity monster brush motor |
 |
| Basic Steering servo |
 |
| Servo arm e clip and screw missing |
 |
| Got it 20/8/2023 will test it up |
I also buy this 30A ESC testing on this RC . Only Rm10 each.
 |
| Got it 20/8/2023 |

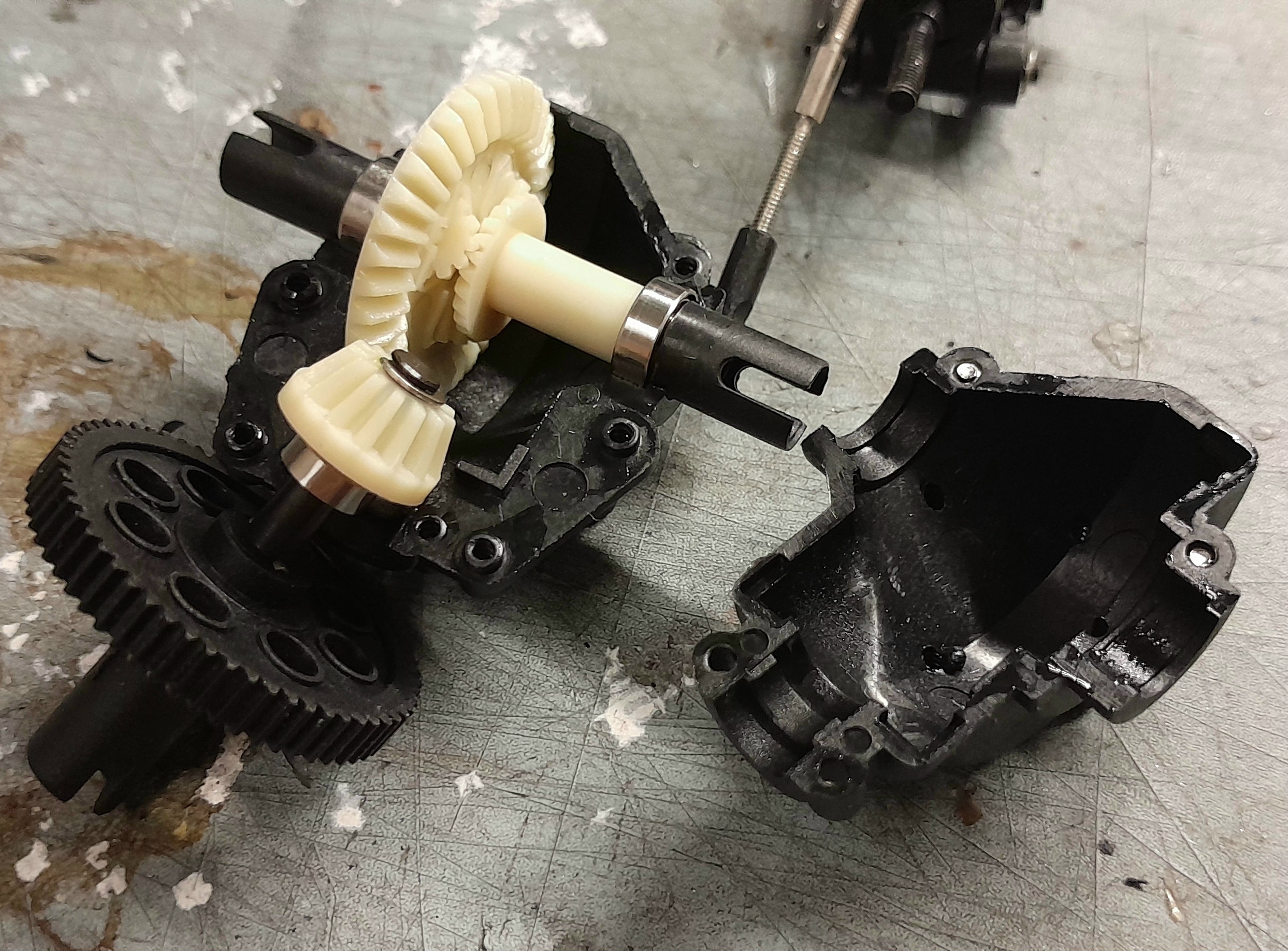

Test 40amp ESC motor and servo functions all wheels turn. After this need to open Front and rear axle checking for greese.
 |
| No greese Front axle, very light greese from factory |
 |
| With ball bearing on axle |
 |
| Add more greese |
 |
| Aluminium propeller shaft |
 |
| Screw and washers missing |
 |
| Replace a washer and screw |
 |
| Same rear axle no greese |
 |
| Front wheel hub all change to ball bearing |
 |
| The main gear shaft support by 2 ball bearing. Not strong I shake the axle it move freely . |
 |
| Add greese |
 |
| Add one more ball bearing 3 pcs more strong. |
 |
| Rear wheel hub ball bearing |
 |
| Done know electrical parts need to rearrange location. |
 |
| Ori pinion gear plastic just tightly fitted into motor shaft |
 |
| Change aluminium pinion gear that tighten with allen nut. |
11/9/2023 I change the damper to oil type that I buy long time ago.
 |
| Rear |
 |
| Front |
20/10/2023 buy a seat of 1/18 drive shaft and wheel hex rm10.21. Know I can change the wheel of 1/10 size.
Enjoy RC
