My next no 48 units RC. Buy for Rm200, saler from Klang Selangor 7/2/2023. Tamiya TGX MK I 1/8 Year 1998 original with Pennzoil Nismo GTR body. Come without body and Transmitter. Using FS15LT engine. Look like some problem in this rc, put a side for long time never repair. Will postmortem when i get it. Assembly manual download.
On 9/2/23 i got the car, after checking and remove parts, from my point of view this rc buy new just play few time in a carefully manner because no scratch on bottom chassis only miner scratch on front bumper. Another thing when dismental, parts screw dam tight and most screw with shining tread. Few thing found didn't propper assembly, there no greese on front and rear axle gear like new. No parts damage, engine compression still good no much slush. I thing, i got a jack port rc again, in good condition but dirty.
 |
| The Box not mine |
 |
| All the TGX using same chassis. This is 1996 assembly manual. |
Start blogger = 7/2/2023Update blog = 20/9/2023
Spending on Spareparts = Rm20
1998 to 2024 = 26 Years
Made in JAPAN (🇯🇵)
Image from saller
There are few type 1998 TGX MK I and 1995 TGX MK I TS. Few more same TGS with different body until 2001.
 |
| This TGX MK I 1998 |
 |
| This first 1994 TGX MK I TS |
 |
| I thing this is the transmiter Tamiya use |
TGS 1/10 2003 down size
Fault found
1. All shock spring rusty
2. All tyre and inner sponge damage due to long storage.
3. All 4 wheels not using ballbearing.
4. All dogbone rusty
5. All suspension arm didn’t have allen screw to adjust low gravity chassis.
6. Bending body stay
7. Caburetor nut hard to open
8. Crankshaft with dry slug, inner bearing stuck.
9. Dirty with old dust
10. Engine jem can't turn dry slug.
11. Exhaust screw hard to open
12. No body
13. No Transmitter set
14. No exhaust return hose to fuel tank.
15. No air filter
16. No bumper form front
17. Missing fuel tank prime choke
18. No exhaust long pipe to rear bumper been cut shot.
19. Missing brake linkage
20. Front suspension arm lhs/rhs hard to move due to heavy rusty screw.
21. Front/rear axle gear no greese, gear ok no damage. .
22. Fuel tank with dry nitro oil.
23. Front bumper missing one screw
24. Lhs side protection bracket screw mount broke.
25. Missing cap on rhs chassis side cover
26. Most suspension pin rusty
27. Needle housing casing bottom lock nut and rubber seal missing
28. One pcs absorber bottom spring seat cap came out
29. Top engine head tighten screw using Philips head for long term will damage.
Got this units on 9/2/2023
 |
| Front |
 |
| Rear |
 |
| Top |
 |
| Bottom |
 |

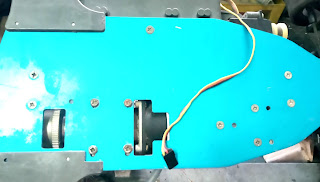

| Under chassis no scratch |
 |
| Front bumper missing one screw and few scratch |
 |

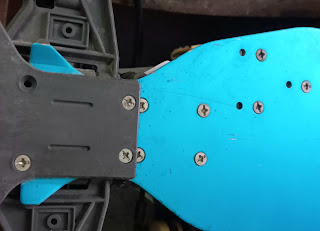

| Bottom suspension |
 |
| This exhaust hose original long until rear bumper but been cut short |
 |
| All wheels tyre damage |
 |
| Long storage |
 |
| Fuel tank missing prime chock |
 |
| Inside tank dry 2T oil |
 |
| Caburetor dirty |
 |
| Radio tray |
 |
| Acoms IC servo. |
 |
| The 15 size tamiya engine. |
 |
| The normal exhaust pipe can open. |
 |
| Given a fuel filter |
 |
| With Pull start |
 |
| Some rusty screw |
 |
| The gear ok |
 |
| Brake disc ok |
 |
| Spring all rusty. This units bottom spring seat came out |
 |
| The filemen still new |
 |
| Side rear protection cover |
 |
| Using plastic hex |
 |

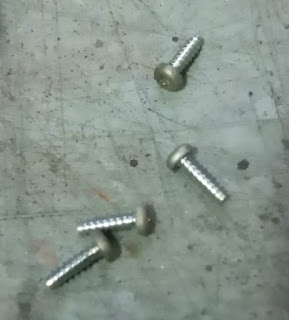

| Most screw still new |
 |
| No ball bearing on all wheels hub |
 |
| Rhs side protection cover bracket broken screw seat. |
 |
| The radio tray |
 |
| Tamiya FS15 size engine |
 |
| Most screw with bright trade new. |
 |
| Proppeler shaft iron very thin |
 |
| Front |
 |
| Shock absorber spring rusty and dusty |
 |
| The suspension pin mostly rusty even dogbone |
 |
| Use copper bushing |
 |
| No alen screw on all suspension, for adjust low center gravity. |
 |
| Steering arm |
 |
| Suspension arm screw total rusty |
 |
| Need to spray wd40 |
 |

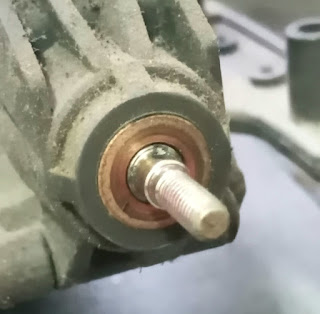

| No ball bearing on axle case |
 |
| Hard to open total rusty. |
 |
| Simple cab only 1 needle valve. |
 |
| Lock nut and o ring seal missing |
 |
| With ball bearing not needle bearing |
 |
| Inside clean |
 |
| Tamiya using philip head screw fast damage will charge to allen head |
 |
| Clean |
 |

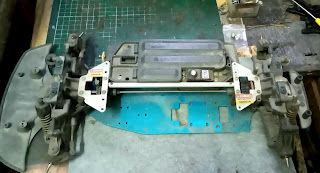

| All dismental |
 |
| Gear box no greese at all |
 |
| No applying greese |
 |
| Front and rear no greese |
 |
| The damper oil new no leak |
 |
| All parts dismental |
 |
| All 4 tyre damage and not glue on wheels |
 |
| All damage |
 |
| Rear axle done |
 |
| Add a allen screw adjust chassis low gravity |
 |
| All change to ballbearing |
 |
| The steering linkage will replace the copper bushing to ball bearing size 3*7*3. |
 |
| Lhs side protection wing screw mounting broken |
 |
| The side protection mounting diy a screw |
The engine fully service not yet start
 |
| Fully clean |
 |
| Diy the fuel chock |
 |
| Add a back preassure cooler |
 |
| The fuel filter given. |
 |
| New air filter |
 |
| Add the aluminium 5mm hex |
 |
| The beake arm i modified |
At last finish total service, 5 days to finish. Tyre order, and start the engine.
 |
| Done |
Start the engine for 2 minutes, ok can start and oil come out from exjaust.
Another collection, body later
 |
| Reglue all the damage tyre, just show not run in track. |
 |
| DIY a turning dice |
For all the damage tyre i reglue back, scared couldn't found the same Tamiya brand size. Already oder a set of tyre, don't know can match the ori rim.
 |
| Inner surface i use Dunlop Glue and then add hard sponge. |
3/3/23 the steering arm ball bearing rich 3*7*3 size. Buy from China Rm23
Enjoy RC
