This new Volume 2 of my simple engine collection. Until today 2024 I have 29 pcs Engine. Mosly not that branded name. The best engine I like Novarossie. Some from Japan, Taiwan and China no name.
My collection
1. Kyosho (Japan) = 10 units
2. Novarossi (Itali) = 3 units
3. Thunder Tiger (Taiwan) = 3 units
4. CEN Racing (USA)= 2 units
5. GS Racing ( Taiwan) = 1 units
6. Vertex (VX) (USA) = 2 units
8. Tamiya (Japan) = 1 units
9. Smartech (Taiwan) = 2 units
10. SH Engine (Taiwan) = 1 units 🇹🇼
11. No Name Engine (China) = 3 units
Size of my Engine
1. 11 size / 1.9cc = 4 pcs
2. 12 size / 2.0cc = 7 pcs
3. 15 size / 2.5cc = 13 pcs
4. 16 size / 2.7cc= 1 pcs
5. 18 size / 3.0cc = 3 pcs
6. 21 size/ 3.5cc = 1 pcs
Start Blogger = 16/1/2023
Update blog = 18/12/2024
Collection = 29 units

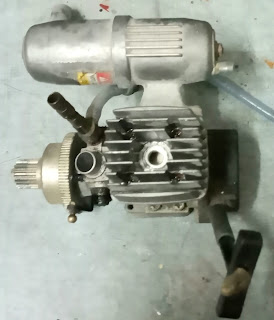

21) No 21 RC engine HuanQi G15 size.
Came with my rc car i bought HuanQi clone Kyosho FW05.
1. Slide caburetor,.
2. 2 needle adjustment,
3. Made in China..
After service try to start using pull star, can't start at all, pull many time use new glow plug still can't start. It meant engine ko.

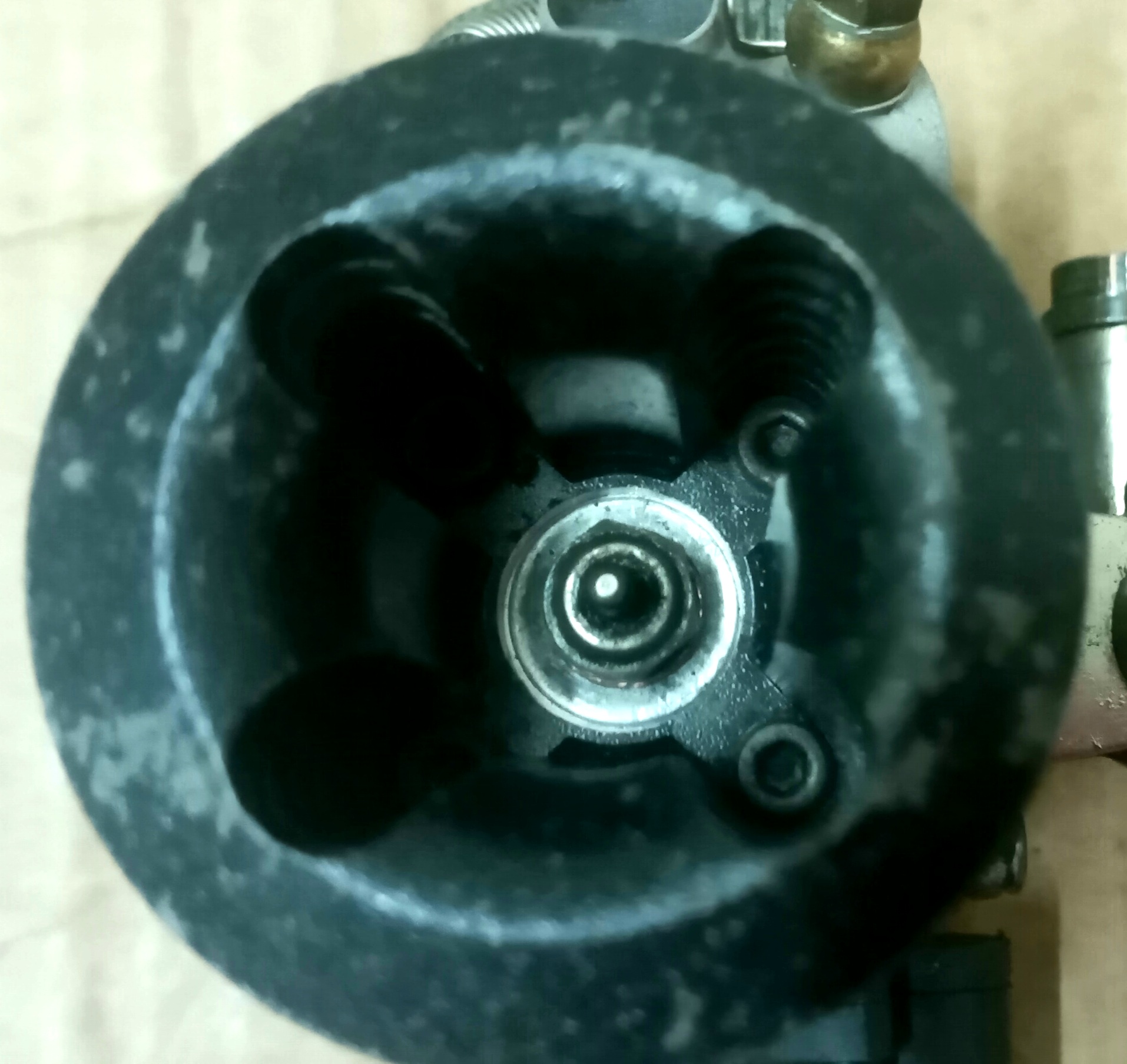

Before service |
Total remove |
After fully service not yet test start, when turn flywheel feel like low compression. Will use starter box. Can't start problem engine for display.

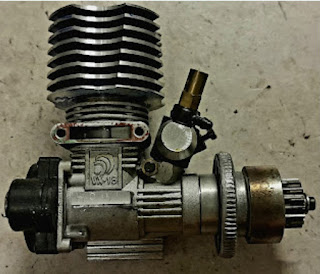

My 22 engine come with RC i buy HSP sonic 2000 26/1/2023. Is a Vertex VX18 size engine. Compression still good. After service this engine can start.
Image before total service
Total remove |
After cleaning

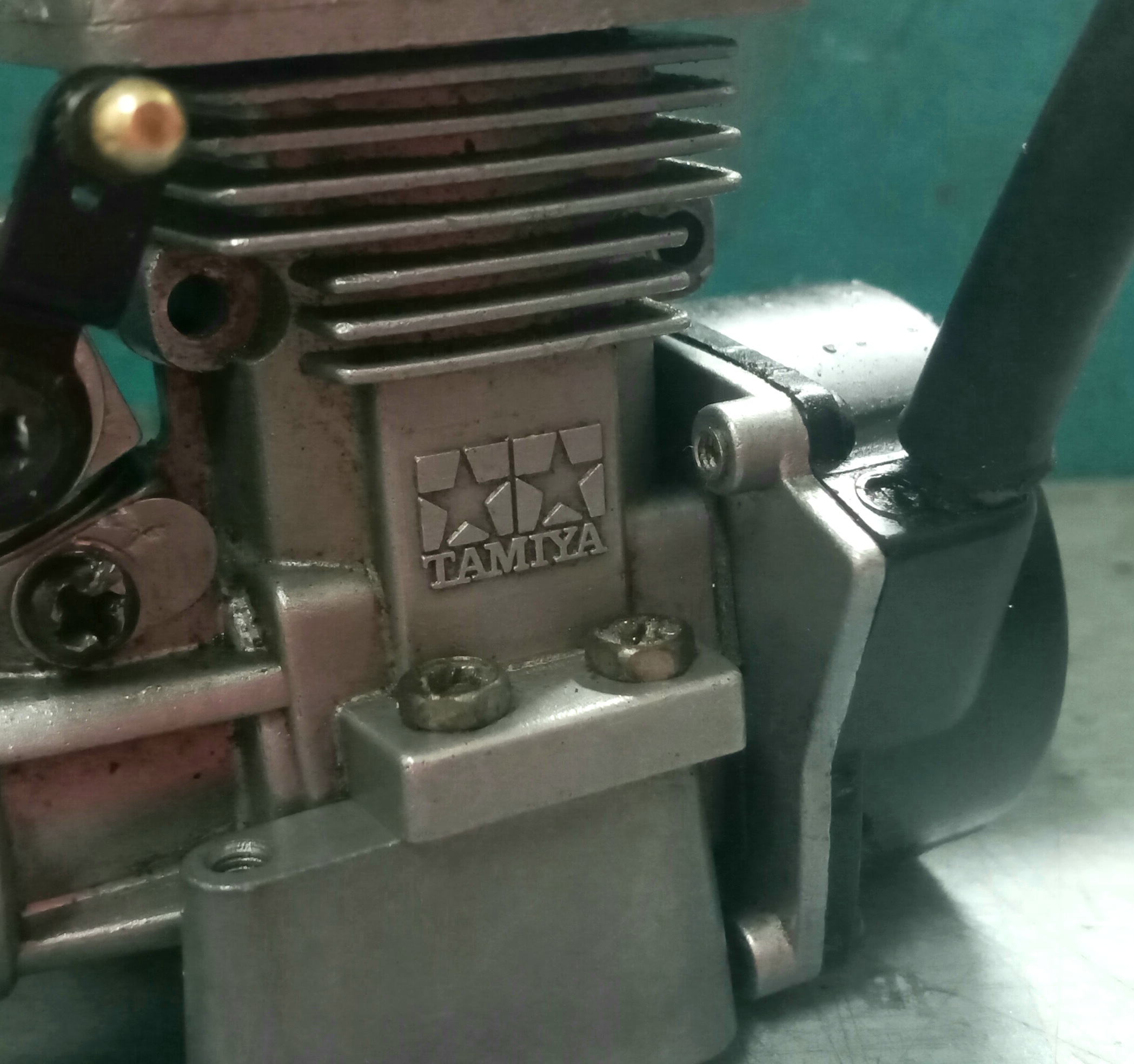

No 23 engine Tamiya FS 15LT size, pull start, 1 needle adjustment.
Buy togather with Tamiya TGX MK 1 1998. on 7/2/2023. Condition can start warm up 2 minutes.
Before total service
After fully service
Smartech |
15 size |
Exhaust pot |
on 1/5/2024 I start and tune this engine |
No 25 is a uncomplete engine when I buy CEN CT4S. No piston, rod, liner, cyclinder head, start cover, engine crank rod and pull start. CEN NX 15. So I fix back and use as a dummy engine. For this engine cyclinder head is aluminium bigger this purple not match.
The CEN NX15 Engine image not mine |
No 26 Engine. Vertex VX18
come togather when I buy HSP 94108 nitro truck on 17/3/2024.
BeforeCleaning and service
No 27 Engine. Smartech 15 CPX size.
Came togather with RC buggy I buy Smartech Swordfish buggy 2005. Compression still good.
Before service |
Total dismental |
After total cleaning and service

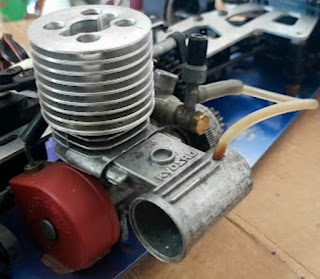

No 28 Engine.
Kyosho 10 size GS11X, is a 1994 pull start engine.
Buy togather with Kyosho GP10 1994 Rc. A very basic 1 needle adjustment. After service is a working engine.
Before total service
After service
No 29 Engine.
SH 21 PT21P3 a pull start Made in TAIWAN. My first 21 engine collection. Buy togather with my 1/8 HSP Bazooka. This engine still new only run in 1 fuel tank and keep for long time untouch. No service needed just clean outside body and add after run oil.
Specifications
Displacement = 3.48cc
Speed = 28000 RPM
Power = 2.1hp
Piston Diameters = 16.4mm/0.646in
Piston stroke = 16.4mm /11.29oz
Weight = 320g
Before Cleaning
Caburetor no slug |
Body clean from dry nitro fuel |
Paint chip |
Dusty cooking fin |
Clean and shining caburetor plunger |
The piston and liner free from slug |
Rubber dust cover torn |
Using OS8 glow plug |
After cleaning
Next no 30 engine soon.
Enjoy RC
