22/5/2022 found 2 RC want to sale in net from sungai buluh selangor. 2 chassis and 3 body. Look at picture the blue rc is a HY Ventex, front wheel carrier missing and few more parts. The 3 body in poor shape. Another unit not sure, after do some research look like 2008 HPI E10 Driff/Touring car. Both chassis want to sale for RM250. But managed deal to Rm200. So each units Rm100.
 |
| The 2 unit and 3 body |
 |
| Front wheel carrier lhs/rhs missing, motor mout missing and few more parts. |
 |
| The second unit look like HPI E10. Will review soon i get the car. |
Start blogger = 22/5/2022Up date blogger = 4/1/2023
Sum for spareparts = Rm7.50
2010 - 2024 = 14 Years
Made in China (🇨🇳)
28/6/2022 got the car chassis and body will slowly review it.
 |
First body Nissan GTR, very dirty and damage paint out side respray but started paint crack.
|
 |
| Paint crack this cheap product from China |
 |
| Front bumper crack cable tie. |
 |
| Spray white and add sticker |
 |
| Tail no sticker blank |
Second body is Nissan Skyline GTR, made in China. Wheel arch over cut and dirty. What i know from image of vantex 416 mostly using Nissan body but this not belongs to this chassis diffrent body hole.
 |
| Second body Nissan Skyline GTR |
 |
| Front |
 |
| Dummy wiper damage |
 |
| Over cut wheel arch |
 |
| Rear winshield cut, damage rear wing. |

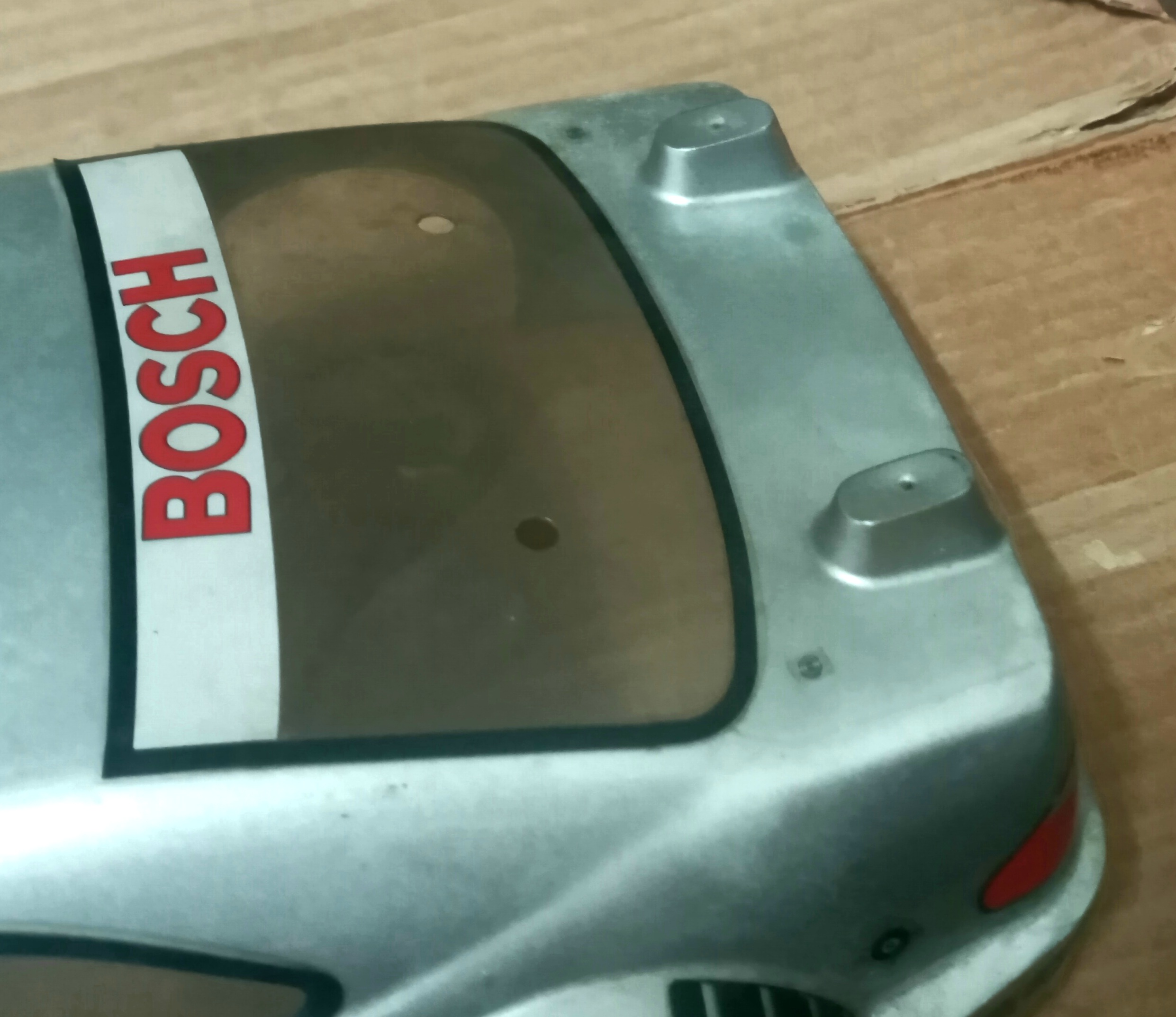

The third is Mercedes Benz CLK, look like this is original body from Kyosho. All the name stick on body is rear name not like China brand. Mostly if name of product is rear mean this cover ori from manufacturer.
 |
| Mercedes Benz CLK D2 body |
 |
| Missing rear wing |
 |
| Crack at side can repair |
HY Vantex 416 2010 is a clone car of Tamiya TRF416. Very famous for drifting, that time i saw every RC shop sale this china product for Rm300++. Very cheap and can get spare parts. Sale for few years, There two version HY vantex and HY mantex II. Sale like hot cake.
.jpg) |
| Not mine just to show the new box HY Vantex 416. |
 |
| Not mine, this another version third generation Vantex driff and touring 4wd. |
 |
| Not mine, Another HY Vantex |
At last got it on 28/5/2022. After do some research this is a HY Vantex 416 year 2010. found few things missing and the best is no scratch at bottom chassis event screw all parts 100% new. It mean never run before parts missing is for spare parts to other units. Happy got a new RC car buy cheep Rm100. Will repair it,
 |
| The HY Vantex 416 RC |
Fault found in this Vantex 416 RC
1. Front lhs/rhs knuckle arm missing.
2. Motor mounting missing.
3. Front lhs/rhs drive shaft, ballbearing missing.
4. No electrical parts ESC, Servo, Motor.
5. No wheels.
6. Steering servo mounting missing
7. Spur gear shaft ballbearing 1 pcs missing.
8. Front bumper top bracket missing.
9. Tightening 2 pcs screw for battery bracket missing.
10. Missing edge bracket to protect battery movement.
11. Front wheel hex missing
12. No center belt tensioner post.
13. Front lhs 2 suspension ball and spacer missing.
14. Front bumper 2 post missing to tighten with bumpet top mounting
15. No antenna mount.
16. Center post missing at motor mounting.
Givent to me in this condition clean and parts 100% new. I thing this units for spare parts.
 |
| Bottom no scratch new |
 |
| Missing knuckle arm set and drive shaft. |
 |
| Missing 2 tightening screw |
 |
| Missing battery edge stoper. The center belt in new condition. |
 |
| Missing motor mounting |
 |
| Steering arm good condition |
 |
| Rear axle complete |
 |
| Front drive shaft missing |
 |
| Both belting new |
 |

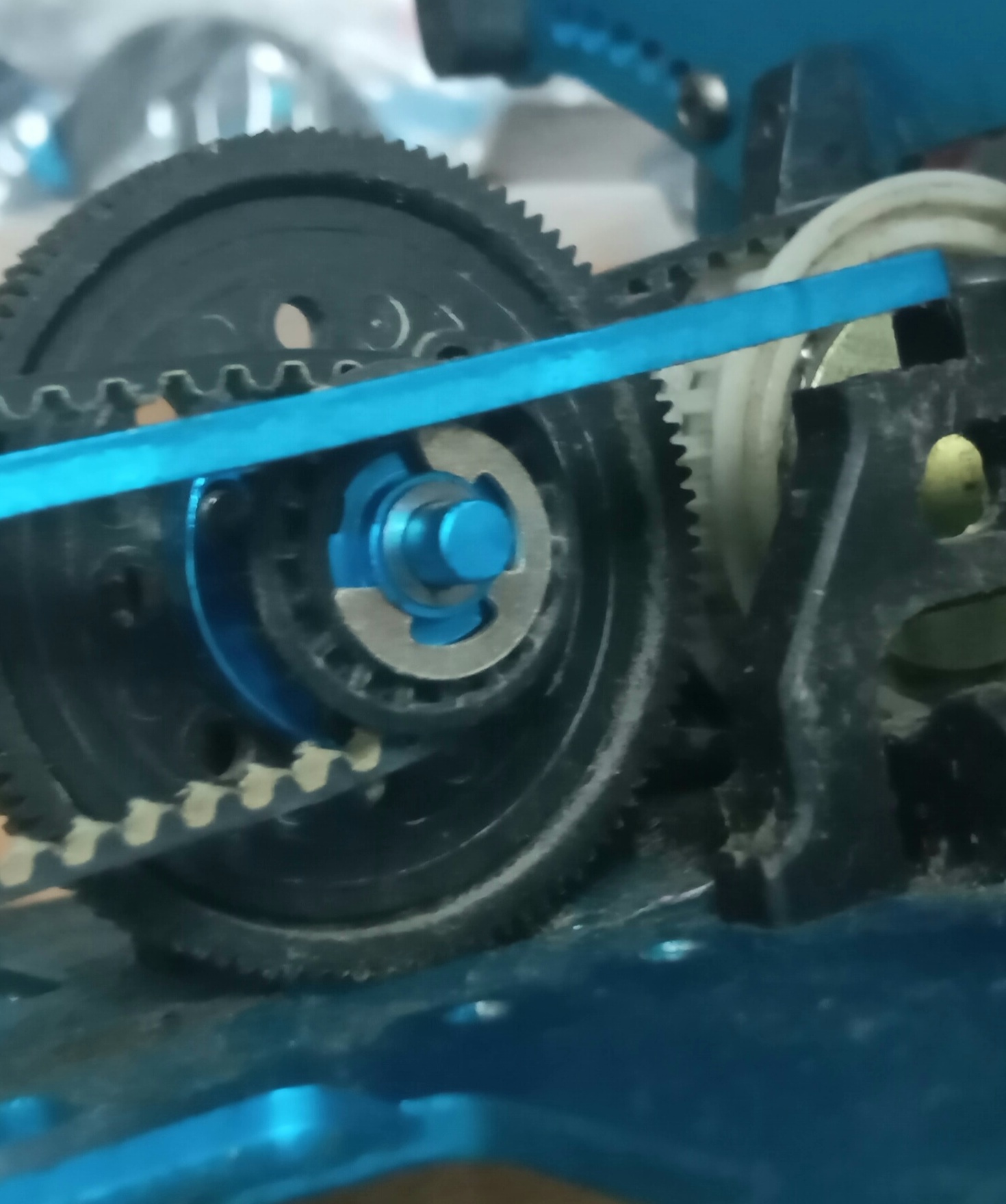

| All the drive gear new |
 |
| Rear shock no leak |
 |
| With front and rear stabilizer bar |
 |
| Gear in good condition |
 |
| Rear body post bending |
 |
| Missing battery strip |
 |
| The front bumper top bracket missing |
 |
| Front stabilizer bar new |
 |
| Ballbearing missing |
 |
| I have stock for engine mountings bracket |
 |
| Full ballbearing |
 |
| Rear suspension |
 |
| Front suspension arm |
 |
| Steering knucke |
 |
| The shaft new no rusty or greese |
 |
| Screw all new no chip |
 |
| Some of the parts i have. Will buy if found Some need to repair and repaint |
No need to dismental every component, i just clean it with wet cloth. Only dust no oil or mud.
 |
| Using Tamiya 416 as my guidelines |
 |
| Need to buy the flenge bearing, temporary i use Coper flenge bushing. |
 |
| New motor mount bracket |
 |
| Antenna mount DIY other brand |
 |
| Steering servo mounting |
 |
| Change to a Tamiya aluminium alloy suspension mount front. |
 |
| Center post bracket |
 |
| On lhs i use a plastic steering knuckle for rhs i use a aluminium alloy steering knuckle. |
 |
| The rhs aluminium alloy knuckle i spray black. Done lhs and rhs. The drive shaft i use UJ from back. |
 |
| DIY to small post for top bumper bracket |
 |
| Front lhs missing 2 suspention ball and spacer |
 |
| I have spare |
 |
| For rear i use dogbone and drive shaft. Wheels hex change aluminium alloy. |
 |
| Rear done. |
 |
| Front using one way differential |
 |
| Rear using ball differential no damage |
 |
| Just put a problem servo for show |
 |
| Using a old Mazda 6 body. |
7/7/2022 parts hunting in nilai 3 again, got cheap aluminium alloy and plastic parts just rm2.50 each pack.
 |
| New lhs/rhs rear aluminium alloy wheels hub |
 |
| Front lhs/rhs new Nylon steering arm |
 |
| New Aluminium alloy antenna post |
Got it the frange bearing 4x8x3 from china 20/6/2022. Rm2.71 each buy 5 pcs.
Done all parts missing replace, some need to buy. Electrical parts will fix in next time. Not going to race it for another display collection.
Just put in the electrical parts just show.
Enjoy Rc
