RC69. My Memory Having RC Car. My No 38 RC. Second HY Mantex II 2010..

Because of my first HY mantex II need a parts that difficult to get, i buy this second units on 21/9/2021 from a saler in Paroi N.Sembilan. meet up in paroi stadium and and talk about the units. This units Is spare parts for his running HY mantex. First prices for Rm100 + pos but deduction Rm20 for COD and given 2 use body shell Rm80. I just buy it because the steering set still ok for my first HY mantex. What ever ori parts i will transfer to build up my loose parts mantex II car project.

After done i cleaned up this units full of dust. It still look nice, many parts missing.

Parts missing

1. No Front steering hub 2pcs lhs/rhs.

2. No Front lhd C hub 1 pcs .

3. No 4 pcs wheel shaft

4. No 6 pcs bearing

5. No drive shaft 3 pcs.

6. No battery side stoper

7. No battery holder

8. No battery holder beam

9. No short rear belting

10. No center transmission gear set.

11. No servo holder beam

12. No 4 pcs damper

13. No front 4 pcs adjustable linkages

14. No rear stabilizer bar

15. No ball end 8 pcs

16. No 3 pcs wheels.

17. Chassis and radio tray spray gold colour

18. Chassis bottom scratch (Normal)

19. Front bumper bottom heavy scratch

Start bloog = 23/9/2021

Last up date Bloog = 4/1/2023

Sum for spareparts = Rm15.13

2010 - 2023 = 13 Years

Made in China 🇨🇳

Luckly with parts still i have i manage to build up this units. But steering set need to DIY still looking for suitable steering set.

After rework not fully parts fix.

Before rework

After cleaning

The radio tray gold colour i remove

Really rework on this rc from fixing parts paint, polishing. But not in really smooth running condition for display only. To make it race need replace many parts.

After deep paint remove

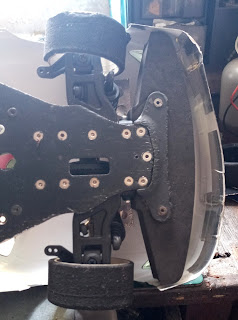

Bottom i spray rubber paint

Add mix adjustable linkages and a front stabilizer bar.

No rear short drive belt. Add rear stabilizer bar.

Most turning parts not using bearing only copper bushing

Front and rear with use shockabsober that been service

The center transmission i have the bracket and drive gear. The rear radio tray i change with good condition paint.

DIY a battery holder

The bumper form other brand

No servo holder

C and wheel hub partly use, front use UJ.

Front and rear drive gear still new just service.

Rear use dogbone and new hex adapter.

Add cheap rim and rubber tyre

Not fitted, steering set, ESC, Servo, rear belt and motor

A Nissan Silvia S15 2000. Use body

Found a idea to do a steering in a simple way.

Parts need

1. A long adjustable linkages (Crawler)

2. A short adjustable linkages.

3. 2 pcs long screw/nut to tighten on steering hub.

4. 2 same length post with servo hight.

5. 1 pcs spring servo horn.

The long adjustable linkages each end tighten to steering hub at out side trade hold. The toe in and out still can adjusted.

Need a lock nut at ball end.

Add jam nut both side 1 pcs or 2 pcs.

The length 12.5 inches also can use smaller because both end can be adjust.

The steering rod no touching

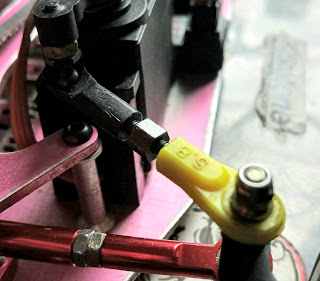

Change the servo horn to a spring type, it to prevent servo from damaged. (Over turning)

Servo horn ball end i use long type and with a lock nut.

The servo bracket.

The height should same as servo or can get a short servo.

The short adjustable linkages ball end cup size depend on ball end use better small size.

Each steering end tighten with nylon lock nut.

If can get servo in shorten length is better or longer servo horn

Test up yes it function to left and to right

11/10/2021 buy the rear belt 62 teeth for Rm6.

12/10/2021 add a  belt tensioner post for front long belt.

14/10/2021 DIY rear belt tensioner post. Simple on.

The bracket have 2 screw hole, the ballbearing can change. But rear have adjustment.

Lhs view single ballbearing

From top

Don't want to find the battery side corner bracket i buy a battery tray holder for Rm10.23.

Drill to new hold and tighten on chassis

Add a small carpet under tray

17/10/2021 fix 2 pcs 5x11x4 bearing on the center transmission gear and 4 pcs bearing on wheel hub.



Enjoy RC
