Continue my fishing reels collection. Secondhand and new.
Total 17 Model own and 43 reels
1. Abu Garcia (ori USA, china) = 3 units.
2. Balzer (Korea) = 1 units/
3. Banex (Korea) = 1 units/
4. BLR (China) = 1 units/
5. DAM (Jermany) = 7 Units/
6. Daiwa (Japan) = 4 units/
7. Leasure (Taiwan) = 1 units/
8. Match (Japan) = 2 units/
9. Ryobi (òri Japan, china) = 5 Units/
10. Shimano (Japan) = 8 units
11. Santec (China) = 1 units
12. Shakespiare = 1 units
12. Tica (Taiwan) = 3 Units
13. Teben (China) = 1 Units
14. TKY-Z (Japan) = 1 Units
15. Tokarz (Rusia) = 1 Units
16. Zebco (ori USA) = 1 units.
17. Kasking (ori USA / china) = 1 units.
Type reels
1. Spinning = 35. units
2. Spincasting = 1 units
3. Flyfishing = 1 units
4. Baitcasting = 4 units
5. Multiplayer = 2 units
Start blogger = 26/5/2021
Last up date bloog =8/6/2023

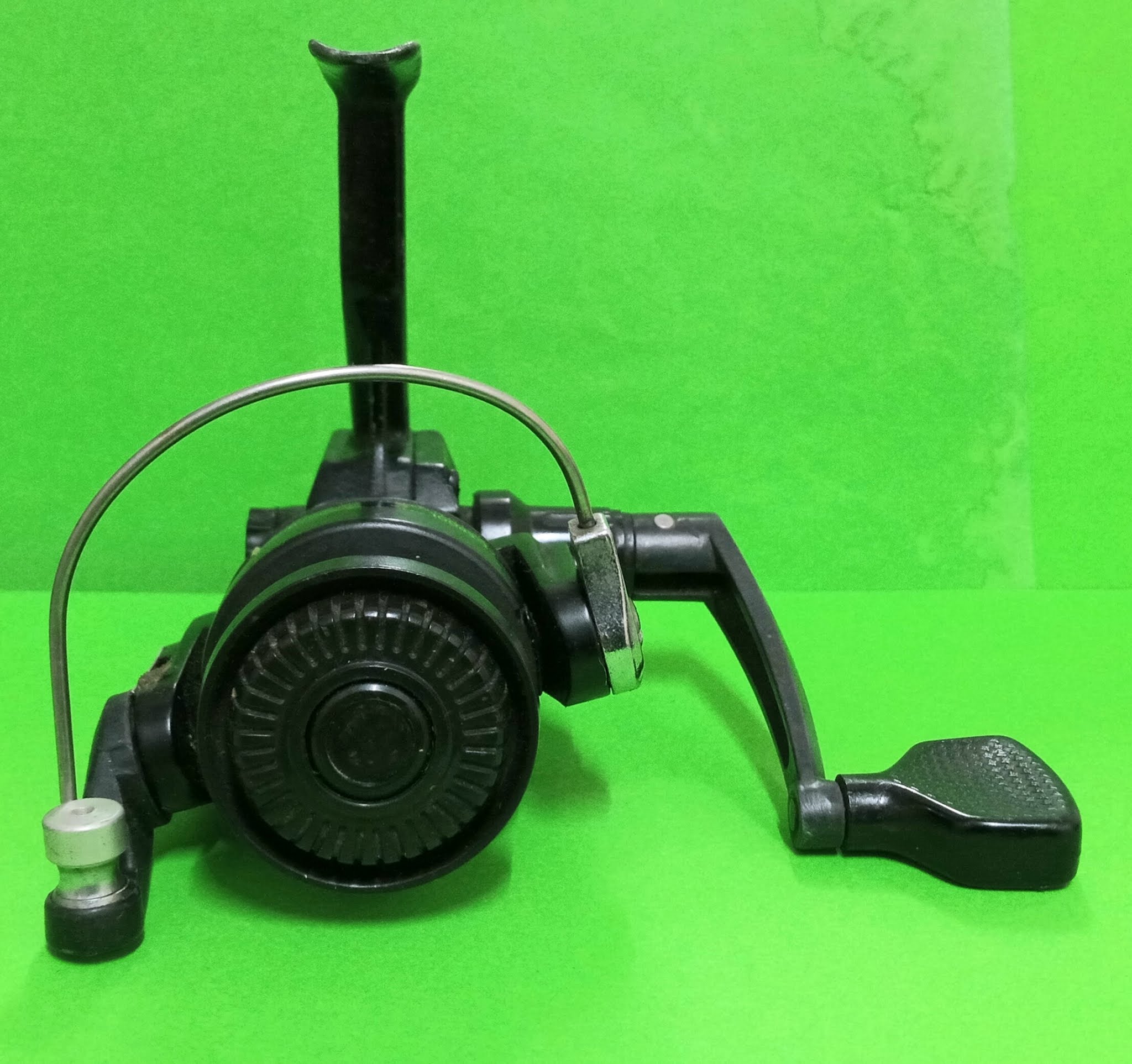

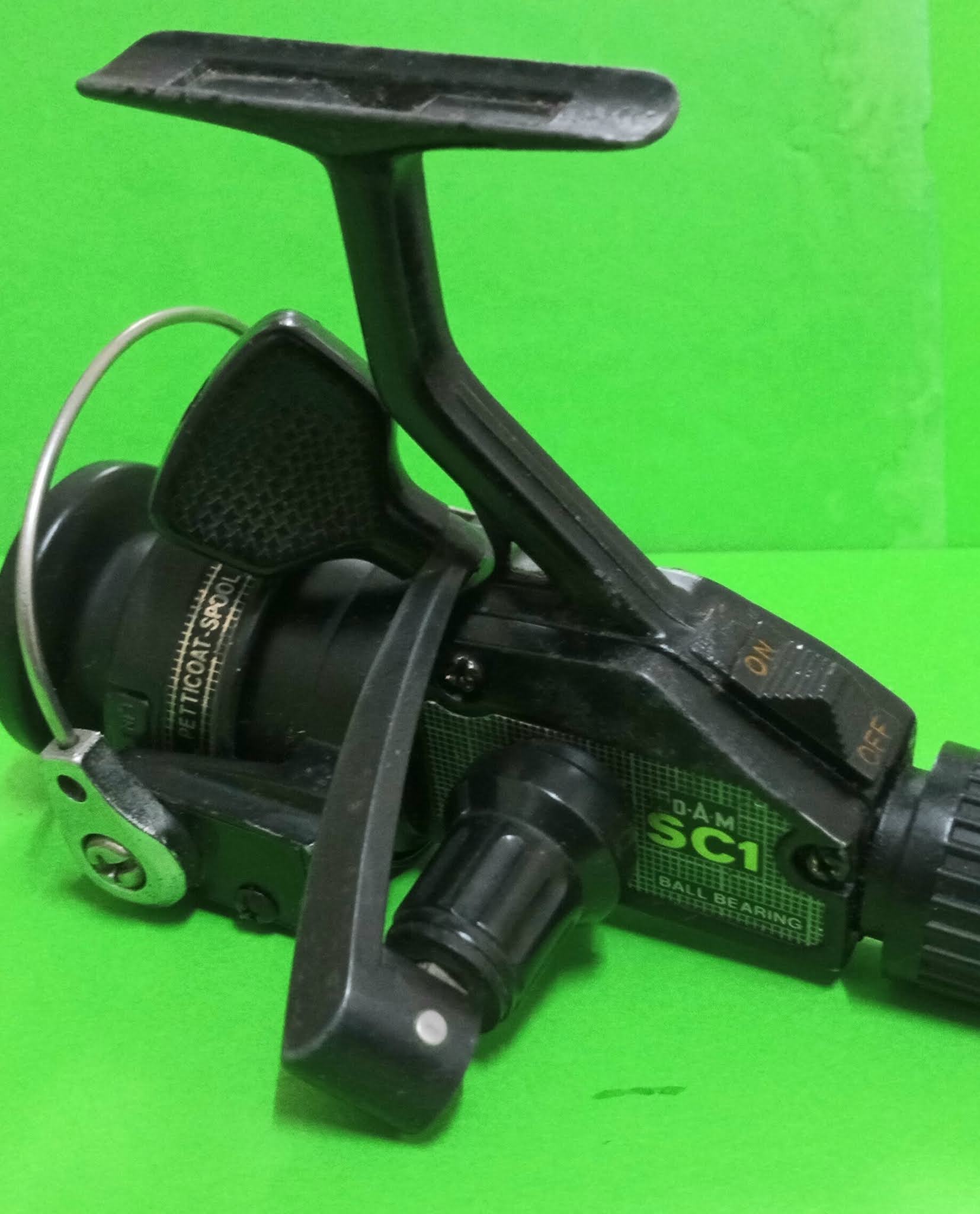

MY 36 Reel. DAM QUICK SC1 1982
Another old colection, can't remember when i buy. Same as my DAM SC4. Buy seconhand for few ringgit. After i service i put in a bag with other old reels, because searching for the rear drag cap then forgot about it. I thing i buy at seremban fleamarket around 2015. The foldable clip for bail arm missing now can't fold in.
Specifications
1. Made in Germany
2. Year = 1982
3. Drag rear
4. Light reel
5. Ballbearing = 1
6. Ratio = 4.9 : 1
7. Line = 0 20 - 0.30
8. Ibs/Yds = 4/220, 8/110
9. Changeable handle
10. Foldable bail arm (lock clip missing)
11. Graphite petticoat spool
12. One touch removable spool
This not mine just to show the box |
No ballbearing on both end rotor, done service |

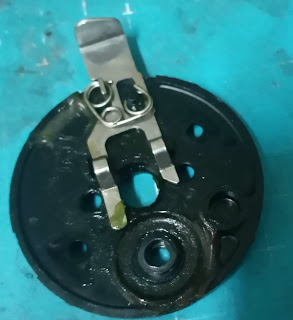

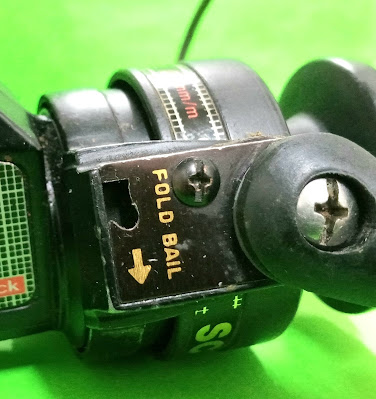

Foldable clip missing, the lock inside i glue it |
The rear drag cap is not original, using other reel cap |

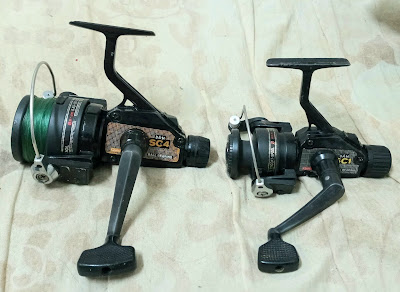

SC4 & SC1. In 2004 i buy SC2 in Angcop mall but i sold for Rm15 after i take the bell arm for my sc4, then i replace with other brand.. |
This is DAM SC2, buy it before but sole |
Special pouch bag |
Every reels i own will have their pouch bag |
My 37 Reel. Daiwa Hunter GS Mini.
Casting reel. Buy seconhand RM15 on 29/4/2022.
Fault found
1. Reset counter damage.
2. Meter deap counter not function,
3. No 2 pcs ball bearing size 5x9x3 using plastic bearing.
4. Greese on moving parts still new
5. No sand inside..
Specification
1. Bearing = Nil, add 2.
2. line Test = 2,3,4 lb
3. 75 to 150 meter.
4. Line counter.
5. Made in Thailand (Jpn Spec)
6. Rhs handle
7. Max drag 5kg
8. 150 gram
Before service
Not mine just to show the box |
Free spool knob |
.
Top view |
Counter deep reset button damage. |
Sound key |
3 parts |
Spool |
Made in Thailand (Jpn Spec) |
Line clip |
All parts dismental
A white gear come out, for deep meter counter |
Not ball bearing size 5/9/3. Using plastic bushing. |
Using plastic bushing |
The greese new |
After cleaning, repair and service
Modified a reset button but torn rubber cover not yet repair. |
Replace to ballbering 20/7/2023 |
My last reels I buy new is on year 2014, since that year I just buy secondhand reels. 2023 May to july, I buy 11 units new 2019 to 2023 production that still sale. Review good on all brand.
My 38 reel. Abu Garcia Bmax II 3000 year 2021.
Buy new for Rm115 19/5/2023. First time buying spinning reel from Abu Garcia. Got it on 3/6/2023. I put in 15ib/0.23d Mono line.
Specifications
1. Bearing = 4 + 1, 21/6/2023 add 1 = 5 + 1.
2. Ratio = 5.1/1
3. Max drag = 4.5 kg.
4. Weight = 246g
5. Line die = 0.3 - 0.23mm
6. Line test = 4 - 10ib.
7. Made in China
From shop free grease |
Enough greese |
Add 1 bearing in line roller. |
Try for casting 10/6/2013 with my light Daiwa rod not match.
No 39 reel, Shimano FX2500HG year 2019 Buy new Rm80 15/5/2023. Put in a 15ib 0.33d.
Specifications
1. Ratio = 6.2/1
2. Weight = 250g
3. Bearing = 2+1, Add 1 - 3+1 (21/6/2023)
4. Line die = 0.25/160
5. Line test = 2.5 - 8ib
Made in Malaysia
Made in Malaysia under shimano Japan |
I remove parts to check inside gear for greese apply. Very simple gear, just few greese apply. I add more to moving gear. The center gear only using 1 bearing, bottom plastick bushing 7x11x3 i order.
Not much greese |
Red greese I add. The blue is plastick bushing need to change bearing 7x11x3 |
Simple parts |
Add another bearing 3 + 1 from 2 + 1 |
A pouch for this reels
On 26/5/2023 first time using this reel on a 9 feet rod on beach side. With 15ib line. Not smooth with this line. My shimano catana using 12ib going out smooth. Try few time first if still un smooth after put more weight will change the line to smaller size.
My 40 reel. Kasking Sharky Baitfeeder III 2022
Baitrunner reels, Buy new for Rm112 3000 series 3/6/ 2023. Try new products and two drag system. It first came out in the market 2017 and review form user positive.
Mosly Shimano have this baitrunner reels sale above Rm300 to rm400++. This reel cheap. First I put in 20ib line and test it, the line come out smoothly. Later i change to 18ib mono. The spare spool i put in 20ib line.
Specifications
1. Ratio = 5.1/1
2. Line Test = 6 - 10ib
3. Line die = 0.20 - 0.30
4. Drag power = 8kg
5. Ballbearing = 10+1 add 2 more 12+1.
6. Extra spool
7. Front and rear drag
8. Made in (China) ori USA
Got the reel on 3/6/ 2023. The packing is nice 2 layer protection. Spare spool, drag disc, sticker, poch, line record sticker.
Outside another units |
Inside the reel box |
Some stuff given. |
Part/assembly manual, sticker, spare reels and a poch. |
Extra spool drag disc. |
Front spool with 2 bearing |
The copper bushing I replace 2 bearing |
Extra spool |
Given a free pouch |
Remove to see component inside |
White greese |
Add few more |
I change the handle round |
Can fold in just pull the cover, no need to un screw. |

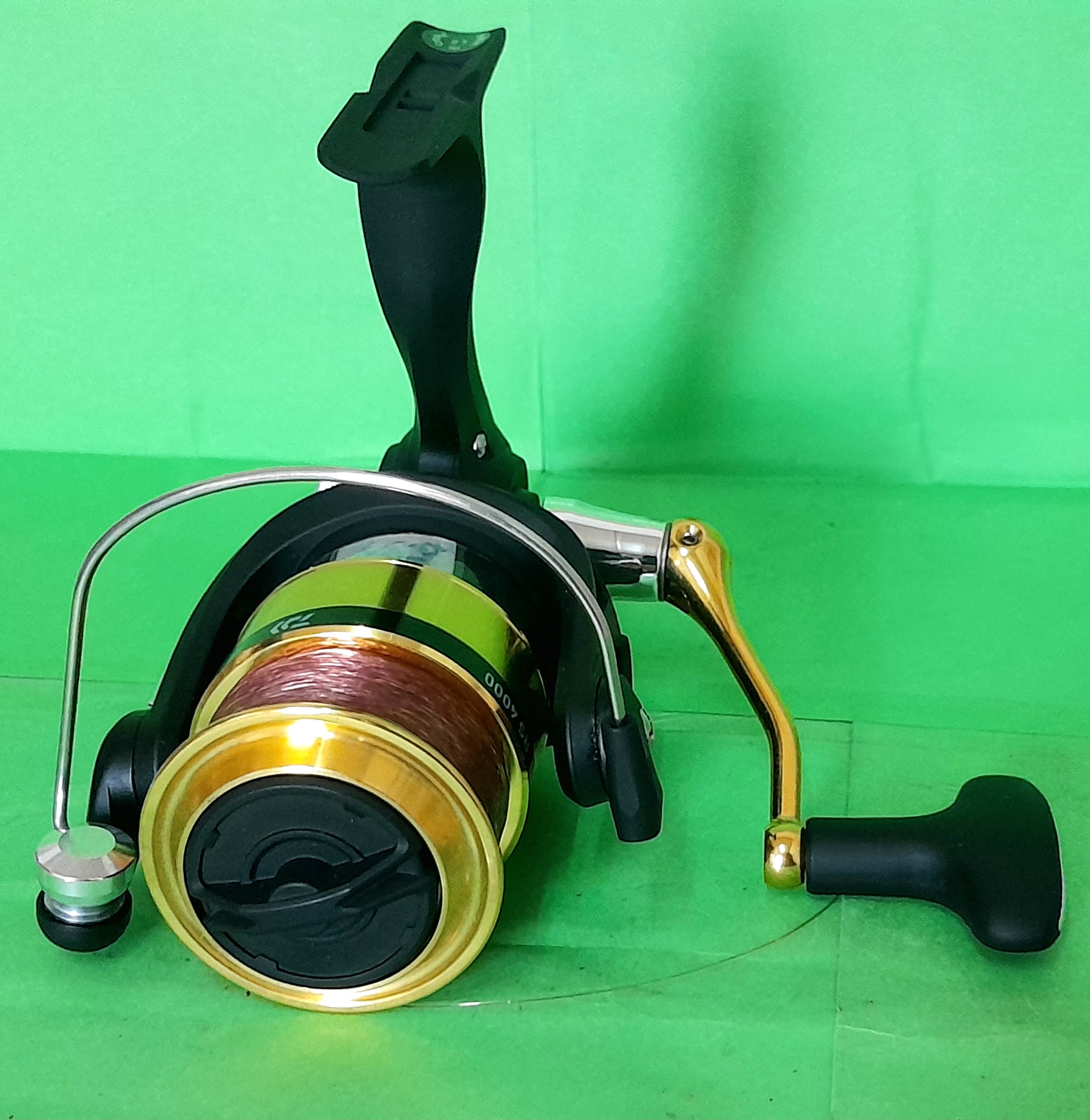

My 41 reel. Daiwa RS4000 2023.
Buy new RM65, order from Perak Tackle shop Shoopee. Got it i put in line 20ib, 0.33d.
Specification
1. Line test = 14ib
2. Line die = 0.30
3. Ratio = 5.1/1
4. Max drag = 9kg
5. Ballbearing = 3+1, 21.6.2023 add 2 - 5+1.
6. Weigth = 280g
7. Made in China ori Jpn
Top free gift luminar tube. |
Change the handle |
My 42 reel. Abu Garcia Cardinal 50FD year 2020 @500 size
Buy new Rm88, Shop from Johor tackle shop Shoopee. Order on 1/6/2023 got this reels on 2/6/2023 very fast delivery. Very small only max line 6ib, i put in 8ib / 0.20d. This reel made in china. Don't like the handle plastic. Not yet open check inside gear parts for greese. Next day will try. No pouch given.
Specification
1. Line Test = 10 - 18 ib
2. Gear ratio = 5.2/1
3. Bearing = 2 + 1 - add 4 new 6 + 1 21/6/2023
4. Weight = 158g
5. Drag = 4.1 kg
6. Made in China
The ori image |
Handle plastic |
A sticker |
Buy a pouch |
Come with 2+1 bearing, i add 4 more. Know 6+1. |
They use plastic bushing |
I change both to bearing. |
Add few greese |
No bearing on line roller. I got 1 pcs only order 4x7x2.5 . |
21/6/2023 got it |
My 43 reel. Ryobi Virtus II M800 2020.
Become crazy, buy another one. This time one of my floverate reel Ryobi brand, buy new Rm137 from johor. Got the reel 6/6/2023. Put in mono line 10ib 0.23d.
Specifition
1. Ratio = 5.1/1
2. Weight = 160g
3. Bearing = 4, 21/6/2023 add 2 bearing know 6 bearing.
4. Drag = 6kg
5. Made in japan
6. Metal spools
Plastic disc plate |
Given a pack of hook from the tackle shop |
A sticker |
Can't foldble handle |
No line clip but given this bend |
Buy a pouch |
Not much grease |
Apply some |
Ryobi use 1 ceramic bushing on line roller, i change to 2pcs bearing |
Enjoy Fishing 🎣 .
