To make a Nitro rc car run powerfull or reduce noise, every company came out with their exhaust from aluminium to plastic that can stand heat. To run more powerfull, creation of tune pipe that will give more power. For me i didn't involve in any racing so most of my engine only use original exhaust. But performance exhaust i buy just to test what the difference. All collection i have 32 pcs till todays.
Start blogger = 14/1/2021
Last up date = 12/10/2024
1) No 1,2,3. Have 3 units, made by kyosho. In 1990 some low size or basic engine using this exhaust. Can be change to high performance tune pipe.
 |
This is a exhaust pipe original from kyosho, use it for quiet long in this car until i change a engine, can be remove and washable. |
 |
| Same as top from kyosho 1995 |
 |
| All parts can remove. Not all exhaust have cone bracket (center). Tune pipe using it but it seal can't open. |
2) No 4. Only have one units from kyosho 39343. Buy for Rm90 when i change to Thunder Tiger 12 engine.
 |
| Then the shop introduced me using this tune pipe with my new Thunder Tiger engine in 1997. Not bad can feel the power. |
 |
All the 4 hold before out to outlet pipe
|
 |
| The arrow show the preassure valve to fuel tank, very near to one of the 4 hold. |
3) No 5,6,7. Have 3 units. If not mistaken kyosho came out this type after 2000. The basic exhaust pipe.
 |
| All the kyosho came with this exjaust, can be remove, washable with 2 section event the manifold can be remove. |
 |
| Remove all parts. Center cone with a big hole, not 4. |
 |
| This kyosho manifold can be open to match engine position. |
4) No 8. Have one only. Small don't now for car or aeroplane, still can use in my car.
 |
| From kyosho mini exhaust for kyosho 11 engine, have valve. |
 |
| A valve can be open or close, control with a link to engine throttle. |
 |
| No center cone. A silencer exhaust. |
5) No 9. Have one units. Buy secondhand OS T1010 longer body.
 |
| After many rc own i star looking for perform exjaust. Most tune pipe can't remove total seal. |
 |
| For this tune pipe exhaust fumes must pass throw the 4 hole before out to outlet pipe and to the pressure pipe to fuel tank. |
6) No 10. Another VRX-1 buy secondhand in 2020 for Rm50. For my second Novarossi 12 engine.
 |
| The tune pipe VRX-1. |
 |

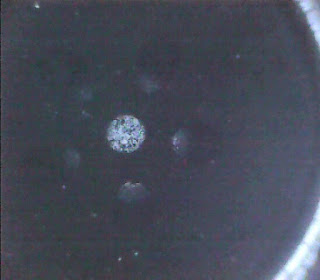

| Inside the tune pipe end 4 hold to the outlet pipe. On lhs before the 4 hole is pressure valve to fuel tank. |
7) No 11. This my first VRX-1 tune pipe, buy new Rm170 perfomance power. To match my Novarossi 12 engine. Recommended to use. But the manifold i didn't buy whare using spring to hold it, i just use the rubber joint.
 |
| Another tune pipe buy secondhand, don't now what brand |
 |
| With 4 hole at end to outlet pipe |
 |
| Presure pipe to fuel tank |
 |
| My 2007 kyosho FW06 |
8) No 12. No name have one unit. Inside almost same with VRX tune pipe.
 |
| No brand buy secondhand tune pipe, few dent on body due to acc on divider. |
 |
| Inside the chamber the exhaust fume will pass to the 4 hole to the outlet pipe |
 |
| For this tune pipe the pressure valve is before exhaust outlet. |
9) No 13. Have one unit. Made by Thunder Tiger
 |
| Buy secondhand together with TT ts4n. Thunder Tiger cyclencer, on body no return valve i modified one. |
 |
| Inside this pipe hollow at center with screw for pressure pipe to fuel tank. At end a long outlet fume pipe with few hole. |
10) No14. Have one unit. Not sure what brand buy in a bunch of parts in 2020.
 |
| Tune pipe don't now what brand buy secondhand |
 |
| Nothing inside just a chamber, at lhs end is the fumes outlet top.the presure to fuel tank. |
11) No15, 16. Two unit. Made by CEN. With 2 outlet pipe. Plastic body
 |
| A plastic exjaust didn't give good perfomance, i found many of this use exhaust in this shop in Nilai 3. Buy just few ringgit in a bunch of loose parts in 2020 |
 |
| For this pipe have 5 hole at end cone |
 |
| Second units got on 1/12/2022 come togather with my cen TR4 |
 |
| Broken mounting |
12) No17. Have one unit, unwanted exhaust made in China by HSP.
 |
| China RC, to cut couse use a plastic cyclencer this from HSP can open washable inside. |
 |
| Removable, center with cone housing. But pressure valve before outlet |
13) No18. Have one unit. Same unwanted exhaust made in China by HSP
 |
| Another plastic tune pipe from china. Buy secondhand big chamber inside no cone insert at end outlet. |
 |
| Inside this exjaust, center is a round plate with hold and the pressure valve at end exhaust outlet pipe |
 |
| Round other cone shape |
14) No19. Have one unit. Buy cheap in bunch of parts in 2020.
 |
| This From Logic RD, turbo tune pipe buy secondhand Rm4.16 in bunch of rc parts. Can't get the image inside |
 |
| Some of the manifold i buy cheap in bunch. 1/10 and 1/8. Buy what left over from shop. |
15) No20. Order from China Rm28.41. Got it on 23/1/2021. Inside almost same designs with VRX but the end hold more bigger. Very light 0.061kg. This units i fix in my Kyosho FW05 Jpn Edition not with the manifold.
 |
| Made in China parts no W10003 |
 |
| Bigger hole |
 |
| The pressure pipe to fuel tank |
 |
| Fix to my kyosho FW05 Jpn Edition |
16) No21. This for 1/8 tune pipe, buy together with my HSP Tornado 94083.
 |
| No brand complete set. |
 |
| The present passage before out. |
 |
| 5 hole |
17) No22. on 4/3/2021 buy another 3 pcs tune pipe for Rm8.57. All buy in loose parts for rm60.
 |
| A set from Team Orian |
 |
| CRF EFRA 2647 perfomance tune pipe. |
 |
| Pressure hole |
 |

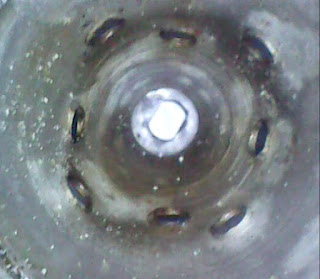

| With 8 hole |
18) No 23. No brand tune pipe.
 |
| No brand a set |
 |
| Pressure hole |
 |
| 4 hole |
19) No24.This from HSP, heavy dented is from my Tornado truck.
 |
| HSP 1/8 tune pipe, dented from my HSP Tornado |
 |
| Pressure hole |
 |
| 5 hole |
20) No25. Buy another silencer from nilai 3 when looking for loose parts. This from HL is for 1/10 rc. Materials tick aluminium little heavy.
 |
| Heavy aluminium |
 |
| Inside stright until the end us the exjaust outlet. No second chambers. |
 |
| Until the end is a drop down chamber where the outlet pipe is. |
 |
| The pressure pipe to fuel tank. |
21) No26. Ofna Hyper FEMCA 1001. Came togather with my Cen TR4.
My no 27. Exhaust from china clone kyosho normal exhaust. 2 section can washable.
No 28.
Given to me when i buy a RC car, in damage condition both section open no screw to tighten. From CEN Racing. What i did i joint back using metah glue. Then, the end with broken holder.
 |
| With broken bracket |
 |
| Glue back |
No29. From HSP 1/10 hard plastic exhaust. Come together when i buy HSP Sonic On 26/1/223
No 30 is a muffler from Tamiya Tm - 3 41026. 2 section can remove to cleaning.
 |
| Sample in new packing |
No 31 exhaust come togather with the rc I buy on 29/3/2024. This from Smartech Racing, have two sections. Square type very funny Taiwan.
No 32, Tube pipe from HSP Tyrannosaurus 94108.
33. From Smartech Swordfish Buggy 2005. Is a hard Plastic exhaust pipe, removable parts. Missing center pcs.
.jpg) |
| Before service |
.jpg) |
| Missing center parts |
.jpg) |
| Done service |
To own few Rc car/truck we need to keep alot of spare parts. Most parts when looking in shop i will buy what ever parts i see. Don't care old, damage, use just grab it. Become a rc crazy i will show what the things i keep as stock for replace and modified, all photo will show time to time.
 |
| This spare parts for my Kyosho FW05/6. Buy cheep when go for rc parts hunting. Some parts ori and from Heng Long clone FW05. But can use in kyosho. |
 |
| All 1/10 damper, people don't want due to oil leak. Take back rework and also spring variant strength. |
 |
| New buy cheep from china for 1/12 size rc or crawler |
 |
| Extra damper piston |
 |
| 1/10 & 1/8 all size |
 |
| DIY air filter, i will buy only the filter casing without filter, so DIY using sponge. Many people will throw away if damage |
 |
| This for my TT TS4n. Still have more stock. |
 |
| Exhaust rubber seal and joint buy new and secondhand |
 |
| Extra bealting for my RC using belt. All new with different size. |
 |
| Extra fuel system parts |
 |
| Extra parts for my old kyosho spider and v one s. New and old. Market can't find anymore. |
 |
| Extra dogbone, uj, axle drive mounting all size. New /old |
 |
| Axle shaft and cup |
 |
| Dogbone and uj |
 |
| Wheel Hex plastic and aluminium |
 |
| 1/8 wheels hex |
 |

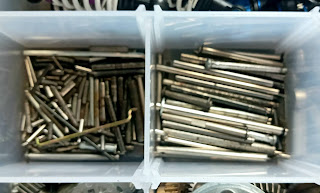

| All size pin |
 |
| Mostly aluminium colour parts |
 |
| D plug buy many keep stock |
 |
| Aluminium bushing |
 |
| Ball end plastic and copper |
 |
| All size of rubber o ring buy in DIY shop |
 |
| Silica gel will put togather with tyre |
 |
| Extra motor heat shield |
 |
| 1/8 parts |
 |
| HSP Brontosaurus parts |
 |
| New and secondhand servo |
 |
| All size e clip |

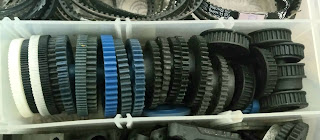

All the plastic drive gear, buy new, the most damage parts.
Have Fun enjoying RC
