RC53. My Memory Having RC Car. My No 31 RC. HSP Kutiger Rally car 94118 2012, converts from Brontosaurus truck 94111 chassis.

This my project convert a brontosaurus truck 94111 to HSP Kutiger rally car 94118 2012. Because i have extra parts for brontosaurus that still can rebuild the fourth truck and add another Rm160 to complete it. But i already have 3 units so this last unit i will convert to other type HSP Rc or came out with mix HSP parts. This my no 31 units RC.

Start bloog = 16/12/2020

Last up date bloog = 15/11/2023

Sum for spareparts = Rm344.56

2020 - 2024 = 4 Years

Made in China (🇨🇳)

Lhs 94111 convert to Rhs 94118

The rear car image

Parts still need to buy for this truck 94111

1. Front diff set = (Got it Lazada)

2. Rear diff gear = 02024 (Got it lazada)

3. 6 pcs adjustable link = 08042

4. Front bumper set = 08002 no need

5. Battery holder = 03610 (Got it lazada)

6. Battery side bracket 4 pcs = 04004 no need

7. Steering set A with spring = 02025E (Got it lazada)

8. Gear cover = 03401 order (Got it) Lazada

9. Shock absorber 3pcs = 08001 no need

10. Reinforcements brace = 02017 (Got it)

Build this fourth brontosaurus 94111 from left over parts

Need to buy few more parts to complete.

Front without gearbox

To make the front stand stronger, add two bracket to hold the shock tower

The Steering set A without spring inside

No gear cover only one side no adjustable link to hold the wheel hub

No adjustable link all wheels

Front no adjustable link

Temporary adjustable link front

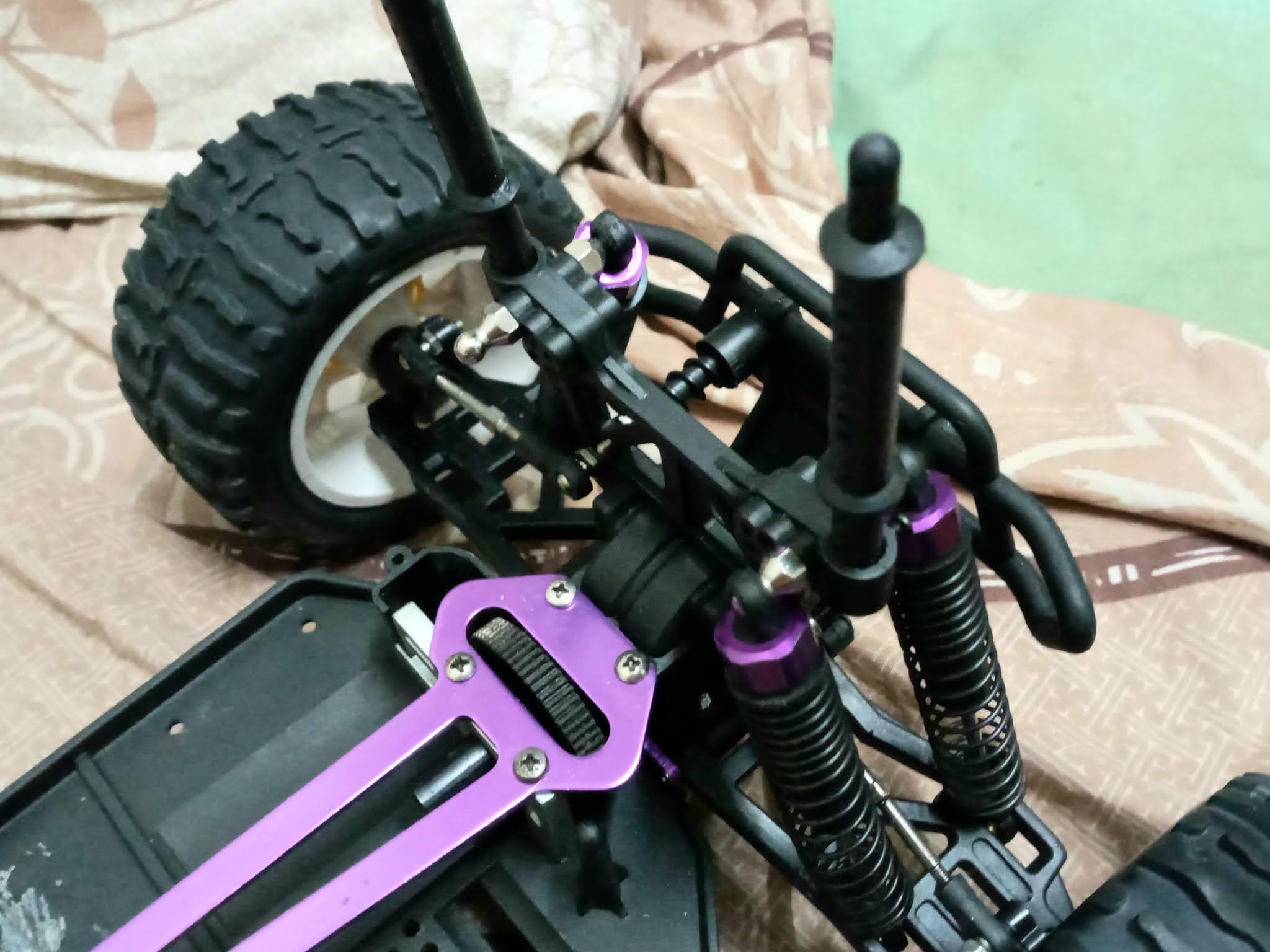

Rear temporary adjustable link rear

Rear no diff gear

No battery holder and Conner bracket

No front bumper and use 2 shock absorber

Rear using 3 pcs shock absorber, need to buy another 3pcs

Luckily i have the wheels

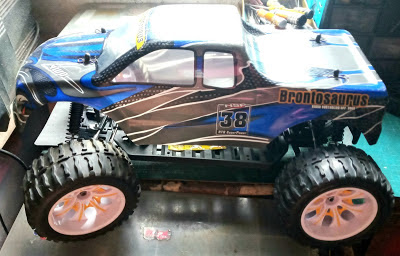

Blue body

27/12/2020

The front full set gearbox reach, buy for Rm23.32 + Rm6 pos. Fix in first. Few more parts on the way. Again i remove this gearbox and found out no greese. Add in greese and shim on ball bearing too many free play.

From China look good

When open the cover, diff no greese

Dry and very clean

Inside also no greese

All remove and apply greese

In and out diff all greese

My first choice HSP Kutiger Rally car 94118. Only need to buy

1. Shock tower front = Got it Shopee

2. Shock tower rear = Got it shopee

3. Body post rear = Got it shopee

4. Bumper front set = Got it shopee

5. Bumper rear = Got it shopee

6. Rally body = Got it shopee

7. Rally Wheels 4pcs diameter 85mm = Got it shopee

Some parts not sale in Malaysia, International yes. Other parts same as 94107 buggy. My hsp short couse i need to change to aluminium alloy suspention arm so the plastic arm will put to this units. If i spend building this unit it course me Rm200++

HSP Kutiger 94118 rally my first project

Front body post 20131

Rear body post 20134

To test it out i use my HSP 94107 buggy platform, remove front bumper, rear wing, front body stay and change the normal rally size wheels. Turn out not match need to use wheels diameter 85mm. Try use my Evo body not match either. Need more wider body cover.

Not match using tamiya rally blog wheels

Another side

Rear

Front no bumper. Hard to get so try use HSP flying Fish

So Need to buy 85mm diameter wheels around Rm50

Change to buggy wheels.

The 94118 rally car. No bumper, body and body post.

Then try use evo body too small, mean the HSP kutiger body is wider. Another extra money to buy the kutiger body around rm60 to rm100.

THIS PROJECTS TAKE TIME AND $$$$$
Final, i convert this brontosaurus to kutiger Rally car 94118. See how much i need to spend for this project. Spending only for parts don't have. To cut course i don't want to buy another 4 pcs shock. Current have 4 longer brontosaurus so can use for a rally car. For suspension front/rear i using plastic parts from my HSP short course truck whare i change to aluminium alloy.

Parts to buy.

1. Front complete gear box = Rm29.32 (Got it)
2. Steering set A = Rm3.40 (Got It)

3. Front shock tower = Rm11.49 (Got it)

4. Rear shock tower = Rm11.49 (Got it)

5. Rear diff gear = Rm17 (Got it)

6. Front bottom bumper (From 94123 02077) = Rm9 (Got it)

7. Battery holder = Rm3 (Got it)

8. Rally Wheels = RM30 (Got it)

9. Front and rear body post = Rm12 (Got it)

10. Reinforcements bar = Rm6 (Got it)

11. Rear bumper = Rm12.00 (Got it)

12. Front 94123 bumper form = Rm4.16 (Got it)

13. HSP kutiger Rally Body = Rm105 (Got it)

14. Gear cover = Rm16.45 (Got it)

15. Maint gear 64T = Rm8.24

The next additional parts after build.

1. Aluminium servo horn =Rm

2. Aluminium servo steering rod = Rm

3. Hex extention 25mm = Rm

4. Add a aluminium battery holder post on 16/4/2021 = Rm8

5. Change the steering set to aluminium on 16/4/2021 = Rm25

Final spending to build this HSP Kutiger Rally 94118 16/1/2021 is RM278.56 Only left to change the adjustable linkages, just remove from my first brontosaurus that i change to aluminium alloy linkage. So easy for HSP RC not like other rc can't interchange parts example Kyosho Fazer to V one 4R total diffrent chassis and parts.

Front axle Rm29.32 +pos

Steering set A Rm6.85 + pos

29/12/2020, Got another 2 item

One rear diff gear set. Rm15 + 2 post

Same problem no greese at all.

Service and assemble

The battery holder Rm1+2 post

30/12/2020 another 2 parts reach. The front and rear shock tower. Each Rm8.49 very cheep + post Rm22.98

Rear shock stay

Front shock stay

Nothing to do still waiting for parts. So i remove the plastics suspension arm from my HSP short course truck and fitted to this units first. Already order aluminium alloy suspension for my SCT.

Front suspension arm

Rear suspension arm

On 2/1/2021 the front bumper reach Rm9. Can't get the kutiger bumper not sale in shoopie or lazada, so i buy 94123 parts, try up not fit so i modified it.

Top view not match the bumper hold and chassis, drill other hold and tighten with screw/nut.

Bottom, chassis attach straight line with bumper need to cut off some area and redrill new hole

Add 2 long body post

Buy cheap Rm4.16. Front bumper form from 94123 parts

The body post i change again shorten

On 7/1/2021 got another 4 item. All parts is Rm60. The front reinforcements plate purple, rear body post, Rally Wheels and rear bumper.

All 4 items buy from shoopie Rm60

Rally wheels Rm30

Front wheels, the rim same patterns with Kutiger.

Rear wheel more wider and all 4 tyre not glue yet.

All the 4 tyre need to glue,

Wheels balancing

Camber adjustment all wheel.

The rear body post bracket. Came in set front/rear same with kutiger only the 2 long post different. Buy for Rm10.

Rear view body post bracket

Rear bumper smaller than 94107 buggy. Buy for Rm9.99.

Front reinforcements plate. Buy for Rm4 2 pcs

The latest image 7/1/2021.

Open from my second brontosaurus truck that i change to Aluminium alloy battery 4 side bracket.

15/1/2021, order a HSP Kutiger Rally Body reach. No other body can match this 94118 chassis. This is original body, very thick material buy for Rn105 from Cheras Malaysia. If from China Rm150++. This is Ford Fiesta 2012 body. This body very wide and big, when compare with my Tamiya TB01 rally so much different in size.

I take the blue colour

Outside body cover with thin plastic to protect the paint

Front body of Ford car.

Rear view

Inside, thick and hard plastic body

Sticker 1

Sticker 2

So much different in size

Drill the body hold according to mark given,

Remove the plastic wrap before put on the sticker.

All sticker on.

Side not much, looking for monster sticker

Another side

Back view

Bottom view

On 16/1/2021, got the gear cover, put some greese on gear and cover.

Buy for Rm16.45.

Add greese on gear, next change the drive gear to metal.

The aluminium alloy linkages for my Brontosaurus 1 reach, i remove all the original linkages and fix to this units. If extra money will do changes to all parts.

For rear

Front suspension and steering

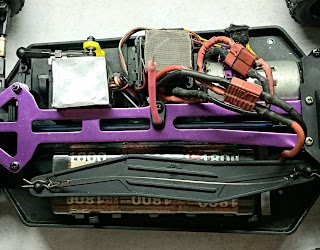

For the electrical i use the HSP motor, ESC and flysky receiver.

Use back a 550 HSP brush motor

The HSP ESC that can use lipo and Nicd battery at top add a fan with wire mesh.

Using the 2.4hz flysky Receiver

My DIY a aluminium cover for the receiver. Not a dust or water proof cover. Receiver not a water proof but esc yes.

For servo i use a basic 3kg from HL

25T purple servo horn.

I remove all the shock absorber from my HSP buggy 94107 lengths 78mm for this kutiger. Before using 108mm length for HSP brontosaurus. Buggy better use longer shock.

All change to 78mm shock absorber

On 10/2/2021 maint gear change to metal 64T. Add greese and few gear oil, then cover back.

Final image

Modified a carry hook at center eazy to lift the car. Most time i will grab the bumper or chassis.

Change to a better handle from HSP

Easy lift up.

Add a switch holder bracket

Use a M4 adjustable linkage

I have buy extra aluminium hex adapter 25mm blue colour fix in this hsp. No more using m4 lock nut to tighten the rim, using a bigger nut.

25mm blue hex.

Bigger nut.

Both side i add pcs of aluminium plate cover to prevent more stone hit on the parts. Will become more dirty if playing on earth road without the side cover.

16/4/2021, parts hunting in seremban buy the steering set aluminium blue and add a aluminium battery holder post blue. The steering only Rm25 and battery post Rm8
