RC56. My Memory Having RC Car. My No 29 RC. HSP 94107 XSTR 1/10 Buggy 2001.

13/9/2020 too boring all project rework done. Go round seremban fleamarket no RC. Then go to the rc shop in seremban 2, ask for any loose parts. The shop owner say go to the stor look for ur self. Deep serching found a HSP 1/10 buggy and the kyosho rear suspention and wheels parts for my FW06 recently i bought. The parts at bottom of the box and a front brontosaurus bumper for my third brontosaurus. Looking all 3 box found many loose parts will buy next visit. The best thing is all this parts only RM20. The 3 type i assume the buggy is Rm15, brontosaurus bumper Rm2.50 and Kyosho parts Rm2.50

This buggy is HSP 94107 Xstr buggy is introduce year 2001 made in china still continues produce till today 2023. This is brush buggy. Look at all wheel using bushing not ballbearing if Xstr pro i thing all wheels will use ballbearing. There few type The Vortex, 94107 brush and Xstr pro. Chassis, axle same the different is motor, ESC and ballbearing used. When i check on you tube found this XSTR already have in 2001.

Start bloog = 13/9/2020

Last up date bloog = 7/11/2023

Spending spareparts = Rm168.75

2001 - 2023 = 22 Years

Made in China 🇨🇳

20/2/2021 buy a set of uj for front Rm25.
This my 29 units RC. Same problem with this buggy, heavy accident sent to shop no repair and then put in the stor and slowly all parts missing. Found alot of damage and missing parts. slowly check all hsp 1/10 parts almost same, the different for this buggy with my brontosaurus is the front and rear shock tower, all the suspension arm and bumper also the damper shortens.The axle gear, housing, steering arm, front/rear hub, chassis same as my brontosaurus. Not like other brand kyosho, tamiya their parts mostly different according to model. Before dismantled this buggy i do research what the fault.

1. No tyre and Rim
2. All dogbone (missing)
3. No front bumper
4. No front rhs suspension arm
5. No rear gearbox gear set.
6. Missing rear gear box housing only front cover.
7. Missing front rhs shock absorber
8. Missing front 2 pcs adjustable linkage.
9. Front lhs shock absober rod dent.
10. No body cover.
11. Steering servo wire is been cut.
12. Front shock stay heavy dent
13. No electrick parts ESC, Motor. Receiver
14. No motor mount.
15. No drive gear cover.
16. No maint gear.
17. No propeller shaft.
18. Missing 3 pcs battery stopper
19. Missing battery bracket
20. Rear rhs suspention arm dent.
22. Front rhs c hub and wheel hub missing.
23. Missing front axle shaft and bushing
24. All wheels no ball bearing (copper bushing)
25. Front rhs adjustable rod dent.
26. Front suspension arm 2 pin missing.
27. Dirty with sand
28. Steering no ballbearing

Another chalange to me to finish this RC buggy. Luckly HSP parts is cheap.

This the new product for 2020, i thing the diffrent is the cover body for 2016 or the rim

This XSTR with with normal rim

All below photo taken when in the shop.

All this parts sale for Rm20. The 94107 buggy, mix parts brontosaurus bumper and rear kyosho suspension parts.

The 94107 buggy the rear parts in dismantle condition.

I just joint the rear section

Front rhs the suspension arm parts missing

Most suspention is remove, all the dog bone missing. The dent shock tower. Mosly open sale to other customers.

Rear suspension axle gear missing also the rear cover.

Dog bone missing

Front bumper missing that the brontosaurus bumper

Photo dismantle parts and check for damage parts.

Front shock tower lhs and rhs dent.

Front bumper missing and both suspension arm pin missing

Heavy impack tower dent also the shock damper rod, missing adjustable rod.

The steering linkage no missing, steering servo

Don't now servo in good condition wire is been cut.

HSP servo

The steering linkage nut too tight, no ball bearing use only bushing.

Front axle parts complete

Front axle complete no damage

Front lhs arm dent shock rod.

The front axle gear still ok, the grease still have

The planet gear all in good condition.

The only parts using ball bearing is the axle

Missing maint drive gear, motor mounting and gear cover.

Missing 3 pcs battery side bracket and battery holder

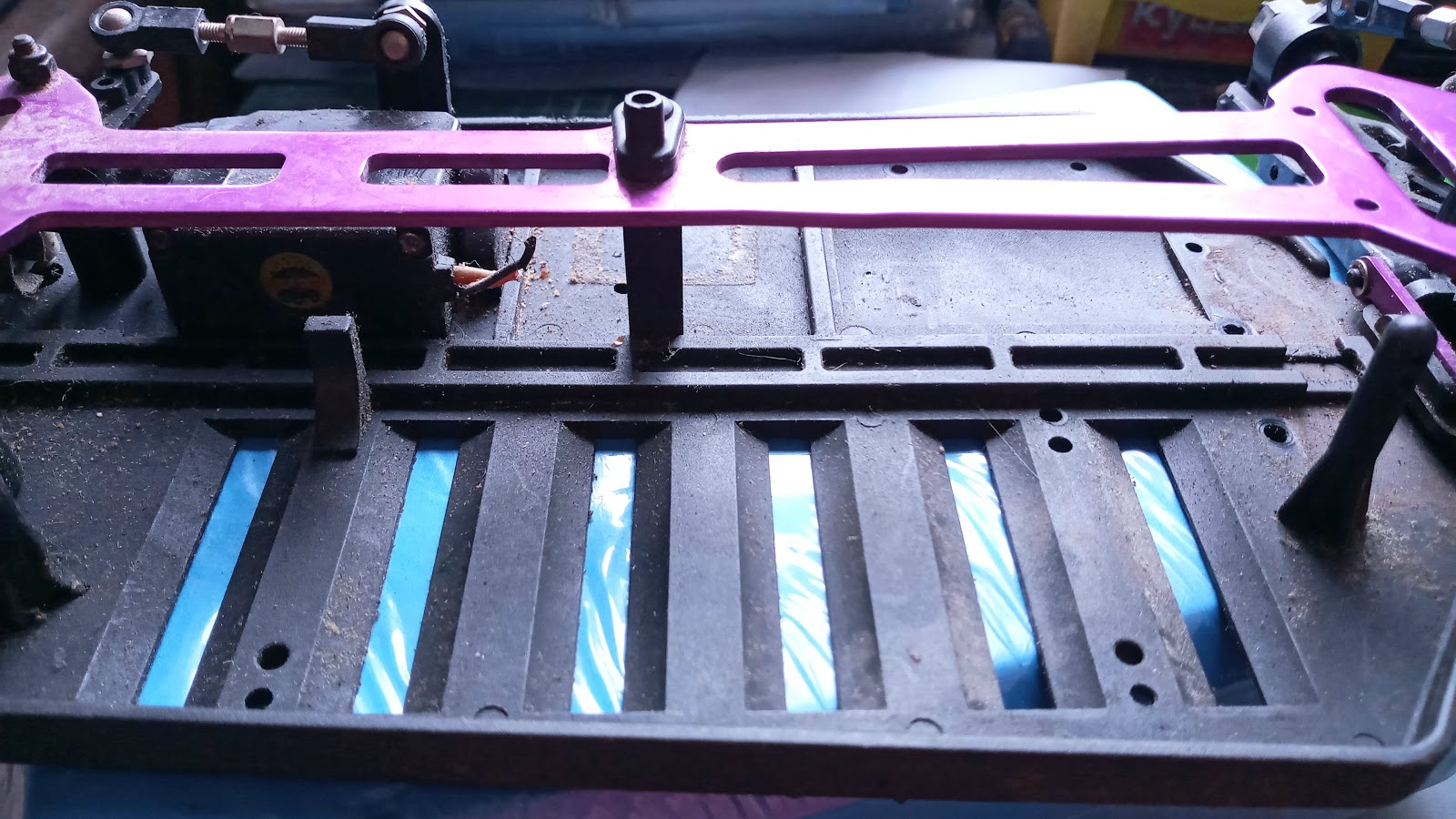

The plastic chassis, same as my brontosaurus

The rear wing can be adjusted

The rear wing

Rear wing mounting bracket

Dismantle rear wing parts

The rear suspension

All 3 hub still with drive wheel shaft. only missing dog bone

The adjustable rod dent, if using aluminium rod i thing already broken.

Rear lower suspension arm dent. If this plastic can dent, this previous owner have a big accident

All hub using bushing no ballbearing

The damper, one missing, one dent

Damper oil low and still clean but will change all.

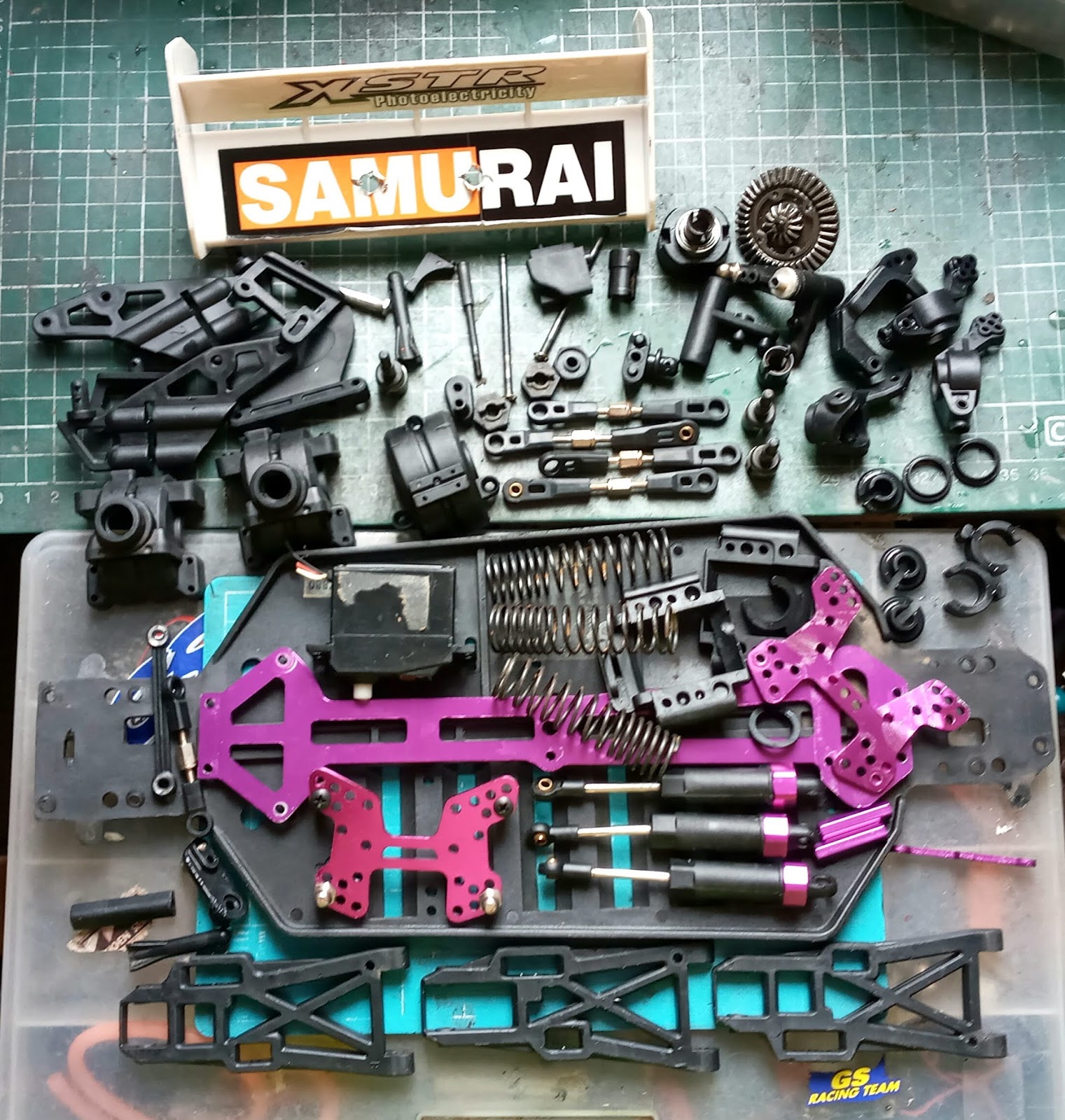

Full dismental parts before cleaning

All parts soak it in detergent to loosen the dust and oil. The screw or metal parts will clean with WD40.

After cleaning

Now will slowly assemble back.

Second parts assembly back all the parts and fix wherever parts i still have. Then will list down the missing parts abd next try look for it in the RC shop. Can't get order from lazada

Only this reference for this buggy parts from www.myrc. HSP didn't comeout a assembly manual. One A4 paper.

The assembly view not detail. Same as my brontosaurus Manual

Aluminium alot parts fitted (BLUE)

1. Wheel Hex gold
2. Rear wheel hub

3. Front c hub

4. Front steering hub

5. Proppeler shaft

6. Center top bracket

7. Steering set

8. Battery pin post

9. Servo arm

10. Steering push rod

11. Rear wing bracket

12. Rear wing adjustment bracket

13. Front / rear absober mounting

14. Shock absober top cover

The front axle remove everything change the greese.

New grease and ballbearing add some bearing oil.

Full of new grease on axle maint gear.

The rear bending suspension arm i heated up and squeeze back. Next time if extra money will buy new.

Fix the rear suspension first. Have one extra motor mounting and maint drive gear.

The bend shock shaft i hammering it back like stretching a nail.

All 3 pcs service all with new oil. The rhs end from bronto more longer

All in, using brontosaurus dogbone, for rear suspension is complete now.

From inside view

Rear wing mounting no damage parts.

For front shock tower i hammer back, will buy new if money enough

Have extra complete axle case all in first for front suspension.

The extra brush motor and center propeller shaft

Only one side the gear cover

All post in.

Steering components in, no ballbearing next time will fix.

center radio tray no dent, rear wing no damage

Only rhs parts fixed, no dogbone the adjustable rod not same

Servo in, wire not yet repair soon

Under chassis scratch normal.

All clean

Joint back the wire and test, servo still function

If every parts fited the buggy look like this without body

Parts 2 comming soon now again go for parts hunting.

1. Body cover prices around Rm60++.
2. Battery cover
3. Dog bone 4 pcs. Now two extra for my 3th brontosaurus (06022)
4. Front lhs lower arm (06011) order from lazada RM16.70
5. Adjustable linkage 2 pcs (06016)
6. Front bumper (06003)
7. Tyre/rim
8. Shock absorber 1 pcs (06002)
9. Main gear cover (03401)
10. Wheel ballbearing
11. All wheels aluminium Hex.
12. Steering ballbearing
