To run a GP Car we need a Nitro Engine. How about EP RC. The main component ESC Electronic Speed Control to run two type of motor, Brush and Brushless. In early days around 1980 their using manual esc were control by servo. But the problem is when the battery weak the servo can't go back to 0 position. It stuck whare the last position. It keep power to the motor until battery flat. I have that experience when i try to use it, it need full power every time, alert all the time after few lap or long play.
Below i will show what type of ESC i am using when i first play with EP RC Tamiya TB01. Some i not sure what the specification. Mosly for brush motor, never use brushless before soon
Will show my electric parts for my EP RC. Motor, ect
Start bloog = 23/3/2020
Last Update bloog = 06/01/2023
Total own
1. Mechanical ESC = 3 units
2. Brush ESC = 25 units.
3. Brushless ESC = 4 units
4. Build in brush motor = 6 units.
5. Changeble Brush motor = 7 units.
6. Brushless motor = 3 units
This unit is from my Kyosho Lazer 2000. Different design from kyosho. More bigger and the contact is protected with a cover. The Resistor also big.
 |
| Front view. More bigger then Tamiya. |
 |
| Back view. The resistor more bigger |
 |

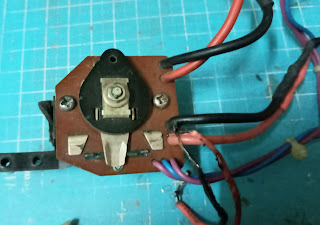

| Cover up the contact. 1,2,3 = Speed, N = Neutral, R = Reverse. |
Buy new No 1. Brush ESC Rm249, Moped VR16 Digital ESC but powerful. This units damage due to i play under the rain. Once water go in smoke come out. Haaaaa dam my money fly away.
 |
| Product from MOPED V16R Digital ESC. RM249 from shop at that year. |
 |
| The Feature |
 |
| Another 2 more version ESC, Bravo and Elite |
 |
| Very small, all the wire cut out for other purposes when it damage. |
 |
| Close up |
My No 2 and 4 is HĹ 320A brush ESC. Motor 15T above. The first units buy for Rm75, On 29/10/2009. Play until damage. The second buy for Rm80 on 20/8/2010 still function.
 |

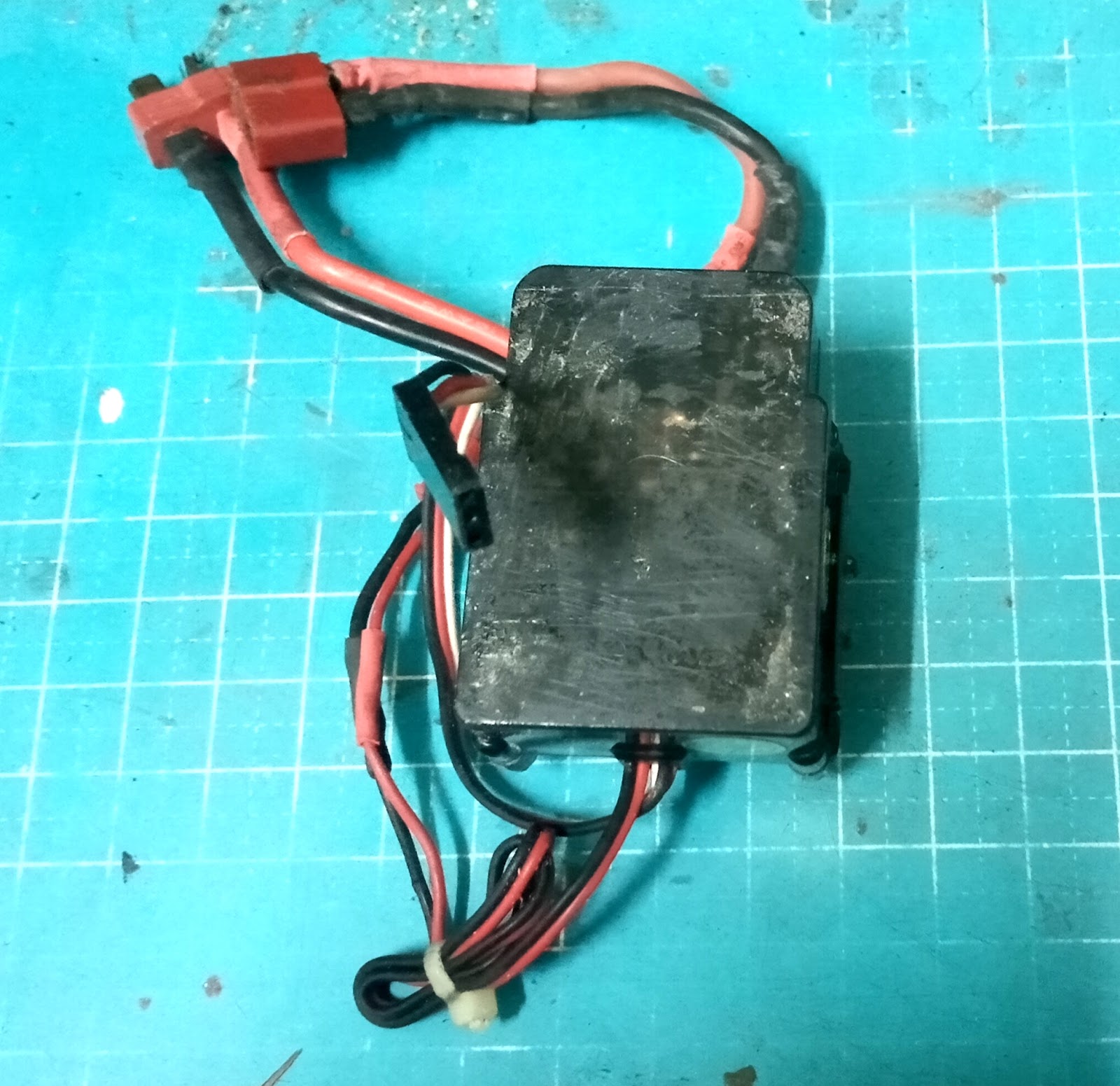

| My no 2 ESC damage |
 |
| Side view |
 |
| Bottom view |
 |
| This my No 4 units. The no 2 units same |
 |

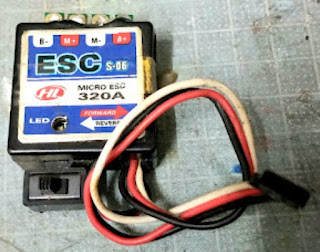

| Micro ESC 320A. The weakness in this type, when some thing short circuit the reverse not function, only forward. |
 |
| Bottom view. |
My no 3 and 9 units. Next buy another units brush ESC TP-M8 for Rm90 in 2/5/2010. Same run until damage. This time i use Lipo battery 7.4v. Started nice very fast then i hard break at corner, suddenly not function anymore. Go back and check, all the led meltdown, the ic out of position. I didn't have the heater gun for it.
The second unit already damage from shop when i buy the RC parts in big bunch year 2018.
Voltage = 4V - 12V
Max peak current = 1200A
Max continuously current = 500A
Frequency = 1KC
Internal resistance = 0.001
Size = 40x40x16mm
Suggested motor = 9T above.
 |
| The no 3 units. Left this only, all wire cut for other usage. |
 |
| Second units already not function 2018 |
 |
| Back view |
My no 5 units brush ESC. HY 120A. Damage damage that how i play my EP RC. The next buy a HY 120A for Rm60 on 20/7/2010, Motor 15T above. same as HL but different company.
 |

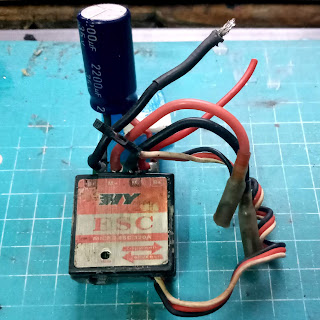

| Today 2020 still function, i use in my QD RC. |
 |
| Back view |
My no 6 units brush ESC. To buy HL or HL ESC getting difficult, In market came out more advanced ESC can use Nimh or Lipo battery. Most HSP RC from 2018 until now using it.
On 5/4/2013 i buy for Rm50. No branding only use Nimh battery. The slot that can change using Nimh or Lipo is thare but no pin. All water seal.
 |
| Big and waterproof and with heat sheel, So far the best ESC i use. Use in my kyosho laser 2000. |
 |
No pin all seal.
|
 |
| side view only one sticker waterproof |
 |
| Back view |
My no 7,9,10 units brush ESC. HSP ESC WP1040. Buy for Rm55. On 11/6/2014. It can use both type of battery and waterproof. Another 2 units already in the HSP RC that i bought in 2018.
 |
| Top view |
 |
| The changing slot for using two type of battery. |
 |
| Bottom view |
My no 8 units brush ESC. WP ESC 120A, buy for RM30 on 6/9/2015. Same as HY and HL ESC. Is old stock, for me if they sale all the unwanted old ESC i will buy if cheap, use it in the toy grade RC that i buy not function.
 |
| Bottom view |
My no 11 Units brush ESC. LRP IPC V5.1 GENERATION + No 83730 ESC. Over 8 turn German Technology. Buy for Rm50. Ori price from shop RM399. This LRP esc i buy very cheap, the shop have 3 units, different range old stock. I took all each RM50 Only use Nimh battery.
Tasted in my HSP Brontosaurus 2 wooooo the power is thare, but no reverse. That the problem, truck, buggy, rally, rock crawler need reverse. It suitable for on road RC.
 |
| From side view |
 |
| The shop price Rm399. From dealer is more cheper, then from LRP may be around Rm100++. |
 |
| Forward and brake, over 8 turns. |
 |
| The quality seal. |
 |
| Technical data. |
 |
| Back view, The recommendation usage |
 |
| Tested and recommended by the professional. |
 |
| Open box |
 |
| Given things |
 |
| The Limited warranty card, warning note, user guide, LRP sticker, LRP product info, heatsink |
 |
| The LRP ESC |
 |
| This units have a special setting for power on the lhs, just turn from S to 0. Control power to the system. |
 |
| Back view, the supply and motor terminal change to D plug. |
My no 12 units brush ESC. LRP IPC Pro Sport Digital, No limit, 340A, Forward/Brake, No 8362. RM 499 from shop but i buy for Rm50. Didn't try yet to my RC.
 |
| No motor limit. |
 |
| From side view |
 |
| The best no limit |
 |
| Shop sale Rm499. I buy old stock Rm50. |
 |
| Bottom cover view |
 |
| Warranty Statement |
 |
| Back view |
 |
| Same thing given. |
 |
| Can control the power |
 |
| Back view |
My no 13 units brush ESC. LRP IPC v8.1 Generation +, over 6 Turn, Forward/Brake, No 80800. Buy for Rm50. Shop price Rm599. This set i put into my kyosho TF2, not yet tested in track. But very power full throttle.
 |
| Front view. Use for over 6 turns only forward and brake. |
 |
| From side |
 |
| Shop price Rm599. I buy Rm50. |
 |
| Technical data |
 |
| Back view |
 |
Inside the box
|
 |
The parts given in a plastic bag.
|
 |
| LRP sticker. |
 |
| The user guide. |
 |
| Limited warranty card |
 |
| 2007 LRP buying parts guide. |
 |
| Given plastic screwdriver, socket for changing Amps in ESC according to race track, tape, heat sheel, cable strip |
 |
| The unit fix into my Kyosho TF2. |
 |
| Side view, on top rhs whare u can change the amps use 30A, 50A, 55A, 80A and 120A. |
My 14 units is a Brushless ESC. Brand ROHS, 60A-SL, Buy for Rm2 at a reject shop on 00/2/2020. From lazada Rm35. Go back and test after plug in using 7.2 Nimh battery smoke come out when switch is on, then remove parts, found 2 ic already burn early. Can't repair. But i just take the usable parts. It cheap anywhere.
 |
| Can use 2 type of battery Nimh or Lipo |
 |
| 60A |
 |
| Bottom view |
This my 15 brush ESC. i buy from China threw Shoopee. From RoHc, BDESC-S10E-RTR, WATERPROOF, Can take 5-9 Nimh and 2-3,Lipo. Made in China. I buy for Rm19, same product, some price from Rm21 - Rm50. I buy on 17/3/2020. Receive after 7 day. This product same company with My brushless ESC no 14.
I do some investigations on this product found out,
1. Is not a waterproof ESC but sticker is thare and they mention on their product sale.
2. The waterproof sticker upside down.
3. The sticker show the changing slot for Nimh and Lipo also upside down.
4. When i tested using 2s Lipo and i change the slot for lipo, Not yet on just plug in power supply, smoke come out, faster remove it. It damage the forward IC. Now steering and reverse ok. Later need modified to my toy grade rc.
5. All the wire have no seal glue to protect water going in,
6. The two screw below cover also no seal.
Let us learn some thing .
 |
| From Top |
 |
| From side, size smaller nice |
 |
| The cod no, Waterproof, Made in China |
 |
| The upside down sticker for battery use and terminal. |
 |
| The Wright position. But this small problem we can change it. |
 |
| The waterproof sticker also upside down, need a mirror to see correct words. Small problem. |
 |
| Big problem come they say waterproof with a big umbrella, look at the switch/power slot we can see the IC, whare the seal glue? one drop of water pfffffff that it. |
 |
| This area from power supply and motor wire ware are the seal glue? |
 |
| When using a touch light, u can see inside the circute board. No seal glue. |
 |
| Bottom view. Two screw tighten the bottom cover to top heat sheel. The screw should put seal glue. |
 |
| I remove the cover very easy. Look at the circuit board no seal at all. |
 |
| i tough there a rubber seal at bottom cover, nothing |
 |
| The waterproof seal glue use in HSP ESC WP-1040. |
Yes the product is cheap from Rm19 - Rm50. But be careful when perched product from China. If some new rc guys don't know that it waste money. Like me i just buy and have fun with it, still can function so i will be careful not playing in the water or rain. So far the best basic ESC for brush still HSP WP-1040. When buying a product from far they will advertise nicely when reach wala disappointed. Ok enjoy RC . Some thing to learn.
My No 16 brushless ESC. On 13/5/2020 some shop open after 2month +++, go to my normal shop whare they sale all the unclame parts from lazada customer. Found this ESC in box ask for price RM20 just grab it, a new ESC only without programe card. Market prices RM150++.
A 120A Sensorless Brushless ESC for 1/8 car, buggy or truck from Surpass Hobby, Higher speed lower Temperature, Waterproof. I try up without the motor ok still function. Only need to buy the motor below 3000kv. Can use 4S to 6s Lipo and 12 to 18 cells Nimh.
I will try use it in my 1/10 truck see how fast he can go.
 |
| The box still new , |
 |
| SURPASS HOBBY . www.sur pass hobby.com |
 |
| From side view |
 |
| Back view 3 type ESC 80A, 120A, 150A |
 |
| Made in China |
 |
| Inside only the ESC and Manual no program card. |
 |
| User Manual a pcs of paper |
 |
| Specification 120A and 150A |
 |
| The ESC very big and heavy |
 |
| Side view from power supply |
 |
| Side view the motor connector |
 |
| Bottom View |
 |
| With a powerful fan |
On 19/6/2020. I receive the progrem card for 120A Surpass hobby. Buy for Rm17.67 from china. Tested it function. Now want to buy a Brushless Motor
 |
| In packing from surpass Hobby |
 |
| Back view |
 |
| I buy the 120A Progrem card. There another one in white for 20A to 60A. |
 |
| Back view |
 |
| Function the yellow lid is my setting. From factory setting all is in first roll. |
 |
| No motor can't test the power. Just learn to progrem. |
 |
| Tested up on the mini esc for brush ESC. The card can't recognize. Blue light. |
 |
| This card for brushless only. If blue lid on can't progrem. |
No 17 brush ESC. Buy on 13/5/2020 just for RM2. No brand but in lazada is a mini 30A Brushead ESC for car, boat or tank. Function Forward, Reverse and Brake. Voltage 4.8 to 8.4V. Output 5.7V. Begining just buy don't now for what purpose, when checking see all the connector is for RC. Just buy it . After checking in lazada found it small and economi ESC. Same like previous day Cheap HY or HL ESC but this without casing. In lazada sale from Rm13 to 20. Go back and try with small battery first and joint to small motor, it function. Then study this product it can use 4 to 8.4v Nimh or 2S lipo. So use 7.2Nimh battery and a 540 motor it can use. No burning yet.
 |
| In a packing |
 |
| The circuit just wrap with a tube no casing. That why very cheap |
 |
| At top don't now what for the switch i thing for battery use Nimh or Lipo |
 |
| other side. |
 |
| Change to Dean plug. |
No 18 brush ESC. 31/5/2020 go looking for rc parts in OffLine shop in seremban, found another mini ESC. Buy for only Rm2.15. Go back test it found still function. Will put into my modified toy grade RC (QD RC, Crawler).
 |
| Still in packing |
 |
| Same packing parts name when i found it last week, Automotive, motorcycles parts & accessories. Motor spare parts. Begining i confused checking inside the pack it all rc connector but outside return different. |
 |
| The connector will be change to Dean plug when i use this ESC. |
No 19 brush ESC.Seconhand HL120 amp. Buy Rm1.30. After checking no reverse only forward, open found one ic with melting laid over heat.
No 20 brush ESC secondhand no brand mosly china brand, the top crome cover is heat sheel, Rm1.30 no reverse. Check crack on mother board, i sholder the crack finaly all function. Put in my QD
No 21 secondhand brush ESC from HSP, RM1.30. Not function remove found have been repair. Resholder all function
No 22 brush ESC. Secondhand Rm3 Perfex KA15 from kyosho. After check only steering function
No 23 secondhand brush ESC, RM4.16 10/1/2021 Nilai 3. All function only bottom cover crack
On 7/3/2021 Rc parts hunting in Nilai 3 found 3 more Esc Rm6. After checking 1 faulty 2 can use.
No 24 brush ESC HL 320A. When put in power supply 7.2 smoke come out. Remove all the wire fix on other ESC.
No 25 brush ESC YOKOMO scr6712. Few wire been cut and rejoint
No 26 brush ESC Kyosho perfex KA15, function rejoint some wire
.jpg)
Next i will show some of my Brush motor i buy secondhand. Only have 4 with changeable brush. The rest just normal build in brush motor.
My no 1 is Trinity Master Horse Power "1985 World Champion ".
 |
| Photo that year just buy. 2008. |
 |
| Laters photo, use many time On my buggy or on road. Some sticker words missing. |
 |
| From gear side view. |
 |
| The brush insert area. |
My no 2 motor is Sprint Racing Team. 23T
 |
| The motor basic look like from HL or HY Vantax RC |
 |
| The shaft side. |
 |
| 23T |
 |
| Brush terminal area. |
The no 3 motor is, Yokomo 5 Pro Team Zero 10T2W, Machine Wind Modified,
 |
| From Yokomo |
 |
| Team Zero |
 |

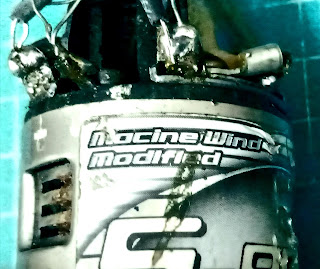

| 10T2W, marking almost gone. |
 |
| Brush insert area. |
 |
| Both side casing with ventilate so hot air can escape. |
My no 4. From Nosram Vision 10x2 T, 97410, Pro Speed High RPM, Buy for Rm90 on 24/12/2014.
 |
| Product from Nosram |
 |
| 10x2 97410 |
 |

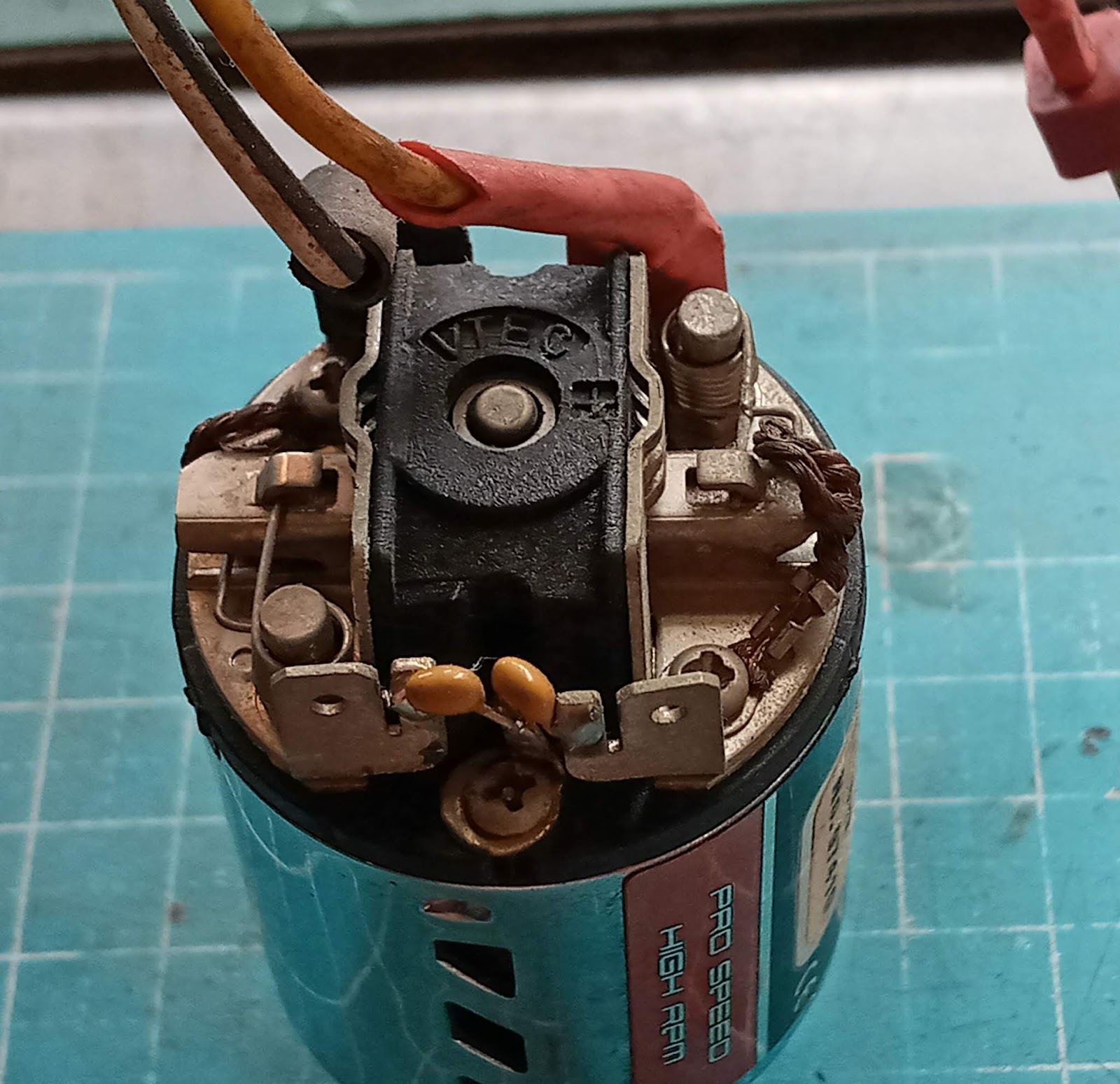

| Brush slot area. |
Next i will show my basic build in brush motor.
No 1 from Johnson 540 7.2v 36T.
 |
| The economic motor for RC. sticker almost missing . |
 |
| The shaft view |
 |
| Back view |
No 2 Hipower 540SH 8020DF 7.2v. 120915.
 |
| Rear view |
 |
| Both side at brush thera are 2 hole for ventilation. |
 |
| Below the carbon, thare is a fan rotor, is to bring in air for cooling purposes. |
My no 3 and 4 same motor, From HSP 550SH 802005 7.3V.
 |
| Don't one to remove for photo. From HSP |
 |
| Back view |
 |
| With ventilation air rotor |
My first brushless motor. Buy secondhand for Rm5. No brand and kv, may be from HSP brand
 |
| The center wire insulator damage can see the wire inside, i just wraps with bigger shring tube |
 |
| The 3 terminal change bigger. |
My no 5 basic motor buy for rm5. I didn't check the volt after buying see 16.8.V, brand Hong ke Motor made in China. Another fault found cover at carbon brush open need to redo .
 |
| The pinion gear is hard to remove. |
My no 5 brush motor buy for Rm1.50 buy in loose parts on 24/10/2020 in nilai3. Kawada made in Japan don't no how many turn. They no more using this type anymore. For me time to grab what ever parts leftover.
 |
| No more sticker on body |
My no 6 brush motor. Just a logo AE. No return made from and turn. buy for Rm1.50 on 24/10/2020 nilai 3. Come with no brush and colour terminal. After service and repair it still function.
No7, Brush motor come together with my Tamiya lunchbox.This from Kyosho Mega Formula Motor year 1990, brush 540 motor, turn 22x2. 2470.
 |
| No ball bearing, full restore vintage collection |
 |
| Not my, just to show the original packing from kyosho |
22/11/2021, No27 brushless ESC and second Brushless Motor, Rc hunting found another cheap Brushless motor and ESC a set, from Surpass Hobby brand. New in box and only Rm30. From Shoopee Rm180 ++ after discount = Rm80++.
2435 Sensorless motor, 4800kv +24 amp ESC. For 1/16 or 1/14. After test it function. Will fix into my WPL D12 truck recomended.
 |
| 2435, 4800kv |
 |
| Din connector |
