My Hand 🤳 Vol 2 Collection. The Damage Phone

My self don't know how to repair a phone with electronic fault example can't on or can't charging. But I know how to open a phone and replace parts. 2019 I just buy damage smart phone and start to open and remove the touch screen. But I more like to open old phone more parts. Some I have 3 units because I didn't bring battery for checking before buying.
This time I show all my damage collection that i buy, just for spare parts, to change to one use phone. Mostly the LCD, the button, cover, mother board or the ribbon. Few of this phone still can on but damage on LCD and ribbon. Just keep in case I buy the same one. The pictures i show just front image..

Start blooger = 9/10/2019
Update = 11/8/2022

Buy for only Rm1.60. Basic tools to open a mobile phone old and new.

A set to open mobile phone.

Total 66 units damage, can repair or keep vintage.

1. Sony Ericsson = 42 units

2. Nokia = 8 units

3. Samsung = 6 units

4. Panasonic = 1

5. Alcatel = 2 units

7. Ericsson = 3 units

8. LG = 1 units

9. Lenovo = 1 units

10. Motorola = 2 units

1. ERICSSON GA628 (1996)

Buy rm10 fleamarket seremban, but after remove and cleaning the terminal damage too many fine wire.

2. ERICSSON GF388 (1995)

Given to me from a friend in 1999. Already damage keypad cover missing

3. LG C1100 (2004)

Given to me can on ribbon faulty. Still can't find a secondhand units or ribben.

4. Lenovo A880 (2014)

Found in front of my house throw away with damage screen can't on.

5. Samsung SGH X460 C (2004)

Found in a book store, is a damage phone can't on.

6. Samsung SGN C300 (2006)

Buy for spareparts ribben for my C1100 but not match. Can't on rm10 fleamarket seremban.

7. Sony Ericsson W908 (2007)

Buy for spareparts damage phone

8. Sony Ericsson W350i (2008)

Buy rm10 for spareparts. Can't on missing keypad cover.

9 & 10. Sony Ericsson K550i (2007)

Rm20 both faulty phone need a collection. Fleamarket seremban.

11. Panasonic GD 92 (2000)

Buy rm5 with battery. Look nice, after checking can't on. Buy in fleamarket petaling street.

12. Sony Ericsson ELM J10i2 (2009)

Buy rm 5 fleamarket petaling street. Can on lcd top faulty.

13. Sony Ericsson W960i (2007)

Buy rm10 fleamarket seremban. Still a faulty phone can't on.

14. Sony Ericsson W550i (2006)

Buy rm10 fleamarket seremban, still can on, but cover damage.

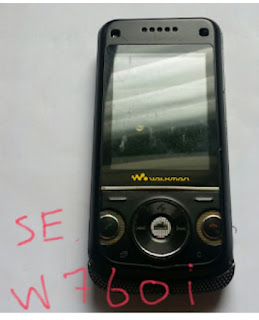

15. Sony Ericsson W760i (2008)

Buy rm10 can't on, slide phone ribbon faulty

16. Sony Ericsson C905 (2008)

Buy rm10 fleamarket seremban, badly damage

17 & 18. Sony Ericsson K700i (2004)

Both can on LCD faulty. Buy rm15 fleamarket petaling street.

19 & 20. Sony Ericsson T100 (2002)

Both can't on. Rm10 fleamarket petaling street.

21 & 22. SonyEricsson C902 (2008)

Both faulty phone for spareparts rm20

23. SonyEricsson W100i (2010)

First can't on, other half LCD OK. Buy RM10 for spareparts. Fleamarket petaling street.

24 & 25. Sony Ericsson J105i Naite (2009)

Faulty phone spareparts rm20 fleamarket seremban

26. Samsung SGH X460C

Can't on rm10 fleamarket seremban

27. Nokia 8250 (2000)

Can on, lcd faulty, casing, missing sim terminal. Free give to me.

28) ERICSSON GS318 (1995) (Made in Sweden.

Buy rm10 due to vintage after checking inside some electric component damage due to battery asid.

29) SONY ERICSSON Z1010 (2003)

Buy rm10 fleamarket seremban, Only the ribbon faulty. All function before i dismental for cleaning. Very big phone.

The light on LCD very deam

30) Sony Ericsson K508i (2004)

Can on, LCD damage glass break. This phone hard to find. Rm5 petaling street.

Total damage LCD

31 & 32. Sony Ericsson W880i (2007)

2 units. White can't on. Black half LCD lhs damage and damage casing for spareparts rm20. Fleamarket seremban.

Phone on quarter LCD damage

33). Sony Ericsson W595 (2008)

Can on.No ribbon slide phone rm10 fleamarket seremban.

34). Nokia 3315 (2000)

Can't on remove and check the terminal OK. May be one of the chip. Rm10 fleamarket seremban.

35). Sony Ericsson 530i (2006)

can on but ribbon faulty. Ribbon hard to get. I found second use phone that function only can't read the sim, i check the first units found is a phone lock cod. I use this circute to make a function phone. Rm10 fleamarket seremban.

36 & 37 & 38. Sony Ericsson Z520i (2005)

3 units buy to get the ribbon for my units. All can on, the LCD OK. Found one units with good riben replace to my set. Know if i can get the ribben this 3 phone can function. Rm30 fleamarket seremban.

39 & 40. Sony Ericsson W700i (2008)

Black faulty phone, white phone lock. Rm20 fleamarket seremban.

41 & 42. Sony Ericsson T250i (2007)

one screen OK. Both can't on. Rm20 fleamarket seremban.

43 & 44 & 45. Sony Ericsson C510 (2009)

All 3 units can on. All LCD crack. Rm30 fleamarket seremban.

46.Sony Ericsson W508 (2009)

Buy for spare parts for my first units to repair. Rm10 fleamarket seremban.

47. Sony Ericsson W850i (2006)

Can on ribbon missing and total casing fault. Rm10 fleamarket seremban

48 & 49. Sony Ericsson Hazel J20i (2009)

Second Faulty phone, Slide phone. Both can't on. Lhs casing still nice. Rm20 fleamarket seremban.

50. Sony Ericsson W810i (2006)

Buy for Rm10 fleamarket seremban, can on damage LCD.

51. Alcatel OT311 (2001)

Is a damage phone buy for rm5 fleamarket seremban buy because vintage. The phone I total clean up, can't on circute damage due to asid battery.

Condition first look

Inside after removing all parts, the asid eat all the terminal (Blue)

After cleaning, even all the corroded terminal is clean.

52. Motorola W388 (2013)

Given to me free from friend. Condition not sure, go back check
1. The rear cover hard to open.
2. Battery bulgy
3. Phone hang at motorola logo
4. Dusty

I remove every parts all in good condition, only program faulty. So just keep as vintage first.

After on can't go in, even press to off not function

Learning how to remove smart phone parts. Using Lenovo A880. All the parts inside become simple a board with all the tiny chip squeeze in. Then LCD out side touch screen casing that all. The hardest parts remove the touch screen and LCD need heater gun, but in my case I just slowly use plastick tools.

The touch screen

LCD

The main casing front

Main casing inner

The circuit board top main bottom charging.

Back cover for main casing

The battery and battery cover missing when I found this phone.

53. Nokia 5130 Music Express (2008)

Buy for Rm10. Flea market seremban. Can on but came out low battery even is full charged no rear cover, screen scratch.. Remove try to repair last damage it can't on

54. Motorola C380 (2004)

Given to me from my friend. After checking can on but no image may be the LCD fault. The battery bulgy but still can charge.

55 & 56. Nokia 6070 (2006)

Buy in fleamarket Seremban for Rm20 2 units. To replace my first units lcd. Another units just buy for fund.

57. Sony Ericsson W580i (2007)

Buy for rm10 in fleamarket seremban. No testing just buy and go back home check can on screan blur after long time nothing in screen. Remove check riben damage. Buy to replace my first units LCD.
