Start bloog = 2/10/2018
Last Updated = 28/5/2021
My 33 Reel
Went back my home town Taiping, for holiday. My cousin also love fishing but know he stay in KL STOP fishing long time, not free buzy with his business. When i go back home town for a day trip, I saw two same fishing reels small one is Shimano Ultegra 2000 the big Shimano Ultegra 3000. Condition both bad, can't turn smoothly because left un touch, Remove the cap found out all the grease become dry and harden. So i took the small Ultegra 2000 for my collection. He no more use. Bring back i remove every parts and total service.
The specification
1. Made in japan
2. Year 2005 may be older
3. 2 ball bearing, i add 1 more
4. Gear Ratio 1:5.4
5. Big line roller
6. Shimano Balance Lock (SBL)
7. Folderble Handle
8. Front Drag
9. Changable Handle rhs and lhs
10. Line capacity 2-150, 3-100, 4-70
 |
| Not mine just to show the the |
 |
| RHS |
 |
| Front |
 |
| LHS |
 |
| Rear |
 |
| Top |
 |
| Bottom |
 |
| The Shimano sticker and Made in Japan logo |
 |
| Foldable handle and wood grip |
 |
| Anty reverse lever |
 |
| Big line Roller |
 |
| Line clip |
 |
| Aluminium spool |
 |
| Drag system in spool |
 |
| ULTEGRA 2000 and the line cap. |
Not yet try for fishing. I just bought a second hand 1 pcs light rod, to match this reel.
 |
| A pouch bag |
On September 2018 went to JJJ seremban as usual. The first section is the fishing section, new stock has been put in, for so long, see two road with reel on it , but after checking that not a fishing reel but a line counter. 1 still in good condition with price tag Rm60 and another one with broken spoll. handle and with loose selector gear lever Rm50. So just take the good one to counter and ask for the best price only the line counter without the road. They given Rm50. Too expensive for a second hand use parts so i ask how about the broken one best price given Rm40 but i bagin for Rm20. Not given so I am not buying forget it. With that price i can buy new. After 3 week i found out it been sold but left only the damage one with price tag Rm10. Haha stupid JJJ firsly ask for RM20 don't want to sale but now Rm10. Buy it and go back service and repair.
 |
| Ryobi Line Counter for line 1 to 2 ibs only. |
 |
| Ryobi line Checker for Japan market |
 |
| Top Ryobi China |
 |
| Side the spool |
 |
| Side with selection lever |
 |
| Another side |
 |
| Top the counter |
 |
| The counter 000 to 999 and the orange button reset button. |
 |
| Selection lever this position lock no reverse spool number will count from 999 to 000. |
 |
| Lever in free position. Spool can go backward or front. the number also can start from 000 to 999 or 999 to 000 |
 |
| With a line clip |
 |
| The spool handle broken manage to modified it. |
My 34 reels
Is very long time not concentrate on fishing, stop fishing almost 5 years. But some time just look at the secondhand reel in jjj and fleamarket seremban. Only special or rear drag reels with good company reputation i will buy.
9/5/2021 this reel Tica GP1450x Combat light reel era 1990++. Buy for rm20.After serching in net cannot found this reel, i assume this the budget reel made in China. In 1990 there a siri with yellow box.
Name = Tica Combat GP1450X
Category = light Reel
Ball bearing = 1 pcs
Drag system = rear
Body = Graphite
Gear Ratio = 5.2/1
Line Die = 0.30 to 0.35
Suitable catch = 1.0 to 14 ib / 4.5 to 6.4 kg
Spool = semi long
 |
| Before cleaning body dirty with stain |
 |
| Mud some area |
 |
| Front spool dirty |
 |
| Side never wash. |
Removing parts
 |
| Total dry |
 |
| Cover no greese, using bushing |
 |
| Removing the maint gear greese harden from brown colour to black. |
 |
| On shaft black greese harden |
 |
| No ball bearing cannot change |
 |
| Dry and garden greese, using wrong greese. |
 |
| Dry using bushing |
 |
| After remove the rotor a short line on the shaft |
 |
| Only bearing dry but no sand |
 |
| Dry greese simple lock key for gear shaft |
 |
| Using a plastic rear drag lock |
 |
| Dirty with sand |
 |
| Spring plate, lock plate, disc and drag plate |
 |
| Line roller no ball bearing dirty |
 |
| All parts remove |
 |
| The spool lock plastic damage, mostly this area broken. |
Cleaning done assembly back, add reel greese and bearings oil. Can't change the 2 pcs side bearing.
 |
| New reel greese |
 |
| All fix back left the spool need to glue the lock switch. |
Done all fix and clean
 |

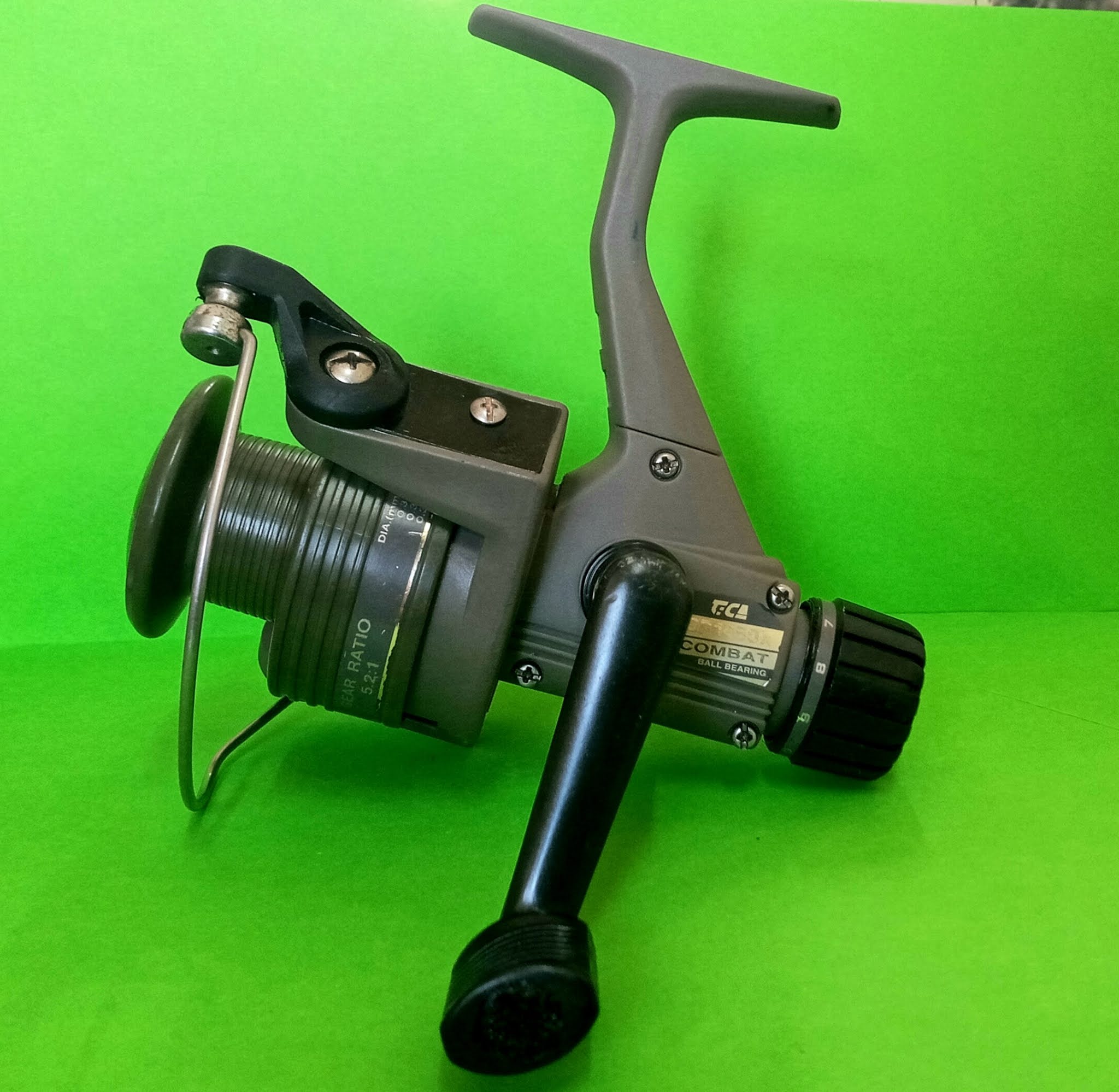

| The clean reel |
 |
| Foldable handle |
 |
| Bottom view |
 |
| Spool different colour with body |
 |
| Changeable handle |
A pouch bag
My 35 reel
Same day 9/5/2021 fleamarket, come with a rod but ask the shop i only want the reel, sole to me Rm30. This original from Tica made in China because at top returns a Sri number. Look like this reel for japan market because there a japan words near the anti reverse knob. Year around 1999 to 2000. Because after year 2000 rear drag reels geting laser most front drag system.
Name = Tica Eagleeyed EH4350XH
Made = China
Ball bearing = 4 / superior high speed
Category = light reel
Drag = Rear/Micro
Gear Ratio = 6.3/1
Line Dia = 0.25 to 0.30 / 190 to 130 mm
Catch weight = 6 to 10 ib / 2.7 to 4.5 kg
Spool = Semi long
Body = High Tech Graphite
 |
| The box not mine |
Before cleaning
 |
| Same problem dirty and paint chip |
 |
| The a Japan words, anti reverse knob very tight. |
 |
| Rear drag knob grip rubber damage |
 |
| At the body paint chip due to the line. |
 |
| Big line rollers |
 |
| One touch foldable handle, changeable, dirty |
 |
| Tica CJ00476 |
 |
| Micro Drag/high speed |
 |
| Small line clip |
 |
| Big spool lock |
Start removing parts
 |

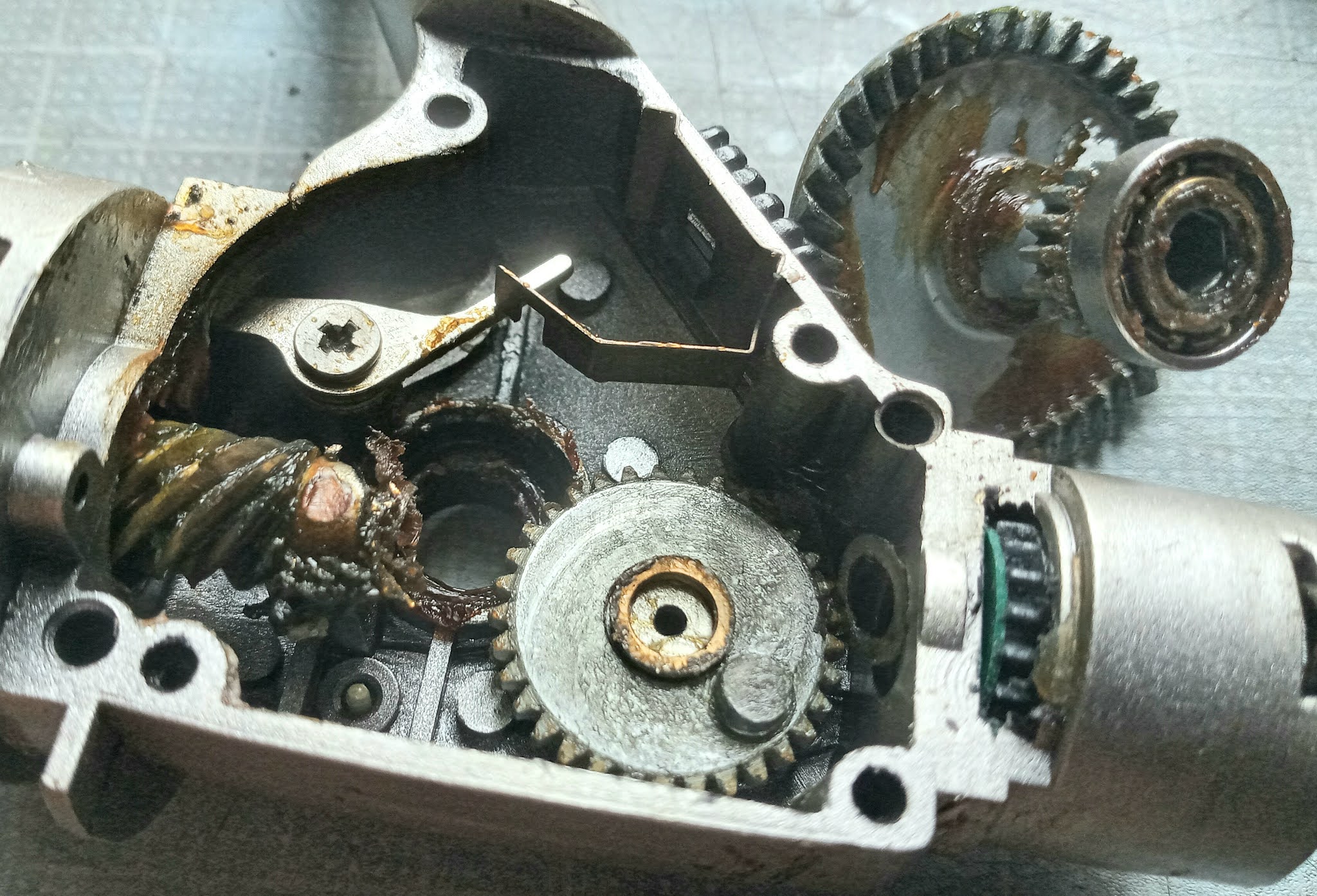

| Greese almost dry some too thick |
 |
| Removing main rotor bearing stuck |
 |
| The greese dry and thick, not a reels greese, ball bearing hard to remove |
 |
| Even this gear hard to come out |
 |
| The spool rotor lock mechanism |
 |
| This anti reverse arm screw super tight, can't remove |
 |
| Greese mix with paint |
 |
| The maint shaft crome came out mix with greese |
 |
| The drag plate |
 |
| All ball bearing no sand entering |
 |
| The spool have weight |
 |
Even the gold plate is heavy ion
|
 |
| All the spool parts can be removed |
 |
| All parts remove |
After cleanings and assembly back
 |
| All components regreese and oil |
 |
| All plate wipe off the oil on surface, so more grip on disc |
 |
| Ball bearing reoil and add greese |
Done rework all parts clean, only paint fault can't do much.
 |
| The torn will rework with rubber seal |
Buy a pouch bag
Enjoy FISHING
