My mind problem again this month and in 2 week i buy 2 RC TRUCK. On 25/1/2018 bought another RC Car new 2013 HSP 1/10 Desert Short Course Truck (Breaker SCT Parts no 94205) for RM450 at S 11 Toys shop seremban.This SCT already in market since 2013. See in U tube. Because most rc buyer in seremban go for On road and buggy. Too boring for me, so take some thing different short course truck.
Specifications
1. Brush Motor 540
2. Motor RPM 20000
3. Gear 64T/23T
4. Gear ratio 1/ 8.13
5. Speed 29km
6. Servo 3kg
7. ESC Forward 120A / outward 100A
8. 4WD shaft.
Start bloog = 26/1/2018
Last update bloog = 1/1/2024
Spending spareparts = Rm573.19.
2013 - 2024 = 11 Years
Made in China (🇨🇳)
 |
| 2021 picture |
My first impression when open the box woo so big can't be 1/10 scale is a 1/8. But after remove the body cover the chassis is 1/10. Haha body very wide, very nice body, with 2 driver, spare wheels, roll cage. But this time i not going to up grade this truck may be change the wheels bearing only. No alum parts just what it is. See how strong all the parts. This truck brush motor and use 7.2v nimh battery. This time after inspection see some fault
1. All dog bone too many free play. So i put small rubber on booth end to stop the knocking sound.
2. The motor cover have a gap big stone can enter. Remove the cap and squez and add sealant .
3. The propeler shaft same too many free play. Same each end add rubber.
4. The tyre not rubber but soft plastic
5. When on a flat surface the back suspencion drop down touching the body, spring too soft or the damper oil. I add the spacer to make the spring harder.
6. Front left and right drive shaft touching to spring slightly.
Problem come, no spare parts even from lazada or Shoopee. Only can get it international for upgrade parts. 2020 i can only get the front and rear suspension arm, using same parts with 94107 buggy. Need caution play with this SCT Breaker.
 |
| The box from top but photo show big wheel Truck. |
 |
| Need to look at a small sticker |
 |
| The short course picture at side. I thing HSP save course so every box same. |
 |
| Every corner of the box have different car |
 |
| Inside another protection |
 |
| Inside |
 |

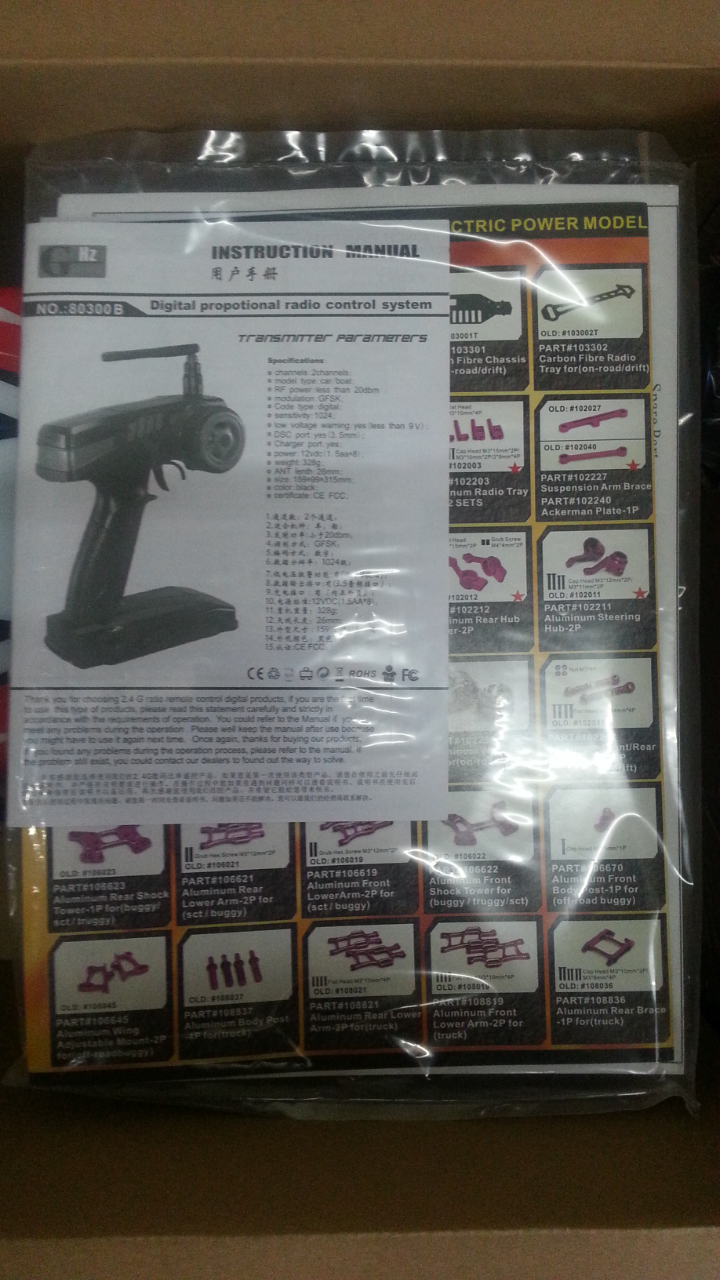

| The manual book for the car and remort |
 |
| Instruction for 2.4 remort |
 |
| The assembly instruction, not a book but a big paper . |
 |
| For the car |
 |
| Nice blue colour and huge body for 1/10 |
 |
| Out from the box |
 |
| Remort and charger in another box |
 |
| Just wrap in a plastic bag |
 |

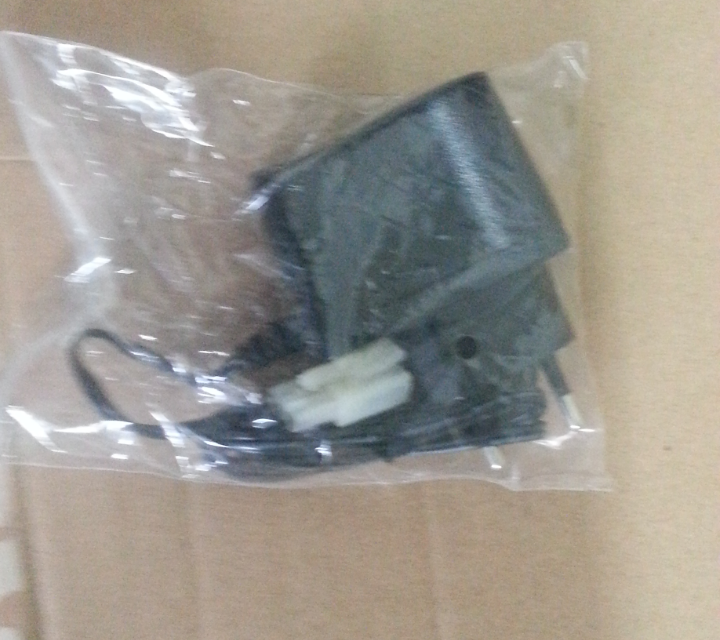

| Nimh battery charger |
 |
| Simple 2.4 blue remote |
 |
| Big body cover |
 |
| A small bumper |
 |
| Top view |
 |
| Side view |
 |
| With two driver figure |
 |
| Side with HSP sticker not that nice, need to change |
 |
| The rim and plastic soft tyre. Not a rubber tyre |
 |
| Back view from top , nice with a spare dummy tyre |
 |
| Back view just tail light , |
 |
| From bottom view like a under carrage cover but a bumper |
 |
| Look dall at back no sticker, one blue colour |
 |
| First look i tought another spare wheel can be use but after checking a dummy . |
 |
| The front bumper is small and not aline with the headlamp |
 |
| Under view , when look inside just a cross member to hold the cage , no impack spring like HSP big foot truck |
 |
| Under carrage |
Know look inside the body, after removing the car cover, look inside dam nice with the roll cage and 2 driver.
 |
| The roll cage |
 |
| From front |
 |
| The front bumper from top and front this bumper cannot hold big impack like my HSP BIGFOOT TRUCK. |
 |
| Side view |
 |
| Back view with a small bumper. Body post |
 |
| Well protect the electrick system. but dust no. |
 |
| Front suspencion from top |
 |
| Rear suspencion from top |
 |
| The dummy wheel just 1 screw to hold it. |
 |
| At bottom hollow spare tyre , can be remove |
 |
| Driver and navi. Nice |
 |
| Driver view |
 |
| Navi site |
 |
| The cage need to spray silver or red colour |
 |
| From top |
 |
| The roll cage can be slide open to front. It hold by a bar at front bumper |
 |
| From front |
 |
| Closer look |
 |
| Fully open to the front. It trouble some . |
 |
| Closer look hold by a bar at bumper |
Know look at the electrick component. 7.2 v nimh battery, 540 motor, Esc can use Nimh or lipo battery only change the connector on the ESC, but instruction only say use Nimh. What i knew this ESC same as the esc i bought sepreatly that can use two type of battery. Hsp 2.4 reciver. Servo the basic, need to change batter one.
 |
| From top |
 |
| Component at lhs battery rhs |
 |
| The 540 motor with a rotor fin at the end of the amature |
 |
| The waterproof ESC, can use two type of battery |
 |
| The servo cheap need to change, |
 |

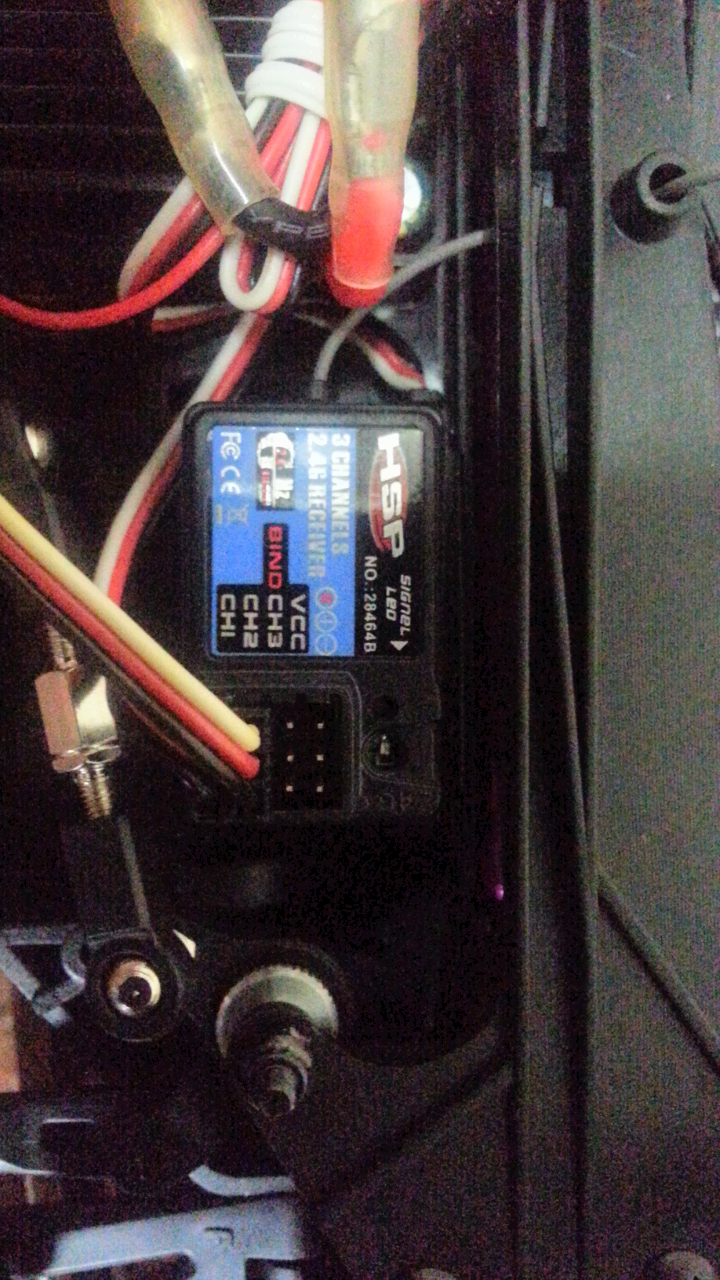

| The small reciver same as Flysky product |
 |
| The battery location, space too wide that why at lhs end there a black hard sponge to hold the battery move forward. |
 |
| The black hard sponge and the alum post |
 |
| The battery terminal need to change to D plug |
 |
| Using only 1 shock at each side. The shock tower is little hard then my HSP big foot |
 |
| Adjustable linkage for camber and steering toe. Using dogbone |
 |
| From top the drive shaft touching on the spring |
 |
| The steering linkage |
 |
| The gear location only 1 cover need to remove the center bar to look at the main gear |
The next after study the truck, i do some improvement to give better handling.
 |
| All the wheel change to ball bearing |
 |
| Cut a small o ring from fuel hose and add to each end of the dogbone and center shaft |
 |
| The axle with the o ring |
 |
| The ori plastic wheel Hex, if tighten lock nut gard, the wheel it will not turn. |
 |

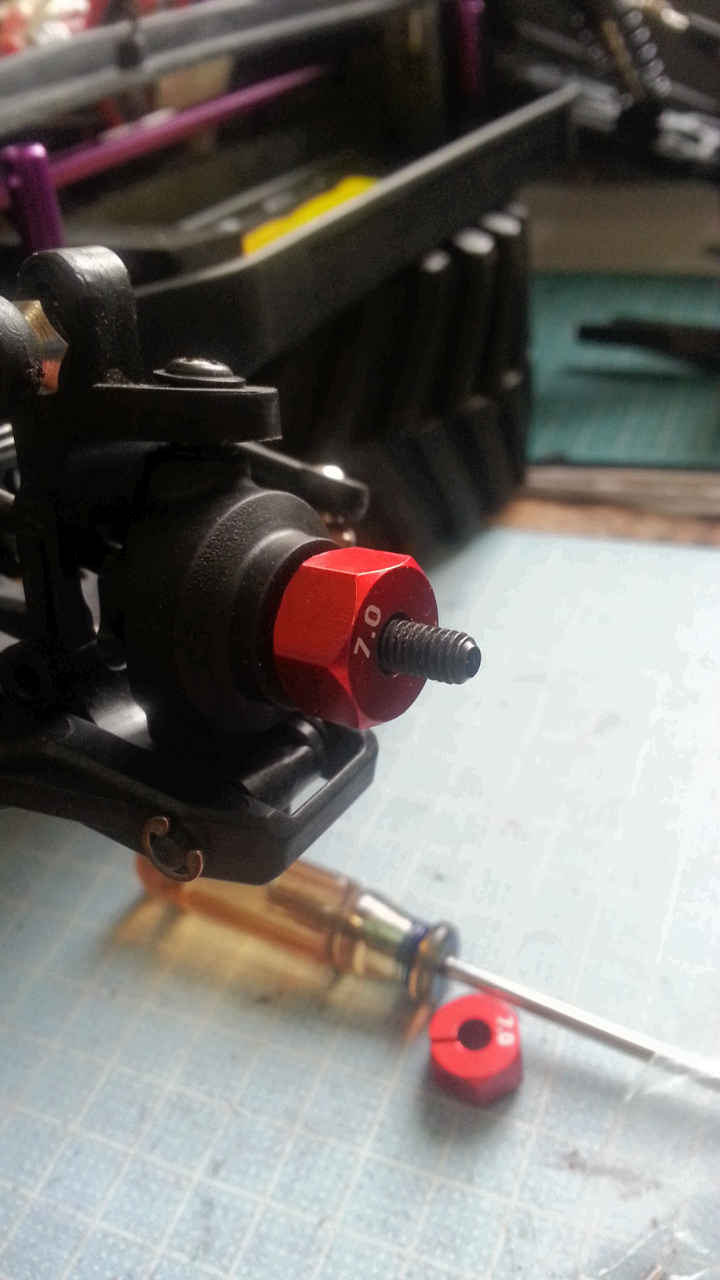

| Change to alum 7mm wheel hex |
 |
| Batter grip when tighten the wheels |
 |
| Replaces the bushing to ball bearing on one side of the steering colume |
 |
| Unevent cover a hole on the gear that will make stone or dust enter |
 |
| I remove the cover and bent it, put back add rubber sealent |
 |
| For the antena i drill small hold throw the driver |
 |
| For the cage i remove the front bracket , no more open to front. Just remove it and secure with pin |
 |
| Eazy to do work if the cage not attach to the body |
 |
| Just remove the pin the roll bar can be remove for front |
 |
| Rear pin |
 |
| All the body pin with a line |
 |
| Remove the front axle |
 |

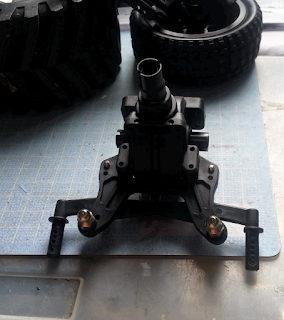

| Front axle |
 |
| The greese still ok just add some. So no need to open the gear. |
 |

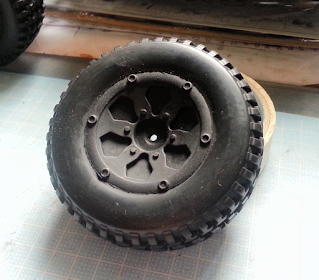

| The dummy tyre |
 |
| Back view empty |
 |
| Cut off some parts |
 |
| Look more nicer |
 |
| Look more nicer then, every thing in black. |
 |
| Back view |
 |
| Soon need to put a alum plate on the roll cage to prevent more dirt entering the electric component . |
 |
| Cut out 2 alum and make the roll cage shape, is to prevent more dirt entering the electric component. |
 |
| My next DIY Stabilize Bar for front. HSP didn't sale this product for SCT / Truck, even in up grade parts. for this bar i get from HoBao RC. |
 |
| DIY Stabilizer Bar for rear, parts from kyosho Zx5 |
That all the photo i take before i run the car on dirt or i damage it. Before and after. Soon will take out for a run and jump.
 |
| On 11/2/2018 add a cooling Fan and a switch rubber. Fan buy for RM25. |
On 21/3/2018 my order for aluminium front and rear steering knuckle reach. Course me RM120 in blue colour.
 |
| Front steering and c hub |
 |
| Rear wheel hub |
Again next days 22/3/2018 i buy 4 pcs universal joint for Rm60. I put it front and rear. The best using uj is, if the truck over turn and some time the steering rod came out and if use dogbone may be missing. But use uj it will still attach on the wheels. That why some of my RC car a also add uj on the back wheels. ALERT remember to recheck the allen screw that tighten the needle pin on the uj. Some with loose allen. Ensure use lock tight on the allen screw.
 |
| Rear UJ |
 |
| Front UJ |
Final do wheels alaiment only front toe can't do just adjust the turn buckle lhs and rhs same length. The rules too shot.
 |
| Front Camber adjustment and toe |
 |
| Rear only camber adjustment |
Parts reach on 9/4/2018 from LAZADA the front and rear shock tower from china. In silver colour for Rm45. If i buy the colour shock tower, it course RM32 a pcs.
The original shock tower too soft, softer then my bigfoot.
 |
| Front silver shock tower |
 |
| Rear silver shock tower |
 |
| Change to metal gear 64T and 26T pinion |
 |
| Cut a mesh wire and glue on cooling fan to prevent big stone stuck on the fan. |
On 24/4/2020. I have a extra hard stabilizer bar not using. What i did i modified to a handle for this car. Drill two hold at the propeller cover and at bottom tighten with a stopper. Most time when i carry, i will hold the chassis or bumper.
 |
| Put at center. |
After 2 year this SCT have not much spare parts in Malaysia. The chassis not same as 94111, 94107, 94117, Not much parts i can change to aluminium alloy. 94107 suspension arm buggy front and rear same, gear box same but suspension mount not same other model come a pcs so the gearbox mount on it. The steering sets not same, radio tray, even the front and rear shock stay, In Malaysia this model not very popular.
 |
| Chassis difference |
 |
| Bottom view |
2/1/2021 for so long i didn't do anything on this truck, because of i work on a project HSP Kutiger i need both side suspension arm. This plastic suspension arm i remove and put at HSP Kutiger. order a set aluminium alloy front and rear, course me Rm44.
 |

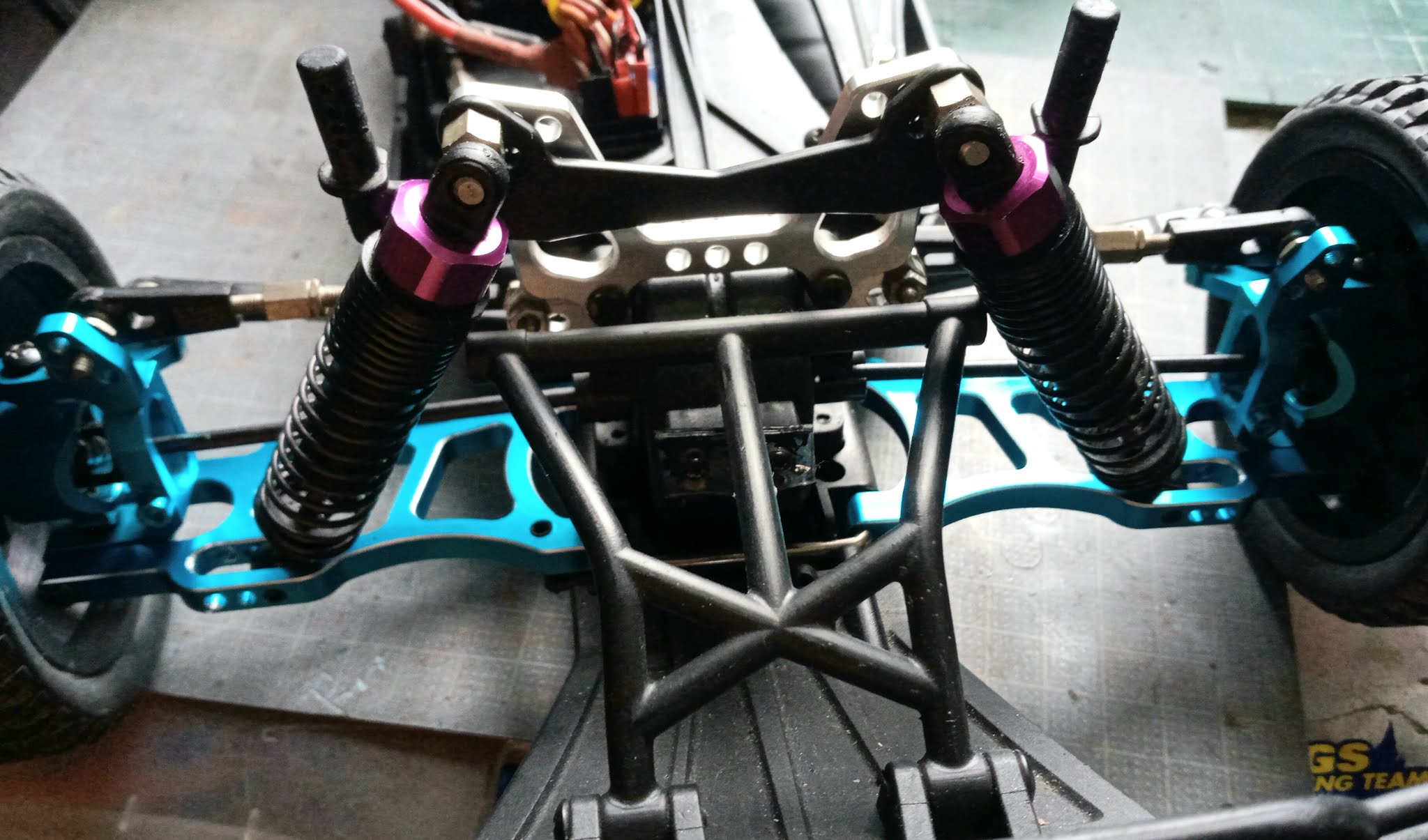

| Front |
 |
| Front bottom view |
 |
| Rear |
 |
| Rear bottom view |
20/1/2021, i change 4 pcs suspension linkage to aluminium, this linkages more stronger than the original, this for Traxxes, kyosho ect. HSP aluminium linkages bit thinner. Only the steering linkages didn't change this turn buckle too long.
 |
| Front need to readjust, the turn buckle i need to cut few mm at the end. |
 |
| Rear same need to readjust and modified |
On 27/6/2021 i buy shorten turn buckle, for eazy adjustment the blue is longer that why i remove a lock nut one side. 4 pcs only Rm17 in shoopee cheap sale.
25/11/2022 i play in PD
