This is all my RC engine collection that i buy new and secondhand. Never throw away if the engine damage still keep it. In 2020 some of my RC car for display without engine i buy few damage uncompleted engine and put in as show. Most collection i have from size 11 to 18, no bigger then that can't fit in my 1/10 car. The best engine i have still running condition is Novarossie NS12 Look small size but powerfull.
2024 .Till today only collected 21 engine
Start bloog = 22/12/2009
Last update bloog = 1/12/2022
Engine Size Measurements
1.11ci = 1.9cc
2.12ci = 2.0cc
3.15ci = 2.5cc
4.18ci = 3.0cc
5.19ci = 3.3cc
6.21ci = 3.5cc
7.25ci = 4.1cc
8.27ci = 4.4cc
9.32ci = 5.2cc
10.36ci = 5.9cc
11.46ci = 75.cc
1) My first engine KYOSHO GS11X 1995.
New that come with the RC car i bought.This engine performance i not sure, no info given from Kyosho event in Kyosho Web side. This engine not that power.
Future -
1. Recoil starting,
2. AB construction Engine,
3. 2 needle adjustment.
This engine i play until Breakdown, non stop cool down using water and play again.That crazy i am.
The Displacement (cc) = 1.90
The Bore & Stroke = NA
RPM = NA
Out Put = 0.2+BHPd
.jpg) |
KYOSHO GS11X
|
 |
| The Pull Start |
 |
| Side Exhaust Port |
 |
| Front View, |
 |
| KYOSHO GS11X Engine Made In Japan |
 |
| Cylinder Head Normal Glow Plug |
 |
| LHS View |
 |
| 2 Needle Adjustmet. High Speed and Idle |
 |
| Rotary Throttle Type |
 |
| Top View Air Intake Hole |
 |
| The Hight Needle Adjustment and Fuel Inlet |
2) Second Engine THUNDER TIGER PRO 12BZX 1995. Bought new for Rm400 in 1995
1. Recoil starting,
2. ABC engine,
3. 3 needle adjustment,
4. Schnuerle porting,
5. Automatic mixture control carburetors
6. 2 ball bearing.
First try run wooo is powerfull, better then my first engineer.This engine cylinder and liner already worn off, but manage to buy new in 2006 prices Rm150. After install the new liner the carburetor make problem needle failure. In 2009 December i manage to modified with a kyosho GS15R Carburetor and it start up good. Another engine can be use, but not as good perfomance, just keep as memory.
 |
| The Box |
The Displacement (cc) = 2.11
The Bore & Stroke = 14.0mm/13.7mm
RPM = 3000 - 30000
Output = 0.56BHP
.jpg) |
THUNDER TIGER PRO 12BZX
|
After Change new Piston and Kyosho GS15R carburetor.
 |
| Full Ready To Use |
 |
| Front View. Using Threaded Crankshaft, With Flywheel and Clutch Bell |
 |
| LHS View |
 |
| Pull Start Type |
 |
| Side Exhaust Port |
 |
| Bottom View Using Engine Mounting |
 |
| Top View. Using Normal Glow Plug |
 |
| Cylinder Head at end trade damage. |
 |
| 3 Needle Adjustment Carburetor. |
 |
| Rotary Type Carburetor, Low Speed Needle Adjustment last modified other and Idle Screw |
 |
| High Needle Adjustment and Fuel Inlet |
 |
| Thunder Tiger Pro. Made In Taiwan |
 |
| 12 Engine Size |
3) Third Engine KYOSHO GS11X 1995.
Secondhand same specification with my first engine. This engine is been rest in peace. But manage to life up after using piston and cylinder head from Kyosho ESG S11. Now i put this engine in my kyosho spider car no 2 and i give to my sister son to play. it not runing very fast it good for the beginner.
The Displacement (cc) = 1.90
The Bore & Stroke = NA
RPM = NA
Out Put = 0.2+BHP
 |
KYOSHO GS11X
|
 |
| Using a bigger Cylinder Head from Kyosho GS11 |
4) Fourth Engine KYOSHO GS11 1996.
Bought new for only Rm100.
1. Future single needle adjustment,
2. Big cylinder head,
3. AB construction
4. Pull start.
When i try up in my RC it give me a big problem run like a turtle, try to lean and rich the needle same result i get. What i been told buy my friend it may be a small airplane engine. So what i did i use this engine piston and the cylinder head and put in to one of my second Kyosho GX11x crankcase that was damage.
The Displacement (cc) = 1.90
The Bore & Stroke = NA
RPM = NA
Output = Below 0.2+
 |
KYOSHO GS 11
|
 |
| Side View. The Threaded Crankshaft |
 |
| Using Pull Start |
 |
| RHS View |
 |
| Side Exhaust Port |
 |
| Front View |
 |
| Kyosho GS11. Made In Japan |
 |
| Bottom View. Using 3 Screw Engine Mounting |
 |
| Cylinder Head Top View Normal Glow Plug |
 |
| 2 Needle adjustment Carburetor. High Speed and Idle Adjustment. |
 |
| Rotary Type Carburetor, Idle Screw Adjustment |
 |
| High Speed Needle and Fuel Intake |
5) Fifth Engine GS RACING V12RR.
Bought new for Rm400 take out from GS Rc car. On that time i need a engine so ask the shop ownew he give me a second hand but can't fit in my car, so he take out from new GS car for me. Event it look small is a powerful engine. Seldom use for race just baching i thing just run 5 time with it, not full run.Today 2020 still 95% new.
The future -
1. ABC construction,
2. 3 needle adjustment,
3. Slide carburetor,
4. Rear exhaust
5. Non pull start.
The Displacement (cc) =2.11 NA
The Bore & Stroke = NA
RPM = 41000
Output = 1.25BHP
.jpg) |
GS RACING V12RR
|
 |
| Cylinder Head |
 |
| Front View. Using Threaded Crankshaft, Flywheel and Clutch Bell |
 |
| RHS View |
 |
| Rear View |
 |
| Bottom View Using Engine Mounting |
 |
| Top View Normal Glow Plug |
 |
| LHS View |
 |
| Slide 3 Needle Adjustment Carburetor |
 |
| High Speed Needle add a adjustment reading gauge , and The Air Intake Hole |
 |
| Low Speed Needle |
 |
| Hight Speed and Idle Speed Needle Adjustment |
 |
| V12 Engine Size |
 |
| GS Engine |
 |
| Rear Exhaust Port and Non Pull Start Engine |
6) No 6 engine THUNDER TIGER EVO12.
Buy secondhand for Rm160. Made in Taiwan.
Future
1. Aluminum connecting rod with special lapped bushings,
2. large heat sink,
3. Improved quality ISO9001,
4. Dual ball bearing,
5. ABC engine,
6. Slide termo isolated composite carburetor,
7. Pull start
8. 4 needle adjustment.
Made in Taiwan.
When i service this engine, the cylinder liner is been modified by previous owner. The best is it run smoofly and after cab adjustment, the cab become cool with water vapour. It break down, the connecting rod break during playing. Can't buy new but manage modified but keep as memory.
The Displacement (cc) = 2.11
The Bore & Stroke = 13.85mm/14mm
RPM = 3000 - 35000
Output = 0.75BHP
 |
THUNDER TIGER EVO 12
|
 |
| Attach On my Kyosho Spider |
 |
| Side Exhaust |
 |
| Front View. Using SG Crankshaft |
 |
| Rear View Non PullStart Engine |
 |
| Bottom View Using 4 Screw Engine Mounting |
 |
| Top View Using Normal Glow Plug |
 |
| LHS View |
 |
| Cylinder Head |
 |
| The Rotary Type Carburetor with 4 Adjustment. High Speed, Low Speed, Idle and Midrange. |
 |
| Low Speed Adjustment |
 |
| Top View The Air Intake Port |
 |
| High Speed , Midrange Needle Adjustment and Fuel Intake |
 |
| Thunder Tiger EVO Engine. Made In Taiwan |
 |
| 12 Size Engine |
7) No 7 Engine KYOSHO GS15R 2003.
Secondhand come together when i bought Kyosho V one S II
Future -
1. Recoil starter,
2. 3 needle adjustment,
3. Gold colored aluminum heat sink,
4. 2 ball bearing
5.AB engine.
Made in Japan.
This engine piston and liner worn off couldn't get the spare parts. Now in rest position but the carburetor taken out and modifocation to Thunder tiger Pro -12BZX engine'
The Displacement (cc) = 2.44
The Bore & Stroke =14.4mm/15mm
RPM = 16000
Output = 2.48BHP
 |
KYOSHO GS15R
|
 |
| LHS View |
 |
| With Pullstart |
 |
| The Side Exhaust Port |
 |
| Front View. Using Threaded Crankshaft, With Flywheel and Clutch Bell |
 |
| The Rotary 3 Needle Adjustment Carburetor. High Speed, Low Speed and Idle |
 |
| Top View Air Intake Hole |
 |
| Low Speed Needle |
 |
| Top View Normal Glow Plug |
 |
| Bottom View Use 2 Type Engine Mounting. 3 screw or (Option Parts) 4 screw Engine Mount. |
 |
| Kyosho GS |
 |
| Made In Japan |
8) No 8 Engine NOVAROSSIE NS12S3 2007
New bought for Rm500. This engine really give me satisfaction. I put in my kysho FW06 car.
Future -
1.Turbo Engine,
2. Turbo plug,
3. Slide carburetor,
4. 2 ball bearing,
5. ABC Engine,
6. Cab intake port sleeve,
7. Non pull start
8. 3 needle adjustment
 |
| The Box |
The Displacement (cc) = 2.09
The Bore & Stroke = 13.8mm/14.04mm
RPM = 41000
Output = 1.52HP
 |
NOVAROSSI NS12S3
|
 |
| Front View Using SG Crankshaft |
 |
| LHS View |
 |
| Cylinder Head |
 |
| Nova Engine |
 |
| Rear View Rear Exhaust Port |
 |
| Bottom View Using 4 Screw Engine Mounting |
 |
| Top View Turbo Glow Plug |
 |
| 3 Adjustment Slide Carburetor. High Speed, Low Speed and Idle. |
 |
| The Idle Adjustment and High Speed Needle |
 |
| Low Speed Needle |
 |
| With Flywheel and Clutch Bell |
 |
| RHS View |
9) No 9 Engine NOVAROSSIE NS12S3 2008.
Buy secondhand for Rm260 different between my first nova engine is on the carburetor needle adjustment and the cab intake port (Pic). Owner say 7/10 still can start but after service difficult to start but soon dead, because worn off liner and piston. Hard to get the parts. Manage buy one set but different size LL12 model.
Future -
1. Turbo engine,
2. Slide Carburetor,
3. 2 ball bearing,
4. ABC engine,
5. 4 needle adjustment
6. Non pull start.
The Displacement (cc) = 2.09
The Bore & Stroke = 13.8mm/14.04mm
RPM = 41000
Output = 1.52HP
 |
NOVAROSSIE NS12S3,
|
 |
| The Carburetor have Midrange Needle Adjustment |
10) No 10 Engine KYOSHO GS15R.
Seconhand together with my No 7 RC car Kyosho V One S. This engine when i bought still very new not much ruining the carbon build in the engine not much. Outside is clean not oily. so i bought a good engine.
Future -
1. Recoil starter,
2. 3 needle adjustment,
3. Gold colored aluminum heat sink,
4. 2 ball bearing
5. AB engine.
The Displacement (cc) = 2.31
The Bore & Stroke = NA
RPM = 16000
Output = 0.32BHP
 |
KYOSHO GS15R
|
All the product picture
 |
All THE 10 RC ENGINE
|
KYOSHO
 |
THE KYOSHO ENGINE
|
THUNDER TIGER
 |
THUNDER TIGER ENGINE
|
NOVAROSSIE
 |
⁷The Novarossi Engine
|
GS RACING
 |
The GS Engine
|
New 2021 all my RC engine all 19pcs. Can running engine 10, damage because over running 5 units, buy damage engine for dummy 4 units.
 |
| All 19 engine |
Kyosho Engine
Thunder Tiger engine
Novarossi Engine
GS Engine
Others Engine (Dummy Engine)
11) No 11 Engine KYOSHO GXR 15.
Come togather with Kyosho FW-06 RTR RC car. So far this engine perfomance ok not to bad. I play until break the piston rod, replace it for Rm50. 2020 still can start.
Future -
1. Recoil Starter,
2. 3 Ball Bearing,
3. AB Construction,
4. Blue Aluminum Cylinder Head,
5. Slide Caburetor,
6. 2 Needle adjustment.
The Displacement (cc) = 19.96cc
The Bore & Stroke = NA
RPM = 3000 - 19000
Output = 0.58BHP/16000rpm
 |
KYOSHO GXR 15
|
 |
| LHS View |
 |
| Front View Using Threaded Crankshaft |
 |
| The side Exhaust Port |
 |
| Pullstart Engine |
 |
| Bottom View 2 type Engine Mounting 3 Screw or 4 Screw Option Parts Engine Mount. |
 |
| Top View Normal Glow Plug |
 |
| Cylinder Head |
 |
| The Exhaust Port |
 |
| Slide Carburetor with 3 Needle Adjustment. Hight Speed, Low Speed and Idle |
 |
| Low Speed Needle |
 |
| Idle and Hight Speed and Fuel Intake |
 |
| Top View Air Intake Hole |
 |
| GXR 15 Made In Japan |
Don't know what to do Boring, Take a Damage Kyosho GS11X engine out and clean up to 90% and start polishing. The end result below not that shine but OK.
 |
| Front View |
 |
| LHS View |
 |
| Pullstart |
 |
| Cylinder Head |
 |
| Bottom View |
 |
| Kyosho GS11X |
 |
| LHS View |
 |
| Low speed Needle |
 |
| The Carburetor |
 |
| Exhaust Port |

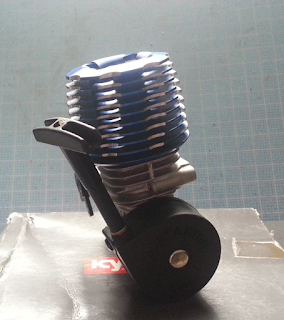

12) No 12 and 13 engine. KYOSHO GS15R SP
New Rm600 buy on 8/1/2018. Go round at RC shop in Nilai 3, found this ori Kyosho pull start engine
1) Blue head,
2) Rotery cab
3) 2 needle adjustment.
Look he has many old stock un sold. So ask 2 for the best price, i get Rm600. The old engine is with gold cylinder head and small.

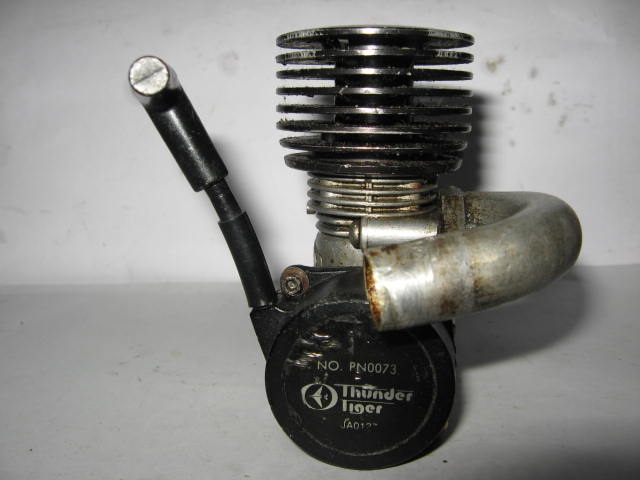

14) No 14 engine THUNDER TIGER PRO 12 BX
Made in Taiwan. Came with the rc i buy TT TS4N PLUS. All parts jam up due to lack of Maintenance previous owner. After service it still can run smootly.
Come to gather with my 2nd FW06. On 24/6/2020. Condition when i get it jamup and dirty. Fully service. This engine not much runing. No damage parts.
Buy loose condition Rm3, Is a damage engine. search in side a plastic container for all the parts been open. Found the body with drive shaft, heat shill, rear cover and liner. No piston and rod, no glow holder.This for display only. Even the caburetor missing all the needles.
 |
| The mounting and flywheel is for serpent 705 |
 |
| The caburetor all needle missing |
 |
| The cooling cylinder head not not novarossie but almost same. |
 |
| On my serpent 705 just show |
17) No 17 engine no brand 18 size
Buy loose parts no brand, no piston, rod, rear cover, cooling fin , caburetor. Find other parts and combine this engine just to show in my empty RC car. No return made from.
 |
| No brand |
 |
| Not sure a pull start engine or starter box. Use aluminium sticker close to hole |
 |
| Size 18 |
 |
| Cooling fin not for this engine block just show |
18) No 18 engine FORCE 15.
Buy loose in damage parts, it for show in my empty RC car,
1. Pull start,
2. Side exhaust,
3. Made in TAIWAN.
Is a empty body i buy loose Rm few cent. No rear cover, pull start, cooling fin, caburetor, piston and rod.
 |
| Carburetor from other engine |
 |
| Just close the hole with aluminium foil |
19) NO 19 engine. 15 engine size. Buy few cent, Same buy loose in damage condition for show. Use other brand parts to combain a engine.
1. No piston/rod,
2. No cooling fin,
3. No rear cover,
4. No caburetor,
 |
| Show engine in my Thunder Tiger DT10 |
20) No 20 RC engine. CEN NT16.
Came togather when i buy Cen TR4 on 1/12/2022. Problem no Pullstart, can start using starter box.
Always RC player ask a same question How to keep nitro Engine in long storage. My way to keep a engine from damage during long storage 1 month or years.
1. After play all fuel system must clear from nitro fuel. inside fuel tank, fuel pipe, fuel filter.
2. Use after run oil in piston, crankshaft, glow and carburetor.
3. Always put piston position at BTDC bottom top death center with means piston at rest position below liner.
4. For long storage remove air filter. when oil touch the sponge, long time become dust partical. If new filter is ok.
 |
| Open glow plug drop few after run oil and turn flywheel by hand, pull star or starter motor, to ensure oil stick evenly on piston and liner. |
 |
| Drop from glow plug hole |
 |
| Drop oil on glow plug fillemement. |
 |
| The best way remove the good glow plug and use damage glow |
 |
| If use damage glow plug don't tighten too hard reduce damage on tread. Event the new plug for long storage. |
 |
| Drop few drop on carburettor into crankshaft turn the flywheel. |
 |
| Open cab plunger drop oil |
 |
| For flywheel make marking on top mean piston in BTDC |
 |
| Just open to show piston at rest position |
 |
| Drop oil on carburetor plunger too |
 |
| Remove air filter close carburetor air intake hole with tissue or a rubber cap. Why because air filter sponge if long storage will damage into dust form and will drop inside the crankshaft. |
This my way of taking care a rc engine for long storage or after playing, hope it help.
Enjoy Reading and have fun.
Comments
