27/10/2022 got another RC Tamiya First model TT01 chassis year 2005. Buy for Rm150 after ask for reduce rm50, saller from Ampang. Came with a basic motor not yet know it function. Some parts missing from packing A, will buy for RM50. Will show the diffrent between the first TT01 2003 and second model TT01 2008 in parts. For this tt01 not going to upgrade much parts..
Start Blogger = 26/10/2022
Updated = 6/11/2023
Sum for spareparts = Rm 109.22
2005 - 2024 = 19 Years
Made in JAPAN (🇯🇵)
Condition before total make over
1. No Wheels.
2. No 4 pcs body post B5/B13
3. No body
4. No battery holder A13
5. No bumper form
6. No bumper top bracket A10
7. Crack at rear body mounting bracket.
8. Some missing screw
9. No servo stay D1
10. Scratch bottom chassis (Normal not heavy)
11. No servo horn P2
12. No servo steering arm P6
13. No servo/ESC
14. No rear bracket A14
15. No servo top bracket for esc A11
16. All turning parts no ballbearing.
17. All suspension arm steave no greese.
18. Axle gear front/rear no greese dry up.
19. Tread loose on front/rear body mounting bracket.
20. All hex wheels adapters plastic.
21. No wheel nut.
22. None oil shock absorber.
Option Parts add..
1. Full ballbearing.
2. 4 pcs oil shock.
3. 4 pcs aluminium wheel Hex.
4. Carbon center peace
5. Adjustable steering linkage.
6. Aluminium antenna holder
7. Aluminium front UJ
8. Aluminium rear dogbone
 |
| Not mine just to show 2005 Box |
 |
| The original image Tamiya 2005 TT01 |
 |
| Just to show the new chassis image |
 |
| The 2005 Assembly manual i print out. |
Different parts between 2003 and 2007 TT01
1. 2003 With a rear bracket A14.
2. 2003 diffrent shock stay Front/rear A2
3. Steering Arm no bushing bearing A1
4. Diffrent bumper top bracket A10
5. Different servo stay D1
6. Diffrent Servo push arm A8
7. Bracket for ESC A11
8. Diffrent battery holder A13
9. No center propeller bracket
Image from saler..
27/10/2022 COD meet up got the car, not in my hand yet. With my nephew
 |
| I think this car parts maybe open for spareparts. Not fully modified and race. |
Finally 1/11/2022 got this units. From codition just play for fund and no upgrade. Only dusty, few parts crack, damage tread and missing. All suspension arm no lubricant, all gear dry up.
 |
| No body post front/rear |
 |
| Crack, tread loose |
 |
| The 540 motor |
 |
| Steering arm set, no ballbearing |
 |
| Original tamiya have this sticker, clone didn't have |
 |
| Front |
 |
| Rear scratch normal |
 |
| Bathtubs chassis, no battery holder |
 |
| Non oil shock absorber |
 |
| Wheel hex plastic |
 |
| All turning parts using plastic bushing |
 |
| Only find dust |
 |
| Original Tamiya 540 motor |
 |
| Gear no damage |
 |
| No ballbearing use |
 |
| The steering linkage not adjustable or attach ballbearing |
 |
| No greese dry up |
 |
| Rear axle no greese |
 |
| Dry greese |
 |
| Screw rusty |
 |
| Suspension pin rusty |
 |
| Copper bushing |
 |
| Dry up greese |
 |
| Front screw loose, thread damage |
 |
| Front axle dry |
 |
| Front dry greese |
 |
| All the suspention arm hard no thin greese apply. |
 |
| All parts remove |
 |
| Soak in detergent to soften the dust. |
Done cleaning
 |
| Johnson motor, i use WD40 clean the carbon. Motor still function. |
 |
| Total remove the dry greese |
 |
| The rust remove |
Next Assembly time
 |
| Fix the front and rear axle and motor |
 |
| Put new greese |
 |
| This rear bracket missing but i have the options parts aluminium alloy. |
 |
| Done rear suspension, all moving parts put some thin greese. |
 |
| The axle with new greese |
 |
| Front suspension done |
 |
| Not oil damping will change |
 |
| Change to oil type absorber |
 |
| Fix a adjustable steering linkages and servo horn |
 |
| The battery compartment i add a soft carpet. |
 |
| Same car TT01 diffrent in some parts |

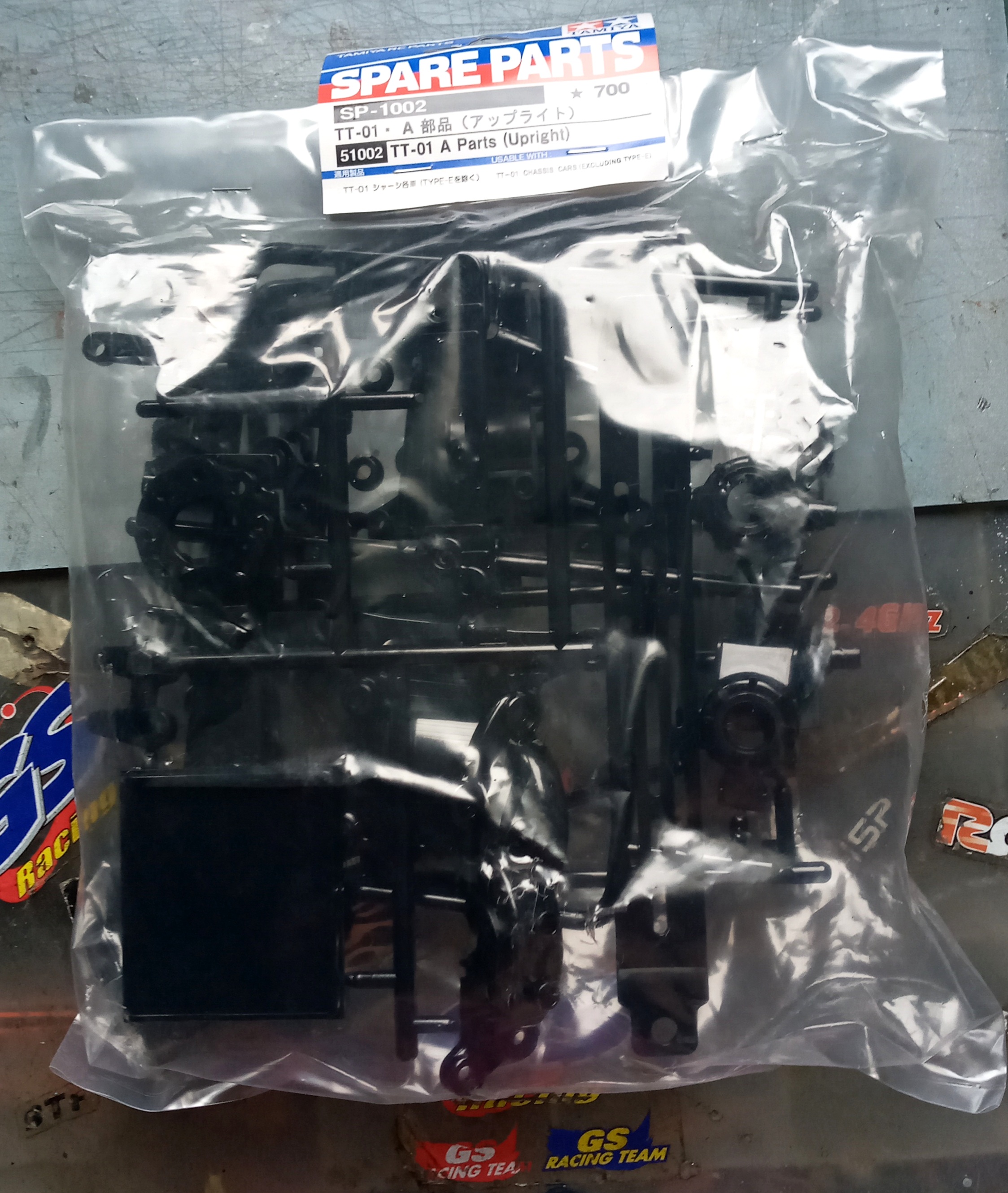

16/11/2022 Got the TT01 chassis parts A, buy for rm55 from selangor.
Know my TT01 2005 left the ballbearing.
 |
| New battery holder |
 |
| New bumper top bracket |
Change the Proppeler shaft and axle bush bearing to ballbearing. Front and rear.
22/11/2022 got the ballbearing, i buy 2 set for Rm31.70 from china.
 |
| Buy 2 set of Tamiya TT01 ballbearing |
 |
| Front inner |
 |
| Front outer |
 |
| Rear wheel carrier |
Done full ballbearing and completed parts happy for it.
6/11/2023 I buy a set of uj 4pcs Rm22.53 and dog bone 4pcs all blue. I fix two of my TT01 front with uj and rear dogbone.
 |
| Rear dogbone |
 |
| Front UJ |
Enjoy RC
