RC62. Part 2. My Memory Having RC Car. My Simple Radio Control and Electronic parts.

This bloog continue showing
1. My Radio control system own.
2. The ESC.
3. Electric motor

Start blogger = 6/11/2021
Up Date = 25/6/2024.

Total Radio Control own 21 units
1. Sanwa Blazer Am = 2 units
2. Sanwa Seven ace Am = 2 units
3. Futaba MJ Am = 3 units.
4. Futaba Attack Am (Stick) = 1 units
5. Futaba Magnum Junior FR-2PKA = 1 units
6. KO Propo EX5 Am = 1units.
7. Fly Sky FS-GT 3 channel  2.4 = 2 units.
8. HSP 3 channel 2.4 = 3 units.
9. Thunder Tiger Ace Jaguar Am = 1 units.
10. Tamiya E spec SP TTB-03 Am = 1 units.
11. Surpass 6 channel 2.4 = 1 units.
12. CEN Mirage III 2 channel 27Am = 1 units.
13. Beast Speedy Racing victory Hawk 27Am @ Futaba MJ = 1 units
14. HPI TF 1 27am = 1 units

No 18. SURPASS HOBBY 6CH 2.4Mhz
(No 6 of 2.4 Frequency)
6/11/2021 Rc hunting in seremban reject shop, found a new Surpass 6 channel 2.4 radio control in loose parts, no box, manual and receiver. Buy very cheap Rm2.50. Checking, no body, parts damage and scratch still new. Go back put in battery can on. Need to buy the Receiver.
This Radio control same as Dumborc X6. Couldn't get the surpass manual i use Dumborc manual. After looking into review for it in you tube, mostly given tump up in long distances control better then Flysky. Only no digital screens. .

Specifications
1. 2.4GHZ super respond 4/6 channel.
2. 2.4G speed technology.
3. FH5567 channel pseudo random frequency hopping.
4. Strong anty enterference.
5. TCC 2500 communication chip.
6. 3ms fast response.
7. Full digital no lost of control and no crash.
8. Sensitive and smooth operation.
9. Stable distance 400 -500 meters.
10. With brake, runaway protection function.
11. The unilateral stroke amount can be set arbitrarily.
12. Voltage range 4.8v - 8.5v.
13. Automatically recognizer voltage.
14. Automatically set low voltage alarm.
15. Receiver voltage range 3.3v - 10.
16. Working current 30A
17. Support hight voltage steering gear.
18. Unique Throtter speed adjustment function allow beginners to quickly get started and practice at a safe speed.
19. Simulator fanction, later upgrade high cost performance

Just to show the ori box

The Receiver, need to buy in shoopie under Dumborc brand. Surpass not yet sale.

Download the Dumborc x6 Manual same as surpass 6 channel Remote


What i buy cheap
This is the Radio control i buy loose new Rm2.50

Back view

Side view

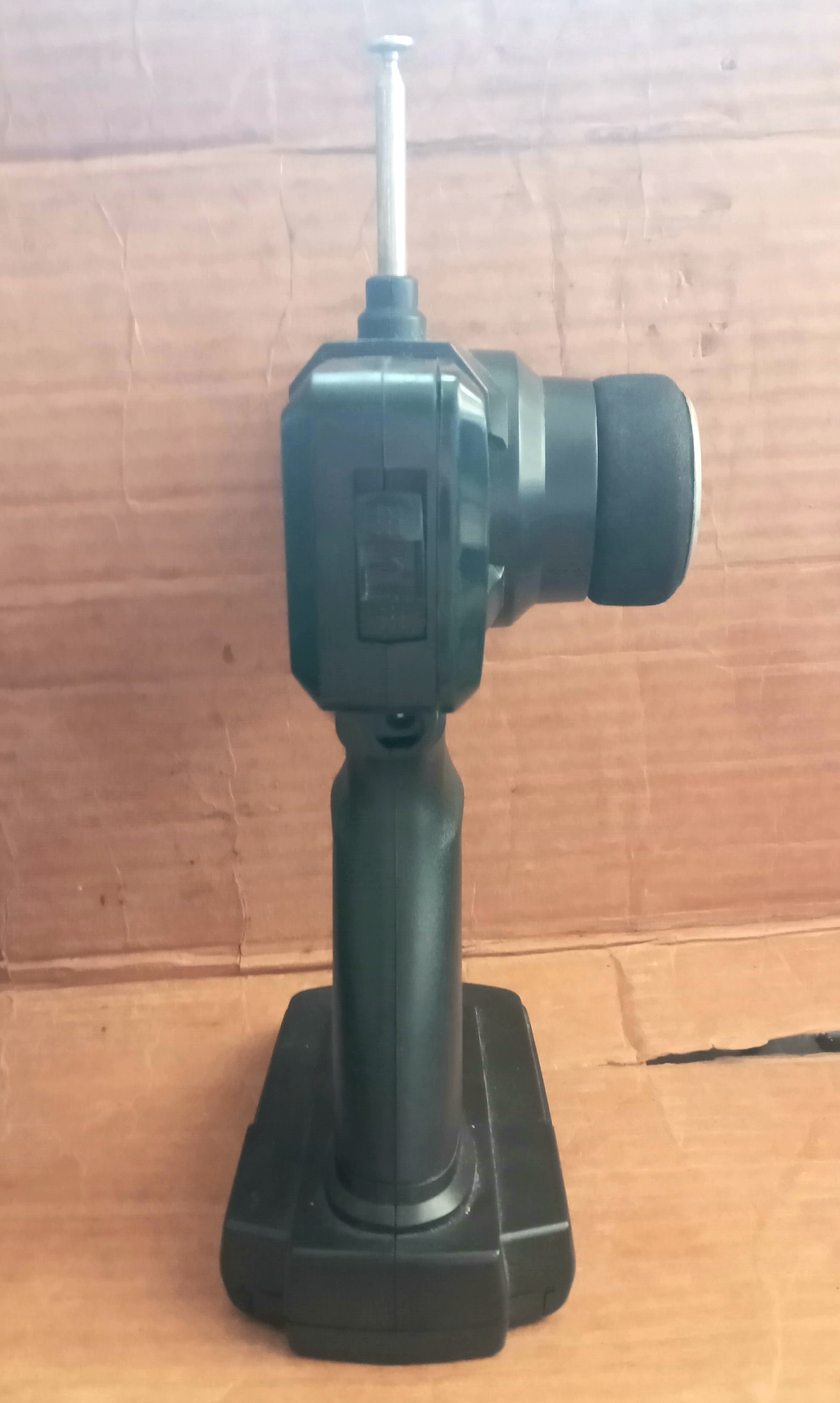

Other side view

Top view with channel 5 and 6


Antenna

Bottom view

Use 4 pcs AA battery

On off switch


 Channel 3 and 4


Trim adjustment and reverse

 Simulation jet

Charging port usb 5v only

Hole for hanging ribon

Triggel

Grip handle

16/12/2021, got the Dumborc Receiver X6F no Giro, to match my surpass Remote, yes can bind nicely. without Gyro Rm33. With Giro X6FG rm45. This new remote i put in my HSP Brontosaurus I. Then check other 4 channel with a servo all function.

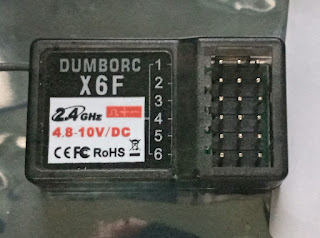

Dumborc X6F Rm33 no Giro.


Binding button

All the 6 channel pin.

Use in my HSP Brontosaurus I

Binding

Match channel 1 and 2 function

Another RC parts buy cheep total Rm35.50

No 19. CEN Racing Mirage III
No 15 Am 2 channel with 2 servo and receiver year 2002. Use in my CEN TR4 rc. This remort after checking not function but servo and receiver ok. No info about this transmiter.
Before checking for functioning

I only can find this picture not clear the name. MIRAGE III

With corroded terminal and missing battery holder snd battery cover.

Remove for cleaning and function check.

Reassembled back










No battery holder


3 channel Receiver

2x 82108 servo

No 20. Beast Speedy Racing Am
No 16 AM frequencies from Victoria Hawk VH32. Same as Futaba MJ.





The Am receiver R3820 and servo VH3810

No 21. HPI TF-1 27am
Come togather when i buy a use HPI E10 on 11/10/2023. Only missing antenna













No22. Stick Type RCS. Tamiya Temtech 201, 2 channel 27.195 Mhz. Buy old new set for rm38. Put in battery can on, function later. Missing ESC and Servo.



Not mine a full set with Receiver and servo


With the green ribbon and plastic servo arm






Use 8 AA battery

Battery powered indicator

On/Off switch



Battery indicator full

Test it up still function.

Steering




No 23 soon



ESC

My 28 ESC, no 4 brushless. Buy on 27/4/2022 Rm200. WP 10BL60 waterproof RTR. 2 to 3 S lipo



2 to 3s lipo

Bottom view



Build in cooling fan

My 29 ESC. No 26 for brush motor, from Victoria Hawk VH32. 3870 P160A, Changeable speed.

My 30/31 ESC. No 26/27 brush ESC buy from China 30amp simple for small RC. RM20 for 2.

My 32 ESC. No 28 brush ESC 40amp, Rm23.98 from china


My 33 ESC. No 29 brush ESC, from Vantex come togather when i buy HSP E10. After checking is a damage units




Brushless Motor.

My no 3 brushless motor. K Run RC 3650 3300kv. Buy new on 27/4/2022. Rm50.




Progrem card new from Hobbywings. Buy on 27/4/2022 Rm20.

Back view






Build in brush motor.

My no 6 basic build in brush rc motor. Buy loose new for rm3.60, WL.Racing RC1906 540 6V.




My no 7 build in brush motor, buy togather with Tamiya TT01 RC. Original Johnson 540 motor.


My no 8 build in brush motor. The 540 Beast Speed Racing from Victoria Hawk VH32 rc.


No 9 build in brush motor from HPI Racing.
Saturn 27T came togather when i buy HPI E10 11/10/2023.




No10 and 11. Mabuchi 540 build in brush motor Rm25.12 x2



Second units





3 pin connector buy cheap Rm3.60.





Enjoy RC
