My 25 RC for my collections, buy For Rm38 in JJJ Semelin Mall Cheras on 1/2/2020. I buy it because it say not function, so there a chance ask to reduce the price. On body there 3 price tag, Rm70,Rm60,Rm50 means no one buy it, so last price they give me Rm40 and another 5% discount. This brand from Shuang Xing Toys made in China for japan market 27Mhz 1137WA 2018 ( New 2019/2020, 1137W is 2.4). It use rubber tyre, 6 AA battery, 27Mhz, 4x4, Water proof can play in wet condition.
If found out circuit fault i will modified using ESC and 2.4mhz remote.
Start bloog = 2/2/2020
Last update bloog = 4/1/2023
2018 - 2024 = 6 Years
Made in China (🇨🇳)
Fault found in this Rock crawler
1. No Remote, using 27mhz eazy to get.
2. Front steering alignment key missing
3. Not function according to JJJ.
4. No antenna
5. The suspension and linkage very Steve.
6. The steering servo gear no grease.
7. Some rusty screw
Before remove for checking and cleaning picture
 |
| The original car but this new using 2.4. My 40Mhz |
|
| This is 1137WA using 27Mhz or 40Mhz. 1/14 Scale. |
 |

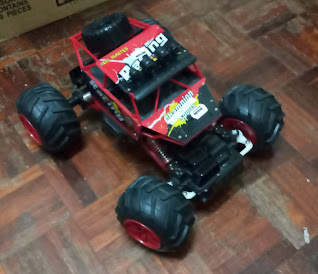

| On floor 1/14 scale Rock Crawler |
 |
| From top |
 |
| Side view |
 |
| Back view |
 |
| Front steering and drive shaft |
 |
| On front sticker not function and price tag Rm50. But i go counter ask for reduce price RM40, then another 5% discount from JJJ. |
 |
| Side sticker |
 |
| Bottom view |
 |
| The front wheels alignment lever missing |
 |
| Using 27Mhz, old system. Now new 2.4 . |
 |
| On/off switch |
 |
| Rear axle bottom |
 |
| Front steering and axle case bottom view |
 |
| The battery water proof case |
 |
| Using 6 AA battery |
 |
| With dummy spare wheels |
 |
| Roof with sport light |
 |
| With driver and core driver seat |
 |
| The steering linkage and centre with drive shaft |
 |
| All 4 pcs shock absorber same size not adjustable. |
 |
| The manufacturer made in china for japan market. |
 |
| Using 3 pcs linkage to hold the front and rear axle. |
 |
| Non adjustment linkage |
 |
| The tyre and rim |
 |
| some rusty screw. |
Next i will show the dismantle parts.
 |
| Removing the body |
 |
| Under body |
 |
| The chassis |
 |
| The antenna wire, if 27Mhz should be hang out side or a hard wire. Know i must check with my 2.4 remote. |
 |
| all the wire going to circuit board is water seal. With rubber or hot glue |
 |

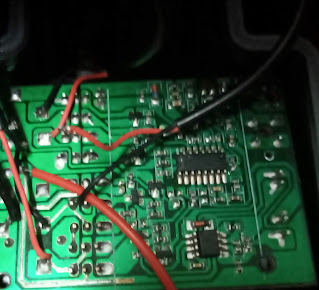

| The circuit board with 2 wire not attach on board. |
 |
| the red wire for rear axle came out. Know don't whare to solder. Know need to make this circuit board function. |
 |
| The black antenna wire also break, manage to solder back and test, nothing function so far using 27Mhz remote. |
 |
| The shock mounting round head not screw to chassis. |
After checking using my 2.4hz, still not function. So take out my extra 40Mhz remote yes it function the circuit board is ok using 40Mhz signal but the remote antena need near to the terminal, can't far away . The car antena need to use hard wire, i will modified one. Out side sticker say 27Mhz, no wonder they say faulty units.
 |
| Extra 40Mhz remote from NewQida |
 |
| 40Mhz Remote |
Next i will remove all parts
 |
| Steering Servo and steering linkage |
 |
| The centering key missing. |
 |
| Out side |
 |
| Front axle and suspension use a motor not a gear box. |
 |

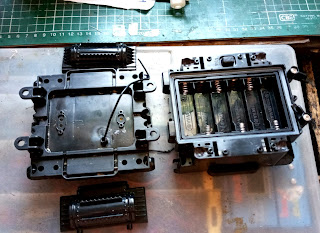

| The chassis parts |
 |
| Rear axle |
 |
| Remove the casing, the grease still ok no need to clean still soft. No ball bearing is use and can't add. |
 |
| The shock and tie road end is round. Not like hobby grad using ball end. It eazy broken. |
 |
| The rim can be remove, 6 screw bottom and up. tyre is soft rubber. |
 |
| All the 4 tyre and rim |
 |
| The steering servo no grease add some |
 |
| Front axle gear grease ok add some. |
 |
| After all parts fix test run ok all function only the antenna need to find a hard wire not just cable. |
 |
| All the suspention linkage ball end add grease, know very smoof. Done rework. |
All done cleaning and repair, lucky still function only using 40Mhz frequencies. Another small collection Of my RC car. Soon will add time to time photo .
 |
| Found a old hard wire direct screw on ant coloum, but still problem, the distance to control the car only 1 feet. Can't go far. But anyware it function no problem with the circuit board. Next find the remote gun in JJJ if they sale loose. |
My project Covid 19. 2 week can't go out stay at home because Malaysia have effected with coved 19, already 26 people dead on 28/3/2020. Nothing to do so take the toy grade rock crawler and check and change the system using 2.4 and Servo. Tested with my 40hz still can,t get the signal from far, even i adjust a electronic device. So make a decision modified all electronic components. Remove the ori board and use ESC.
The first thing to do is the steering servo. Using a small micro servo MG90S, try using HSP ESC, flysky Receiver, connect both wire motor using dean plug, using back the ori power supply 6pcs AA 1.5 battery. After put all component in and try, yes it function.
 |
| MG90S Micro Servo Made in China. Metal head. |
 |
| The ori stering box, try both wire to receiver, the motor will turn none stop, the third white wire from the steering didn't have, can modified. |
 |
| Try using 1/10 servo, no place to put too big, then use micro servo, use hot glue on both side to chassis. |
 |
| The servo gear should center of the steering column. Glue it firm, before glue both side. |
 |
| Cut small cardboard the glue both side, to prevent hot glue come out. Ensure servo in center of the steering rod. The servo arm will be in side the steering column. |
 |
| From top view, pour the hot glue into both side until fill up. Let it cool and then remove the cardboard |
 |
| For the servo horn, it too small, too loose in the steering column, so i tape it thick so it realy fit into the steering column. |
 |
| Tighten it. |
 |
| Done after the cardboard remove, some will stuck on the glue, not that nice but the servo is super strong. |
 |
| Put back the servo cover. |
 |
| Done from top |
 |
| Use back this car switch, only change to Dean plug. Conection from switch to ESC. |
 |
| Both motor wire joint together and solder on a male Dean plug. |
 |
| Try using HSP ESC, i will change to a smaller set. The cover can't close. |
 |
| All the wire in too compact and the ESC heat shield too tall. |
 |
| Cover can't close. |
 |
| Test run, all wheel function as normal, turn same direction together |
 |
| Rear gear box |
 |
| Then the ESC change to HY. All nicely fit inside the box. I will buy another ESC only for Rock crawler. |
 |
| Nicely cover up. |
 |
| Last check all function |
The End, another units modifications from a toy grade rc. Hope every one enjoy. Have fun with RC.
