This my first Rc Buggy, on 24/6/2012 to sunday fleamarket seremban, in a corner saw this guy sale his secondhand things and there are 3 rc car, saw this orange buggy, i take and check saw the KYOSHO BRAND on chassis ask the prices Rm80 with remote dammm cheap straight buy it. A 1/10 4x4 buggy not nowing it modal and year buy first.
Back home check google, found first Kyosho lazer alpha 1992 prokit. Deep searching found my is second model Kyosho Lazer 2000 year 1999 (30921).
Speciation
- Lightweight Keiron Chassis
- with oil shocks
- A stock motor 540
- Heavy Duty mechnical speed control
- Smooth belt drive system
- wide front and rear tyres with one piece wheels.
- Wide and hight impack front bumper
- New stylist lexon body.
When dismantle no parts damage, look like basic buggy no upgrade parts. Only with diffrent colour painting on parts.
Problem found
1. All turning parts using metal bushing no ballbearing.
2. All wheel drive shaft using dogbone .
3. Axle joint rear missing screw glue with super glue.
4. Both axle gear dry greese.
5. Chassis bottom scratch normal.
6. Damper all low oil leaking.
7. No inserted in tyre.
8. No option parts fitted
9. No adjustable linkage toe front and rear.
10. Parts full of thick dust.
11. Remort battery cover missing.
12. Rubber tyre all not glue.
13. Using 540 motor
14. Using mechinical esc 3 speed.
15. Un event painting body and parts.
16. With nylon wheel hex wheel can't turn if over tighten.
I buy Rm150 on ball bearing
1. 5x10x4 = 8pcs,
2. 8x14x4 = 6 pcs,
3. change the motor,
4. Change Esc
5. Change Using Uj
Start bloog = 26/06/2012
Last update bloog = 30/12/2024
Spending spareparts = Rm 216.00
1999 - 2025 = 26 Years
Made in Japan (🇯🇵)
![]() |
The Ori Image From Box 1992 First Model |
![]() |
The Manual for parts still can be use for Lazer 2000 |
![]() |
The ori 30921 box |
![]() |

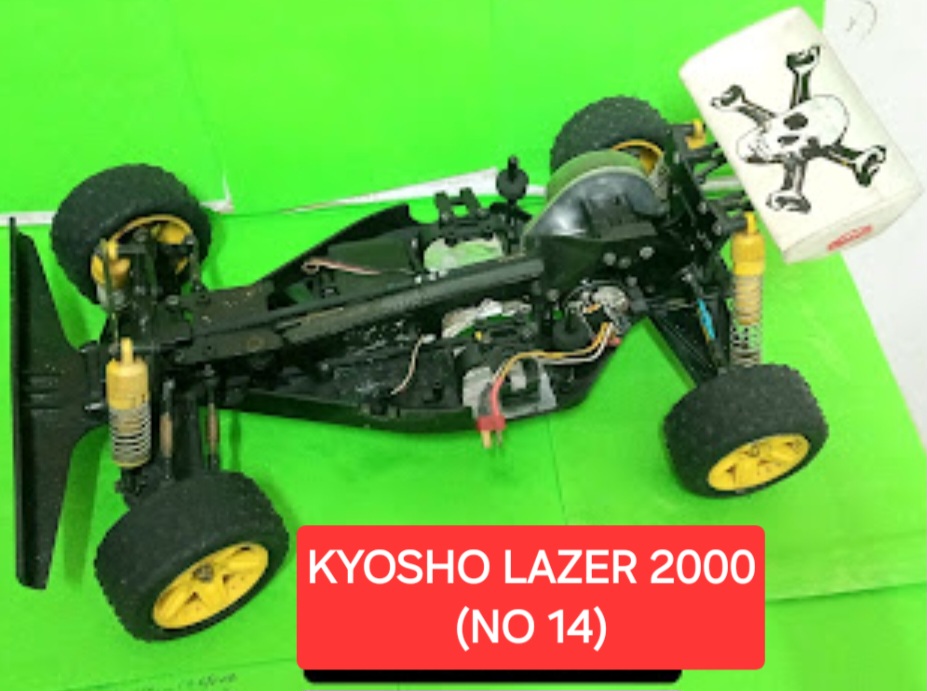

This the Second Generation 1999 Kyosho Lazer 2000 (Parts Number KYO0102). |
![]() |
Introduce on RC CAR Magazine Aug 1999 |
Body orange colour, before total rework.
![]() |
Top View |
![]() |
Front View |
![]() |
Rear View |
![]() |
With Futaba T2EA Remote without Battery Cover |
![]() |
The Body with Double Layer of Paint, Below Cover is Red ,Silver then orange |
![]() | |||||||
Under Carrage Rear |
![]() |
Under Carrage, Tub Chassis |
![]() |
Front Suspension View Under. |
![]() |
The Rear Wing |
![]() |
The Futaba T2ER Remote |
![]() |

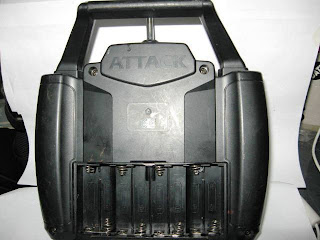

Back View Whiteout Cover Missing |
![]() |
Cut a Aluminium Plate |
![]() |
The Charging Port |
![]() |
40.675 MHZ |
![]() |
Ripmax Serial No |
![]() |
FUTABA Serial No 9 926505 made in Taiwan |
![]() |
The Radio Tray Dirty |
![]() |
Using a Manual ESC from Kyosho with 3 Speed |
![]() |
![]() |
Steering LHS Linkage dusty |
![]() |
Steering Linkage RHS |
![]() |
The Front Soft Shock Tower |
![]() |
Front Shock Leaking Oil Seal |
![]() |
The Rear Soft Shock Tower gold colour |
![]() |
The Rear Shock Leaking from Oil Seal |
![]() |
Front Non Adjustable Toe and Camber Linkage |
![]() |
The Rear Non Adjustable Camber Linkage and using Dog Bone |
![]() |
Front Steering Hub and Knuckle red |
![]() |
The Rim and Tyre Original spray silver |
![]() |
The Battery Compartment |
![]() |
The Center Belting .This Buggy using only 2 Belting |
![]() |
The On /Off Switch |
![]() |
This is the KYOSHO Sign that make me No Hesitate to Buy this Buggy |
![]() |
The Front Axle Housing |
![]() |
The Main Gear 100T and Pinion Gear 20T |
![]() |
The JOHNSON 540 Motor not Original |
![]() |
The Dirty Johnson Motor |
![]() |
The Dismantle Parts |
![]() |
Dirty Parts |
![]() |
The FUTABA S3003 Servo Still New |
![]() |
![]() |
This Front and Rear Axle same as my Kyosho Spider after open up, the gear inside is same. |
![]() |
The Main Gear 100 T |
![]() |
The Rear and Front Wheel Hub same as my Kyosho Spider |
![]() |
The Manual ESC Parts with 3 Speed Made in Taiwan |
![]() |
The Leaking Shock from Oil Seal |
![]() |
The Suspension Arm parts |
![]() |
The Belting Center and Rear |
![]() |
The Steering Linkage |
![]() |
Rear and Front Shock Tower Soft Plastick |
![]() |

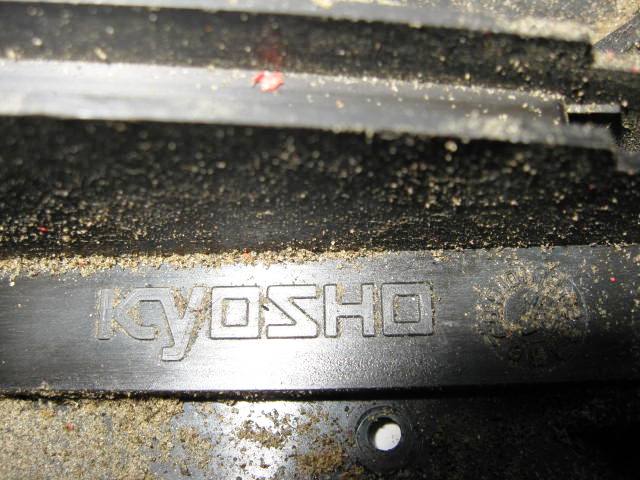

The KYOSHO Sign on the Chassis |
![]() |
The Tub Chassis |
![]() |
Kyosho Rubber Tyre |
![]() |
The Tyre Brand Bridgestone branded |
![]() |
Tyre Size |
![]() |
The Wheel Original by right, The rear is wider and the front is Narrow |
![]() |
All remove |
![]() |
The Nylon Wheel Adapter |
![]() |
Change to Aluminium Wheel Adapter (Option) |
After Cleaning, Repair and With Option Parts
![]() |

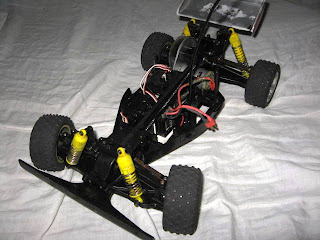

Full View After Cleaning |
![]() |
Front after Cleaning |
![]() |
Rear View After Cleaning |
![]() |
Under Carrage after Cleaning |
![]() |
The KYOSHO Brand |
![]() |
The Steering Linkage |
![]() |
The Front non Adjustable Toe and Camber Linkage |
![]() |
(Option Parts) Using Turn Buckle to Adjust front Camber and Toe. |
![]() |
The Front Wheel Hub and C Hub |
![]() |
(Option Parts) Change all to Seal Ball Bearing |
![]() |
Front Axle Case |
![]() |
Front Axle same as Rear |
![]() |
The Front Shock |
![]() |
The Rear Shock |
![]() |
The Rear Shock Mounting |
![]() |
The Rear Non Adjustable Camber Linkage |
![]() |
(Option Parts) Change To Adjustable Turn Buckle Rear |
![]() |
Rear Wheel Hub |
![]() |
Original using Plastic, Copper, Metal Bushing as Bearing |
![]() |
(Option Parts) Using Seal Ball Bearing |
![]() |
All 4 Wheel using Swing Shaft |
![]() |
On/Off Switch |
![]() |
The Gear Cover |
![]() |
The Main Gear 100T If damage don't know where to get it. |
![]() |
The Pinion Gear 20T |
![]() |
The Radio Tray change using HY ESC |
![]() |
On 5/4/2013 i change the ESC from HSP Buggy.
|
![]() |
Only use one Servo for Steering. |
![]() |
Steering Linkage from Servo |
![]() |
Front Shock Tower Nylon soft |
![]() |
The Motor Johson 540 |
![]() |
The Battery Compartment |
![]() |
The Rear Axle Mount |
![]() |
The Inside Axle Mount |
![]() |
Differential Case, Front Axle Same as this . |
![]() |
The Differential Gear same as my Kyosho Spider |
![]() |
Add In Grease |
![]() |
The Front Nylon Pinion Gear and Short Belt |
![]() |
The Rear Axle Case |
![]() |
The Rear Axle Case after Assembly |
![]() |
The Top Drive shaft where the Main Gear Attach |
![]() |
The Center Belting |
![]() |
Total Paint Remove need to respray |
![]() |
After Repaint With Two Colour White and Yellow |
![]() |
Add Some Sticker |
Change to track tyre and soften the spring. Test in the track OK same can run faster as normal RC car. The best thing is RC Buggy can play Off road and in track.
![]() |
Race with my Kyosho Spider |
![]() |
Photo with a small Truggy |
![]() |
On The Dirt Ground |
![]() |
The Jump |
![]() |
On The Air |
![]() |
Touch Down |
![]() |

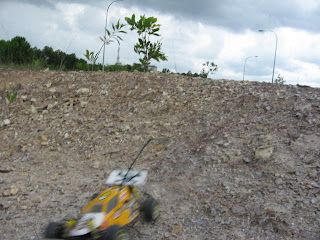

The Hill Climb |
![]() |
Lost Control Climb The Tree |
![]() |
After Playing |
![]() |
Buggy Car Wash |
![]() |
The Clean Buggy |
![]() |
Play on 11/12/2012 on my Birthday |
![]() |
Race with TB 01 |
Answer For question given
Parts list for kyosho alpha
Enjoy RC. Have Fun
