Few month back i manage to get a lot of damage fishing reel from Sunday market in Seremban, i bought it cheap all together until today i buy for only RM18. Some of the damage in drive gear, bail lever, body, Some cap,Bearing,Rotor and etc. Look at the damage reel most if it is lack of maintenance. some i found sand inside the gear or using car grease to lubricate moving parts.
.jpg)
Below Is my up date list of my second hand Reels, Total Bought 36Pcs until 2013. After this year seldom see the damage reel sale in fleamarket, only semi good reels.
No Repairing Total Damage (19 PCS)
1) SHINO BI KSG-04.
2) Kid Spinning Reel No 1
3) Kid Spinning Reel No 2
4) Kid Spinning Reel No 3
5) RYOBI XRH 1000.
6) RYOBI XR3500.
7) OFMER ADVENTURE 1000.
8) COMBO 20.
9) SUNSDA SDR 1040R.
10) SAIL FISH.
11) Toman X Zone
12) Viva
13) Shrimp Hunter ESH400
14) DAM SE130
15) No Name No 1 (Black Color Light Reel)
16) Fine Tackle from Korea
17) No Name No 2 ( Black Old Heavy Reel)
18) No Name No 3 (Red Light Reel)
19) Toman Light Reel
20) X Battle (Front Drag, 3 BB, Gear Ratio 5:1)
Fishing Reels After Repair (18 Pcs)

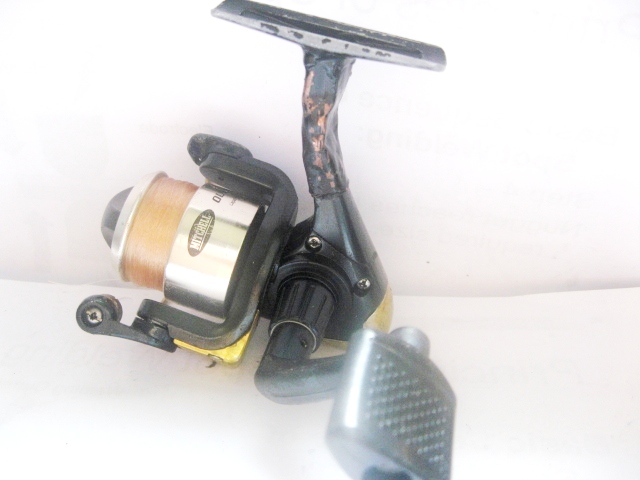

1) MITCHELL OUTBACK OBUL. ( 4BB, Gear Ratio 4.3:1 )
2) MATCH 510. ( No BB, Gear Ratio 3.1:1 )

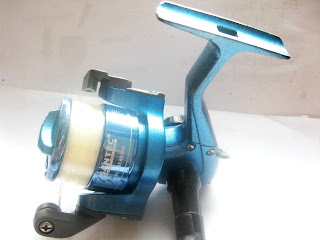

3) SANTEC TF2000.(2BB, Gear Ratio 4.7:1 )
4) VIVA RHINOCEROS 3000. (1RB, 2BB, Gear Ratio 5.1:1 )
5) SHAKESPEARE OMNI. ( No BB, Gear Ratio 3.2:1 )
6) POSEIDON S-G. ( No BB, Gear Ratio 3.2:1 )
7) HUNTER FISH GE100. (5BB, Gear Ratio 5.2:1 )
8) GOLDEN GM6500. (2BB, Gear Ratio 4.4:1 )
9) Ofmer Celine 3000 (1RB, 8BB, Gear Ratio 4.8:1 )
10) PT Atomic AC200 (2BB, Gear Ratio 5.5:1 )
11) Yong Chang DF4000 (3BB Gear Ratio 4.8:1 )
12) Tica Stremastar (4BB, Gear Ratio 4.6:1 )
13) PF 3000 (3BB, Gear Ratio 5.2:1 )
14) GN2000 (1BB, Gear Ratio 5.5:1 )
15) Golden JY100. (1BB, Gear Ratio 4.7:1 )
16) Shimano Sahara 1000F. ( 3BB, Gear Ratio 6.11:1 )
17) Teben TF100. ( 3BB, Gear Ratio 5.1:1 )
18) CXZL LS500. ( Rear Drag, 3BB, Gear Ratio 4.4:1 )
19) Lemax Black Panther BPS 340 (Front Drag, 3 BB, Gear Ratio 4.11:1)
20) DAM SE140 (Rear Drag, 1 BB + 2BB, Gear Ratio 1:4.6)
All
the recon reel some i repaint and total 100% services. The damage parts
i replaces from other reel. Some without bearing only using bushing, i
add in bearing or some parts i buy in Tackle shop.
One of the most important to have long life reel is a proper maintenance after use especially after fishing in sea water. The salt water will effect the body and the bearing. Must use proper lubricant.
 |
| The Spare Spool Rotor |
 |
| The Bail Arm, Bail Lever, Pinion, Axle, Drive Gear |
 |
| The Handle |
 |
| The Spare Parts from damage can't repair reel. |
 |
| The Set from some can't repair reel |
The Recons Reel (From LHS Back row VIVA Rhinoceros 3000, Hunter Fish GE1000, MATCH 510, SANTEC TF2000, SHAKESPEARE OMNI, MITCHELL OUTBACK OBUL, POSEIDON S-G, GOLDEN GM6500) More to come will attach new photo.
On 24/7/2011 a bought another 2 second hand reel RM6,
but this two is really badly damage. One is DAM QUICK SE130 and a Red
color reel no name with 3 ball bearing. The DAM Reel Body badly damage
due to heavy impact and the Red reel just broken body and some rotor due
to sand inside the gear. After remove all, some of the parts still can
be use. Usable parts that i always find is bearing, some of my reel with
one bearing become 3 ball bearing.
 |

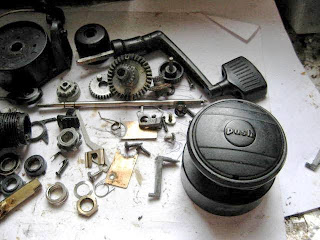

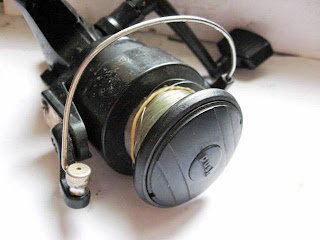

| The condition of Two Damage Reel (DAM SE130 and a unknown Red Light Reel) |
 |
| Damage revers Gear lock due to sand inside the Grease |
 |
| Using Wrong Grease (heavy Duty) |
 |
| The Hard Grease |
 |
| The Only Parts can be use From DAM SE130. |
 |
The RED Reel parts after cleaning that can be use.
|
In November again i bought 3 damage reel for RM10 - Shimano Sahara 1000F, Golden JY100 and Teben TF100. Same problem all parts inside rusty and component stuck with hard grease. I manage to recons two in a working condition (Shimano and Golden). The Teben, the o s slider is damage so need to find parts to replace it. The shimano the drive gear missing, so i replace it with other brand drive gear and the end result i increase the gear ratio From 6.2:1 to 6.11:1
Below some of picture of the recons reer that can be use after cleaning and repair.
 |
| This is SHIMANO SAHARA 1000F light reel (Made In Malaysia) (Ratio 6.11:1) |
 |
| Golden JY100 Made In China light reel. (Ratio 4.7:1) |
 |
| TEBEN after change the OS Slider now can be use. light reel from China. (Ratio 5.0:1) |
Below is Some of the Damage Reel that i already Repair
 |
| This MATCH 510 from Japan Can be use. (Ratio 3.1:1) |
 |
| Golden GM6500 from China Need to find the Spool. Still can be use time been. (Ratio 4.4:1) |
 |
| GE 1000 from china, just find a spool can be use light reel. (Ratio 5.2:1) |
 |
| This is CXZCL LS500 from China, Only problem the Bail arm need to self push to lock. The push rod damage. (Ratio 4.4:1) |
 |
| Only Parts that can be use. |
 |
| The Third Reel From Korea No name |
 |
| The only parts that can be use. |
 |
| Inside parts. |
 |
| Only parts can be use |
 |
| The Dismantle parts |

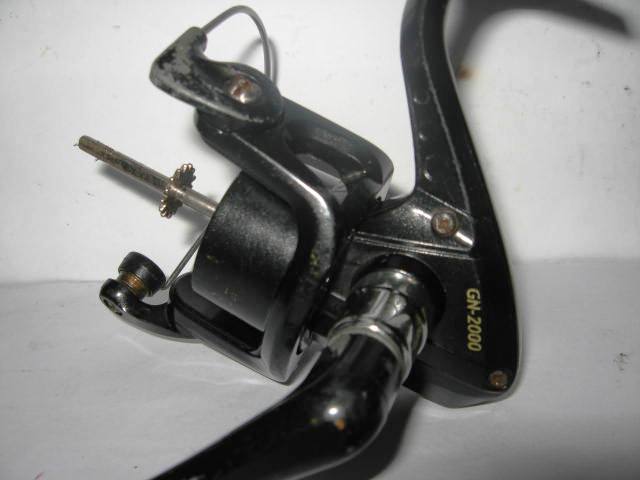

Buy on 23/12/2012, Cheap Rear for only RM3, With Missing Spool and Spool Lock. Problem only rusty and the inside parts still new. manage to clean up and can be use. Name GN2000 made in china 1 ball bearing.
 |
| GN 2000 |
 |
| Rhs View |
 |
Bottom View
|
 |
| Front View |
 |
After Repair using a Alum Spare Spool and a Plastic Nut (Ratio 5.5:1)
|
On 20/1/2013 i bought two more second hand reel from Sunday market for only RM8. PF3000 3 Ball Bearing
 |
This is PF3000 (No Spool, Anti Revers Lever Broken, Handle Damage)
|
 |
The Rear Anti Revers Lever Damage
|
 |
In side no more Grease
|
 |
| After Cleaning and Repair, add a spool Can be use. (Ratio 5.2:1) |
On 20/1/2013 TICA StreamStar 5 ball bearing
 |
| This Is TICA StreamStar 5 Ball Bearing (No Spool, Damage Center Shaft) |
 |
Center Shaft Bend
|
 |
After Services Only left find the spool
|
 |
| Gear Ratio 4.6:1 |
 |
On 7/4/2013, I Buy A TICA Spool and Spool Lock For Only RM15
|
Again 7/4/2013, I buy another 3 broken reel from the secondhand market just for RM10. The first is OFMER CELINE 3000 only the problem the Anti Reverse Lever broken, spool turn reverse (One Parts Fitted wrongly) .
 |
| OFMER CELINE 3000 |
 |
8After cleaning and repair this reel can be use. The Anti Revers Lever broken so no Reverse only Forward. ( Gear Ratio 4.6:1)
|
7/4/2013. Toman X Zon 2000 a lot of broken parts.
 |
TOMAN X Zon 2000
|
 |
The Parts
|
 |
Badly Broken Parts in this reel, i made as spare parts
|
7/4/2013. PT Atomic AC200 Only problem Top body broken Other parts still beautiful.
 |
PT Atomic AC200
|
 |
All Gear still in good condition
|
 |
Only Broken Body Parts
|
 |
After Cleaning and repair. (Ratio 5.5:1)
|
 |
The Original spool Broken, so i use Toman X Spool
|
 |
The Modification body top parts
|
One More Reel is been bought on 14/4/2013 only RM3. Made in China Yong Chang brand DF4000. The problem with this reel no spool, Handle broken (super glue back) and too tight turning (due to Drive Gear lhs and rhs arm too big, manage to grind the arm and fit in with ball bearing). After open up, all parts is OK, still using hard grease.
 |
Before Repair and Clean Up
|
 |
Front No Spool
|
 |
Other Side View
|
 |
Made In China
|
 |
Less Grease
|
 |
Parts Still OK
|
 |
Using Hard Grease
|
 |
Total Dismantle
|
 |
After Clean Up and Repair. ( Ratio 4.8:1)
|
 |
Using A DAM Spool
|
 |

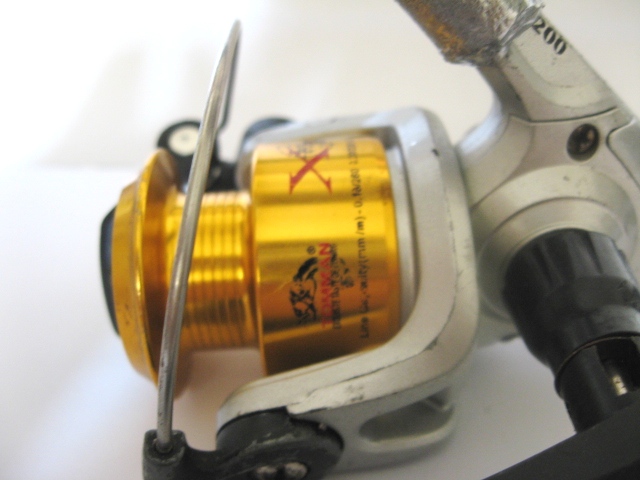

| Buy only RM2 After Repair still can be use. Light Reel Battle X Made From China. |
 |
| Buy on 1/12/2013. Another Reel just for RM3. Stuck can't turn. Brand Lemax Black Panther BPS 340. (Problem Found Damage Handle Grip, Front end loose, Parts inside stuck , all Ball Bearing rust and stuck, Line roller stuck, Anti revers spring missing. |
 |
| Damage Handle Grip Made from Wood |
 |
| The Spool with old line |
 |
| Rear Anty Reverse Lever |
 |
| Made In China |
 |
| The Damage Body |
 |
| The Rust line Roller |
 |
| RHS |
 |
| Rusty and stuck Main rod |
 |
| Inside corroded due to water enter |
 |
| Every part stuck |
 |
| All 3 Ball Bearing rust and stuck |
 |
| Rust Parts |
 |
| Dirty parts |
 |
| After Repair and Clean up |
 |
| RHS |
 |
| Front Spool |
 |
| Rear view |
 |
Bottom View
|
On 6/04/2014 again i buy another second hand reel DAM QUICK SE140 RM15. Condition Damage return bail arm lever, Rear drag fully tighten, Line Clip damage. After change the trip arm, change the drag disc, replace line clip. add 2 more ball bearing and total clean up it still can be use.
 |

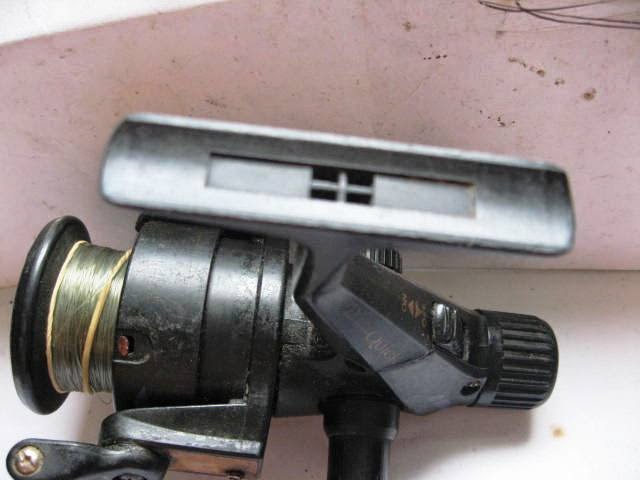

| Before open and clean up |
 |
| DAM Quick SE140 |
 |
| Rear Anti reverse lever |
 |
| With name on the cap |
 |
| Fully Tighten rear drag |
 |
| The return bail arm lever inside damage |
 |
| Lhs bail arm trim lever damage RHS the replacement |
 |
Broken Line Clip
|
 |
No safety screw for rotor Nut
|
 |
| After all dismental the grease inside still using hard grease but in small amount |
 |
| After cleaning and repair |
 |
| The rear drag i change the preasure plate |
 |
| Change a line clip |
 |
| Add 2 more ball bearing on the drive gear. |
 |
| Add a screw on rotor nut |
On 2016 i take out 7 of this recond reel to sale in free market in seremban at my friend stall. Just RM10 from my side my friend side he sale for RM15, So he manage to sale all After 3 week. Left other rail some is for my collection other just spareparts.
Enjoy 🎣 fishing
