Another half year gone. My RC collection growing, on may 4 2010 i bought another RC car KYOSHO FW06 2007 RTR 1/10. Using pull start GXR 15 ENGINE and shaft drive, Aston Martin DBR9 body. use rc Rm270.
Below photo from receive, total clean up.This my no 8 collection.
Condition
1. Broken connecting rod and piston
2. Damage 2 speed gear
3. Front 2 pcs ball end bend due to accident.
4. Missing wheel sleeve
5. One pcs shock absober no oil seal wrongly fitted
6. steeve steering rod
7. Thick Oil stain on exhoust.
8. Under carrage heavy scratch
9. Missing in board camera mounting
10. Rhs suspension arm damage
11. Faulty remote control
12. No 2 servo
13. Full of dirt and sand
14. Damage rear lhs wheel hub screw seat.
Overall 75% good condition, but the damage and missing parts i buy for Rm90 only. The conrod i use other kyosho brand but it break again in 2011 then change ori for rm50, after few run can't star liner gone. Need another Rm150. Then i buy a use thunder tiger evo12 engine run until conrod break. Last buy a new Novarossie N12 best then the previus 2 units.
Start bloog = 10/05/2010
Last Update bloog = 4/1/2023Sum for spareparts = Rm814.05
2007 - 2023 = 16 Years
Made in Japan 🇯🇵
 |
| The Assembly Manual |
 |
| The original FW06 RTR. |
 |
The Original Look
|
 |
| My Car Look With Thunder Tiger Evo12 Engine |
 |
| 2012, Using a Novarossi N12 Engine and a Better Tune Pipe |
 |
| 2012 Rear View |
Just received from post office.
 |
| The Front Toe Adjustment Linkage Using (Option) Turn Buckle |
 |
| Front Steering Servo |
This rc using futaba S9402 High speed codless BB servo
Torque = 4.8v - 6.41kg / 6.0v - 7.99kg
Speed = 4.8v - 0.12sec / 6.0v - 0.10sec
Weight = 55.0g
Motor = Codless
Gear = Metal
Support = Due Ball Bearing
 |

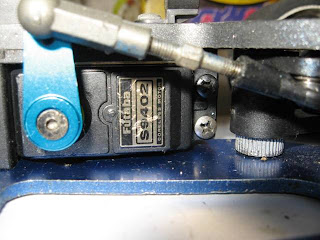

| Using Futaba S9402 Servo to turn the Steering |
 |

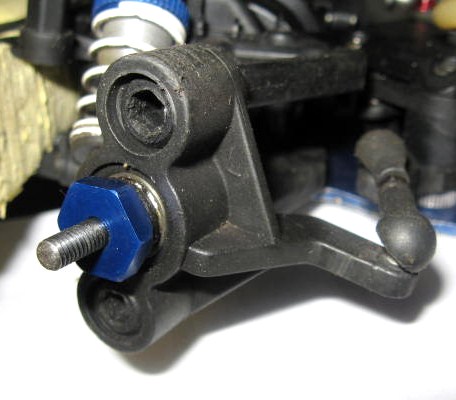

| The Front Suspension Arm and Diff case add 2 Planet Gear. |
 |
| The Rear Out side Diff Case |
 |
| Diff case Front is Same as Rear |
 |
| With Pinion Gear |
 |
| The Front and Rear Diff, I Add 2 more Planet Gear |
 |
| Add new gear oil |
 |
| Front Shock Tower |
 |
| The Rear Shock Tower |
 |
| Top View Rear Suspension Arm. |
 |
| Rear Camber Adjustment Linkage (option) Turn Buckle |
 |

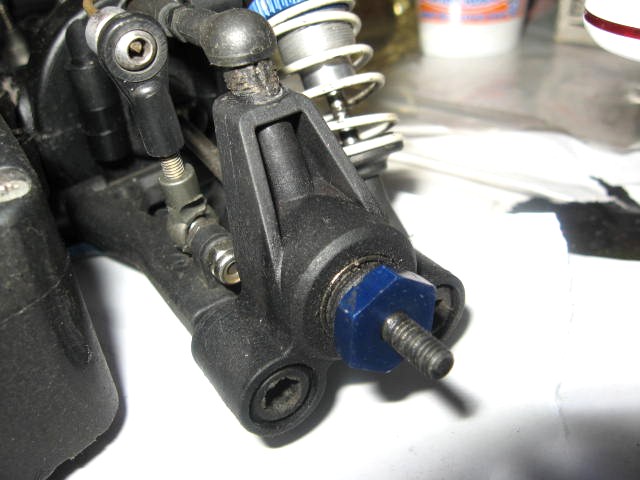

| Rear Hub with (Option) Alum Wheel Adapter |
 |
| Rear Swing Shaft |
 |
| The Rear Stabilizer Bar (DIY Optional Parts) |
 |
| The Rear Stabilizer Adjustment Linkage |
 |

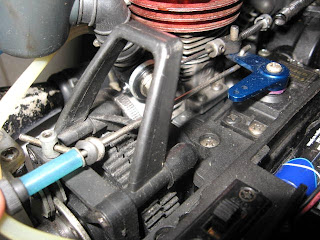

| Rear Brake and Fuel Servo with (Option) Alum Linkage |
 |
| For the fuel throttle i add a return spring, it to ensure when receiver battery low it will pull back the throttle to 0 position. I have the experience few time receiver battery low the throttle still in full end up accident. The spring can't too strong, it will pull the brake. It also drain the battery. It must soft just enough to pull bavk to 0 position. |
 |
| Front Roll Bar (Optional Parts) |
 |
| The Kyosho Adjustable Shock Absorber. |
 |
| The 75cc Fuel Tank with Internal Fuel Filter |
 |
| The (Option ) Fuel Filter, It also Act as Fuel cooler |
 |
| I change again the fuel filter to a small units. Previous too big. |
 |
| The Air Filter |
 |
| The Kyosho Exhaust Pipe ori. |
 |
| Change to Tune Pipe |
 |
| In 2012 i adding a One way air mechanism from Exhaust Gas to Fuel Tank |
 |

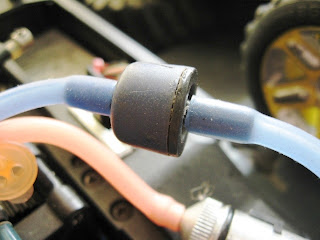

| The Blue tube the pressure from exhaust will go one way into the fuel tank |
 |
| The Right Hand Side GXR15 engine View. |
 |
| The Left Hand Side View. |
 |
| The Rear View Pull Start. |
 |
| The Engine Top View. Damage In 2012 Liner and Piston |
 |
| The Broken Connecting Rod New RM50 and Piston /Liner RM150 |
 |
| The Sliding Carburetor |
 |
| The Rear Propeller Shaft Nylon |
 |
| The Front Propeller Shaft. Ori hard Nylon |
 |
| The Front and Rear Propeller Shaft (Option Parts Alum Shaft) |
 |
| Close Up |
 |
| Rear Alum Propeller Shaft |
 |
| The nylon propeller shaft 6.23g |
 |
| The Aluminium propeller shaft 8.66g |
 |
| The Roll Bar |
 |
| The Receiver and Battery Case |
 |
| I do some modifications on the cover. I put a long body pin so that eazy open the cover. At the end mostly it tighten with screw, i find a thin aluminium pipe, drill a hole on top, bottom slide to the screw hole below, then no more using screw change to body pin. |
 |
| No more screw use body pin |
 |
| With 4 pcs AA battery |
 |
| I am using a Hand Phone Battery 3.7V Li-ion (Option) |
 |
| On/Off Switch |
 |
| Fail safe, to ensure when receiver battery low, the fuel throttle will move back original position. Made in TAIWAN. |
 |
| Small units |
 |
| Add another gadget, receiver battery checker. When battery low, red led will light on. |
 |
| I put it outside, |
 |
| The New Two Speed Gear |
 |
| Center Gear Box |
 |
| Some of the parts |
 |
| 2 Speed Changer |
 |
| First Speed Gear with one Way Bearing |
 |
| Second Speed Gear |
 |

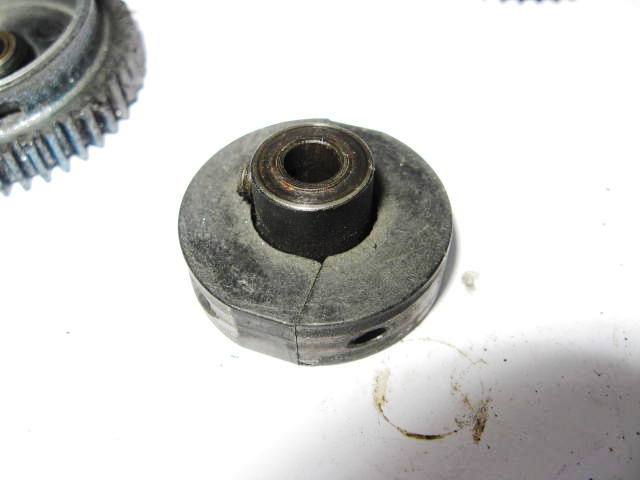

| Second Clutch Shoe |
 |
| The old 2 speed Gear Damage. |
 |
| Clutch Bell |
 |
| The Aston Martin Body |
 |
| My 2012 View |
 |
| The Dodge Body Unfinished Project |
 |
| In The Track |
This is the longest product from Kyosho since 2007 i play with it. Today 2020 still sale. That make the spare parts eazy to get.

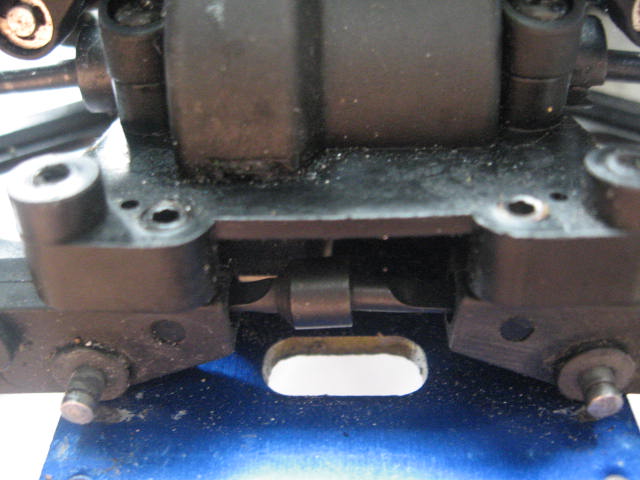

When for loose rc parts hunting on 19/9/2020 at nilai 3 found this Steering plate VSW 016 blue colour. So i fix in my first FW06. Buy for few cen.
Today mostly aluminium parts more cheaper from china and eazy to buy. 23/1/2021 i change a aluminium steering servo linkage blue colour.
 |
| At servo side i can't lower it, will touch the proper housing. |
4/7/2021 take out checking and add after run and turn the engine. No starting.

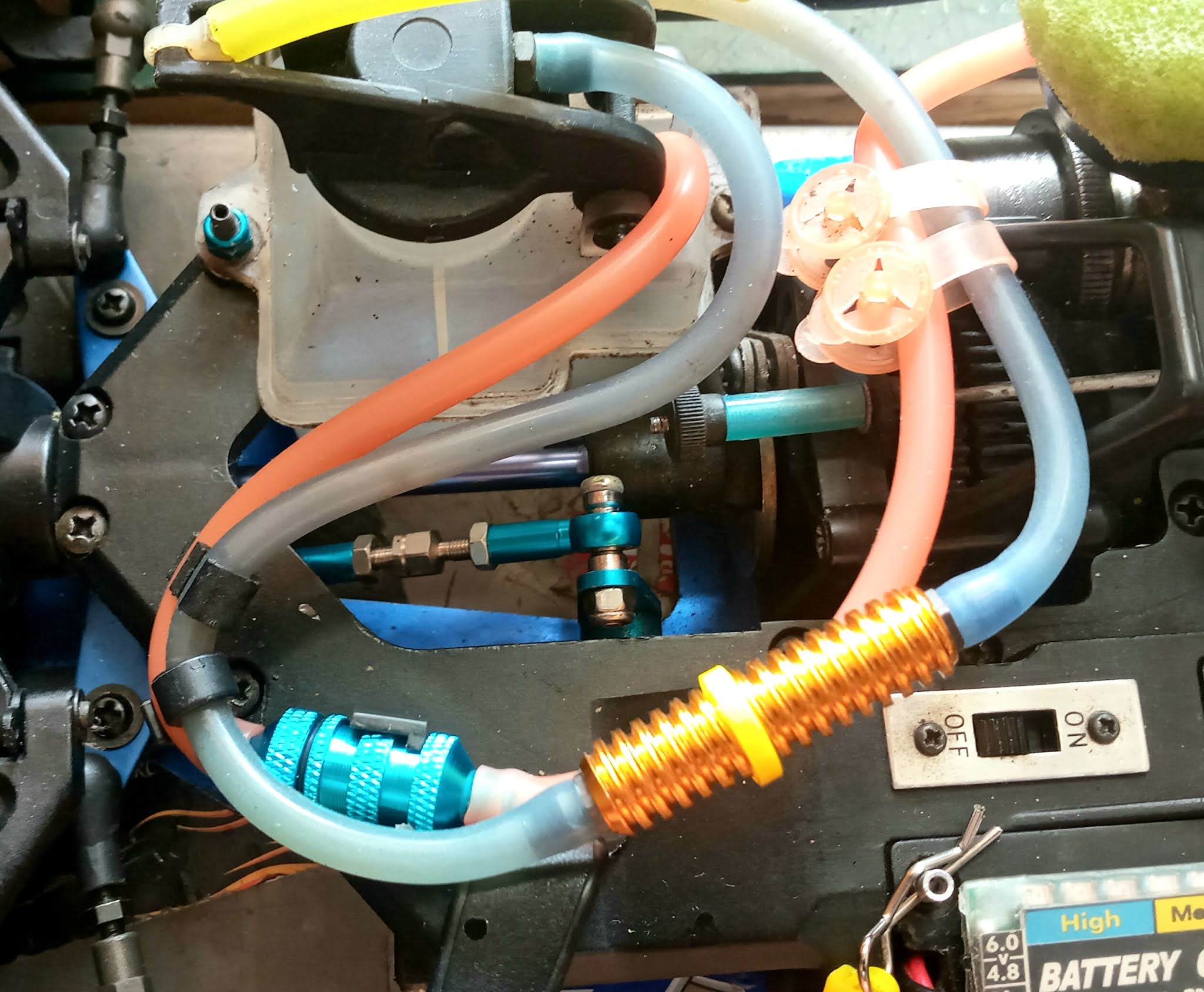

9/8/2021 add a air cooler and change the fuel filter buy from china, air cooler Rm0.60 and filter Rm5.
